Homeade float level tool?

  • Matteson
  • Matteson's Avatar Topic Author
  • Offline
  • User
  • Posts: 138
  • Thanks: 6

Homeade float level tool?

03 Apr 2013 01:02
#580335
I went and got a grease fitting but the threads were to large. Maybe I can find a smaller one. Does anybody have any other suggestions as to what would be easy to get my hands on to make something to get my float levels right?
KZ 900-a4

Attachments:

Please Log in or Create an account to join the conversation.

  • Patton
  • Patton's Avatar
  • Offline
  • KZr Legend
  • Posts: 18640
  • Thanks: 2100

Re: Homeade float level tool?

03 Apr 2013 01:09
#580337

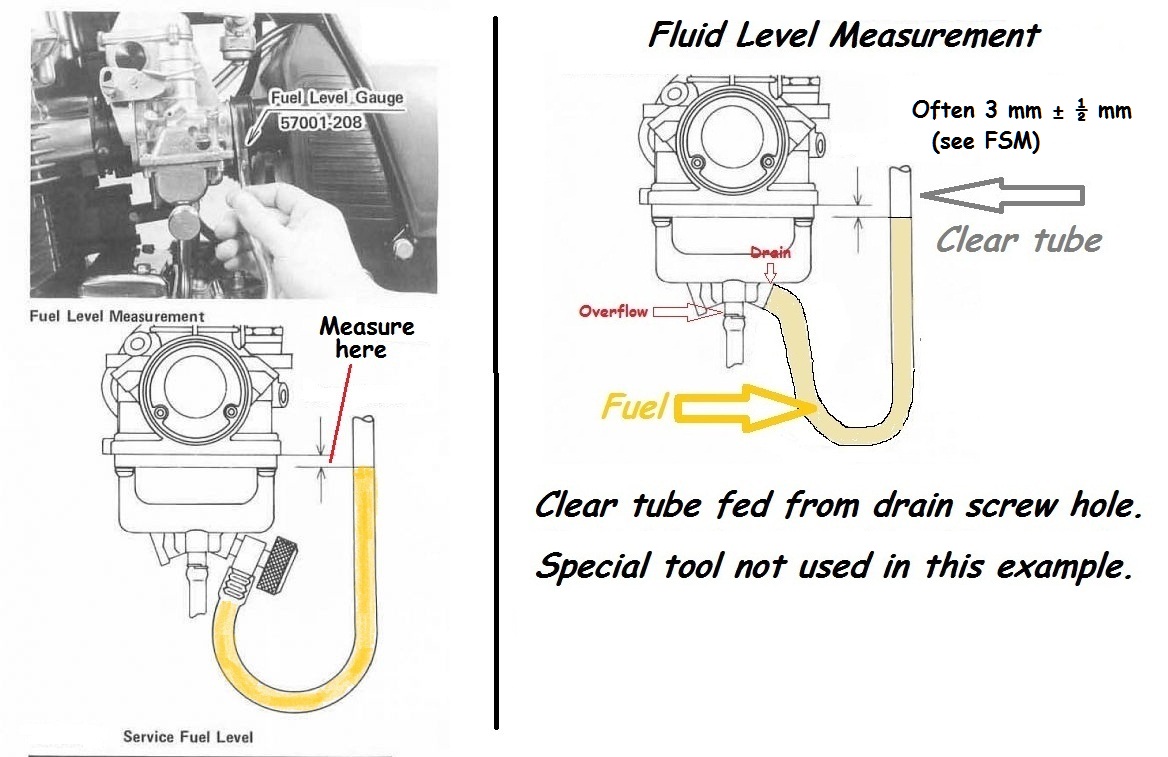

Float tang is adjusted to achieve desired fuel level as shown by the clear tube test.

Good Fortune! :)
1973 Z1
KZ900 LTD

Please Log in or Create an account to join the conversation.

  • Matteson
  • Matteson's Avatar Topic Author
  • Offline
  • User
  • Posts: 138
  • Thanks: 6

Re: Homeade float level tool?

03 Apr 2013 01:15
#580340
I know,and I need to pull the drain screw and put a banjo type screw with a nipple on it into the hole with a tube on it. Can't find that kind of screw yet. Been looking. The best I could find was a grease fitting. But it was too large. So before I go back all that way maybe somebody knows exactly what I'll need beforehand.I have 26mm vm's.
KZ 900-a4

Please Log in or Create an account to join the conversation.

  • Patton
  • Patton's Avatar
  • Offline
  • KZr Legend
  • Posts: 18640
  • Thanks: 2100

Re: Homeade float level tool?

03 Apr 2013 01:23
#580344


The "special tool" is not required.
Just use tubing size that fits snugly or "self-threads" into the drain hole.

Slight minimal seepage won't invalidate the test.

Good Fortune! :)
1973 Z1
KZ900 LTD

Attachments:

Please Log in or Create an account to join the conversation.

  • wireman
  • wireman's Avatar
  • Offline
  • User
  • The most interesting prick in the world
  • Posts: 4761
  • Thanks: 299

Re: Homeade float level tool?

03 Apr 2013 01:29 - 03 Apr 2013 01:30
#580345
Heres the hose with correct fitting from z1 enterprises

Attachment floattool.jpg not found


$9.00 and change plus shipping :)
posting from deep under a non-descript barn in an undisclosed location southwest of Omaha.

Attachments:

Last edit: 03 Apr 2013 01:30 by wireman.

Please Log in or Create an account to join the conversation.

  • Matteson
  • Matteson's Avatar Topic Author
  • Offline
  • User
  • Posts: 138
  • Thanks: 6

Re: Homeade float level tool?

04 Apr 2013 17:20
#580566
Thanks Patton got a 2mm clear hose from pet store in the aquarium section. Fit snug with no leaks as you said. #1 was too high as I figured. While I was in there the main jet was very loose and about to fall out. Maybe this is the culprit to the sputter over half throttle? We will soon find out...
KZ 900-a4

Please Log in or Create an account to join the conversation.
