Carb holders fixing to head, JIS screws?
- Mirbooya
- Topic Author
- Offline
- User
Less
More
05 Feb 2013 05:59 #570857
by Mirbooya
1981 Z750 L1
Carb holders fixing to head, JIS screws? was created by Mirbooya
Hi everybody.
I have to replace the carb holders on a 1981 E2 KZ750. I have noticed these are cross head screws and suspect they are theJIS type. Can anyone confirm this?
Thanks in advance.
I have to replace the carb holders on a 1981 E2 KZ750. I have noticed these are cross head screws and suspect they are theJIS type. Can anyone confirm this?
Thanks in advance.
1981 Z750 L1
Please Log in or Create an account to join the conversation.
- roy-b-boy-b
- Offline
- User
Less
More
- Posts: 3255
- Thank you received: 103
05 Feb 2013 08:46 #570864
by roy-b-boy-b
1979 LTD Street Fighter.1977 KZ1000
Replied by roy-b-boy-b on topic Carb holders fixing to head, JIS screws?
I would imagine they are Japaneese Industrial Standard heads on the screws unless someone traded them out. Do they have a dot on the head?
I use allen head fasteners to replace the screws. So much easier to remove. Roy
I use allen head fasteners to replace the screws. So much easier to remove. Roy
1979 LTD Street Fighter.1977 KZ1000
The following user(s) said Thank You: Mirbooya
Please Log in or Create an account to join the conversation.
- 650ed
- Offline
- User
Less
More
- Posts: 15344
- Thank you received: 2829
05 Feb 2013 10:00 #570870
by 650ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Replied by 650ed on topic Carb holders fixing to head, JIS screws?
They are JIS for sure. If you plan to remove them and don't have a set of JIS bits take a look at the link below; it should help. Also, soak the screws for 2 or 3 days with Kroil. If you do that and use JIS bits or bits modified as described in link the screws should come out with no problem. My screws had been untouched for 28 years and they came out easily using a modified bit after the soaking. Ed
kzrider.com/forum/21-tools/532335-budget...ewdriver-tips#532335
kzrider.com/forum/21-tools/532335-budget...ewdriver-tips#532335
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
The following user(s) said Thank You: Mirbooya
Please Log in or Create an account to join the conversation.
- Powerstroke_fan
- Offline
- User
Less
More
- Posts: 1017
- Thank you received: 83
05 Feb 2013 17:34 - 05 Feb 2013 17:35 #570908
by Powerstroke_fan
1980 kz1000B4 LTD- 1327cc 9-1 comp
Ported J model head
Psp-3x cams
RS 36s
Welded MK11 crank
Back-cut MK11 trans
MTC 2 stage lock up
Stretched 4-6 over running Hayabusa rear rim with 190 rear tire
Complete frame brace kit installed
And Much Much more- SOLD
2014- ZX14R all stock for now
Replied by Powerstroke_fan on topic Carb holders fixing to head, JIS screws?
I use my craftsman impact driver with a bigger than #2 bit. Has worked for me every time. Just make sure you push as hard as you can when you pull the trigger.
1980 kz1000B4 LTD- 1327cc 9-1 comp
Ported J model head
Psp-3x cams
RS 36s
Welded MK11 crank
Back-cut MK11 trans
MTC 2 stage lock up
Stretched 4-6 over running Hayabusa rear rim with 190 rear tire
Complete frame brace kit installed
And Much Much more- SOLD
2014- ZX14R all stock for now
Last edit: 05 Feb 2013 17:35 by Powerstroke_fan.
The following user(s) said Thank You: Mirbooya
Please Log in or Create an account to join the conversation.
- 650ed
- Offline
- User
Less
More
- Posts: 15344
- Thank you received: 2829
05 Feb 2013 21:25 - 05 Feb 2013 21:26 #570947
by 650ed

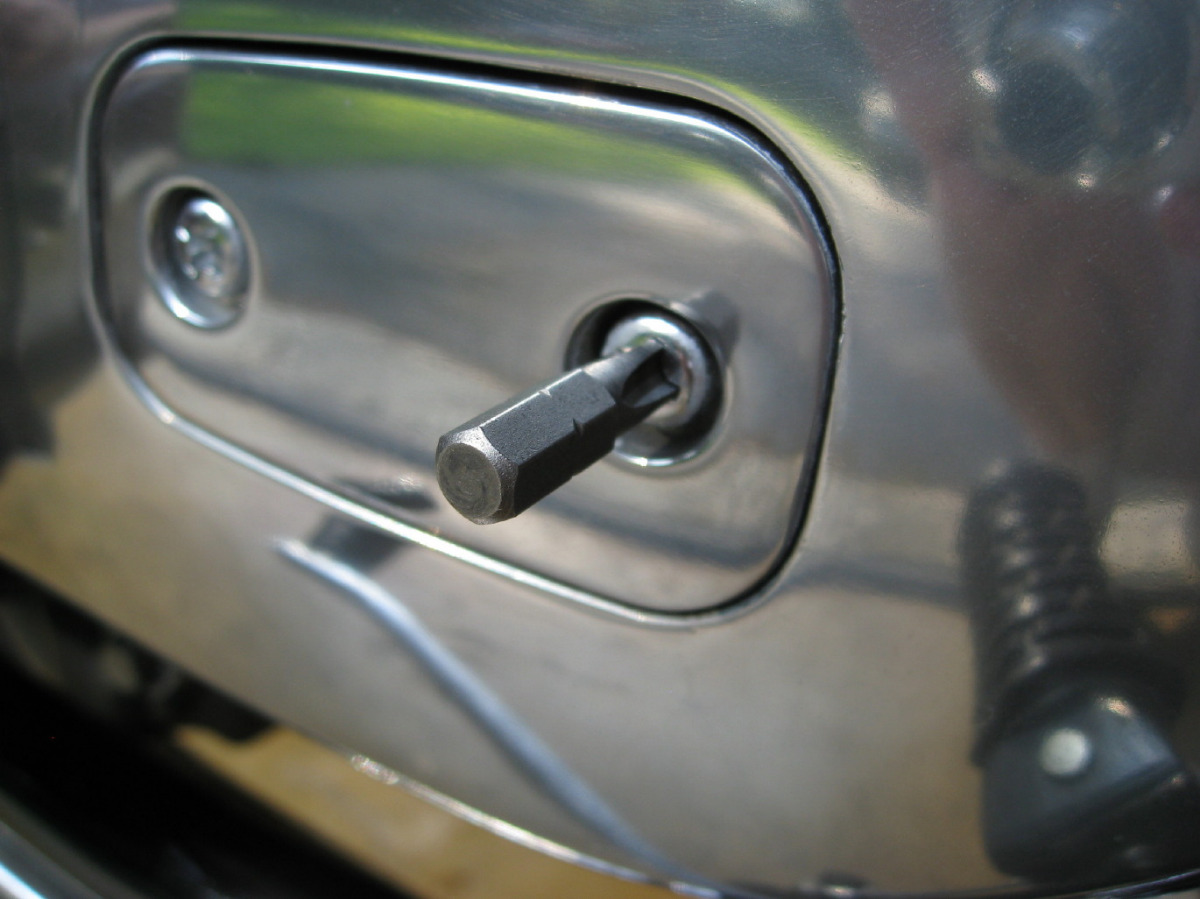

With just a few minutes of fine tuning you can make the screwdriver bit fit like the one below, and it will last a lifetime. Believe me when I say that greatly reduces the risk of stripping the screw head.
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Replied by 650ed on topic Carb holders fixing to head, JIS screws?
Powerstroke_fan wrote: I use my craftsman impact driver with a bigger than #2 bit. Has worked for me every time. Just make sure you push as hard as you can when you pull the trigger.
With just a few minutes of fine tuning you can make the screwdriver bit fit like the one below, and it will last a lifetime. Believe me when I say that greatly reduces the risk of stripping the screw head.
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Last edit: 05 Feb 2013 21:26 by 650ed.
Please Log in or Create an account to join the conversation.
- Mirbooya
- Topic Author
- Offline
- User
Less
More
- Posts: 25
- Thank you received: 0
05 Feb 2013 22:39 #570959
by Mirbooya
1981 Z750 L1
Replied by Mirbooya on topic Carb holders fixing to head, JIS screws?
Thanks for the advice everyone.
I serviced the ATU last week and striped out one of the screws using standard phillips head bit on an impact driver. Luckily I could remove it with a vicegrip but I had my suspicions about JIS screws then. Tried to find a dot on the screws but could not. I have read elsewhere on the forum that the screws that fix the ATU plate are JIS.
There is a pretty good article on wikipedia as well with the differences between JIS and phillips: en.wikipedia.org/wiki/List_of_screw_drives
I'll go with 650ed's advice and make up some bits with a shallower head.
I serviced the ATU last week and striped out one of the screws using standard phillips head bit on an impact driver. Luckily I could remove it with a vicegrip but I had my suspicions about JIS screws then. Tried to find a dot on the screws but could not. I have read elsewhere on the forum that the screws that fix the ATU plate are JIS.
There is a pretty good article on wikipedia as well with the differences between JIS and phillips: en.wikipedia.org/wiki/List_of_screw_drives
I'll go with 650ed's advice and make up some bits with a shallower head.
