TOPIC:

Installing seal in tach drive 17 Nov 2012 16:12 #558813

  • Patton
  • Patton's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 18640
  • Thank you received: 2098
When fitting a new seal into the tach drive housing, which end of the seal (small end with spring A, or large end without spring B) goes in first?



Good Fortune! :)
1973 Z1
KZ900 LTD
Attachments:

Please Log in or Create an account to join the conversation.

Installing seal in tach drive 17 Nov 2012 16:26 #558816

  • MFolks
  • MFolks's Avatar
  • Offline
  • User
  • Posts: 6650
  • Thank you received: 540
I believe "B" is the correct position. Did the old seal vanish?
1982 GPZ1100 B2
General Dynamics/Convair 1983-1993
GLCM BGM-109 Tomahawk, AGM-129A Advanced Cruise Missile (ACM)

Please Log in or Create an account to join the conversation.

Installing seal in tach drive 17 Nov 2012 16:50 #558818

  • 650ed
  • 650ed's Avatar
  • Offline
  • User
  • Posts: 15344
  • Thank you received: 2828
I recall installing mine as shown in figure "A", and I think that's how it was originally installed. I may be wrong, but I am under the impression that the spring side of any seal faces the inside of the object being sealed and the smooth side faces the outside. Ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)

Please Log in or Create an account to join the conversation.

Installing seal in tach drive 17 Nov 2012 16:58 #558819

  • 4TheKZ1000
  • 4TheKZ1000's Avatar
  • Visitor
If I was to guess and I am..... :laugh:

I would think that the proper way is "B"

Im not just saying "B" to kiss Ed's azz..... :woohoo: :woohoo: :woohoo: :woohoo:

Please Log in or Create an account to join the conversation.

Last edit: by 4TheKZ1000.

Installing seal in tach drive 17 Nov 2012 19:29 #558838

  • 650ed
  • 650ed's Avatar
  • Offline
  • User
  • Posts: 15344
  • Thank you received: 2828
Seals go in with spring side facing in / flat side facing out. This way any pressure inside the engine pushes the seal lips tighter against seat. Otherwise pressure can push oil past seal. Flat side of seals generally fit flush or slightly recessed in housing. Also make removing old seals possible by punching 2 holes in flat side and pulling seal out. Take a look at every other seal on your engine or the front forks; flat side always faces out. ;) Ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)

Please Log in or Create an account to join the conversation.

Installing seal in tach drive 17 Nov 2012 20:58 #558853

  • 4TheKZ1000
  • 4TheKZ1000's Avatar
  • Visitor

650ed wrote: Seals go in with spring side facing in / flat side facing out. This way any pressure inside the engine pushes the seal lips tighter against seat. Otherwise pressure can push oil past seal. Flat side of seals generally fit flush or slightly recessed in housing. Also make removing old seals possible by punching 2 holes in flat side and pulling seal out. Take a look at every other seal on your engine or the front forks; flat side always faces out. ;) Ed


Sounds like Ed knows alot about Lips.....scarry..... :ohmy:

Please Log in or Create an account to join the conversation.

Installing seal in tach drive 17 Nov 2012 21:06 #558858

  • KZJOE900
  • KZJOE900's Avatar
  • Offline
  • Admin
  • Posts: 1971
  • Thank you received: 443
I'm with Ed on this one. When I changed mine was I very mindful of the orientation of the old one while taking it out. So, I'm pretty sure it was version A.
Current project 76 KZ900 (This was a Vetter model)
76 KZ900
81 XJ550H SECA (Current Project)
82 XJ550R SECA
Past:
86 FJ1200
74 Z1900
72 CB450

Please Log in or Create an account to join the conversation.

Installing seal in tach drive 17 Nov 2012 21:30 #558861

  • DesertKZ
  • DesertKZ's Avatar
  • Offline
  • User
  • Posts: 227
  • Thank you received: 20
Version A. Don't drive the new seal all the way in, just flush, and let the tach cable seat it.
1979 KZ1000 Shaft
1979 CX500C
1975 GT750 Smoker

Please Log in or Create an account to join the conversation.

Installing seal in tach drive 19 Nov 2012 05:05 #559091

  • Garn
  • Garn's Avatar
  • Offline
  • User
  • Posts: 265
  • Thank you received: 13

650ed wrote: ........Take a look at every other seal on your engine or the front forks; flat side always faces out. ;) Ed


I have laboured over this some time ago, I believe its "A" in first.
The above quote of 650Ed is interesting.... I have to agree, I can't think of any seal that have the spring side showing its always the flat side out!

RegardZ.
1 x 73 Z1 (Jaffa), 74 Z1A, 76 Z900-A4
1 x 73 Yamaha TX500 & 98 fzx250 Zeal
Sydney Australia

Please Log in or Create an account to join the conversation.

Last edit: by Garn.

Installing seal in tach drive 19 Nov 2012 11:35 #559115

  • undiablo
  • undiablo's Avatar
  • Offline
  • User
  • Posts: 436
  • Thank you received: 64
I agree with Ed. The correct mounting position is A. ;)
Kawasaki KZ 750/4 LTD 1981
Kawasaki KLR 650 2011
Argentina - Buenos Aires

Please Log in or Create an account to join the conversation.

Installing seal in tach drive 28 Sep 2021 22:47 #855894

  • yorkshirekid
  • yorkshirekid's Avatar
  • Offline
  • User
  • Posts: 2
  • Thank you received: 0
I've bought a tach seal kit for my z900 A4 and cannot fit the large sping oil seal. It just sits on top of the housing.

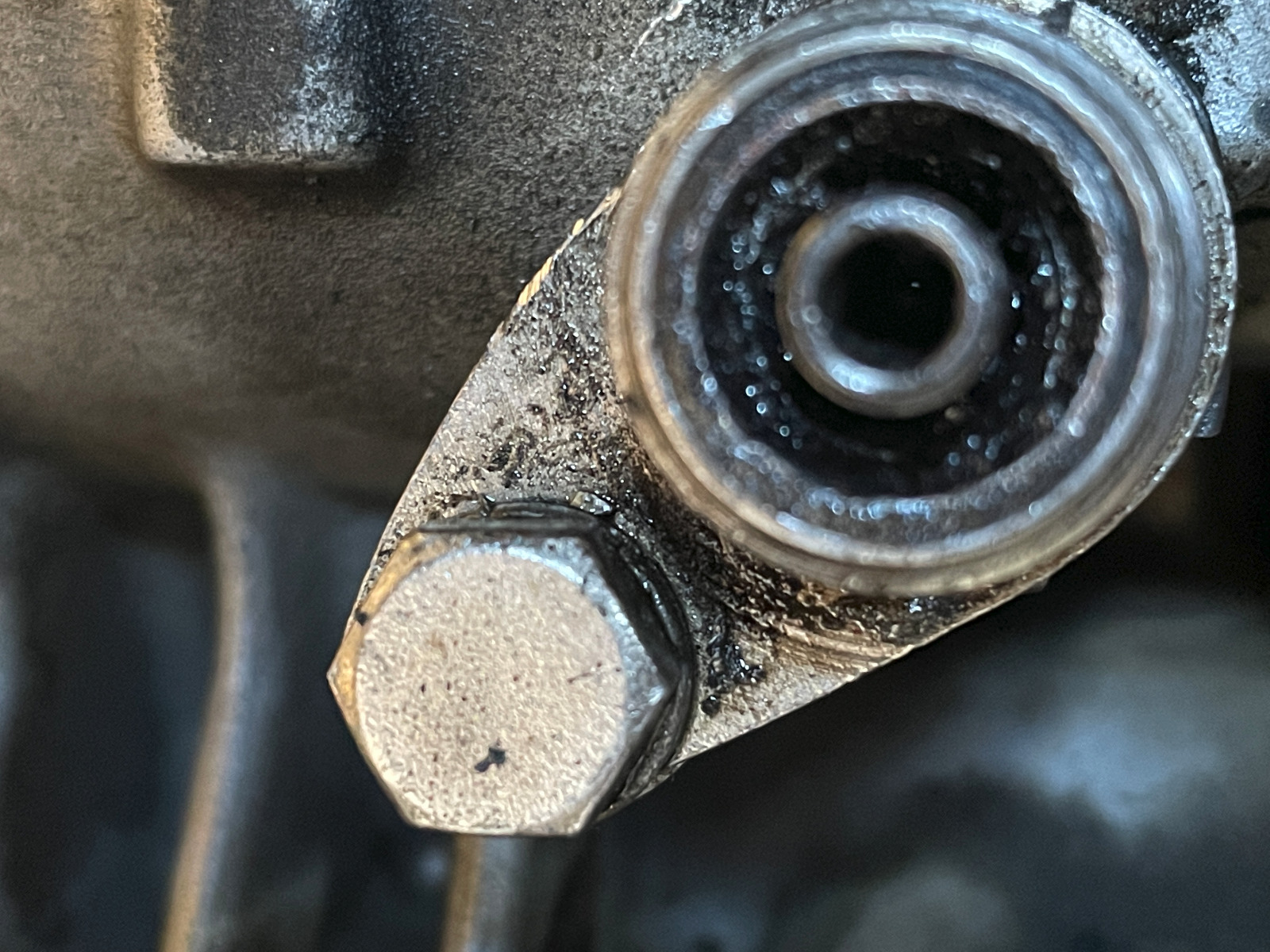

pic1 - shows the old oil seal before I dug it out. It is clearly inside the housing.

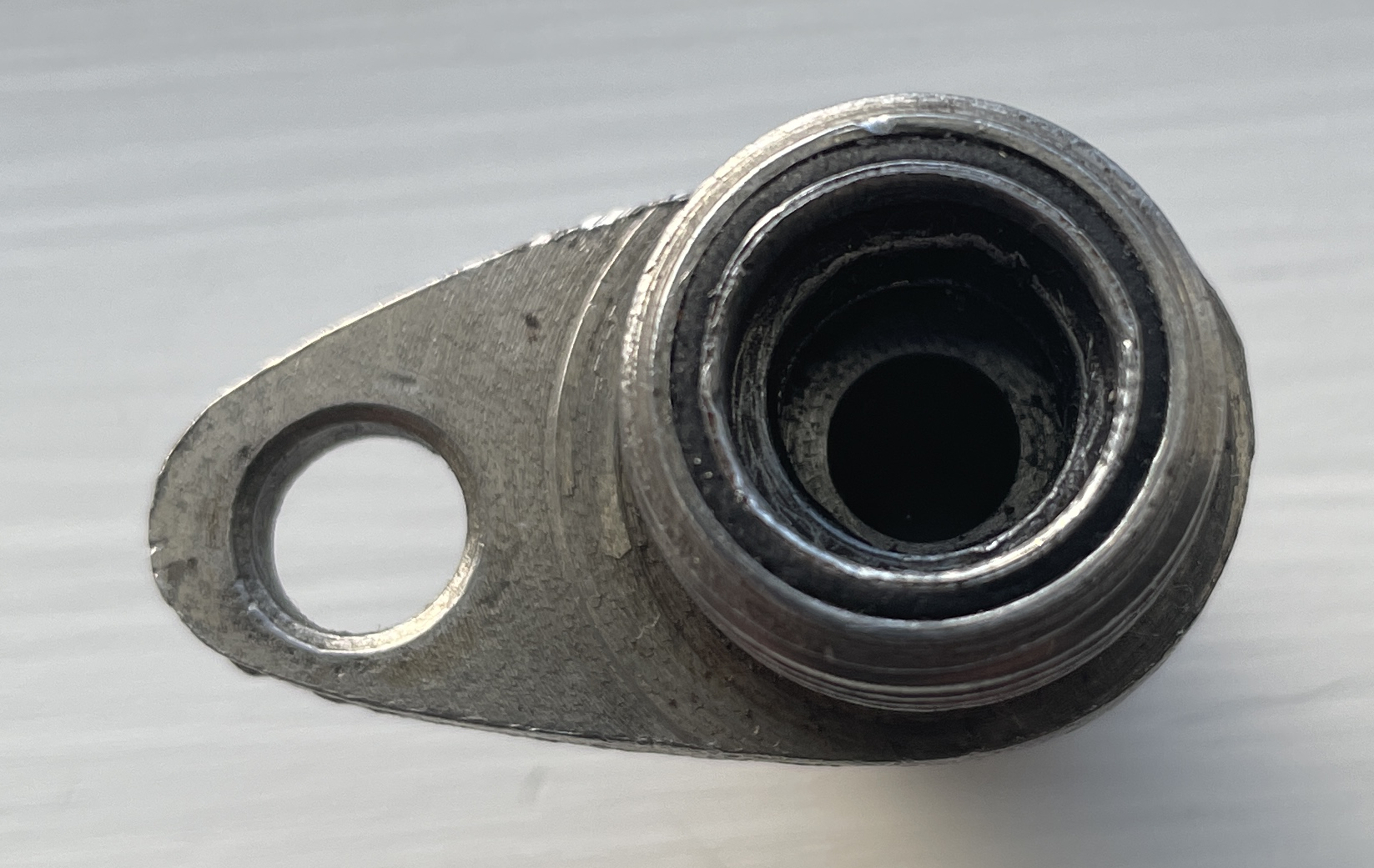

pic2 - shows the cleaned out housing

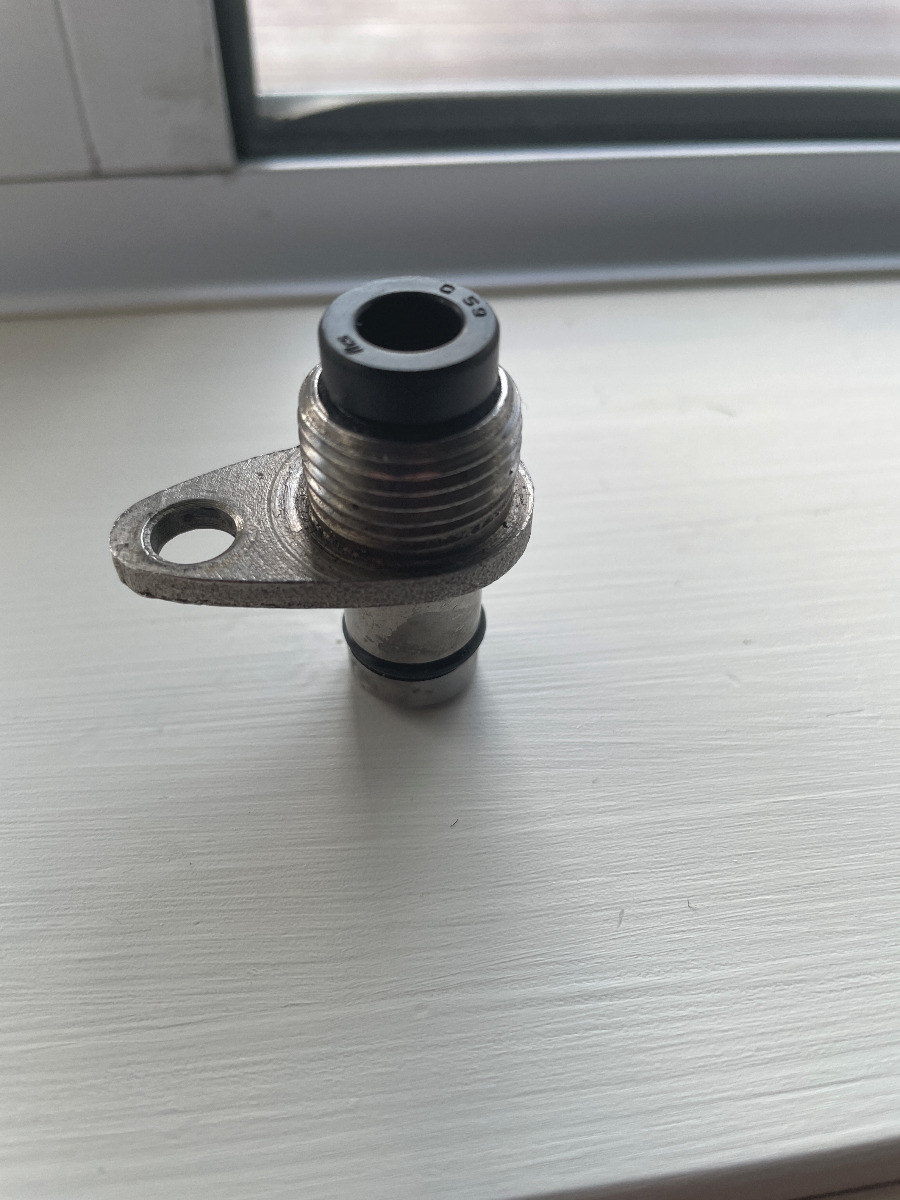

pic3 - shows the housing with a new seal on the outside from the kit

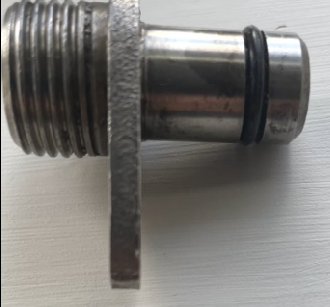

pic4 - seal will not go inside housing.

Anyone help me with this please - thank you

Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by SWest.

Installing seal in tach drive 29 Sep 2021 12:09 #855913

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3921
  • Thank you received: 1892
Your old seal outer body is not completey removed from the tach gear housing!!!

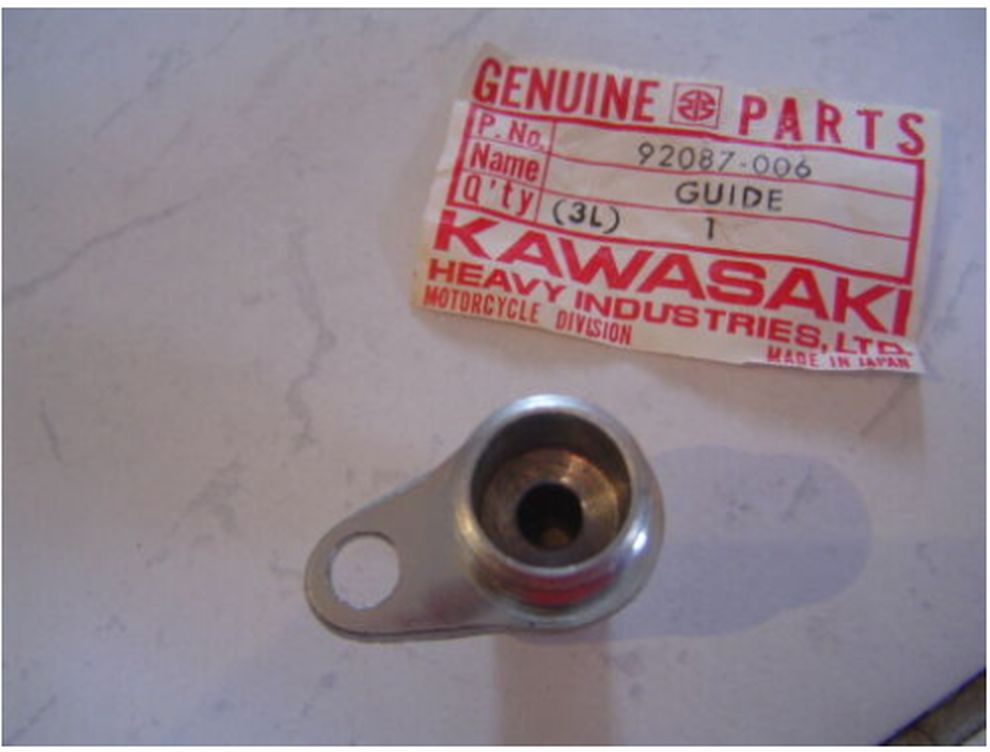

EDIT, add a pic of the empty tach gear housing



Attachments:
The following user(s) said Thank You: DOHC, SWest, Rick H.

Please Log in or Create an account to join the conversation.

Last edit: by Scirocco.
