Car tach on kz 700
- ready2ryde1985
- Topic Author
- Offline
- User
- got to love these kzs
Less
More
24 Jun 2012 18:05 - 24 Jun 2012 20:29 #531479
by ready2ryde1985
84 kz 700 a1
82 kz550 ltd
Car tach on kz 700 was created by ready2ryde1985
So I got this cool new autometer tach... :woohoo:
I have looked up and tryed all otions and this is what i have got. :silly:
so two dioeds and a resistor is what I read on our archive sweet 5 bucks..
come home try it out no go :sick:
tryed a y with the two diodes to each coil and no resistor no go
hook it to one coil reads 500 rpm when bike idols at 1000 checked by the kz dr. :huh:
since my bike had an eletric tack I thought try the stock pickup same reading 500 rpm at 1000 so atleast im learning .. but now what??? :dry:
[attachment:1]IMG_20120623_234333.jpg[/attachment]
I could realy use some help tryed the two diagrams i have found on here to no avil..
not real good with wire please help!!
I have looked up and tryed all otions and this is what i have got. :silly:
so two dioeds and a resistor is what I read on our archive sweet 5 bucks..
come home try it out no go :sick:
tryed a y with the two diodes to each coil and no resistor no go
hook it to one coil reads 500 rpm when bike idols at 1000 checked by the kz dr. :huh:
since my bike had an eletric tack I thought try the stock pickup same reading 500 rpm at 1000 so atleast im learning .. but now what??? :dry:
[attachment:1]IMG_20120623_234333.jpg[/attachment]
Attachment IMG_20120622_181953.jpg not found
I could realy use some help tryed the two diagrams i have found on here to no avil..
not real good with wire please help!!
84 kz 700 a1
82 kz550 ltd
Attachments:
Last edit: 24 Jun 2012 20:29 by ready2ryde1985. Reason: trying to move to right catigory
Please Log in or Create an account to join the conversation.
- ready2ryde1985
- Topic Author
- Offline
- User
- got to love these kzs
Less
More
- Posts: 467
- Thank you received: 4
24 Jun 2012 21:47 #531511
by ready2ryde1985
84 kz 700 a1
82 kz550 ltd
Replied by ready2ryde1985 on topic Car tach on kz 700
com on guys no one has had this issue ??? I have to make this thing work.. so far all i can come up with is finding a way to dubble the pulses from a single coil.. or from the tach pick up.. also should mention it has been switched to 4 cyl by the dip switches
84 kz 700 a1
82 kz550 ltd
Please Log in or Create an account to join the conversation.
- DiamondSkyBlue1000
- Offline
- User
Less
More
- Posts: 345
- Thank you received: 40
24 Jun 2012 22:03 #531514
by DiamondSkyBlue1000
Replied by DiamondSkyBlue1000 on topic Car tach on kz 700
Not familiar with the diagrams you mentioned.
You are getting half the pulses you should be getting but I would expect you to get twice as many due to the wasted spark aspect of these ignitions.
Point us to the diagrams.
You are getting half the pulses you should be getting but I would expect you to get twice as many due to the wasted spark aspect of these ignitions.
Point us to the diagrams.
Please Log in or Create an account to join the conversation.
- 4TheKZ1000
- Visitor
24 Jun 2012 22:03 - 24 Jun 2012 22:11 #531515
by 4TheKZ1000
Replied by 4TheKZ1000 on topic Car tach on kz 700
when you wired the dioeds and res did you wire them correct. they need to be wired a certin way. they have a polarty and can only go one way, the wrong way no dice. see my pic as I have done this also. in the instructions the tach needed to be set for a 4 6 or 8 cylinder. if it was a 8 you did nothing. if it was a 6 cylinder you cliped a brown wire. if it was a 4 cylinder you cliped two wires. was this the case with your tach?
Attachments:
Last edit: 24 Jun 2012 22:11 by 4TheKZ1000. Reason: info
Please Log in or Create an account to join the conversation.
- DiamondSkyBlue1000
- Offline
- User
Less
More
- Posts: 345
- Thank you received: 40
24 Jun 2012 22:20 #531518
by DiamondSkyBlue1000
Replied by DiamondSkyBlue1000 on topic Car tach on kz 700
Did some quick Google-fu and found that the diode/resistor network was called for when using a tach (that was set up for a 4 cylinder) on a 2 cylinder bike. That way you are getting the pulse from both coils without them interfering with each other. Is this sounding right?
Have you tried running it in 8 cylinder mode with your current setup?
Have you tried running it in 8 cylinder mode with your current setup?
Please Log in or Create an account to join the conversation.
- DiamondSkyBlue1000
- Offline
- User
Less
More
- Posts: 345
- Thank you received: 40
24 Jun 2012 22:25 #531520
by DiamondSkyBlue1000
Replied by DiamondSkyBlue1000 on topic Car tach on kz 700
That makes sense but if his tach is capable of sensing a 4 cylinder setup. why does he need the diode/resistor network?
Please Log in or Create an account to join the conversation.
- ready2ryde1985
- Topic Author
- Offline
- User
- got to love these kzs
Less
More
- Posts: 467
- Thank you received: 4
24 Jun 2012 23:33 #531534
by ready2ryde1985
84 kz 700 a1
82 kz550 ltd
Replied by ready2ryde1985 on topic Car tach on kz 700
so to put this down once more ..
i hook up to one coil 500 rpm
same if i hook into stock tach pickup
now the fun stough
i have tryed this powered and not switched and tryed almost every veriation and still no good
i am not shure if the diodes are not right or what but it doesnt pick up at all no matter witch way the are facing
as for the resistor im at a 470k diodes are 1.5 amp 2761114
i dont realy wana spend 80 on a converter i got the tach for 100 so if i have to buy the 80 $ adapter im 200 in and i could have just went with a bike tach for that
i hook up to one coil 500 rpm
same if i hook into stock tach pickup
now the fun stough
Attachment TachAdapter.gif not found
i have tryed this powered and not switched and tryed almost every veriation and still no good
i am not shure if the diodes are not right or what but it doesnt pick up at all no matter witch way the are facing
as for the resistor im at a 470k diodes are 1.5 amp 2761114
i dont realy wana spend 80 on a converter i got the tach for 100 so if i have to buy the 80 $ adapter im 200 in and i could have just went with a bike tach for that
84 kz 700 a1
82 kz550 ltd
Attachments:
Please Log in or Create an account to join the conversation.
- ready2ryde1985
- Topic Author
- Offline
- User
- got to love these kzs
Less
More
- Posts: 467
- Thank you received: 4
24 Jun 2012 23:42 #531536
by ready2ryde1985

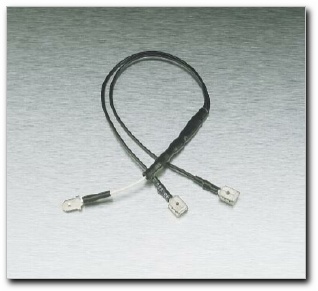

dyna tach pick up splitter 20$
this is autometers 80
i didnt use 100k diodes i think mine are heavy could that be my issue?
84 kz 700 a1
82 kz550 ltd
Replied by ready2ryde1985 on topic Car tach on kz 700
dyna tach pick up splitter 20$
Attachment untitled_2012-06-24.png not found
this is autometers 80
i didnt use 100k diodes i think mine are heavy could that be my issue?
84 kz 700 a1
82 kz550 ltd
Please Log in or Create an account to join the conversation.
- DiamondSkyBlue1000
- Offline
- User
Less
More
- Posts: 345
- Thank you received: 40
25 Jun 2012 00:02 - 25 Jun 2012 00:30 #531544
by DiamondSkyBlue1000
Replied by DiamondSkyBlue1000 on topic Car tach on kz 700
I don't think the diodes being too heavy is going to be an issue. They are acting like check valves to keep the coils from crosstalking to each other. The resistor is a failsafe in case the diode(s) short out.
Do you have the install instructions for the tach?
The only one I can find on the net shows the input (green wire) coming from the negative side of the coil.
This is what I am looking at:
www.autometer.com/productPDF/1244.pdf
Could it just be a setup error? Having an offset of exactly half the expected readings sounds like a setup issue.
I'm looking at your circuit and it's definitely different than 4thekz1000's. Yours has the diodes backwards and you have a pullup resistor on the +12VDC side. I'm going to guess that your circuit is for a different mfr of tach. Try his circuit.
Do you have the install instructions for the tach?
The only one I can find on the net shows the input (green wire) coming from the negative side of the coil.
This is what I am looking at:
www.autometer.com/productPDF/1244.pdf
Could it just be a setup error? Having an offset of exactly half the expected readings sounds like a setup issue.
I'm looking at your circuit and it's definitely different than 4thekz1000's. Yours has the diodes backwards and you have a pullup resistor on the +12VDC side. I'm going to guess that your circuit is for a different mfr of tach. Try his circuit.
Last edit: 25 Jun 2012 00:30 by DiamondSkyBlue1000.
Please Log in or Create an account to join the conversation.
- ready2ryde1985
- Topic Author
- Offline
- User
- got to love these kzs
Less
More
- Posts: 467
- Thank you received: 4
25 Jun 2012 01:20 #531556
by ready2ryde1985
84 kz 700 a1
82 kz550 ltd
Replied by ready2ryde1985 on topic Car tach on kz 700
Ok the digram I posted was found on here I noticed the flip asumed they were for a dif tach I didn't have to run 12 v power ti the green wire autometers directions say to just hook it to the coil .. all I know is I am not the only one with this isue so I will call autometer tomarro
84 kz 700 a1
82 kz550 ltd
Please Log in or Create an account to join the conversation.
- DiamondSkyBlue1000
- Offline
- User
Less
More
- Posts: 345
- Thank you received: 40
25 Jun 2012 01:43 #531559
by DiamondSkyBlue1000
Replied by DiamondSkyBlue1000 on topic Car tach on kz 700
Could you let us know what you find out?
Please Log in or Create an account to join the conversation.
- ready2ryde1985
- Topic Author
- Offline
- User
- got to love these kzs
Less
More
- Posts: 467
- Thank you received: 4
25 Jun 2012 21:03 #531703
by ready2ryde1985
84 kz 700 a1
82 kz550 ltd
Replied by ready2ryde1985 on topic Car tach on kz 700
auto meter was no help
had some car guys say to hook it to the hot lol i dont see that working
all i want is some in line interpeter
one beep in ============ two beeps out
is there no simple adapter for this ..
had some car guys say to hook it to the hot lol i dont see that working
all i want is some in line interpeter
one beep in ============ two beeps out
is there no simple adapter for this ..
84 kz 700 a1
82 kz550 ltd
