Show us your unique bike mod!

  • Street Fighter LTD
  • Offline
  • Moderator
  • TURBO, Its Better to be Blown than Injected
More
08 Aug 2020 17:51 #832445 by Street Fighter LTD
Replied by Street Fighter LTD on topic Show us your unique bike mod!

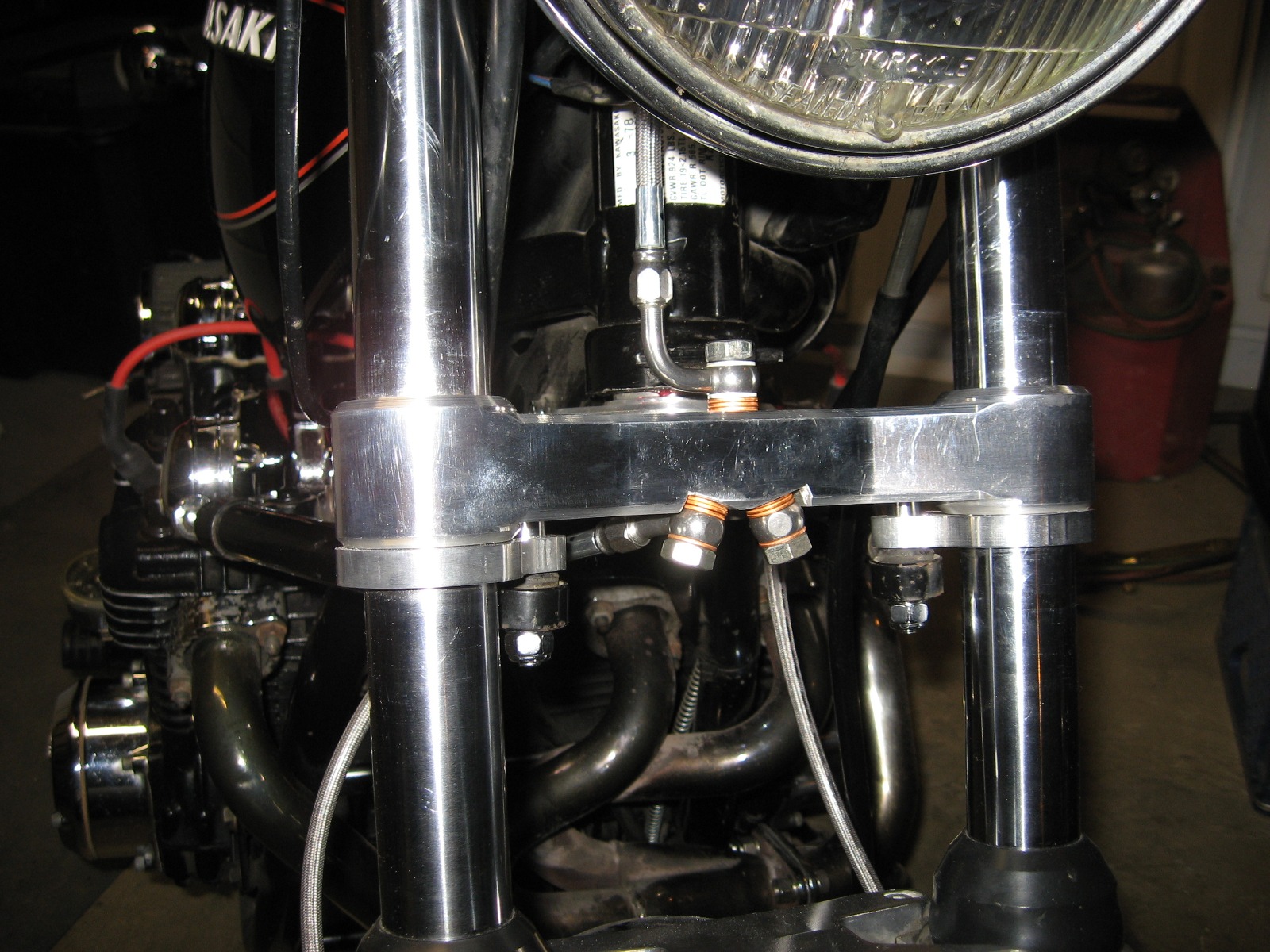

Billet Lower Triple tree by Les Holt at PDM
and Kosman steering dampner mounts for dual dampners
Notice how the brake splitter is machined into the tree


Original owner 78 1000 LTD
Mr Turbo Race Kit, MTC 1075 Turbo pistons by PitStop Performance , Falicon Ultra Lite Super Crank, APE everything. Les Holt @ PDM's Billet Goodies . Frame by Chuck Kurzawa @ Logghe Chassis . Deep sump 5qt oil pan. RIP Bill Hahn
Attachments:
The following user(s) said Thank You: DOHC

Please Log in or Create an account to join the conversation.

  • Street Fighter LTD
  • Offline
  • Moderator
  • TURBO, Its Better to be Blown than Injected
More
08 Aug 2020 17:54 #832446 by Street Fighter LTD
Replied by Street Fighter LTD on topic Show us your unique bike mod!

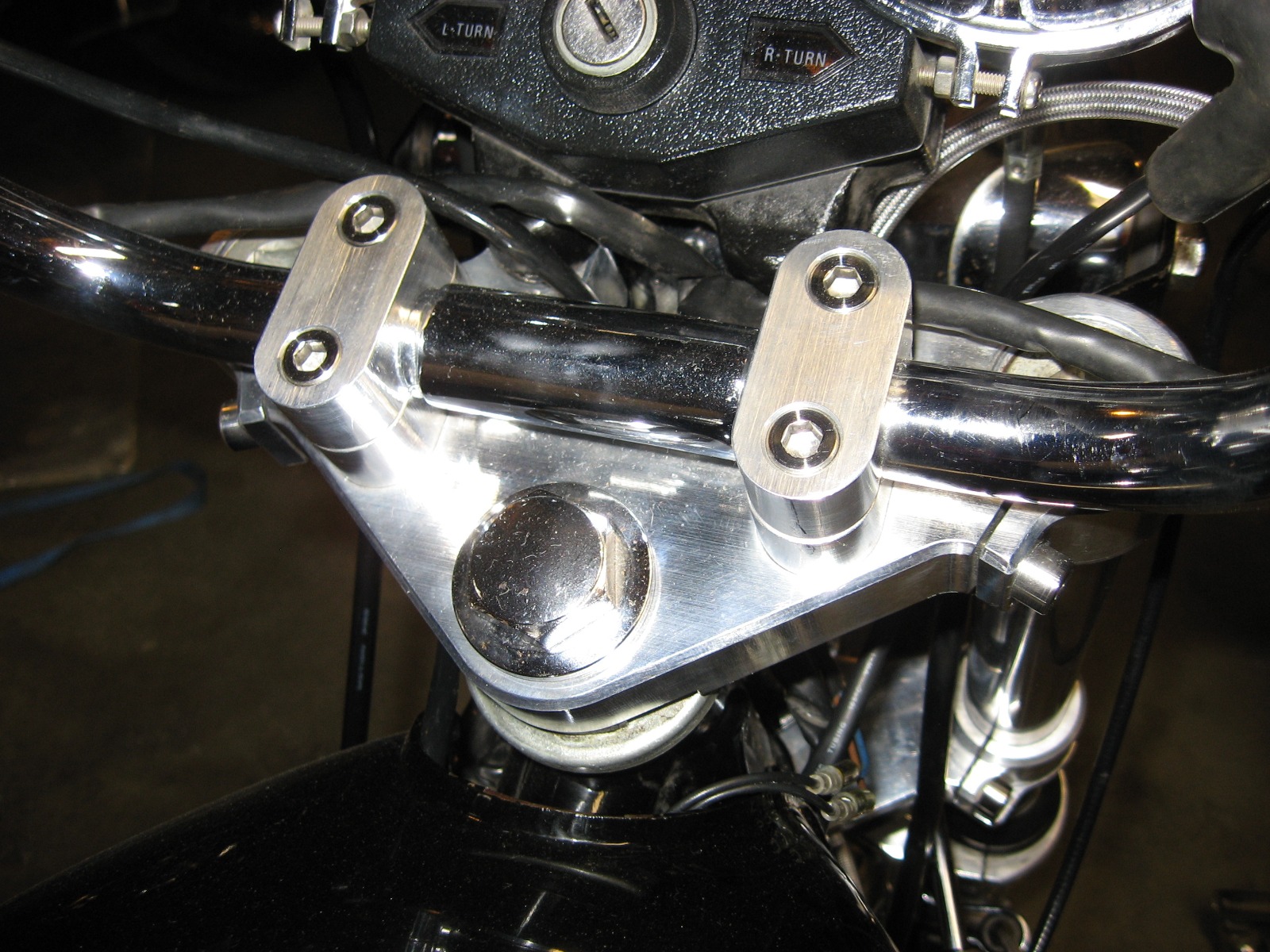

Billet Top Triple Tree by PDM
Custom stem fits stock size ALL BALLS tapered roller bearings


Original owner 78 1000 LTD
Mr Turbo Race Kit, MTC 1075 Turbo pistons by PitStop Performance , Falicon Ultra Lite Super Crank, APE everything. Les Holt @ PDM's Billet Goodies . Frame by Chuck Kurzawa @ Logghe Chassis . Deep sump 5qt oil pan. RIP Bill Hahn
Attachments:

Please Log in or Create an account to join the conversation.

  • Sheath
  • Topic Author
  • Offline
  • User
  • 05 17 1984
More
09 Aug 2020 08:51 #832474 by Sheath
Replied by Sheath on topic Show us your unique bike mod!
Nice :) and the machined in brake splitter is very neat too :)

Please Log in or Create an account to join the conversation.

More
09 Aug 2020 14:58 #832507 by loudhvx
Replied by loudhvx on topic Show us your unique bike mod!
I must now reassemble my mind after seeing the brake-splitter triple tree. That's awesome.

Please Log in or Create an account to join the conversation.

More
09 Aug 2020 15:54 #832511 by Warren3200gt
Replied by Warren3200gt on topic Show us your unique bike mod!

loudhvx wrote: I must now reassemble my mind after seeing the brake-splitter triple tree. That's awesome.

H1's came from the factory with that splitter set up. Not sure about H2's. Anyone?


Z1000J2 somewhat modified!

The following user(s) said Thank You: loudhvx

Please Log in or Create an account to join the conversation.

More
09 Aug 2020 16:12 #832512 by Dr. Gamma
Replied by Dr. Gamma on topic Show us your unique bike mod!
H2'S were just like the Z1 setup.
Now the '73 S2 350 triple and the '74 and '75 S3 400 triples both had the brake fluid in the lower triple tree.

1972 H2 750 Cafe Racer built in 1974.
1976 KH400 Production Road Racer.
1979 Kz1000 MK. II Old AMA/WERA Superbike.
1986 RG500G 2 stroke terror.
1986 GSXR750RG The one with the clutch that rattles!

Up in the hills near Prescott, Az.
The following user(s) said Thank You: loudhvx, Warren3200gt

Please Log in or Create an account to join the conversation.

More
09 Aug 2020 16:45 - 09 Aug 2020 16:47 #832517 by Dr. Gamma
Replied by Dr. Gamma on topic Show us your unique bike mod!

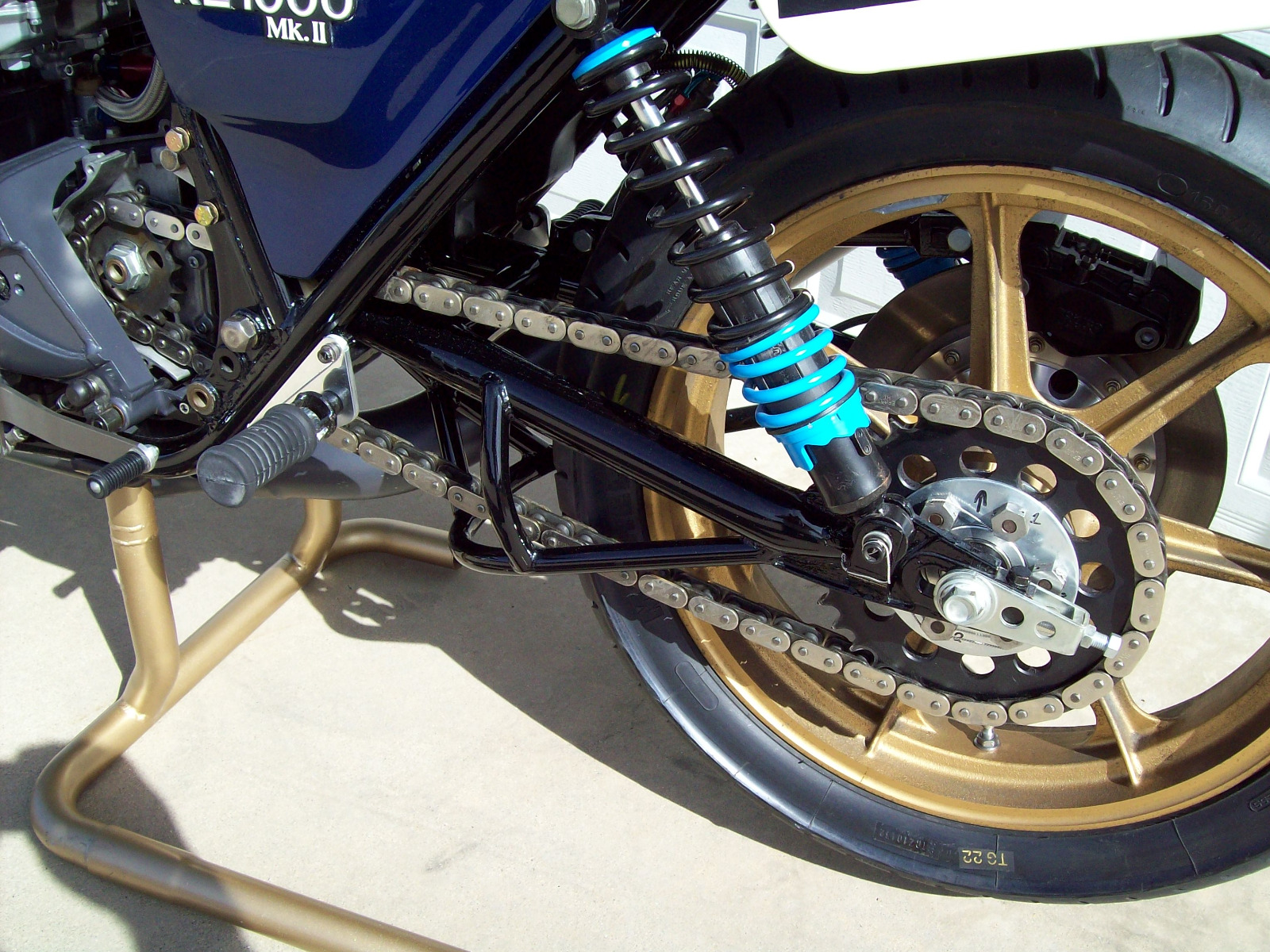

Here is the story about the modifications done to the swing arm and the swing arm pivot bolt. Way back in 1978 when I started building my Superbike, the rules stated you had to use a stock swing arm with out any additional bracing. Well what most of the top teams were doing was cutting open the swing arm and welding in some internal bracing then weld the swing back together. The only thing that gave it away was the two welds that ran the length of the arm!!!! That is what Pierre DesRoches did to my swing arm. Then in 1980 they allowed you to brace the swing arms. I added the lower hoop and bracing to my swing arm. I used some thick wall 4130 tubing on mine.

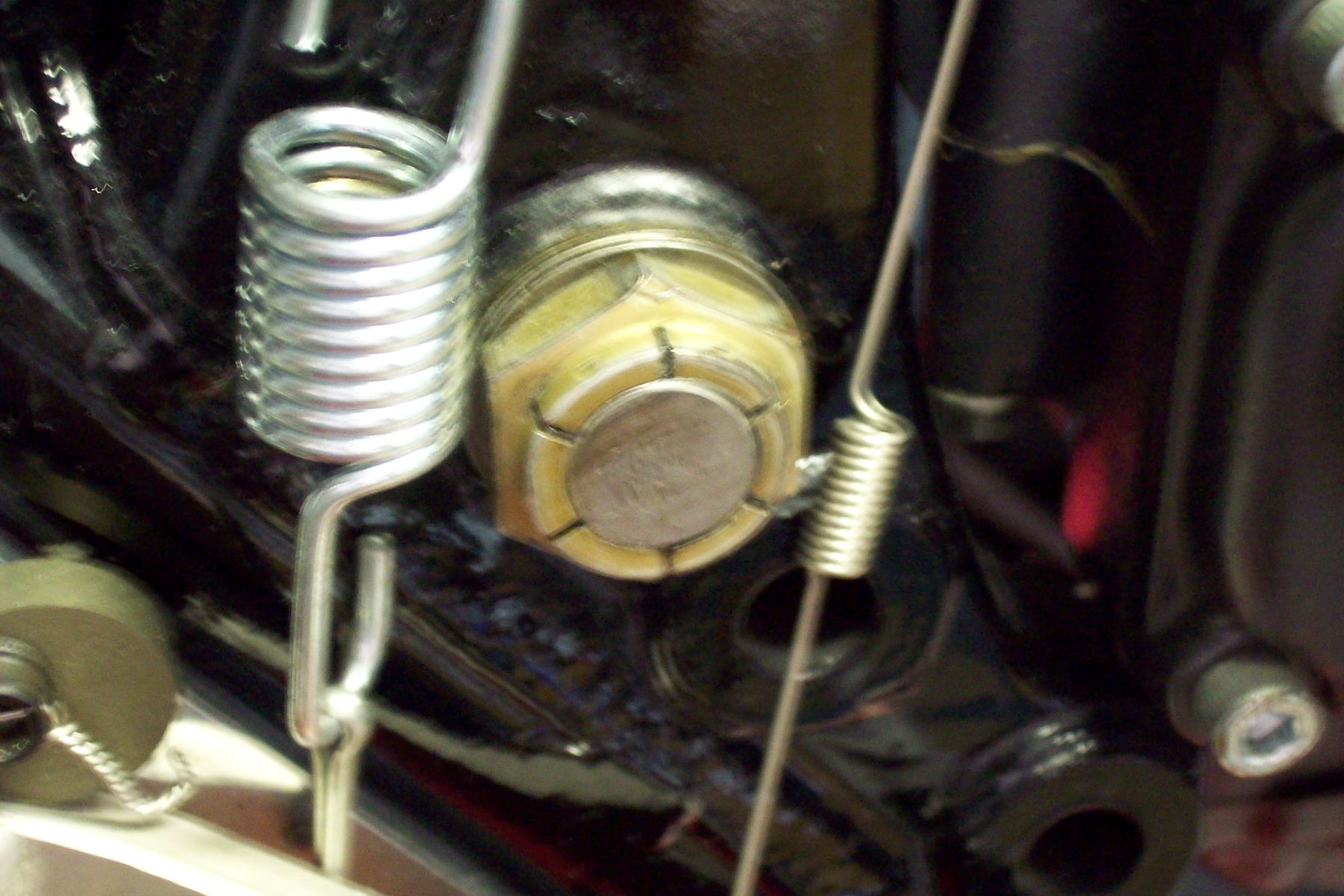

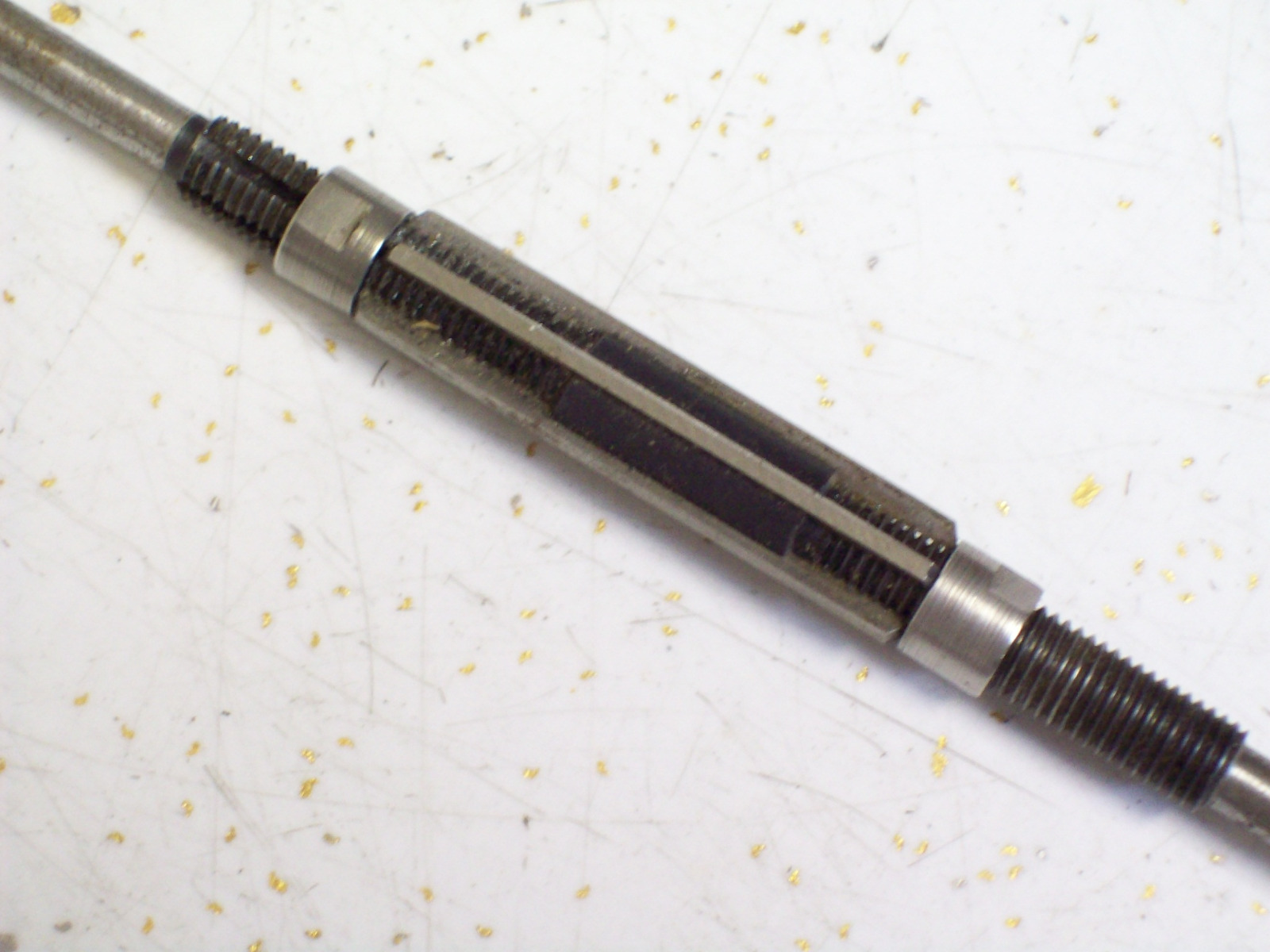

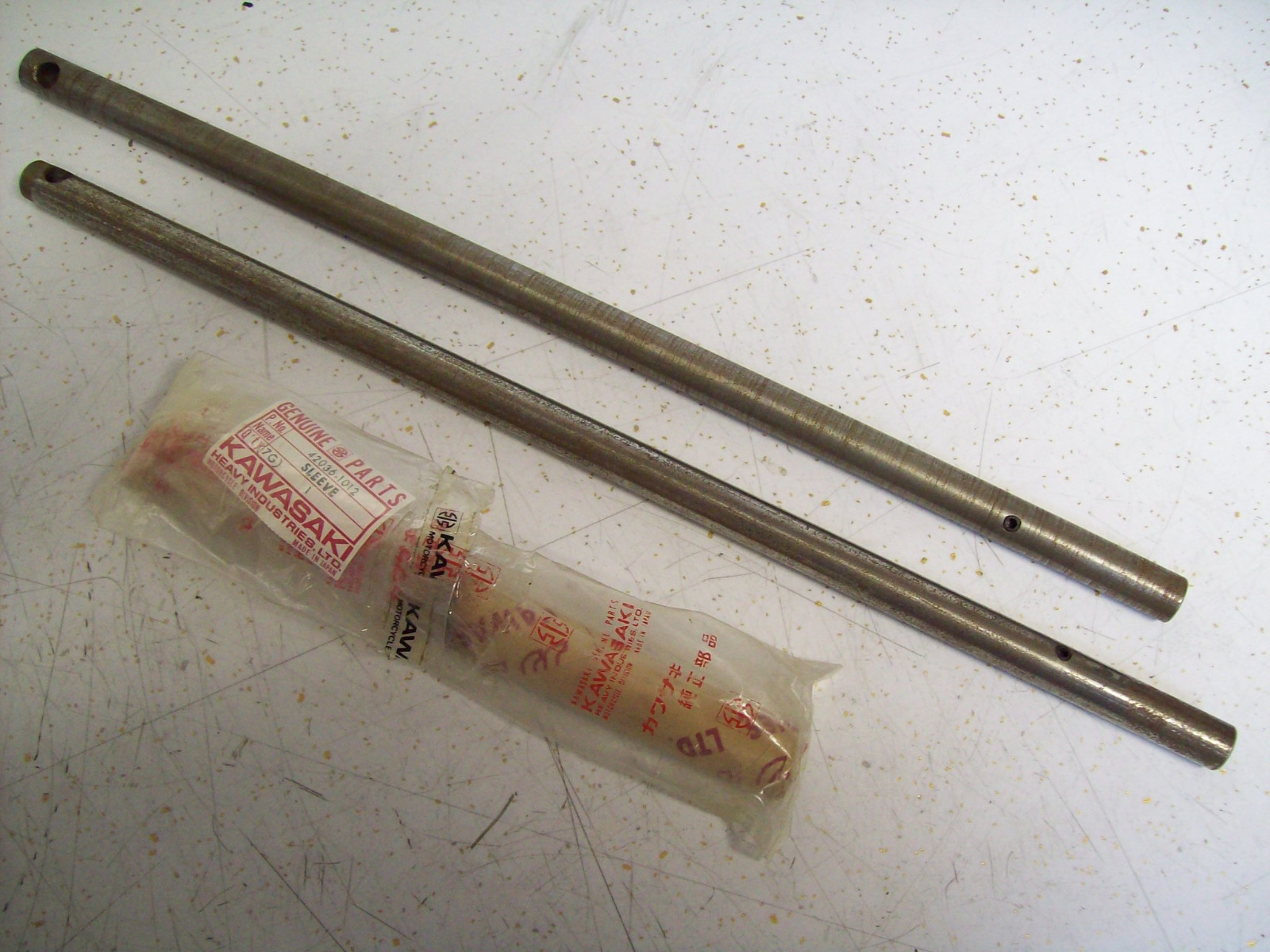

The biggest improvement to my swing arm was going to an oversize pivot bolt to eliminate the excessive clearance between the pivot bolt and its mounting bosses on the frame. The factory clearance is anywhere from .020 to over .040 thousands!!!! You want ZERO clearance there and also between the inner sleeve and the pivot bolt. I had just over .022 thousands between the frame and the pivot bolt. So I had my machine shop make up some oversize pivot bolts. Then I used an expandable reamer to open up the frame to fit the oversize pivot bolts. Then had the inner swing arm sleeve honed to fit the new oversize swing arm bolt. This setup eliminated any side to side play in my swing arm. I have to tap my swing arm bolt into place. The only giveaway of all this work is the fancy aircraft nut on the end of my oversize bolt!!!! I picked up doing this by the same fancy aircraft nut on the factory Kawasaki Superbike and the Yoshimura Superbikes!!!! When I asked the only English speaking Yoshimura mechanic about it. His reply was "You got good eyes to pick up on that"



This is the only thing that gives away the oversize swing bolt.






1972 H2 750 Cafe Racer built in 1974.
1976 KH400 Production Road Racer.
1979 Kz1000 MK. II Old AMA/WERA Superbike.
1986 RG500G 2 stroke terror.
1986 GSXR750RG The one with the clutch that rattles!

Up in the hills near Prescott, Az.
Attachments:
Last edit: 09 Aug 2020 16:47 by Dr. Gamma.
The following user(s) said Thank You: DOHC, ghostdive

Please Log in or Create an account to join the conversation.

  • bluej58
  • Offline
  • Sustaining Member
  • The chrome don't get you home
More
09 Aug 2020 17:33 #832518 by bluej58
Replied by bluej58 on topic Show us your unique bike mod!
Hey Doc, please show them what you do with the stock cam plugs.

78 KZ1000 A2A
The following user(s) said Thank You: Dr. Gamma

Please Log in or Create an account to join the conversation.

More
09 Aug 2020 17:56 #832523 by Dr. Gamma
Replied by Dr. Gamma on topic Show us your unique bike mod!

bluej58 wrote: Hey Doc, please show them what you do with the stock cam plugs.

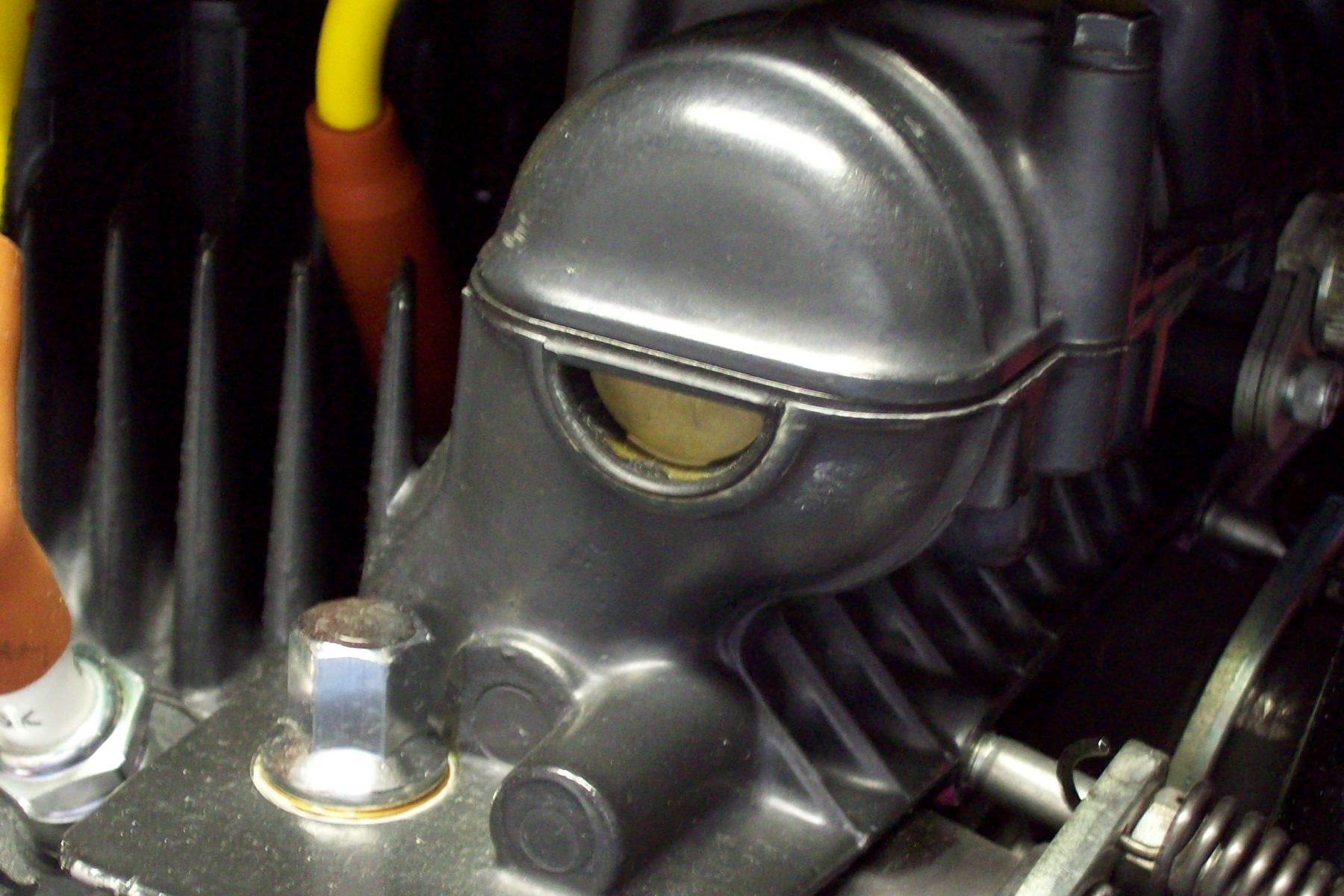

If you install the O.E.M. cam plugs backwards, they have that outer lip toward the inside. Its almost impossible for the cam plugs to pop out of place.

I think they showed us this trick at Kawasaki Service School!!!!


1972 H2 750 Cafe Racer built in 1974.
1976 KH400 Production Road Racer.
1979 Kz1000 MK. II Old AMA/WERA Superbike.
1986 RG500G 2 stroke terror.
1986 GSXR750RG The one with the clutch that rattles!

Up in the hills near Prescott, Az.
Attachments:
The following user(s) said Thank You: bluej58, Mikaw

Please Log in or Create an account to join the conversation.

More
10 Aug 2020 15:46 #832594 by KZJOE900
Replied by KZJOE900 on topic Show us your unique bike mod!

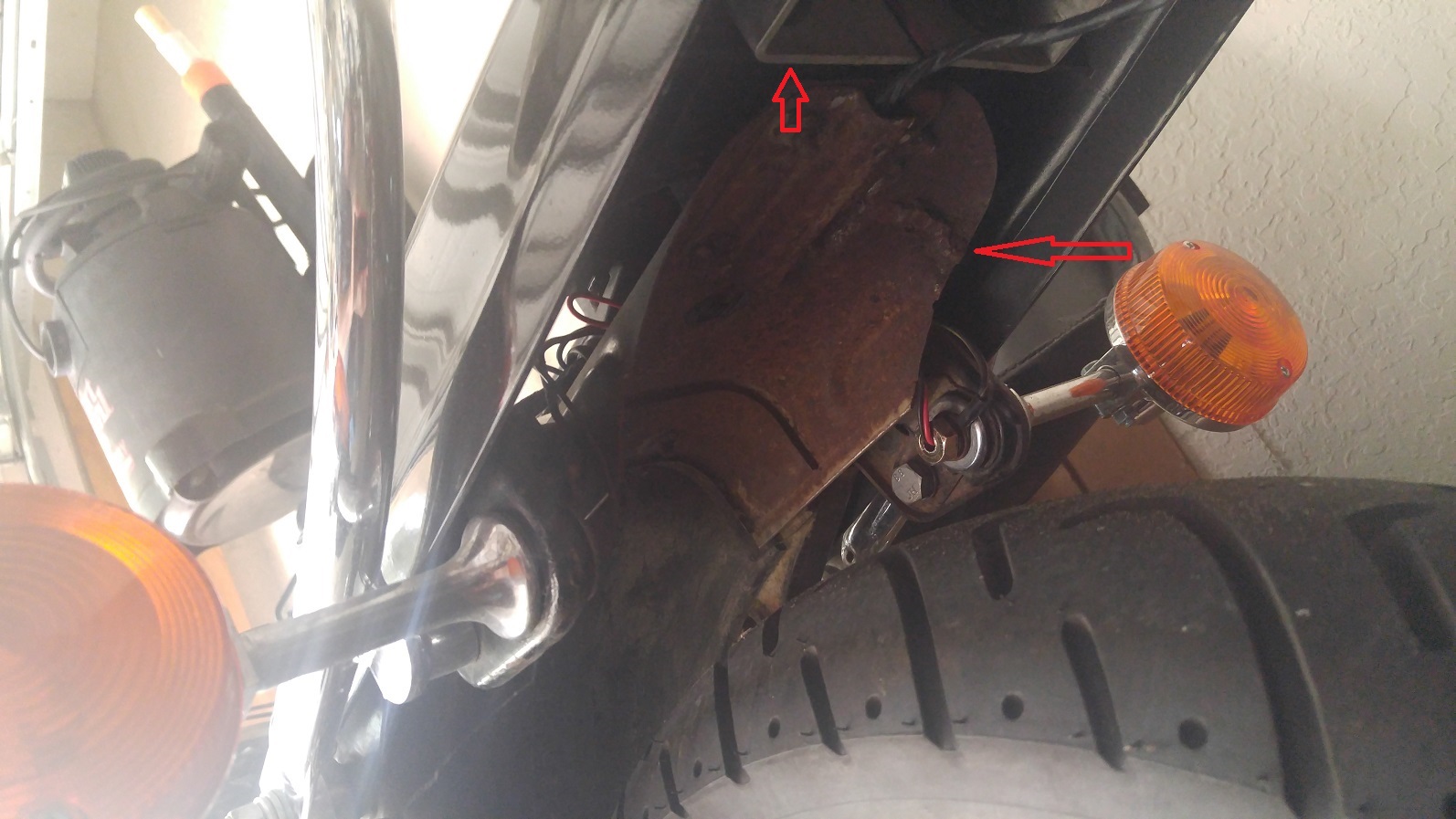

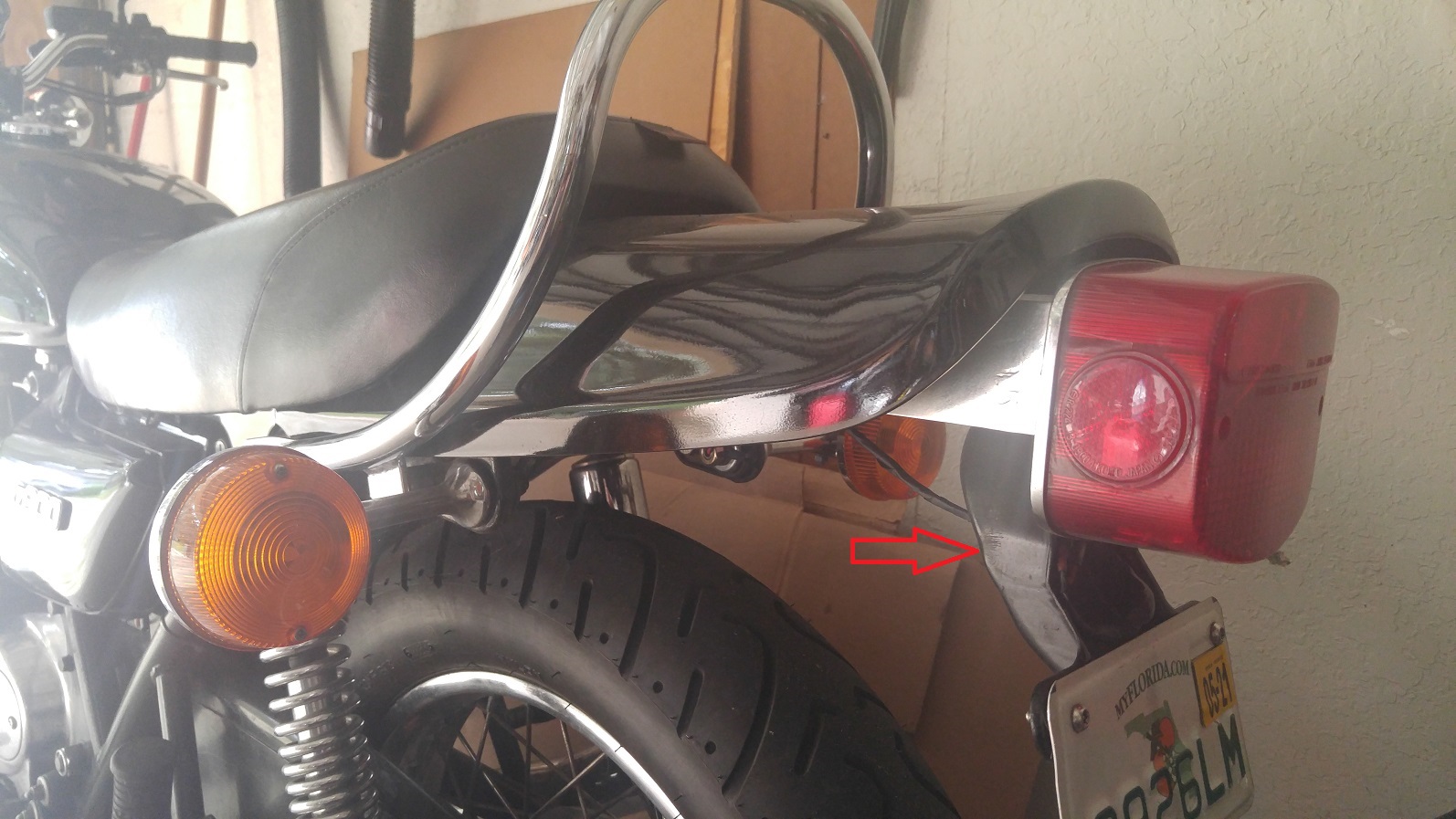

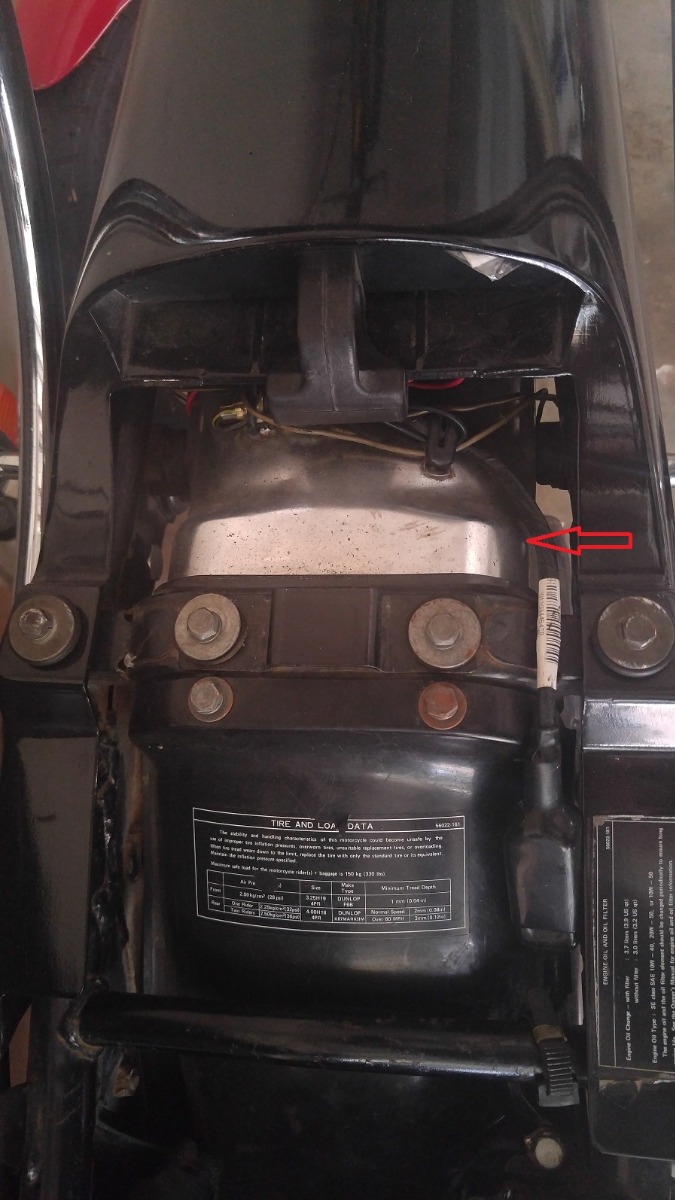

My home made fender eliminator. I used portions off of the old fender. My old fender was cracked. I had it welded but still didn't look good. So I used my cutting tool to cut back the fender past the crack and reinstalled it as shown. You can also see the back of the home made bracket I made ( flat aluminum bar which I hand formed with a hammer ) to hold the tail light.



Under the seat, it still seems like the fender is still there.



You can see the end of the bracket holding the light. I decided I liked it sticking out a bit. I also mounted the original license plate holder from the old fender as part of the assembly. Used hardened bolts in place of the original mounting bolts at the back of the fin.


Current project 76 KZ900 (This was a Vetter model)
76 KZ900
81 XJ550H SECA (Current Project)
82 XJ550R SECA
Past:
86 FJ1200
74 Z1900
72 CB450

Please Log in or Create an account to join the conversation.

More
10 Aug 2020 15:54 - 10 Aug 2020 15:55 #832597 by KZJOE900
Replied by KZJOE900 on topic Show us your unique bike mod!

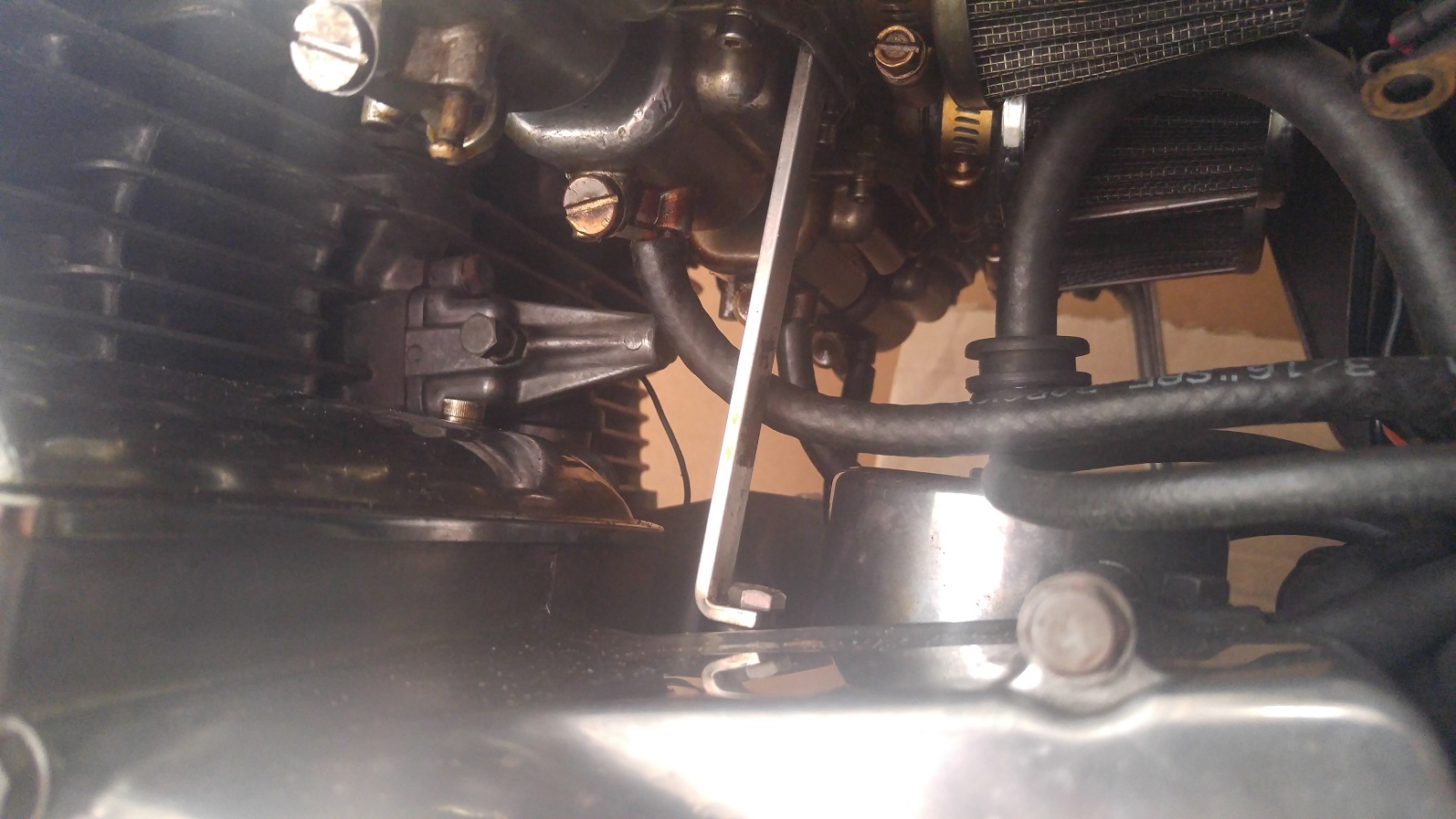

My handy dandy carb support mod. Not that I ever had issue or ever heard of problems with the manifolds keeping the carbs secure. But after some jolts on a couple of rides on these country roads, I decided to give them some support. It is not actually attached to the carbs and they only sit on there via carb no. two. But there is no play for the carbs to move.


Current project 76 KZ900 (This was a Vetter model)
76 KZ900
81 XJ550H SECA (Current Project)
82 XJ550R SECA
Past:
86 FJ1200
74 Z1900
72 CB450
Attachments:
Last edit: 10 Aug 2020 15:55 by KZJOE900.

Please Log in or Create an account to join the conversation.

More
11 Aug 2020 06:17 #832643 by tomsbadkz
Replied by tomsbadkz on topic Show us your unique bike mod!

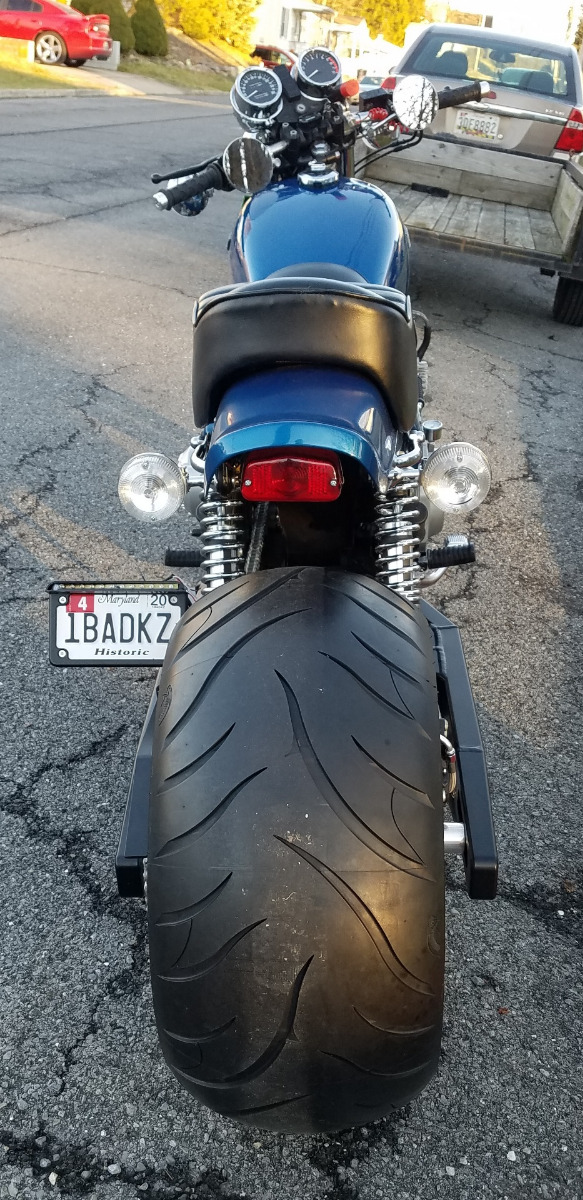

1977 kz1327
Cavanaugh Head 38.6/33
38mm Flatslides
MRE racecut trans
300mm rear tire
Web Cams 435/465

1984 GPZ1100
Cavanaugh Head
1170cc
Web 415 cams
RC Hp Inj.
Bored throttle bodies
Attachments:

Please Log in or Create an account to join the conversation.
