1981 KZ650H1 CSR fork tube (inner) bushings

I have been searching for weeks but cannot find a part number for the fork bushings which go onto the end of the fork tube itself on my 1981 KZ650H1. The part is not listed as a part number or individual item on any schematic or parts diagram I’ve found, and I can’t find it available by dimension anywhere. I cannot find technical data, nomenclature, anything. Supposedly Pyramid Parts out of the UK are having a batch made and they will be available in another week, but I’m not “putting all my eggs in one basket”, as the saying goes, and I would like options, or at least find the specifics of the material in question so I can find a work-around if need be. I’m at the end of an almost full restoration on my bike, which I’m the second owner of, and after buying NOS fork legs and the necessary parts to rebuild them, along with a new brake rotor, bearings, and after spending almost 40 hours reconditioning the front wheel, I’d hate to think I have to abandon hope and swap forks because of the rarity of my bike and limited number of them while it was produced. There has to be some company, somewhere, that makes the bushings. Dimensions are: 35.7mm o.d. X 33.7mm i.d. X 20mm. The closest part number I’ve found is 44065-1060, which is exactly half as wide at 10mm. Is it possible to use two of these next to each other in place of one? Please help! I’m itching to ride it after it’s sat for years.

Two of the 10mm bushings together seems like a workable solution to me, otherwise, Pyramid may be your only basket. Likely not a cheap one.

Two bushes will work fine.
Years ago I needed new upper bushes for my Z1R which also were not available separately and eventually had to source some good second hand bottoms.
I did track down the bush manufacturer in Japan ( pre internet days by phone ) but they would only do a minimum order of 50 thousand so that idea went out the window.
Much later i discovered that the same bushes were used in all the Z650's but were only available seperately for one particular model for some strange reason even though they were the same in all the 650's, 900's and 1000's.
The 650 legs are the same dia etc as the 900 and early 1000's but around an inch shorter so maybe you can find the same part seperately by searching the parts lists for those models.

KZFreak wrote:

I have been searching for weeks but cannot find a part number for the fork bushings which go onto the end of the fork tube itself on my 1981 KZ650H1. The part is not listed as a part number or individual item on any schematic or parts diagram I’ve found, and I can’t find it available by dimension anywhere. I cannot find technical data, nomenclature, anything. Supposedly Pyramid Parts out of the UK are having a batch made and they will be available in another week, but I’m not “putting all my eggs in one basket”, as the saying goes, and I would like options, or at least find the specifics of the material in question so I can find a work-around if need be. I’m at the end of an almost full restoration on my bike, which I’m the second owner of, and after buying NOS fork legs and the necessary parts to rebuild them, along with a new brake rotor, bearings, and after spending almost 40 hours reconditioning the front wheel, I’d hate to think I have to abandon hope and swap forks because of the rarity of my bike and limited number of them while it was produced. There has to be some company, somewhere, that makes the bushings. Dimensions are: 35.7mm o.d. X 33.7mm i.d. X 20mm. The closest part number I’ve found is 44065-1060, which is exactly half as wide at 10mm. Is it possible to use two of these next to each other in place of one? Please help! I’m itching to ride it after it’s sat for years.

Hello KZFreak,
did you get the bushings from pyramid parts and do they work for you?
I have a KZ650F2 german version and it should have a KZ750E fork. Racetech suggest bushings with the dimension 36x20x1 which are not avaible here and I have to import them. I would prefere to buy in europe and not to buy several bushings which do not fit.

I would love to profit from your experience.

Pyramid list these outer bushes for £10 a pair (KZ650F) so I guess they are worth a "punt" at that price



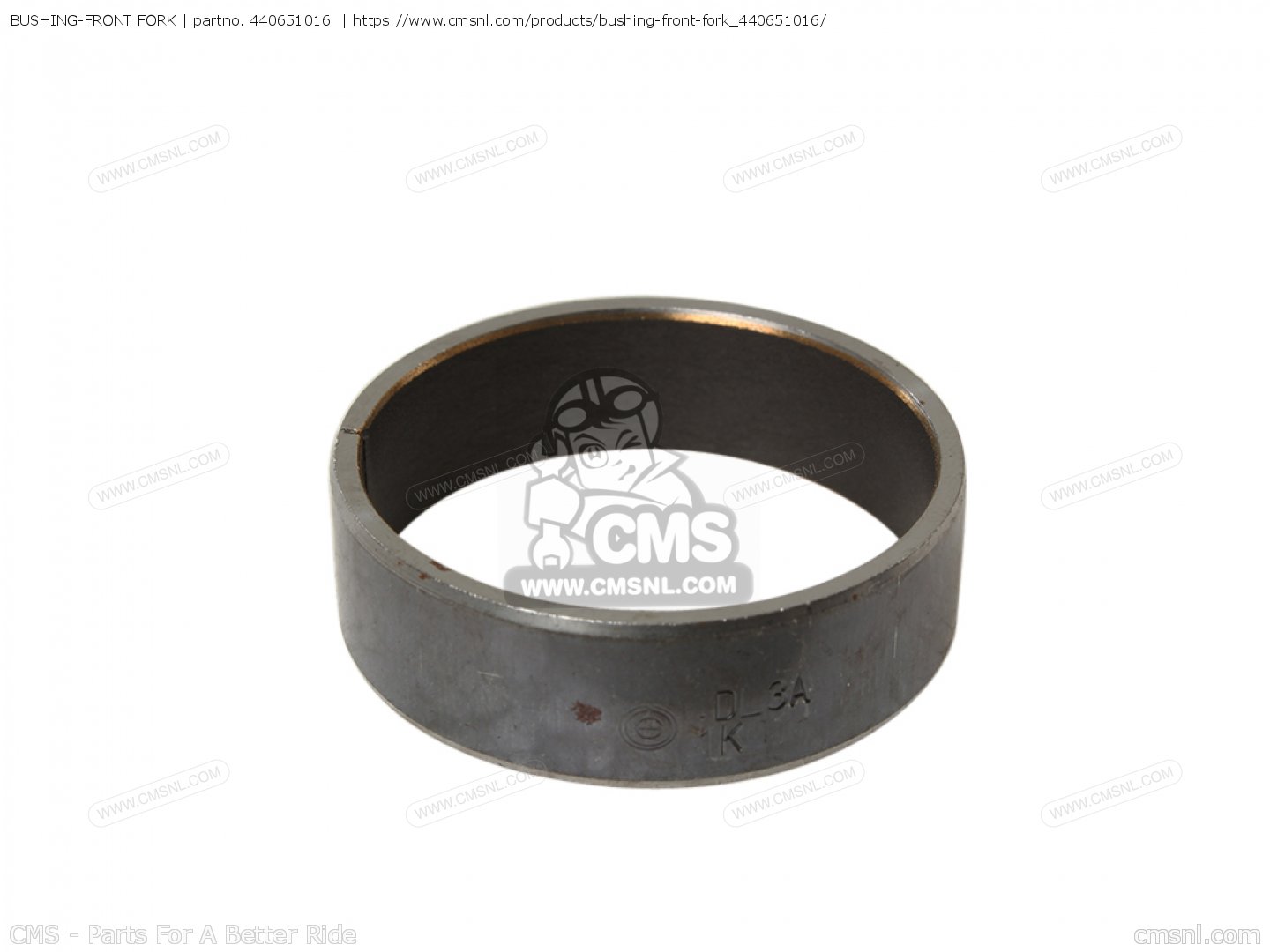

Wilhelm, this should be the right part no. for the 1981-84 K(Z) /GPZ 750 model fork busing: 440651016

www.cmsnl.com/kawasaki-kz750_model12605/
www.cmsnl.com/kawasaki-kz750r1-gpz-1982-.../partslist/8653.html

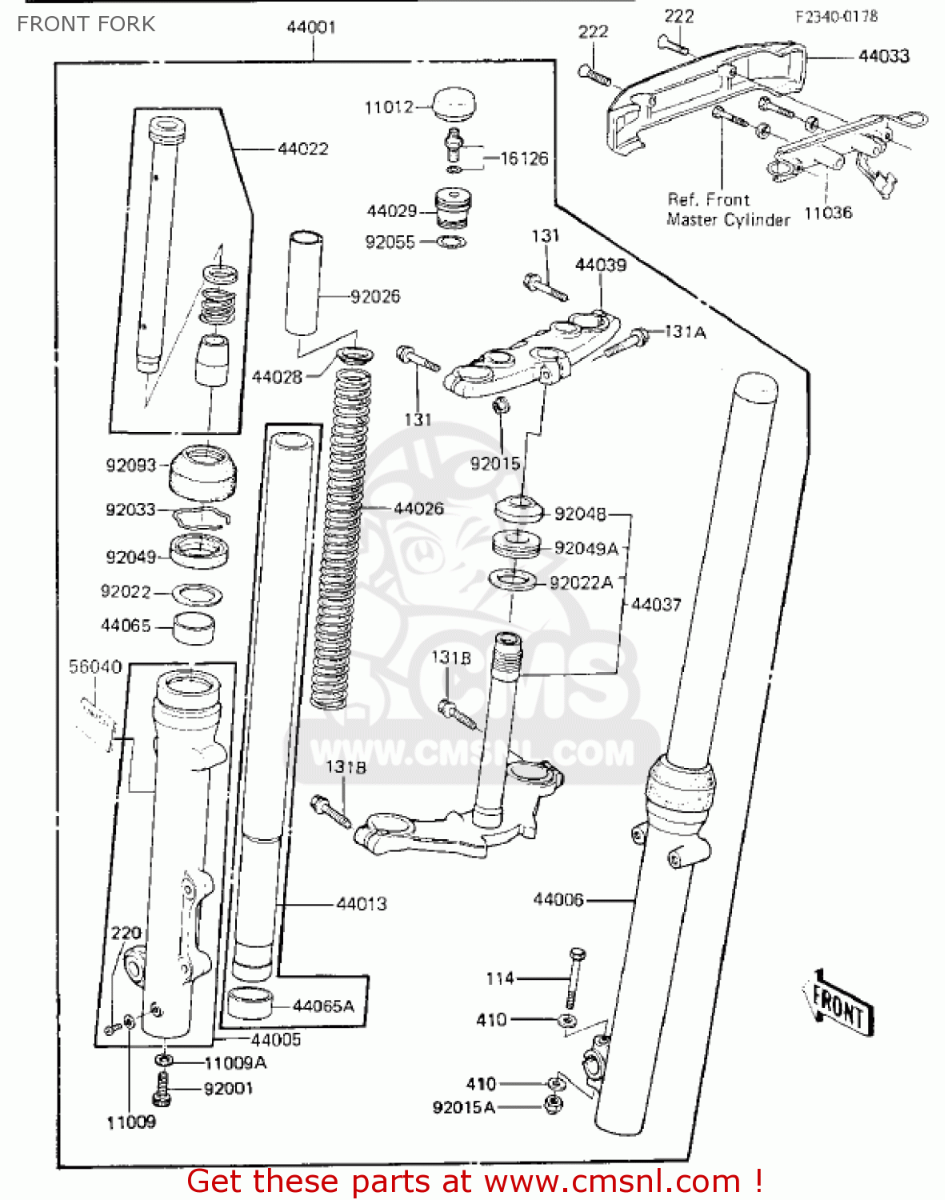

EDIT: Looks like the 1981-83 KZ650H1/H2//H3 have the the same fork bushings as the 1981-84 K(Z) /GPZ 750 models.

www.cmsnl.com/kawasaki-kz650_model14997/

Hello,

I want to give feedback.
The bushing in the outer tube is 440651016 that is correct. I was searching for the bushing which is clipped on the inner tube.

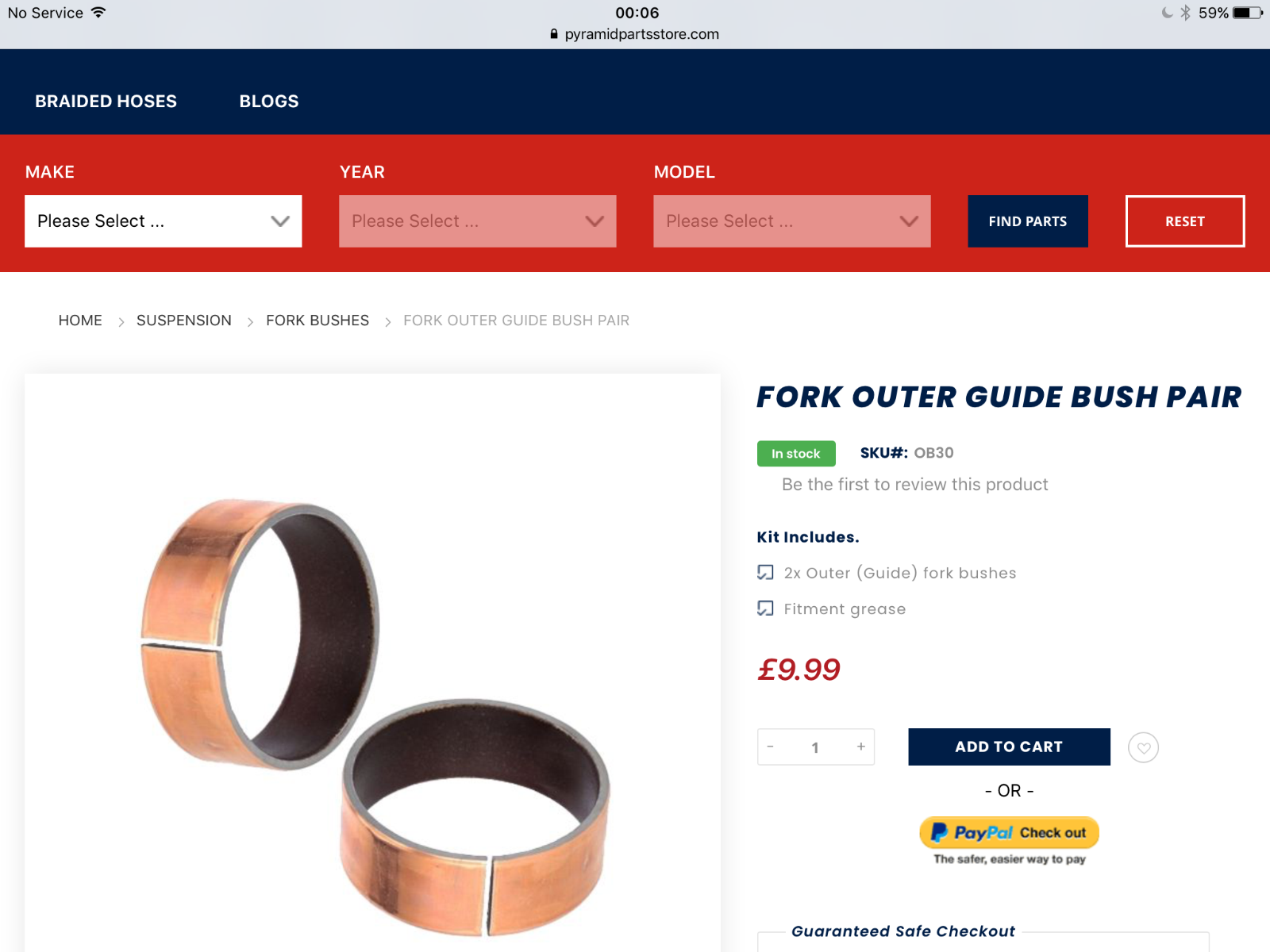

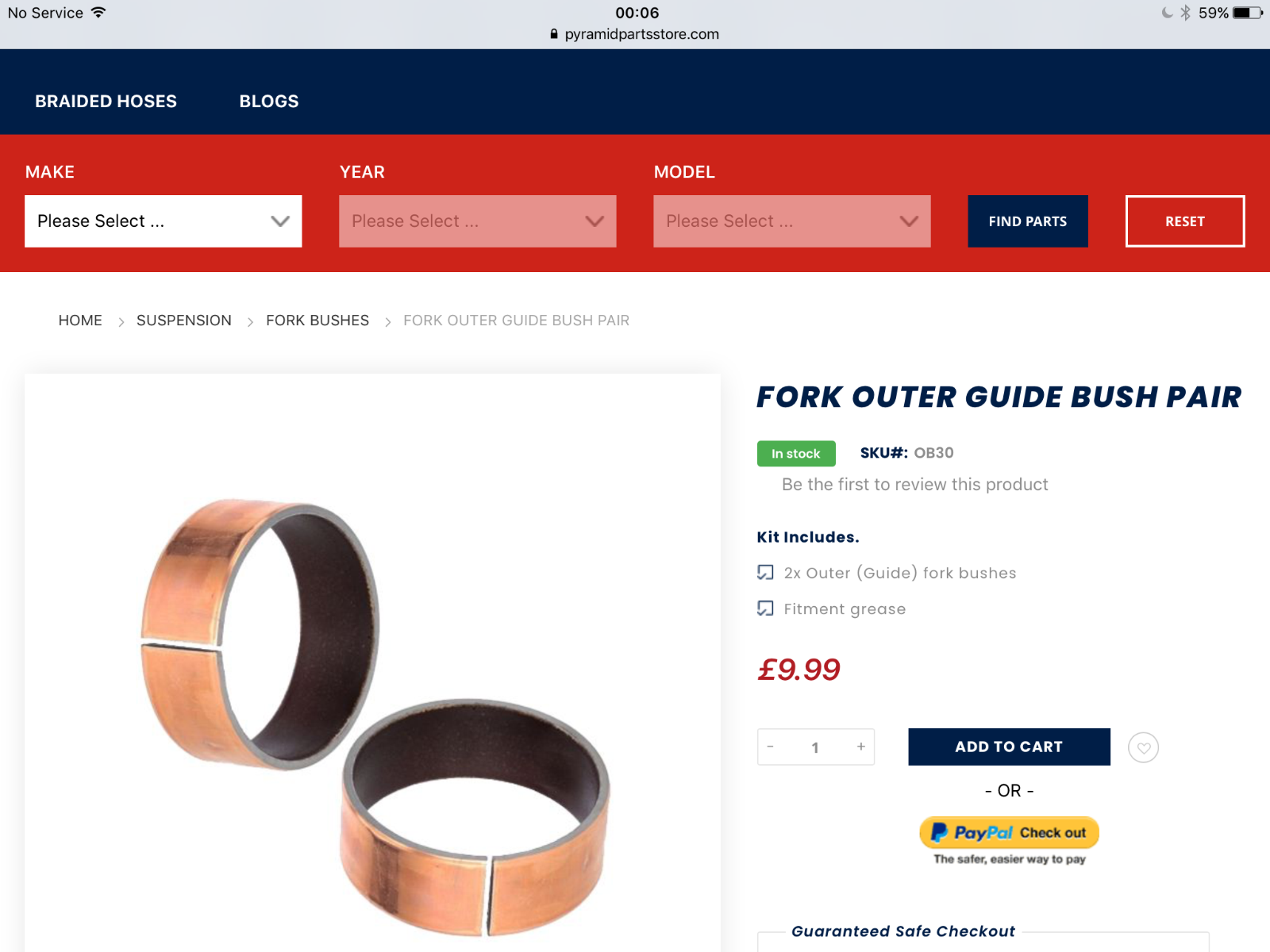

This bushing with PTFE on the outside is the 35,7x34,7x20 from pyramid parts. I installed it and they work fine. So if anybody is searching for this one, which was never thought of as a spare part on the side of Kawasaki. That is it, in the case you do not want to buy a hole inner tube with the bushings attached.
pyramidpartsstore.com/fork-bush-slide-inner-pair.html


By Wilhelm:  I want to give feedback.
The bushing in the outer tube is 440651016 that is correct. I was searching for the bushing which is clipped on the inner tube.
This bushing with PTFE on the outside is the 35,7x34,7x20 from pyramid parts....

In the link in your reply, I'm not seeing a 35,7 bushing w 34,7 I.D. Is that I.D. measurement a typo? and should it be 33,7 I.D.? Thanks.

edit for future reference: needed bushing is for the 650-F2 is 35.7mm x 33.7mm x 20mm. same as the 650-H1.

Hello Martin,

It was a spelling mistake. You are right, it has the measurements 35,7x33,7x20.
