1981 kz1000...some questions on my bike there
- TexasKZ
- Offline
- Platinum Member
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
Please Log in or Create an account to join the conversation.
- martin_csr
- Offline
- User
- Posts: 8068
- Thank you received: 1656

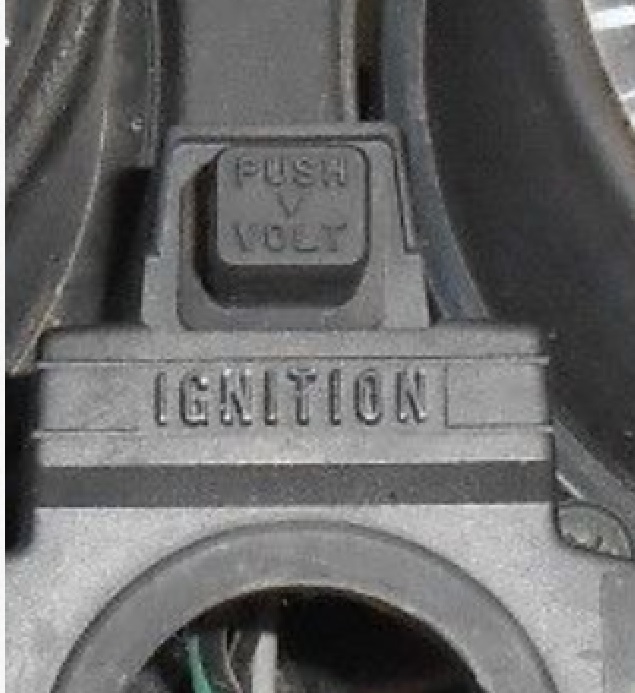

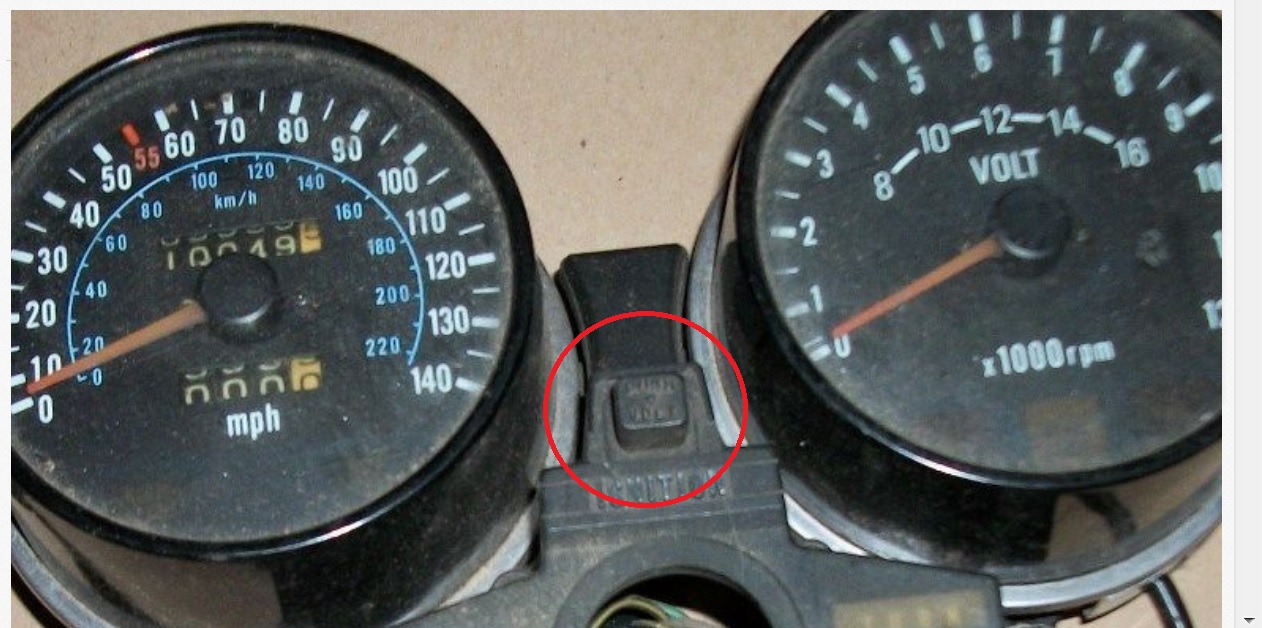

Note the button at the pilot box ignition switch assy. I guess that's the switch for volts-rpms???
Edit: these may not be 1000 gauges. Could be from a 750 Spectre --- see edit below.
PS: eebbaayy link isn't visible on my computer. not sure if anyone else can see it or not. doh.
EDIT: (another set) item # 181463235077 --- 82 Kawasaki KZ750-N KZ 750-N Spectre Gauge
In the meter diagram for the N1 Spectre at Partzilla, the push button switch is part of the meter socket assy (23008-1154 SOCKET-ASSY,W/SWITCH).
Please Log in or Create an account to join the conversation.
- TexasKZ
- Offline
- Platinum Member
- Posts: 7540
- Thank you received: 2226
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098
KZ1100 FSM also says when tach reads inaccurate speed to make sure the black 6-pin connector between tach and main wiring harness is clean and tight (see page 5-43).
Here's a link that includes a free downloadable KZ1100 FSM:
Click here > kawiworld.com/index.php?option=com_conte...icle&id=77&Itemid=99
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- TexasKZ
- Offline
- Platinum Member
- Posts: 7540
- Thank you received: 2226
On the 1100, is the volt meter at the bottom of the tach with its own needle? The pic above shows two numbered ranges on the same dial using the same needle. WAY back in the dusty recesses of my memory, I seem to recall a pushbuottn switch that allowed the rider to switch back and forth. Maybe not a Kawi, or maybe even an hallucination.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098
Am uncertain about function of the button, but it would presumably be covered in the FSM for whatever model it came from.
The KZ1100 FSM also has a wiring illustration where both the speedo and tach are side by side together in a single assembly.
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- TexasKZ
- Offline
- Platinum Member
- Posts: 7540
- Thank you received: 2226
Yet
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
Please Log in or Create an account to join the conversation.
- war113
- Topic Author
- Offline
- User
- Posts: 8
- Thank you received: 0
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098

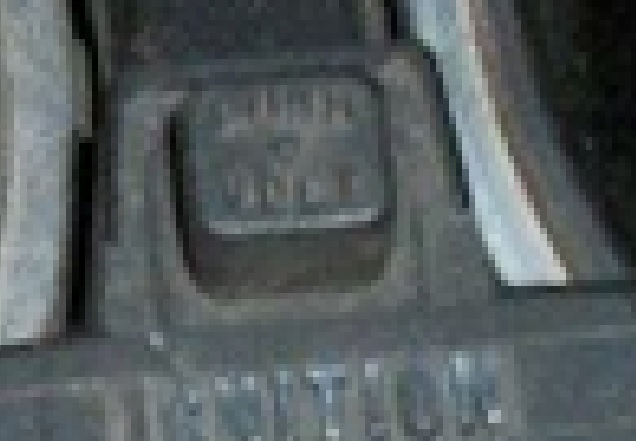

The words in the 1st ad are more difficult to see, but am thinking they are the same.
Am still uncertain about war113's tach, and how it's supposed to get from voltage mode into rpm mode, but will take a peek at the KZ750 manuals.
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098
What was plastidipped?war113 wrote: ... plastidipped it and made a bit of adjustment....
Trusting it wasn't the rpm<>voltage switch. :lol:
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098
This link allows downloading a KZ750 FSM.Patton wrote: ...Am still uncertain about war113's tach, and how it's supposed to get from voltage mode into rpm mode, but will take a peek at the KZ750 manuals....
(Scroll down to and click on The Bible.)
mbsween.bike-night.com/kz750l3/index.html
The tach and/or voltmeter are discussed at pages 133, 249, 319, 378, and maybe other pages.
In this particular FSM, it seems that electronic tachs with voltmeters are supposed to show both readings simultaneously, without mention of a PUSH/VOLT" button.
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098
The bike at hand originally had a manual tach drive that has been replaced with an electronic tach/voltmeter combo unit.
The original wiring harness would not have a connector for an electronic tach.
Perhaps the combo unit is itself without fault, but wired incorrectly.
The wiring diagram from the KZ750 without the PUSH/VOLTS button could be instructive in this regard.
