KZ650 Sleeper Build (KZ1000 engine transplant)
- Injected
-
Topic Author
- Offline
- User
-
Registered
- Posts: 1265
- Thanks: 809
Re: KZ650 Sleeper Build (KZ1000 engine transplant)
06 Jun 2025 17:07
I was able to work on this bike today with only one interruption for a few hours to cut the grass. I was able to prep it for a first start tomorrow and may even get a ride in if its early enough and only if no issues crop up.
I filled the crank case with oil and prefilled the inlet line to the cylinder head along with filling the oil cooler. I fit a pressure gauge to the main gallery to monitor pressure on startup.

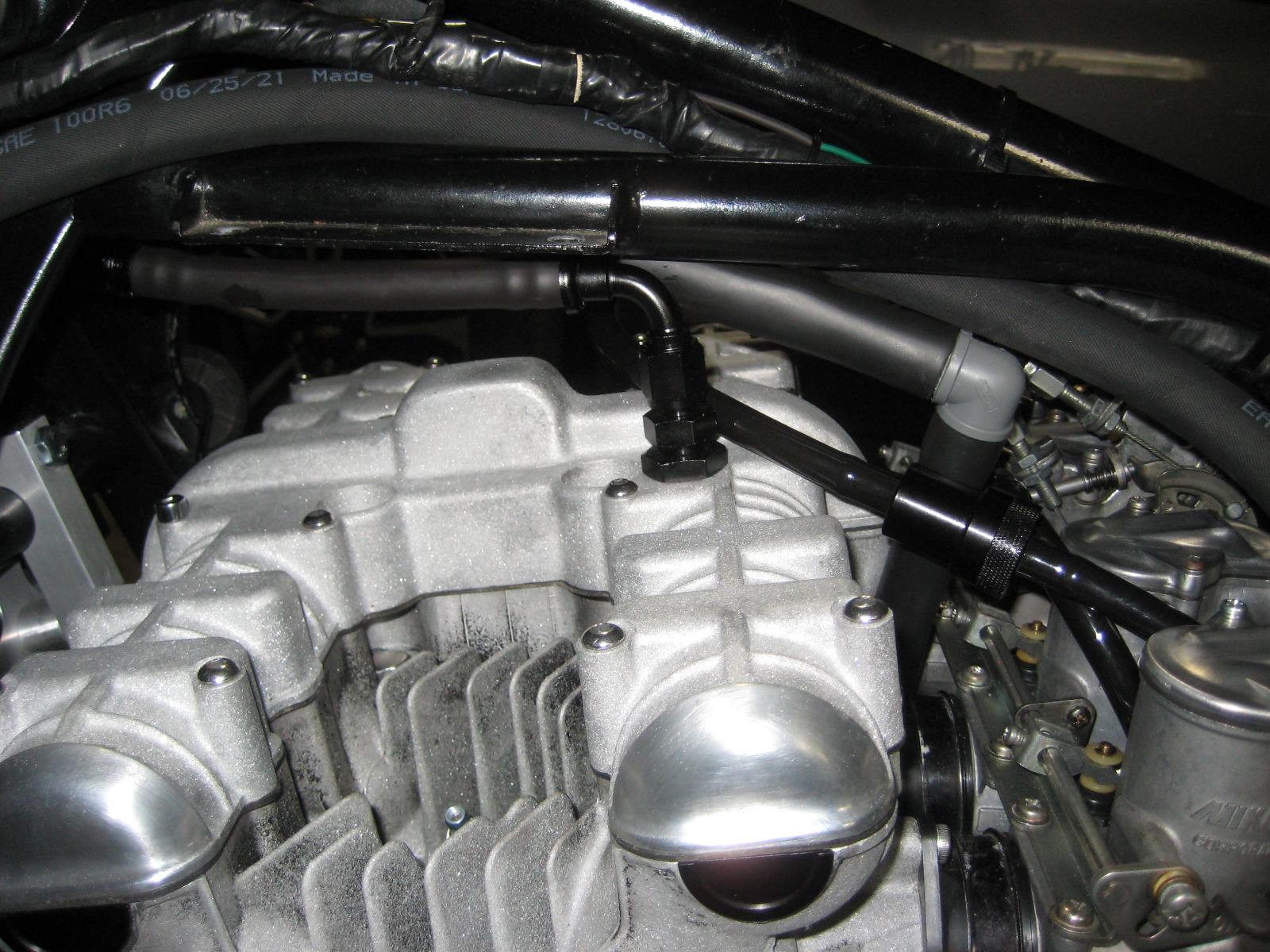

I had to make 3 vent elbows and I got the time for each one down to 30 minutes, the first one I did took me 45. The vent tube fitting was time consuming but it looks like it will work. Again, everything is tight toward the top of the frame on this swap.
When I put the coils on I really noticed its tighter than a stock 650 install, but it works.
The only thing stopping me from starting it is the left hand exhaust is currently loose at the head and the muffler mount. I have it loosened to make a small adapter shim bracket to drop the muffler mount and move it inboard. I think it may take me about a hour tomorrow morning. After its assembled I can tighten everything up.
Hopefully there are no surprises.
Tomorrow looks like the last dry day till late next week, the local forecast is for rain Sunday thru Wednesday. If I am gonna ride it and get it broken in sufficiently then my best bet is tomorrow.
I filled the crank case with oil and prefilled the inlet line to the cylinder head along with filling the oil cooler. I fit a pressure gauge to the main gallery to monitor pressure on startup.
I had to make 3 vent elbows and I got the time for each one down to 30 minutes, the first one I did took me 45. The vent tube fitting was time consuming but it looks like it will work. Again, everything is tight toward the top of the frame on this swap.
When I put the coils on I really noticed its tighter than a stock 650 install, but it works.
The only thing stopping me from starting it is the left hand exhaust is currently loose at the head and the muffler mount. I have it loosened to make a small adapter shim bracket to drop the muffler mount and move it inboard. I think it may take me about a hour tomorrow morning. After its assembled I can tighten everything up.
Hopefully there are no surprises.
Tomorrow looks like the last dry day till late next week, the local forecast is for rain Sunday thru Wednesday. If I am gonna ride it and get it broken in sufficiently then my best bet is tomorrow.
