1981 GPz1100 B1 Rstomod / ELR "Tribute" 21 Feb 2022 18:35 #862705

  • DOHC
  • DOHC's Avatar
  • Offline
  • Sustaining Member
  • Those Doe-Hawks really go!
  • Posts: 1229
  • Thank you received: 494

Another I've seen:

​​​​​​
[/quote]

I'm differently familiar with that color scheme, but it just occurred to me to wonder if that base light blue is the same color used on the 1978 Z1R (and kz650C). In these pictures it looks very similar. It would be cool to put those stripes on a Z1R. :)
'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100

Please Log in or Create an account to join the conversation.

1981 GPz1100 B1 Rstomod / ELR "Tribute" 21 Feb 2022 20:07 #862712

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4879
  • Thank you received: 1843
Stardust Silver?
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

1981 GPz1100 B1 Rstomod / ELR "Tribute" 21 Feb 2022 20:19 #862716

  • DOHC
  • DOHC's Avatar
  • Offline
  • Sustaining Member
  • Those Doe-Hawks really go!
  • Posts: 1229
  • Thank you received: 494

Mikaw post=862712Stardust Silver?

That was the name used for the 1978 Z1R.  It's also the same name shown in this 1984 KZ1100R brochure.  However, the photo in the brochure looks like regular old silver-silver, as opposed to the light-blue-silver of the Z1R or the other photos in this thread.

www.kz1000r.com/index.php/z1100r-1984-sales-brochure
www.kz1000r.com/index.php/kz1100r-1984-sales-brochure
'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100

Please Log in or Create an account to join the conversation.

1981 GPz1100 B1 Rstomod / ELR "Tribute" 28 Mar 2022 03:39 #864405

  • howardhb
  • howardhb's Avatar Topic Author
  • Offline
  • Sustaining Member
  • In God I trust
  • Posts: 421
  • Thank you received: 415
Hi again Folks.

Here is an update on progress:

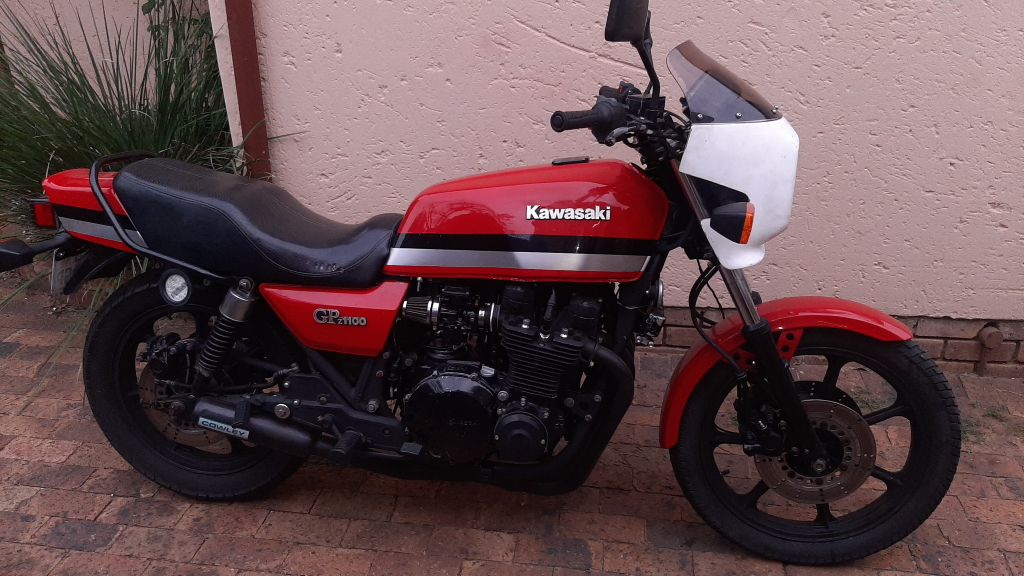

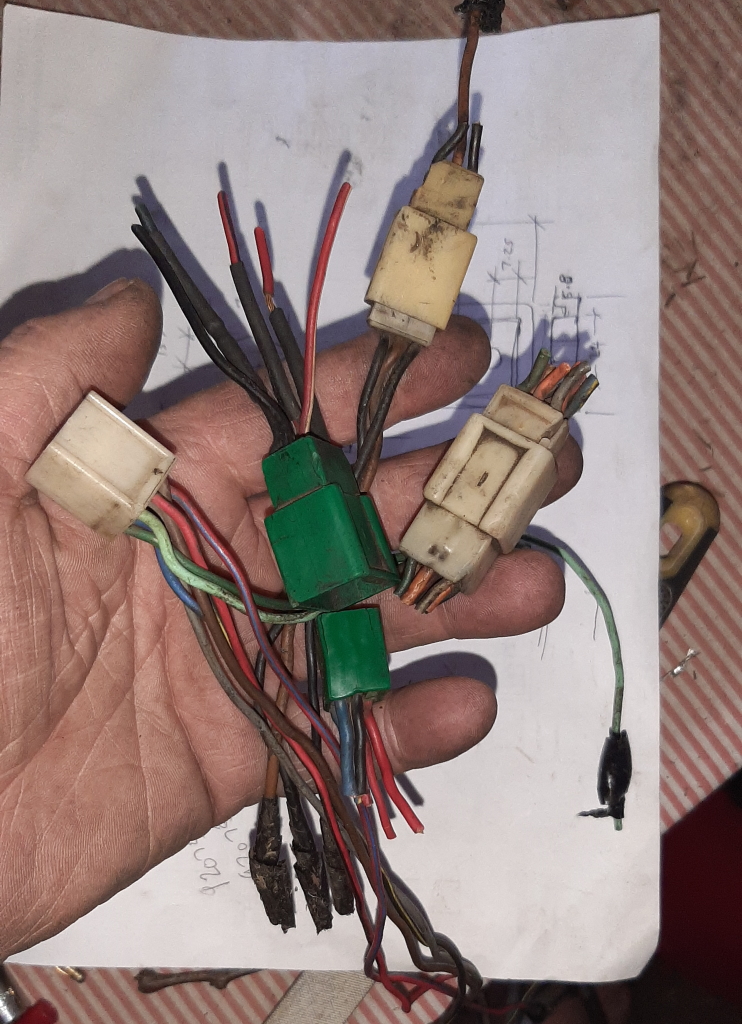

Most of the wiring had been seriously butchered, and almost all of the connectors were badly damaged,
some broken completely. The 9 pin main connector fell to pieces when I unplugged it!

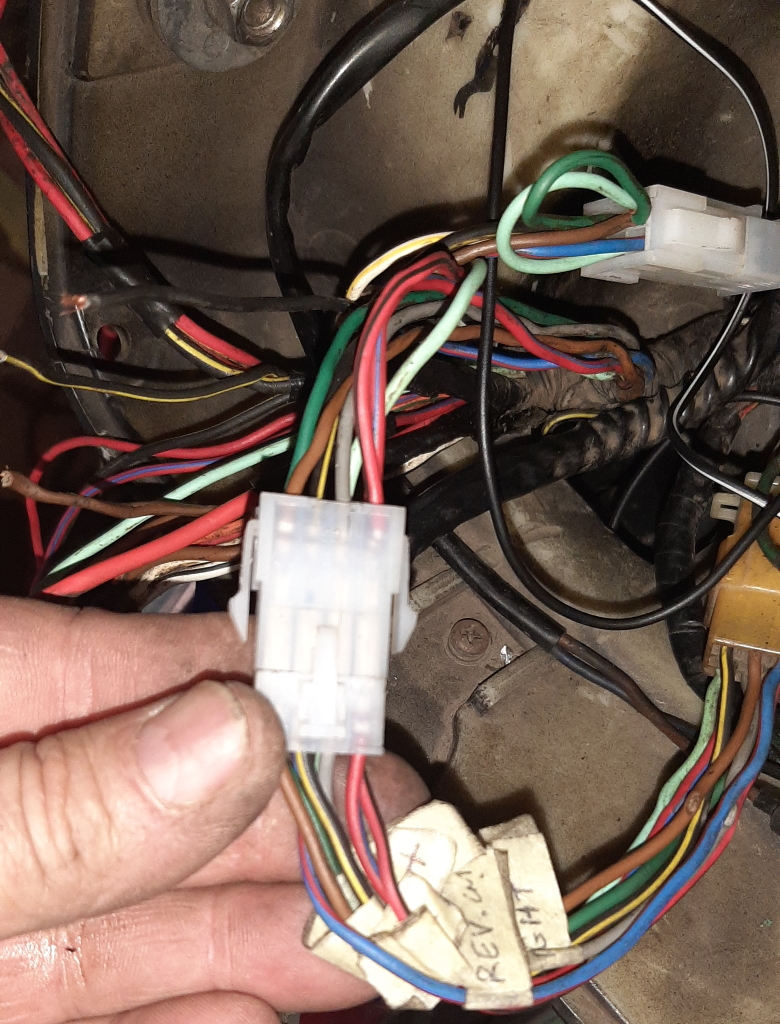

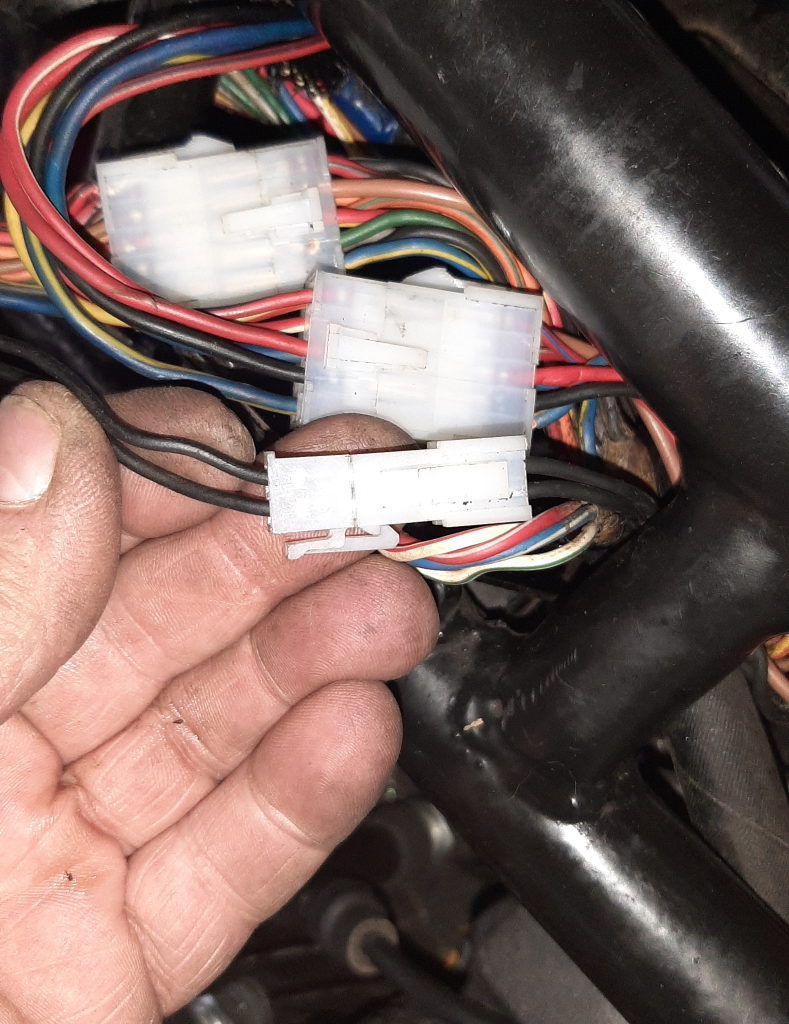

I found suitable, but not replica, connectors on Ebay (are "replica" connectors even available?) and replaced them one by one...


 I had to replace the un-serviceable GPz1100 B1 instrument cluster with an "almost new" unit from
a B2, so, some wiring adaptation / modification was required.
This modification to the wiring was effected INSIDE the head-light bucket, using the new connectors.


One thing that intrigued me is that the oil pressure switch signal...
The oil pressure switch on the B1 "opens" when oil pressure is present, but the instrument cluster
required the opposite signal condition!
So I had to "invert" the signal, using a 12 volt relay, neatly hidden inside the head-light.

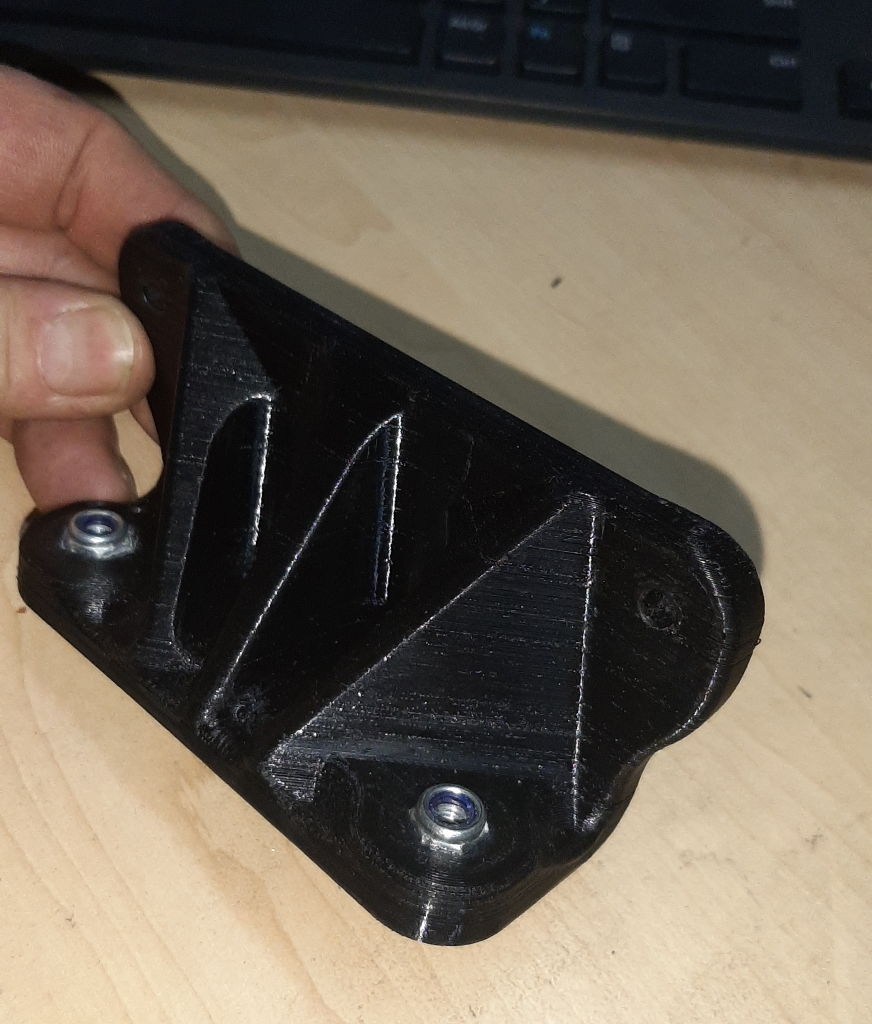

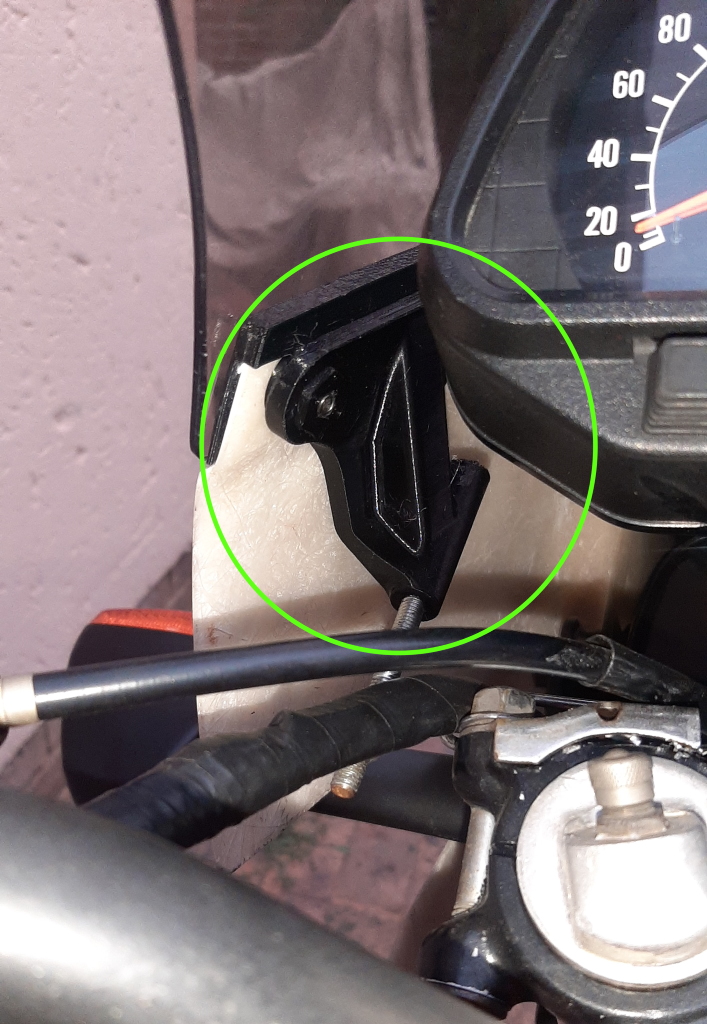

As you know, mounting hardware for the bikini fairing is no longer available, so I set about designing the brackets
that would be suitable for 3D printing. Obviously the parts had to be "thickened" in certain areas, owing to the
material properties of the plastic. I also added some "strengthening" gussets and "features" to ensure sufficient strength.

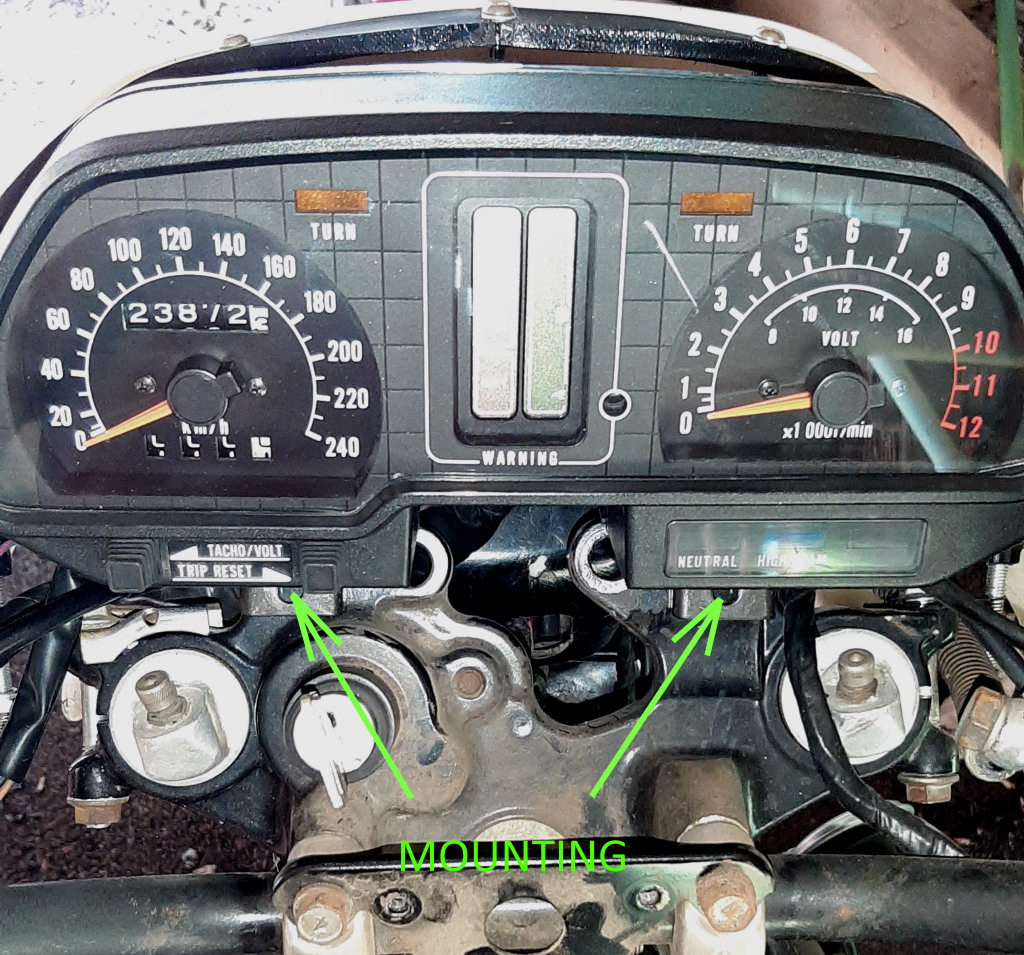

Once that was done, I could figure out the correct mounting position for the B2 instrument cluster, which has to fit "inside" the fairing,
while at the same time be suitably spaced from the screen.
This turned out to be quite simple. I simply drilled and tapped metric 6mm mounting holes in the top triple-clamp.
I also 3D printed some vibration isolation pads that did the job nicely.
I used a material called TPE (Thermoplastic Elastomer), which is quite flexible.



Next was to try to replicate the "cover" that hides the instrument cluster mountings and the ignition switch body.
The idea was to have the cover look like the Eddie Lawson / 1100R instruments, as far as possible.
However, the B1 ignition switch is offset to the left (what were they thinking!) so I had to incorporate this "offset" into my design.

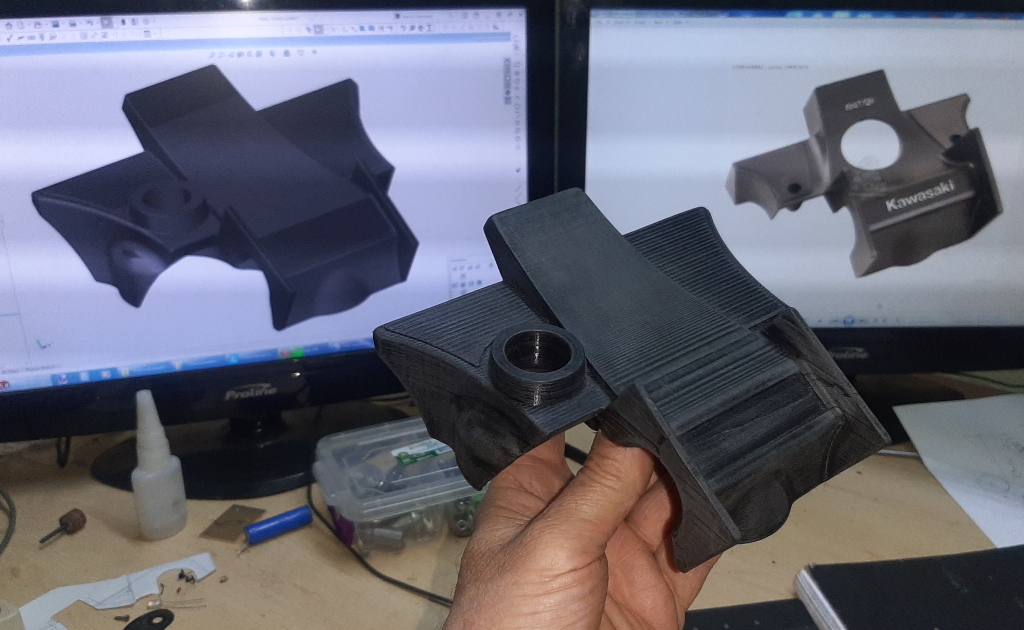

Using some pictures of the 1100R cover (and a very good photo from member  hx35w, I 3D modled a cover to suit...
Then, onto my 3D printer...  26 hours of printing later...

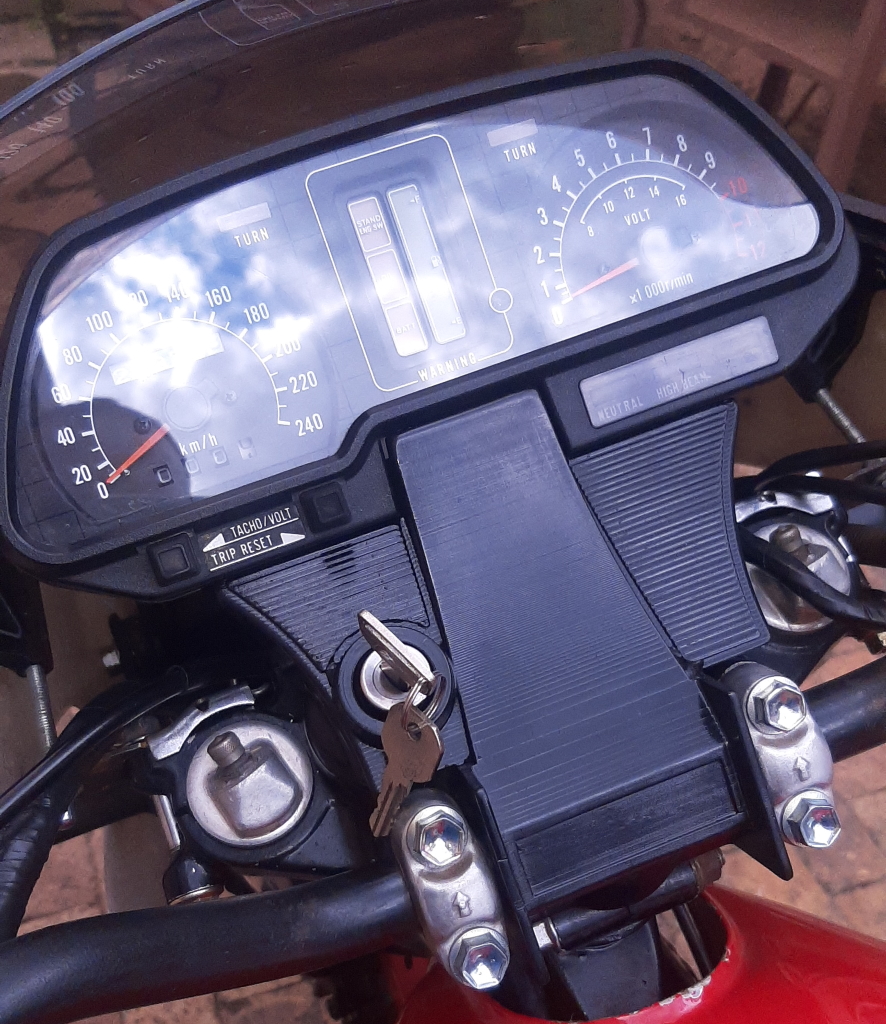

I am quite happy with the result.

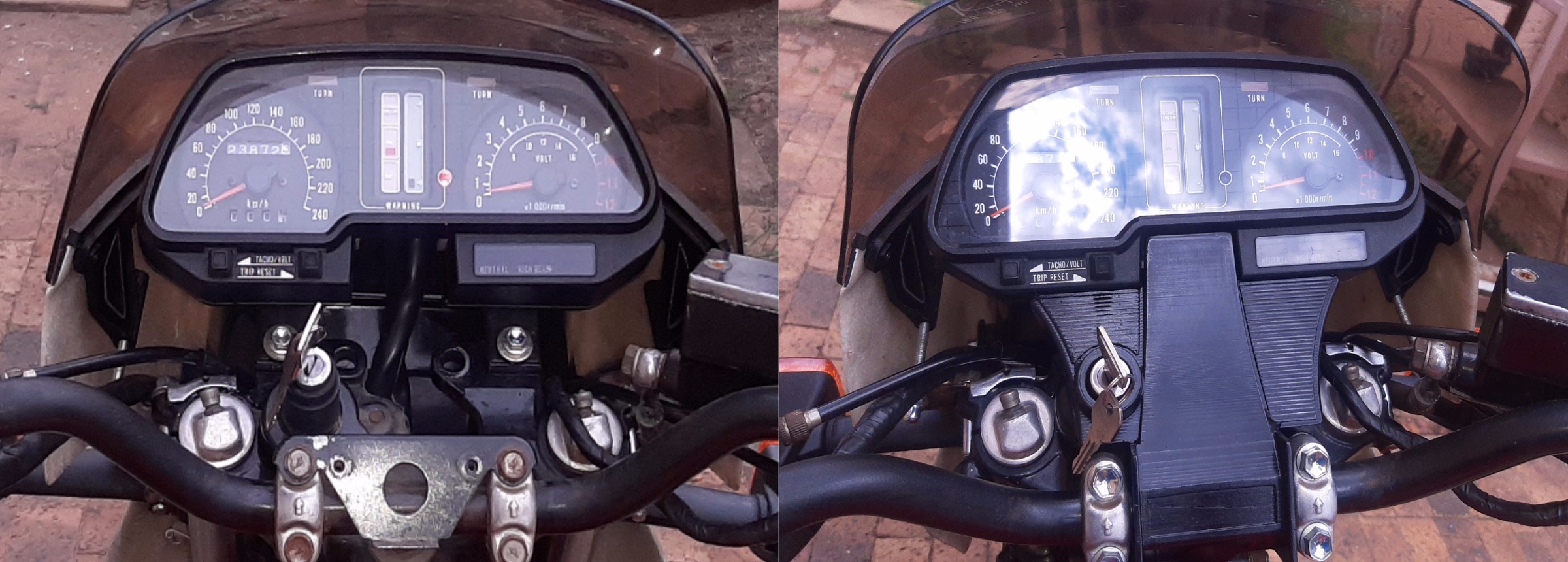

           Before                                         /                                             After


I think the result is usable!
(waiting delivery of a small Kawasaki badge that fits between the handlebar clamps)


Some other small things that I have done are:

Three of the seat-pan resting blocks were missing, so I designed and printed those as well.

The supplied ignition key did not work in the seat lock, or the helmet lock, so I disassembled both,
   and, by re-arranging the internal lock "tumblers", both now work!
   (I know, I know, the number on the lock will no longer match the key!)

I ordered a set of "pattern" turn signals from Hendler (Ebay) and when they arrived I was disgusted to find that they are supplied WITHOUT
a sealing gasket, or a mounting nut ( which has an obscure 10mm x 1mm pitch thread!)
So, I designed a suitable gasket and 3D printed them.  I also had to 3D print the four vibration isolation inserts.

I am still waiting (THREE MONTHS!) for delivery of the 1000J airbox and boots (and some other bits) that
I found on Ebay, so mounting that will be next. I won't bother tuning the BS34 carburettors before this is done.

Still to do are: the fork-seals and steering head bearings replaced with tapered roller bearings.

I ordered a good quality Lawson replica decal set and once that arrives... PAINT!

The replica 1100R seat-cover has arrived, so I will fit that soon.

Oh, and I'm busy designing a 3D printable chain-guard. (searched far and wide for one!)



Cheers for now.

H.
'81 GPz 550 D1 Click this link: www.kzrider.com/gallery/kz-550/1981-gpz550d1-9094#joomimg
'81 GPz 1100 B1 ELR "Tribute" www.kzrider.com/forum/11-projects/617040-1981-gpz1100-b1-rst
'82 Yamaha YB100 Fizzie
'79 Suzuki GT200 X5 TWO STROKE TWIN - SMOKER!
Attachments:
The following user(s) said Thank You: slayer61, KZmarcel

Please Log in or Create an account to join the conversation.

Last edit: by howardhb.

1981 GPz1100 B1 Rstomod / ELR "Tribute" 28 Mar 2022 09:03 #864415

  • Wookie58
  • Wookie58's Avatar
  • Away
  • Moderator
  • Posts: 3087
  • Thank you received: 1718
Great work, looking really good
The following user(s) said Thank You: howardhb

Please Log in or Create an account to join the conversation.

1981 GPz1100 B1 Rstomod / ELR "Tribute" 28 Mar 2022 11:58 #864424

  • howardhb
  • howardhb's Avatar Topic Author
  • Offline
  • Sustaining Member
  • In God I trust
  • Posts: 421
  • Thank you received: 415

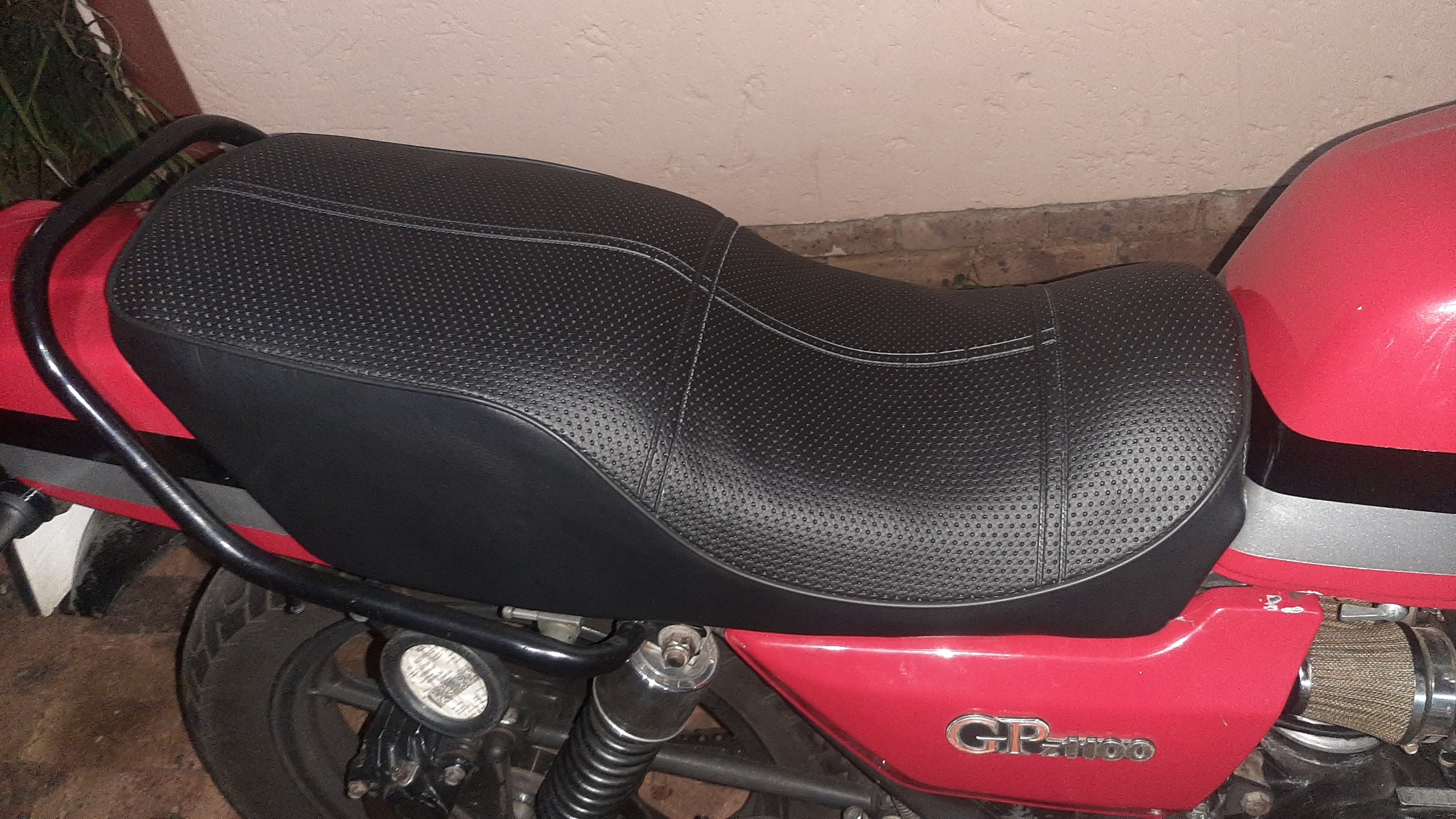

I fit the seat cover this evening.
Hard work to stretch and pull it to, erm, "sit" properly.
Worked up quite a sweat!

I am mostly satisfied with the result.
 My previous experience fitting a new cover to my GPz550D1 really helped.

A couple of hours in the sun will allow it to "form" a more natural shape, as did the D1 cover.



'81 GPz 550 D1 Click this link: www.kzrider.com/gallery/kz-550/1981-gpz550d1-9094#joomimg
'81 GPz 1100 B1 ELR "Tribute" www.kzrider.com/forum/11-projects/617040-1981-gpz1100-b1-rst
'82 Yamaha YB100 Fizzie
'79 Suzuki GT200 X5 TWO STROKE TWIN - SMOKER!
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by howardhb.

1981 GPz1100 B1 Rstomod / ELR "Tribute" 28 Mar 2022 12:43 #864426

  • kzstreetfighter71
  • kzstreetfighter71's Avatar
  • Offline
  • User
  • Atlantic West Coast
  • Posts: 876
  • Thank you received: 250
Nice work on the 3D printing, those look quality. I have an B1 and was going to fit a b2 cowl and clocks next year, maybe ill come knocking for copies of what you made to make you a few dollars.
06 Gsf 1200 bandit, 08 Triumph tiger 1010
05 Yam xv1700 , 02 Hon shadow 1100
1975 Z1 (currently working on)
1977 Z1000 ( running and in storage)
1978 Z1000 (currently working on)
1978 Z1r "skinny tank" (currently working on)
1978 Z1r "fat tank (gathering parts)
1979 z1000st (currently working on)

Please Log in or Create an account to join the conversation.

1981 GPz1100 B1 Rstomod / ELR "Tribute" 28 Mar 2022 13:14 #864431

  • howardhb
  • howardhb's Avatar Topic Author
  • Offline
  • Sustaining Member
  • In God I trust
  • Posts: 421
  • Thank you received: 415
Sure. No problem.

Sharing is caring!
'81 GPz 550 D1 Click this link: www.kzrider.com/gallery/kz-550/1981-gpz550d1-9094#joomimg
'81 GPz 1100 B1 ELR "Tribute" www.kzrider.com/forum/11-projects/617040-1981-gpz1100-b1-rst
'82 Yamaha YB100 Fizzie
'79 Suzuki GT200 X5 TWO STROKE TWIN - SMOKER!
The following user(s) said Thank You: kzstreetfighter71

Please Log in or Create an account to join the conversation.

1981 GPz1100 B1 Rstomod / ELR "Tribute" 05 Apr 2022 06:55 #864942

  • slayer61
  • slayer61's Avatar
  • Offline
  • User
  • KZR FLAG RELAY CARRIER #62
  • Posts: 874
  • Thank you received: 256
Howard,
   nice job on saving another GPz. Well done. I'm getting kinda jealous of y'all with the 3d printers & such...

Regarding electrical plugs... they are somewhat universal. I have purchased them from one of our state side vendors. Z1 enterprises.   www.z1enterprises.com/

Keep up the good work.
Don't be ridiculous! It's only a flesh wound!

Wife's little bike... 1984 GPZ 550 Kerker and DynaJet stage I kit
Wife's BIG bike...... 1981 GPZ 1100 Kerker and factory FI Mikuni RS34s W/ K&N pods
The following user(s) said Thank You: howardhb

Please Log in or Create an account to join the conversation.

1981 GPz1100 B1 Rstomod / ELR "Tribute" 05 Apr 2022 08:51 #864951

  • howardhb
  • howardhb's Avatar Topic Author
  • Offline
  • Sustaining Member
  • In God I trust
  • Posts: 421
  • Thank you received: 415
Thank-you!

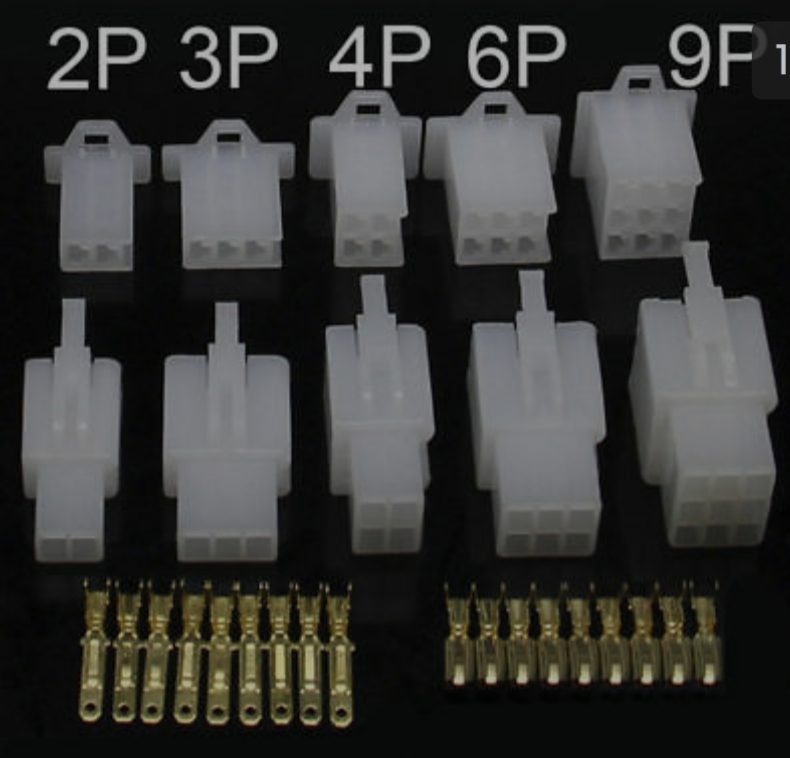

I found these on Ebay...
The brass plug internals are identical to the 'saki plugs and at around 80 cents a plug "set", pretty good value.

'81 GPz 550 D1 Click this link: www.kzrider.com/gallery/kz-550/1981-gpz550d1-9094#joomimg
'81 GPz 1100 B1 ELR "Tribute" www.kzrider.com/forum/11-projects/617040-1981-gpz1100-b1-rst
'82 Yamaha YB100 Fizzie
'79 Suzuki GT200 X5 TWO STROKE TWIN - SMOKER!
Attachments:

Please Log in or Create an account to join the conversation.

1981 GPz1100 B1 Rstomod / ELR "Tribute" 05 Apr 2022 15:24 #864983

  • Wookie58
  • Wookie58's Avatar
  • Away
  • Moderator
  • Posts: 3087
  • Thank you received: 1718

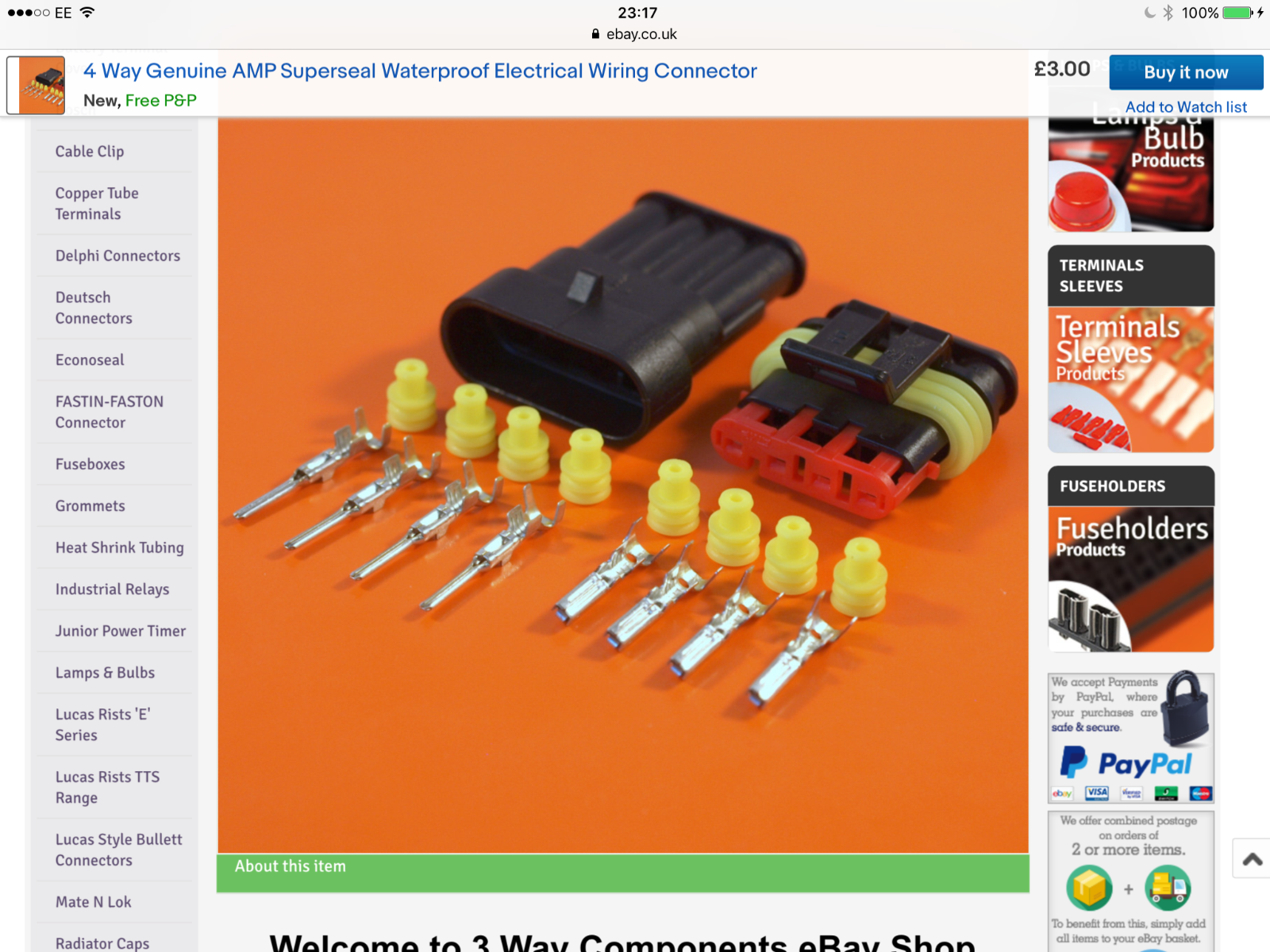

Hi Howard, if you are not concerned about 100% originality you might want to consider the below. These connectors have been common in the automotive world for many years, they have seals around each wire and between the two halves of the plug (available with 1 - 6 locations) making them ideal for a bike as they are totally weatherproof. they cost a little more but I think it's worth it




Attachments:
The following user(s) said Thank You: howardhb

Please Log in or Create an account to join the conversation.

1981 GPz1100 B1 Rstomod / ELR "Tribute" 05 Apr 2022 23:19 #865023

  • howardhb
  • howardhb's Avatar Topic Author
  • Offline
  • Sustaining Member
  • In God I trust
  • Posts: 421
  • Thank you received: 415
Wow, those do look good... probable submersible !


'81 GPz 550 D1 Click this link: www.kzrider.com/gallery/kz-550/1981-gpz550d1-9094#joomimg
'81 GPz 1100 B1 ELR "Tribute" www.kzrider.com/forum/11-projects/617040-1981-gpz1100-b1-rst
'82 Yamaha YB100 Fizzie
'79 Suzuki GT200 X5 TWO STROKE TWIN - SMOKER!
