Rebuilding rear master cylinder

More
08 Aug 2020 13:59 #832425 by Bowserpup32
Rebuilding rear master cylinder was created by Bowserpup32
Hey guys...the build continues over here and yet another road block. I’m rebuilding my rear master cylinder but can’t find a good spec sheet and or photos (prefered) of how this damb thing goes back together. When I took apart I sadly did not take enough notes or photos. Hoping someone can ahead some light. Main confusion is order and orientation of each part. I have included some photos for ease of part identification.

Mainly confused of position and orientation of plastic circular disk that goes in reservoir and the direction and position of rubber cup that goes internally along with spring.

Any help would be great
Attachments:

Please Log in or Create an account to join the conversation.

More
08 Aug 2020 18:52 #832456 by Mikaw
Replied by Mikaw on topic Rebuilding rear master cylinder

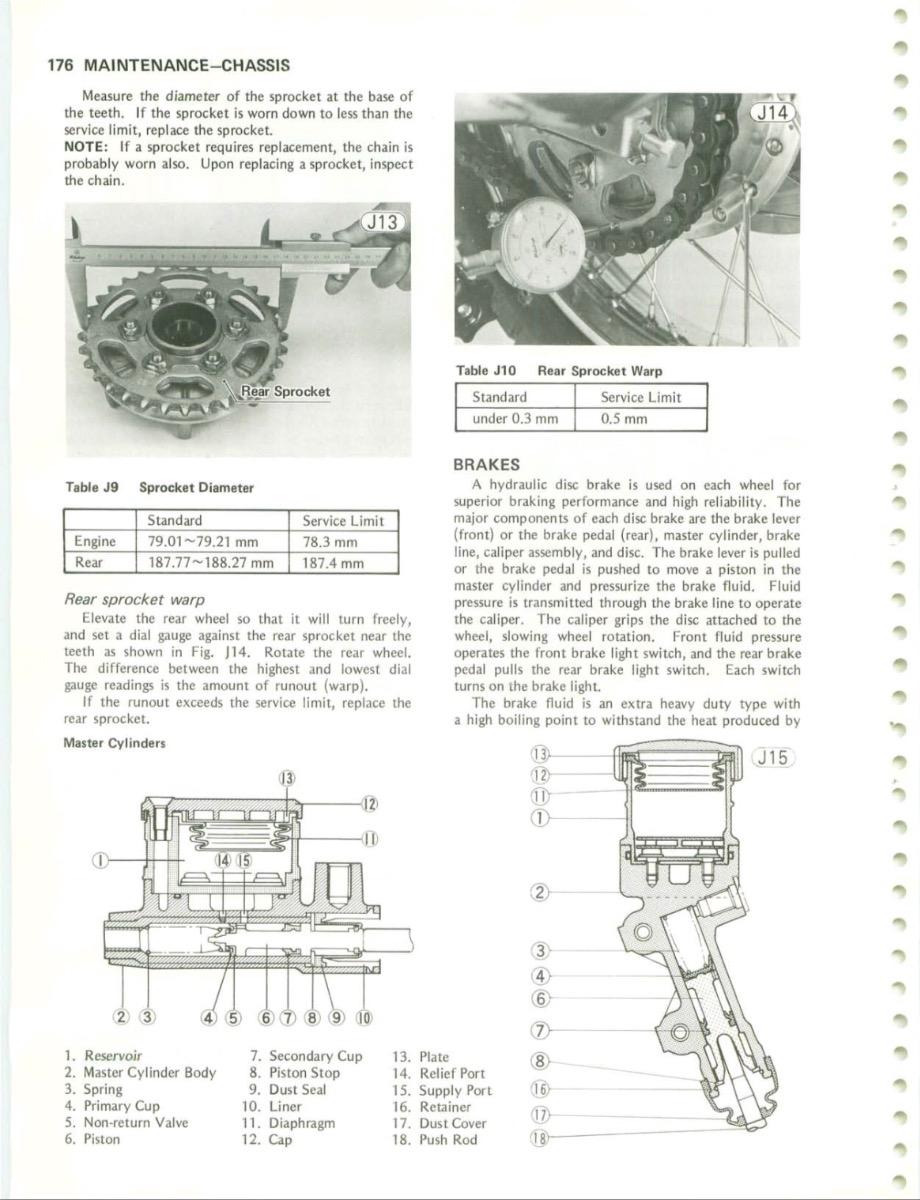

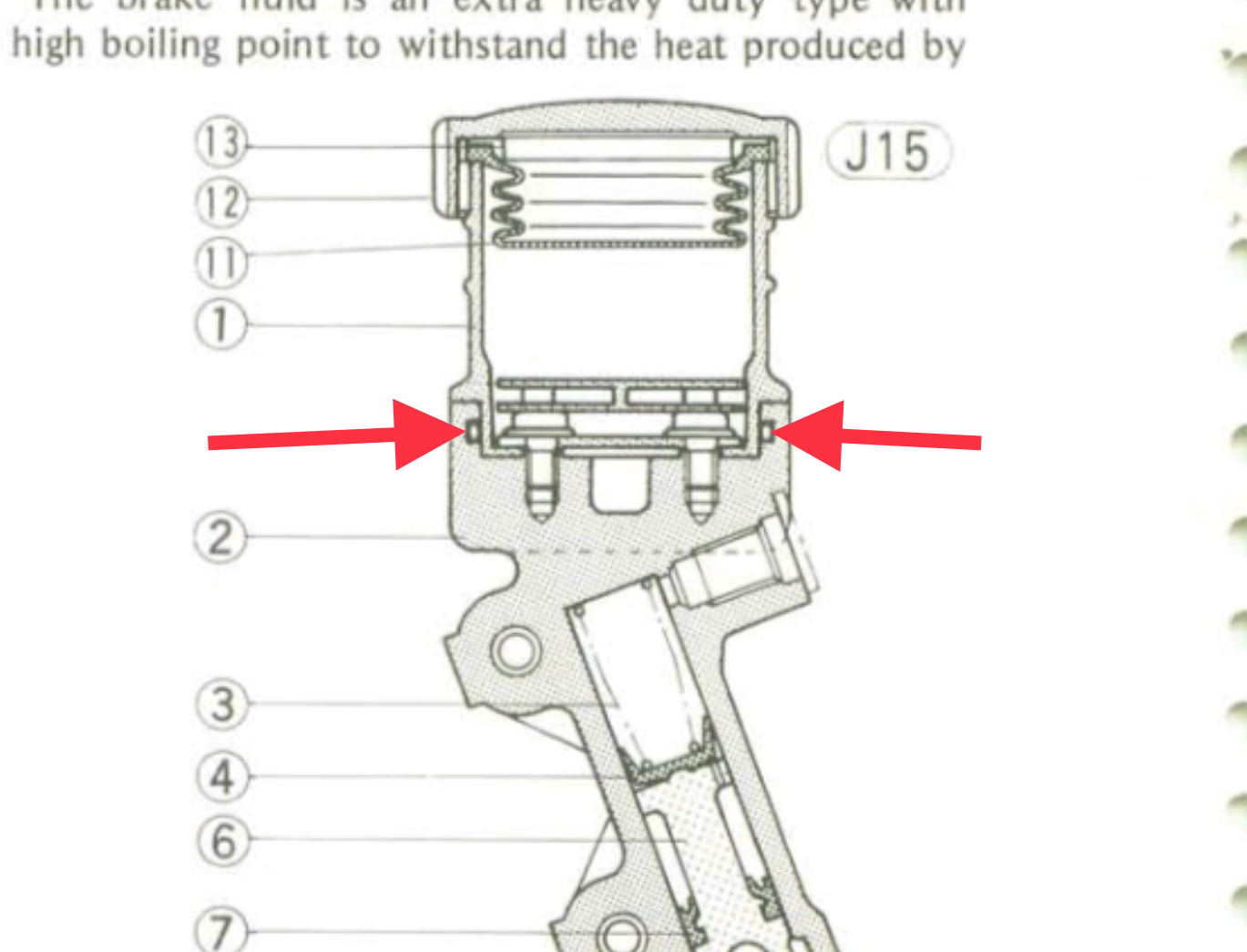

Spring in first, big end first. Then primary cup open end in first. Then piston. I’m almost 100% sure the white disc is facing correct in your picture and looking at its top. Cup on MC, metal disc,screws threw metal disc, then the plastic white disc. Align the protruding tabs with recesses inside cup. These an O-Ring inside the MC that needs to be replaced see red arrows.




1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Attachments:
The following user(s) said Thank You: Bowserpup32

Please Log in or Create an account to join the conversation.
