Down to the Nitty Gritty

24 Oct 2017 12:49
#773651
Finally has come down to the last few parts deliveries before her first road test. It's been a long road to get to this moment. Bike wouldn't be what it is without this site so kuddos to every member on here who's contributed the wealth of knowledge this site has to offer. All that said what you guys think not terrible for my first Kz. Still needs a muffler which I can't make up my mind on throw some suggestions if you got em. Looking forward to all kinds of feedback. Gracious,
The Starving Artist

Attachment not found

Attachment not found

Attachment not found

Attachment not found

Attachment not found

Attachment not found


Please Log in or Create an account to join the conversation.

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 7686
  • Thanks: 2320

Re: Down to the Nitty Gritty

24 Oct 2017 19:39
#773681
I think it would be cool to find a short muffler to mount under the engine so that it would end right where the current pipe does.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24

Please Log in or Create an account to join the conversation.

  • barney
  • barney's Avatar
  • Offline
  • User
  • Posts: 443
  • Thanks: 36

Re: Down to the Nitty Gritty

25 Oct 2017 09:49
#773708
Just an observation but i think that battery mounted on the swing arm could pose you some problems. Great use of space though.
Barn

Please Log in or Create an account to join the conversation.

  • Nessism
  • Nessism's Avatar
  • Away
  • Sustaining Member
  • Posts: 7527
  • Thanks: 2886

Re: Down to the Nitty Gritty

25 Oct 2017 11:03
#773714
Agree that battery should not be mounted to the swingarm. That increases unsprung mass among other things.
Ed
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0

www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread

Please Log in or Create an account to join the conversation.

  • Nerdy
  • Nerdy's Avatar
  • Offline
  • Sustaining Member
  • Posts: 1036
  • Thanks: 399

Re: Down to the Nitty Gritty

26 Oct 2017 09:03 - 26 Oct 2017 13:37
#773763
Shawndgrez wrote:

Attachment not found


Don't take this the wrong way, but is your frame really that crooked?

The upper shock mounts don't line up at all and flat part at the back end of the frame is not perpendicular to the tire. :(

It appears that the upper frame rail on the right side in the pic (i.e. the left side of the bike) is about .25" too short in front of the upper shock mount.

There is an indentation just to the right and near the top edge of the Dyna S. Is that a dent or an artifact of frame modifications?
1979 KZ400 Gifted to a couple of nephews
1967 Yamaha YCS1 Bonanza
1980 KZ440B
1981 Yamaha XT250H
1981 KZ440 LTD project bike
1981 GPz550
2013 Yamaha FZ6R
Last edit: 26 Oct 2017 13:37 by Nerdy.
The following user(s) said Thank You: 650ed

Please Log in or Create an account to join the conversation.

  • 650ed
  • 650ed's Avatar
  • Offline
  • User
  • Posts: 15343
  • Thanks: 2829

Re: Down to the Nitty Gritty

26 Oct 2017 15:34
#773787
Nerdy wrote: .................
Don't take this the wrong way, but is your frame really that crooked?

The upper shock mounts don't line up at all and flat part at the back end of the frame is not perpendicular to the tire. :(

It appears that the upper frame rail on the right side in the pic (i.e. the left side of the bike) is about .25" too short in front of the upper shock mount.

There is an indentation just to the right and near the top edge of the Dyna S. Is that a dent or an artifact of frame modifications?

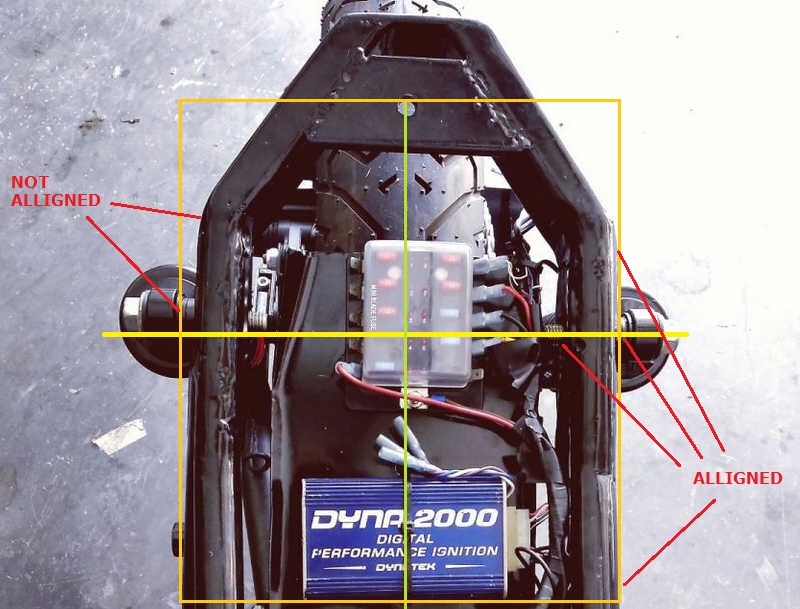

I noticed the same thing, The picture below shows what I found to look suspicious. Ed

1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)

Attachments:

The following user(s) said Thank You: Nerdy

Please Log in or Create an account to join the conversation.

  • Nerdy
  • Nerdy's Avatar
  • Offline
  • Sustaining Member
  • Posts: 1036
  • Thanks: 399

Re: Down to the Nitty Gritty

26 Oct 2017 19:48
#773804
Nice job on the diagram, Ed - that is mostly what I was picturing. The yellow line on the left was a surprise, though: I didn't realize that frame rail was at such an angle.

I think the misaligned shocks will put a slight twisting load on the swingarm bushings as the bike goes over bumps. It might not actually bind until the shocks are close to bottoming (if it binds at all) but it's still not a good idea.

Hope the OP sees the diagram before getting the bike on the road.
1979 KZ400 Gifted to a couple of nephews
1967 Yamaha YCS1 Bonanza
1980 KZ440B
1981 Yamaha XT250H
1981 KZ440 LTD project bike
1981 GPz550
2013 Yamaha FZ6R

Please Log in or Create an account to join the conversation.

Re: Down to the Nitty Gritty

15 Nov 2017 20:07
#774663
Nice work on the diagram

Please Log in or Create an account to join the conversation.

  • old_kaw
  • old_kaw's Avatar
  • Offline
  • User
  • Posts: 929
  • Thanks: 269

Re: Down to the Nitty Gritty

19 Nov 2017 08:18
#774794
Shawndgrez wrote: Finally has come down to the last few parts deliveries before her first road test. It's been a long road to get to this moment. Bike wouldn't be what it is without this site so kuddos to every member on here who's contributed the wealth of knowledge this site has to offer. All that said what you guys think not terrible for my first Kz. Still needs a muffler which I can't make up my mind on throw some suggestions if you got em. Looking forward to all kinds of feedback. Gracious,
The Starving Artist

Attachment not found

Attachment not found

Attachment not found

Attachment not found

Attachment not found

Attachment not found


Just curious here.. WHY, don't any of these pics show up? The pic 650ED posted shows great with his awesome and spot on critique, I might ad. I expect that the pics are gone on threads that are 6-7 years old, but this thread is recent. Curious minds want to know. :-)
