17 May 2013 09:54 #587875 by 531blackbanshee
Replied by 531blackbanshee on topic 650 Mod's 78 Fighter Build
really nice.

you gotta be stoked :evil: .

nice job capturing the stem.

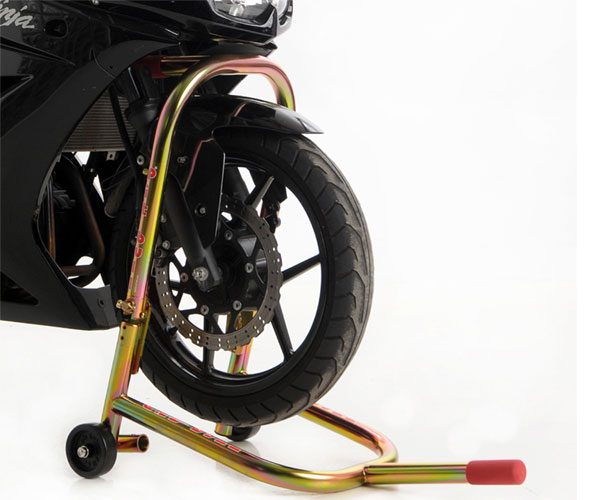

you can't use one of these stands tho now :P .



keep us posted on the progress.

leon

skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0
Attachments:

Please Log in or Create an account to join the conversation.

More
17 May 2013 12:00 #587910 by 650mod
Replied by 650mod on topic 650 Mod's 78 Fighter Build
Leon,

I sure am! I was nervous about the wheel spacers not working out because I wasn't 100% sure if the forks were off an X1 lightning- but they are, and everything on the front end is snug and looking awesome!

And how does that stand even work? Looks like it just rests on the bottom triple?

Devin

78 kz 650 custom
Wiseco 720cc big bore
Dynajet stage 3 carb kit with pods
2002 Kawasaki Z750 exhaust
2001 Buell lightning front end
1999 Ninja 600 swingarm with 1999 Ninja 900 rear rim
converted to monoshock rear
Too many goodies to list fully

Please Log in or Create an account to join the conversation.

More
17 May 2013 12:39 #587915 by 531blackbanshee
Replied by 531blackbanshee on topic 650 Mod's 78 Fighter Build
it has a stud that fits into the hole that is in the bottom of most steering stems.
that way you can use the stand to remove the front wheel.
used mainly for racers.

no biggie,i was just playin around :silly: .

leon

skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0

Please Log in or Create an account to join the conversation.

More
17 May 2013 13:03 #587925 by 650mod
Replied by 650mod on topic 650 Mod's 78 Fighter Build
Ah, got ya! I know you were just playin' :P I probably wouldn't use a stand anywho. If I did, I'd probably custom fab a pretty one :)

Devin

78 kz 650 custom
Wiseco 720cc big bore
Dynajet stage 3 carb kit with pods
2002 Kawasaki Z750 exhaust
2001 Buell lightning front end
1999 Ninja 600 swingarm with 1999 Ninja 900 rear rim
converted to monoshock rear
Too many goodies to list fully

Please Log in or Create an account to join the conversation.

More
19 May 2013 14:07 #588187 by 650mod
Replied by 650mod on topic 650 Mod's 78 Fighter Build
I'll be getting my exhaust back on soon, and tuning up my carbs. Did a bench synch on the slides, and I'll bench synch the float levels soon.

When I do get the carbs on, do you guys think that tuning the pilot circuit with a Gunson Colourtune unit will be enough? Or should I also vacuum set them once I have the carbs in roughly the right burn range?

Thanks,

Devin

78 kz 650 custom
Wiseco 720cc big bore
Dynajet stage 3 carb kit with pods
2002 Kawasaki Z750 exhaust
2001 Buell lightning front end
1999 Ninja 600 swingarm with 1999 Ninja 900 rear rim
converted to monoshock rear
Too many goodies to list fully

Please Log in or Create an account to join the conversation.

More
19 May 2013 17:53 #588201 by Patton
Replied by Patton on topic 650 Mod's 78 Fighter Build

650mod wrote: ... Did a bench synch on the slides, and I'll bench synch the float levels soon....


bench synch the float levels -- am trusting that this means assuring the fuel levels are within specs by performing the clear tube test on each carb (which may be performed on the bench or with carbs installed).

As known, adjusting "float heights" to a dry-measured distance often doesn't produce correct actual fuel levels.

Good Fortune! :)

1973 Z1
KZ900 LTD

Please Log in or Create an account to join the conversation.

More
19 May 2013 18:52 #588222 by 650mod
Replied by 650mod on topic 650 Mod's 78 Fighter Build
Patton,

Yes, I meant doing a wet bench-synch on the floats. Make a little jig up to hold the carbs, and check float height with the clear tubes.

Should I use a vacuum gauge also?

78 kz 650 custom
Wiseco 720cc big bore
Dynajet stage 3 carb kit with pods
2002 Kawasaki Z750 exhaust
2001 Buell lightning front end
1999 Ninja 600 swingarm with 1999 Ninja 900 rear rim
converted to monoshock rear
Too many goodies to list fully

Please Log in or Create an account to join the conversation.

More
22 May 2013 11:47 #588730 by 650mod
Replied by 650mod on topic 650 Mod's 78 Fighter Build
Purchased a set of Dyna spark leads and a Dyna S ignition for the bike. I'm hoping it takes away a lot of my cold start issues once I have everything dialed in right. Waiting on picking up a digital speedo until I get some measurements off my stock cluster to see if I can squeeze the digital one in somehow by making a spacer ring. If not, looks like I'll switch over to an Acewll speedo/tach setup.

78 kz 650 custom
Wiseco 720cc big bore
Dynajet stage 3 carb kit with pods
2002 Kawasaki Z750 exhaust
2001 Buell lightning front end
1999 Ninja 600 swingarm with 1999 Ninja 900 rear rim
converted to monoshock rear
Too many goodies to list fully

Please Log in or Create an account to join the conversation.

More
22 May 2013 13:50 - 22 May 2013 13:53 #588753 by Patton
Replied by Patton on topic 650 Mod's 78 Fighter Build

650mod wrote: Patton,

Yes, I meant doing a wet bench-synch on the floats. Make a little jig up to hold the carbs, and check float height with the clear tubes.

Should I use a vacuum gauge also?


Vacuum gauges (manometer of whatever type) are used to equalize carb vacuums when the engine is at idle rpm, in order to equalize the performance among all cylinders when the engine is at idle rpm.

This may be referred to as a "running sync." When the running sync is completed, the throttle slides will have been readjusted and will no longer be at their exact equal heights as set during the bench sync.
The bench sync serves as the starting point for the later running sync.

In a perfect world where each cylinder is producing the exact same performance level at idle rpm, the throttle slide heights would likely remain very close to equal at conclusion of the running sync.

As known, vacuum isn't involved during clear tube testing and the making of any float tang adjustments that might be required to achieve fuel levels inside the float bowls within specs (usually 3± mm below the carb body).

Good Fortune! :)

1973 Z1
KZ900 LTD
Last edit: 22 May 2013 13:53 by Patton.
The following user(s) said Thank You: Randombeat

Please Log in or Create an account to join the conversation.

More
03 Jun 2013 14:25 #590666 by 650mod
Replied by 650mod on topic 650 Mod's 78 Fighter Build
Hoping to get the swingarm mounted up this weekend.

Quick question for everyone though- I'm running a swingarm off a Ninja 900, so it's a bit wider than the 600 swinger. If I needed room to clear the frame, how much of a structural hit would I take if I were to notch the frame on both sides of the swinger by 1/8th of an inch and welded plate steel in to fill the void. Doing so would also give me more free range to clear my frame chain side for the 180mm tire.

Any input is appreciated.

78 kz 650 custom
Wiseco 720cc big bore
Dynajet stage 3 carb kit with pods
2002 Kawasaki Z750 exhaust
2001 Buell lightning front end
1999 Ninja 600 swingarm with 1999 Ninja 900 rear rim
converted to monoshock rear
Too many goodies to list fully

Please Log in or Create an account to join the conversation.

More
03 Jun 2013 16:12 #590676 by 531blackbanshee
Replied by 531blackbanshee on topic 650 Mod's 78 Fighter Build
are you going mono shock rear?

leon

skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0

Please Log in or Create an account to join the conversation.

More
03 Jun 2013 16:56 #590682 by pappy750
Replied by pappy750 on topic 650 Mod's 78 Fighter Build
that front end looks soooo beefy!!! :lol: lookin great man
