16 Dec 2011 01:15 #493331
by 650ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Replied by 650ed on topic 78 KZ1000 build (I'm learnding)
On the rust you may want to just use a little oil on a fine plastic abrasive pad. If you use sandpaper or steel wool you will have to deal with removing all the little bits of sand or steel strands. Ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Please Log in or Create an account to join the conversation.
- DoctoRot
- Topic Author
- Offline
- Sustaining Member
- Oh, the usual... I bowl, I drive around...
Less
More
- Posts: 2540
- Thank you received: 675
03 Jan 2012 07:03 - 03 Jan 2012 07:15 #496001
by DoctoRot
Replied by DoctoRot on topic 78 KZ1000 build (I'm learnding)
I have been fiddling with the engine on and off for the past two weeks. I sanded down the paint on some covers.
I installed the bottom end in the frame with the new motor mounts. I have put on the shift linkage cover and output sprocket so i can now check for chain clearances when I am bracing the frame. I replaced all those crappy screws with allen bolts.
I went to install the clutch basket and found a large problem. the clutch basket must be assembled on the input shaft prior to the cases being put together. which now means I have to take apart everything I just did. :pinch:
I was pretty bummed when i realized this, so I stacked the rest of the engine on there to see what it would look like. I think I'm gonna keep the head plain, or hit it with clear gun kote because Larry Cavanaugh did a beautiful job bead blasting it. APE blasted the jugs when they bored them out and its a bit darker so i think I'm going to paint that and sand the fins down. Always liked that look.
Also how crucial is this foam thing? I assume its for vibration reduction. I'm thinking about ditching it in an effort to reduce the weight of this bike, should I keep this?
I went to install the clutch basket and found a large problem. the clutch basket must be assembled on the input shaft prior to the cases being put together. which now means I have to take apart everything I just did. :pinch:
I was pretty bummed when i realized this, so I stacked the rest of the engine on there to see what it would look like. I think I'm gonna keep the head plain, or hit it with clear gun kote because Larry Cavanaugh did a beautiful job bead blasting it. APE blasted the jugs when they bored them out and its a bit darker so i think I'm going to paint that and sand the fins down. Always liked that look.
Also how crucial is this foam thing? I assume its for vibration reduction. I'm thinking about ditching it in an effort to reduce the weight of this bike, should I keep this?
Last edit: 03 Jan 2012 07:15 by DoctoRot.
Please Log in or Create an account to join the conversation.
- 650ed
- Offline
- User
Less
More
- Posts: 15343
- Thank you received: 2829
03 Jan 2012 10:04 #496028
by 650ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Replied by 650ed on topic 78 KZ1000 build (I'm learnding)
That foam thing is a sound arrester. Ed
Attachment SoundArrester.jpg not found
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Attachments:
Please Log in or Create an account to join the conversation.
- 531blackbanshee
- Offline
- Vendor
Less
More
- Posts: 7447
- Thank you received: 797
03 Jan 2012 11:36 #496046
by 531blackbanshee
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!
billybiltit.blogspot.com/
www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work
kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0
Replied by 531blackbanshee on topic 78 KZ1000 build (I'm learnding)
i do not run my sound arrester and can tell no difference i could be deaf or just a dumba$$ but i can't tell the diff.
the clutch basket is made to be romoved or replaced without splitting the cases.
what makes you think it can't be?
leon
the clutch basket is made to be romoved or replaced without splitting the cases.
what makes you think it can't be?
leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!
billybiltit.blogspot.com/
www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work
kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0
Please Log in or Create an account to join the conversation.
- DoctoRot
- Topic Author
- Offline
- Sustaining Member
- Oh, the usual... I bowl, I drive around...
Less
More
- Posts: 2540
- Thank you received: 675
04 Jan 2012 00:24 #496212
by DoctoRot
Replied by DoctoRot on topic 78 KZ1000 build (I'm learnding)
Well I just held it up to the opening and it is much wider, i dont see how it could possibly fit in there without opening the cases. excuse my ignorance if there is something i'm missing. (i hope there is)
Please Log in or Create an account to join the conversation.
- 531blackbanshee
- Offline
- Vendor
Less
More
- Posts: 7447
- Thank you received: 797
04 Jan 2012 12:13 - 04 Jan 2012 12:19 #496266
by 531blackbanshee
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!
billybiltit.blogspot.com/
www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work
kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0
Replied by 531blackbanshee on topic 78 KZ1000 build (I'm learnding)

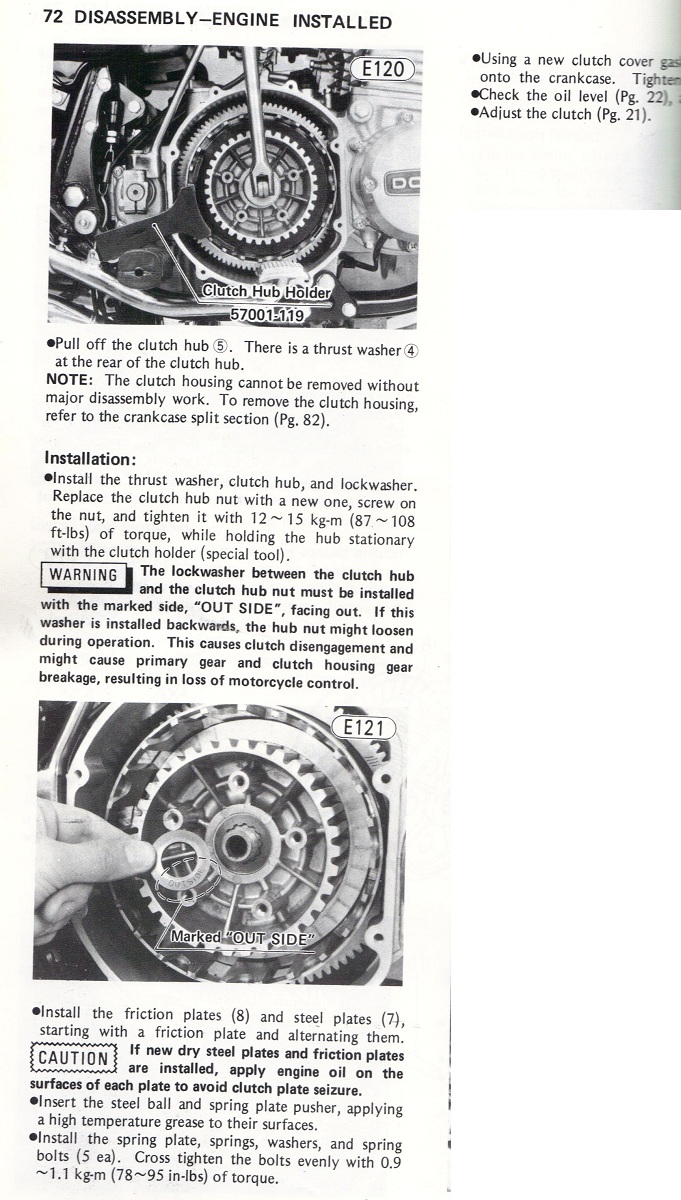

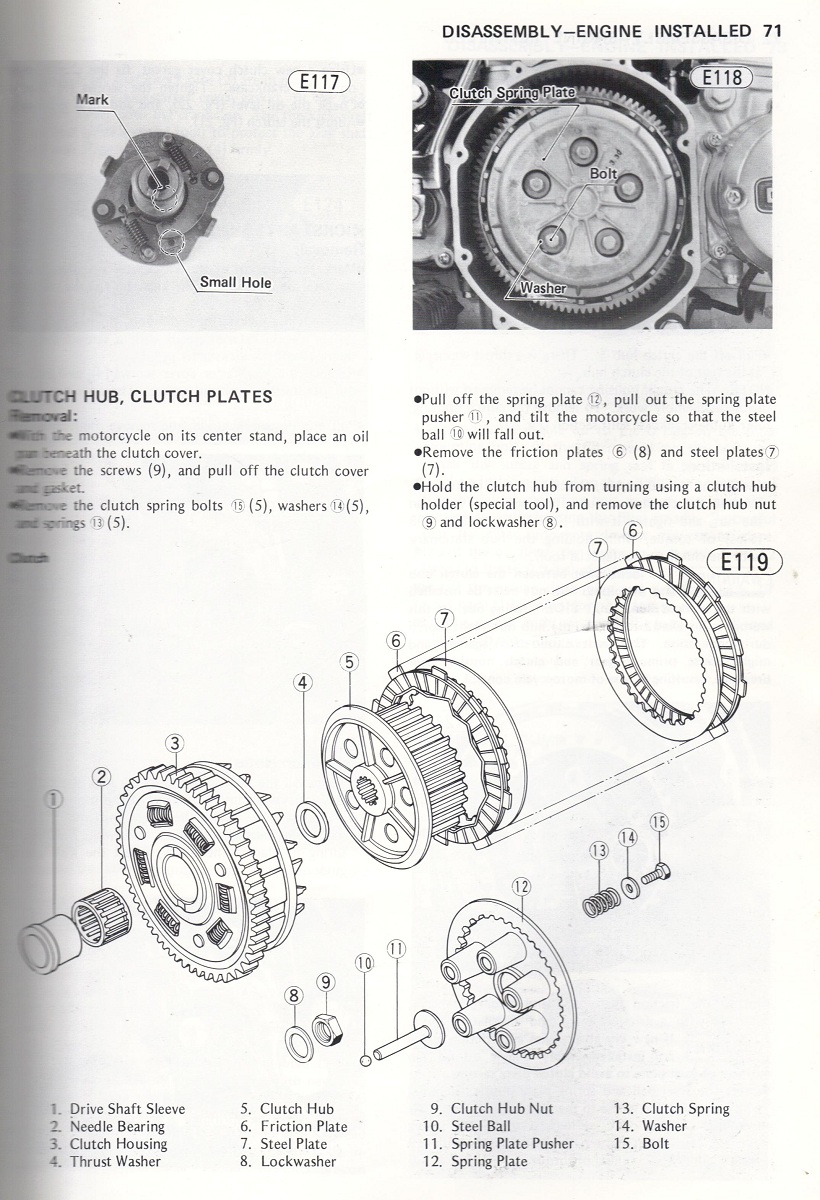

after reviewing the manual i believe that you are right sir.
you will have to split the cases to get the basket in there :pinch: .
leon
you will have to split the cases to get the basket in there :pinch: .
leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!
billybiltit.blogspot.com/
www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work
kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0
Last edit: 04 Jan 2012 12:19 by 531blackbanshee.
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
Less
More
- Posts: 18640
- Thank you received: 2099
04 Jan 2012 12:20 #496268
by Patton
1973 Z1
KZ900 LTD
Replied by Patton on topic 78 KZ1000 build (I'm learnding)
1973 Z1
KZ900 LTD
The following user(s) said Thank You: wireman
Please Log in or Create an account to join the conversation.
- KZ250LTD
- Offline
- User
Less
More
- Posts: 1322
- Thank you received: 16
04 Jan 2012 14:25 - 13 Feb 2012 17:35 #496285
by KZ250LTD
Last edit: 13 Feb 2012 17:35 by KZ250LTD.
Please Log in or Create an account to join the conversation.
- DoctoRot
- Topic Author
- Offline
- Sustaining Member
- Oh, the usual... I bowl, I drive around...
Less
More
- Posts: 2540
- Thank you received: 675
29 Mar 2012 06:37 - 29 Mar 2012 06:41 #512700
by DoctoRot
Replied by DoctoRot on topic 78 KZ1000 build (I'm learnding)
finally made some progress on the bike after 2 months of not doing anything. I cut out the templates for the gussets. I plan on cutting and dimpling holes in a few of them. Just got these for way too cheap,
I'm wondering how they good they are going to hold up for dimpling 1/8" steel. ive heard that the el cheapo ones and cause the sheet to warp when using 1/8" or thicker. I guess we'll see.
I think i need to make the gusset in blue bigger,
but im worried it will make it hard to access the coils or something else. does anyone have dimensions on what they have done? I really want to put a gusset in the front(in green)I havent seen it done yet, but im sure someone has. its probably overkill, but it will look so damn cool.
I'm worried about being able to paint the back of the green gusset once its welded in. Should i drill a hole in this? or can i just cut it out as i will add bracing to the outside that will be doing the same thing. thoughts?
I have also been waiting for my friend in Portland to finish setting up his machine shop. He recently bought a ton of new tools and had to move to a bigger shop. he tells me he has a lathe, mill, and a bunch of sheet metal tools. Hopefully I will head down there with the bike for a few days to to help my buddy crank out a bunch of the more technical things i want to do to this bike.
I'm wondering how they good they are going to hold up for dimpling 1/8" steel. ive heard that the el cheapo ones and cause the sheet to warp when using 1/8" or thicker. I guess we'll see.
I think i need to make the gusset in blue bigger,
but im worried it will make it hard to access the coils or something else. does anyone have dimensions on what they have done? I really want to put a gusset in the front(in green)I havent seen it done yet, but im sure someone has. its probably overkill, but it will look so damn cool.
I'm worried about being able to paint the back of the green gusset once its welded in. Should i drill a hole in this? or can i just cut it out as i will add bracing to the outside that will be doing the same thing. thoughts?
I have also been waiting for my friend in Portland to finish setting up his machine shop. He recently bought a ton of new tools and had to move to a bigger shop. he tells me he has a lathe, mill, and a bunch of sheet metal tools. Hopefully I will head down there with the bike for a few days to to help my buddy crank out a bunch of the more technical things i want to do to this bike.
Last edit: 29 Mar 2012 06:41 by DoctoRot.
Please Log in or Create an account to join the conversation.
- DoctoRot
- Topic Author
- Offline
- Sustaining Member
- Oh, the usual... I bowl, I drive around...
Less
More
- Posts: 2540
- Thank you received: 675
03 May 2012 04:37 #519514
by DoctoRot
Replied by DoctoRot on topic 78 KZ1000 build (I'm learnding)
i've slowly been ordering the electric components for this bike. I wanted to ditch the mechanically driven gauges for something a bit more modern. I will be getting a GPS speedo and a electronic tach from speed hut. I talked to them on the phone and got them to send me the templates for the gauges so i could design them myself with out having to pay their art dept. $80 and hour to do something I am more than capable of doing. here are three designs, wanted to try and stay relatively close to the stock gauges.
this is with the "ticks" that same in the template
this is with the ticks redrawn, to look like the orignal gauges.
kinda like the redline like this. it will be easier to see out of peripheral vision. thoughts?
this is with the "ticks" that same in the template
this is with the ticks redrawn, to look like the orignal gauges.
kinda like the redline like this. it will be easier to see out of peripheral vision. thoughts?
Please Log in or Create an account to join the conversation.
- 531blackbanshee
- Offline
- Vendor
Less
More
- Posts: 7447
- Thank you received: 797
03 May 2012 10:59 #519548
by 531blackbanshee
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!
billybiltit.blogspot.com/
www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work
kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0
Replied by 531blackbanshee on topic 78 KZ1000 build (I'm learnding)
i like the red bar.
not the red ticks and #'s
leon
not the red ticks and #'s
leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!
billybiltit.blogspot.com/
www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work
kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0
Please Log in or Create an account to join the conversation.
- DoctoRot
- Topic Author
- Offline
- Sustaining Member
- Oh, the usual... I bowl, I drive around...
Less
More
- Posts: 2540
- Thank you received: 675
11 May 2012 05:11 - 11 May 2012 05:14 #521481
by DoctoRot
Replied by DoctoRot on topic 78 KZ1000 build (I'm learnding)
started thinking about how i wanted to brace the swing arm. I did two mock-ups.
this one with an x-brace.
Then I thought it might be cool to have a trellis swing arm.
but i started worrying about chain clearance and threw it back on the frame to check. had to move the braces around a bit, but this way there is only one bent brace.
yeah i used clay, dowels, and pvc. its a mock-up, don't judge. :whistle:
what type of room do i need around the chain? horizontal vs, vertical clearance?
right now i have about 1" below, 2" above and a half inch on either side. its hard to tell in the pictures.
I haven't attempted anything like this before so any advice is welcome.
this one with an x-brace.
Then I thought it might be cool to have a trellis swing arm.
but i started worrying about chain clearance and threw it back on the frame to check. had to move the braces around a bit, but this way there is only one bent brace.
yeah i used clay, dowels, and pvc. its a mock-up, don't judge. :whistle:
what type of room do i need around the chain? horizontal vs, vertical clearance?
right now i have about 1" below, 2" above and a half inch on either side. its hard to tell in the pictures.
I haven't attempted anything like this before so any advice is welcome.
