Replacing the fuel line and vacuum lines

  • RetroRipper
  • RetroRipper's Avatar Topic Author
  • Offline
  • User
  • Posts: 3
  • Thanks: 1

Replacing the fuel line and vacuum lines

01 May 2025 10:31 - 01 May 2025 12:35
#911966
Hey guys I’m new the group. I have a 1976 kz400 with dual carbs. How do I run the fuel lines correctly? I’ve seen all sorts of info but I’m getting confused. There are 2 ports at the petcock, a fuel inlet in the middle of the carbs (fuel rail) and one inlet on each carb as well. How do I correctly set this up? TIA!
Last edit: 01 May 2025 12:35 by Street Fighter LTD.
The following user(s) said Thank You: Gdizard

Please Log in or Create an account to join the conversation.

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 7827
  • Thanks: 2421

Re: Replacing the fuel line and vacuum lines

01 May 2025 15:35 - 01 May 2025 15:38
#911976

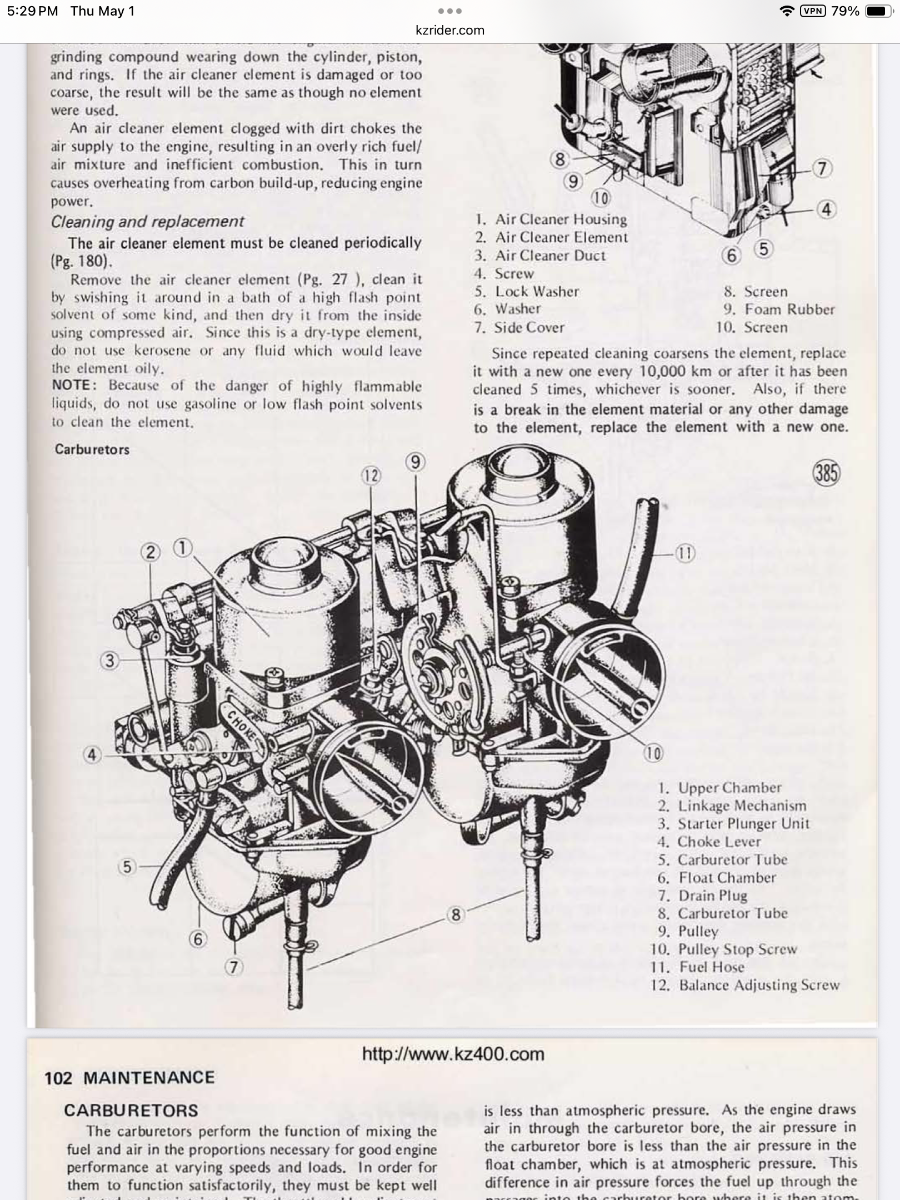

That is interesting. According to the factory service manual, the petcock should have a single outlet. The hoses on the bottom of the bowls (#eight) are for drain or overflow. The ones on the sides (#5) are the bowl vents, and the fuel inlet in the center should be on the outside of the #2 carb (#11).


1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24
Last edit: 01 May 2025 15:38 by TexasKZ.
The following user(s) said Thank You: Scirocco, Gdizard

Please Log in or Create an account to join the conversation.

  • gd4now
  • gd4now's Avatar
  • Offline
  • User
  • Denco where did you go?
  • Posts: 1476
  • Thanks: 509

Re: Replacing the fuel line and vacuum lines

01 May 2025 16:22 - 01 May 2025 16:34
#911979

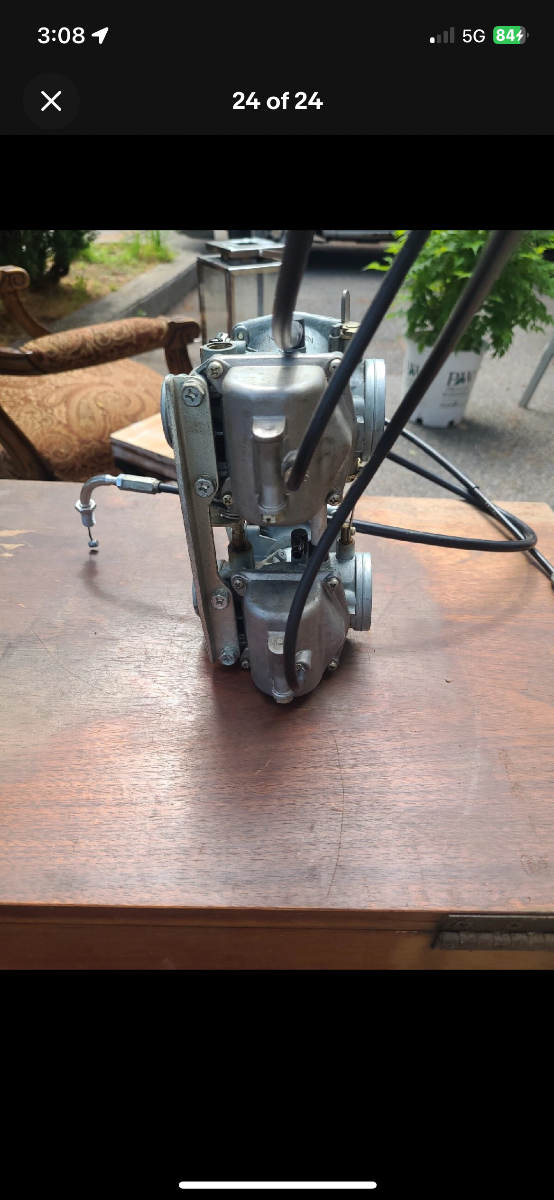

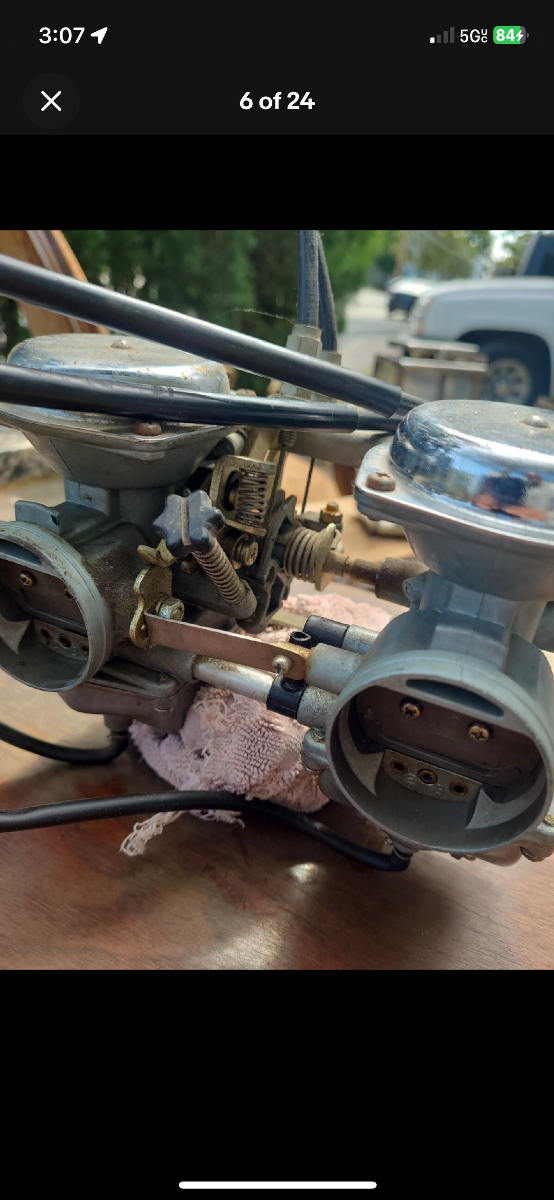

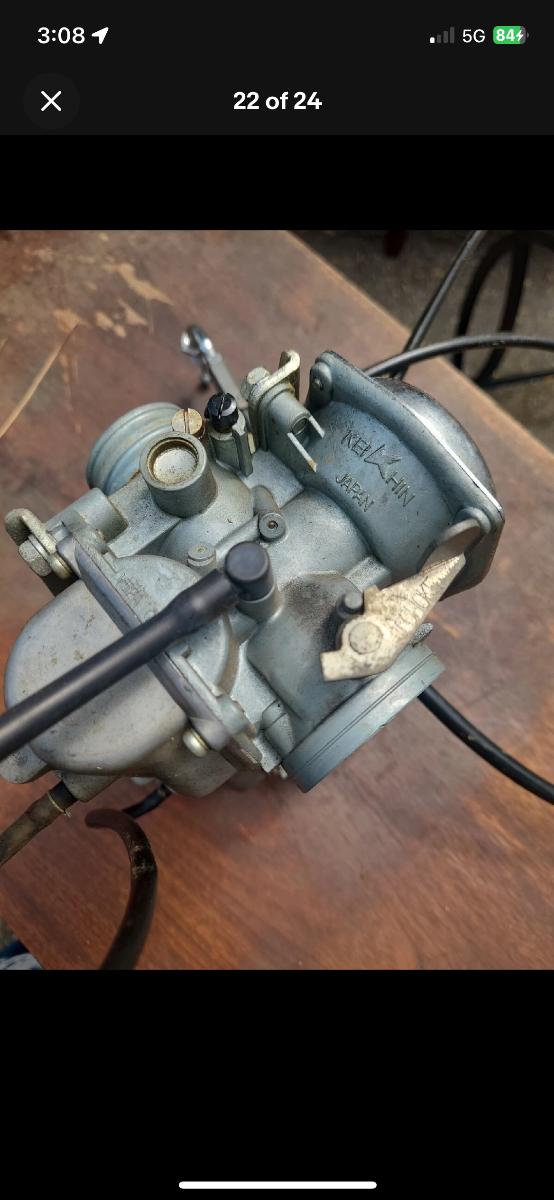

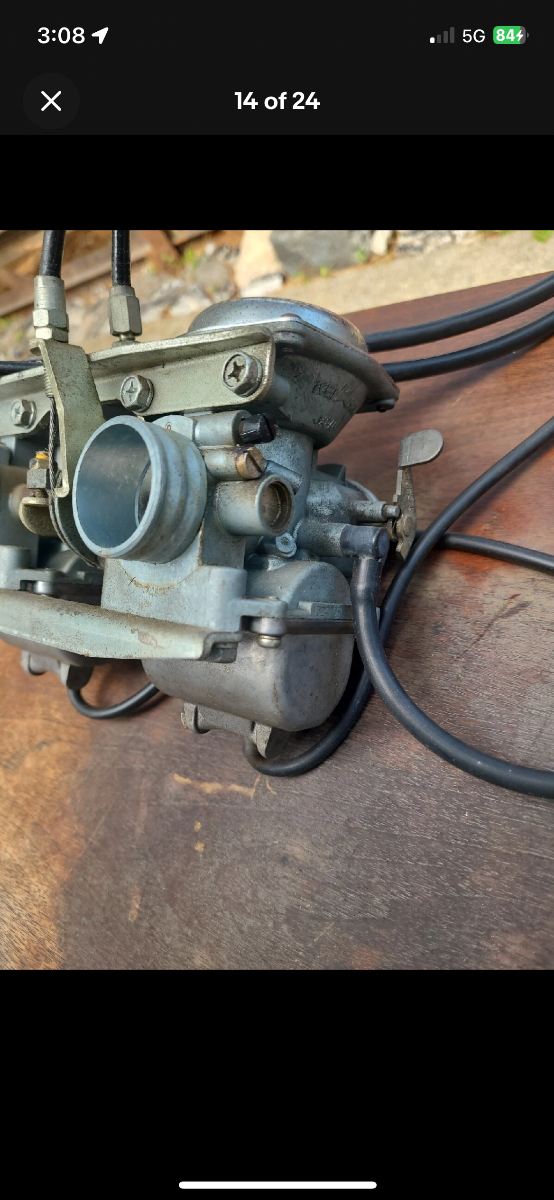

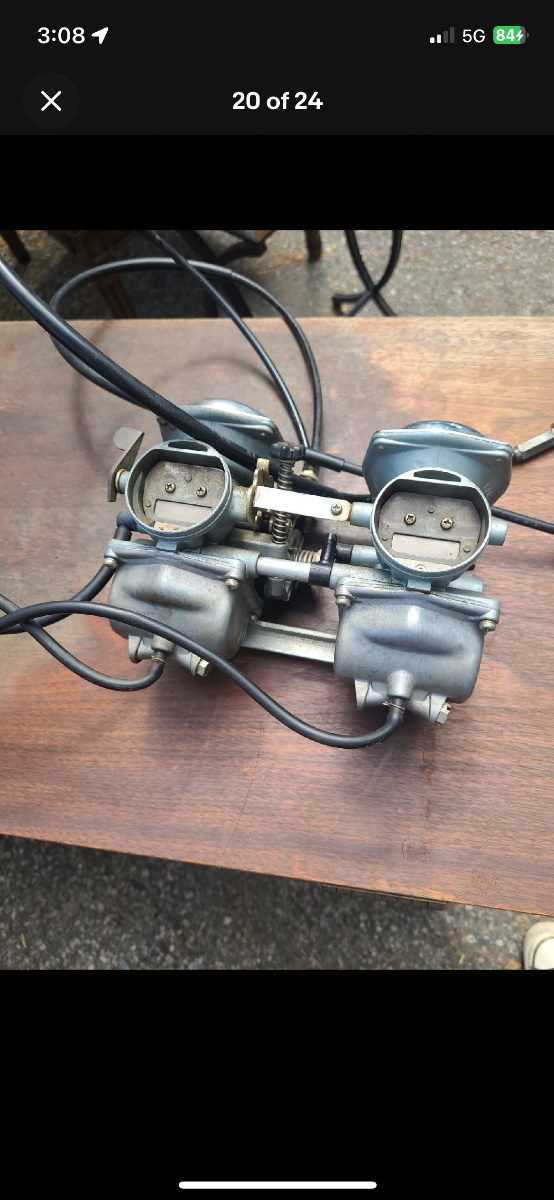

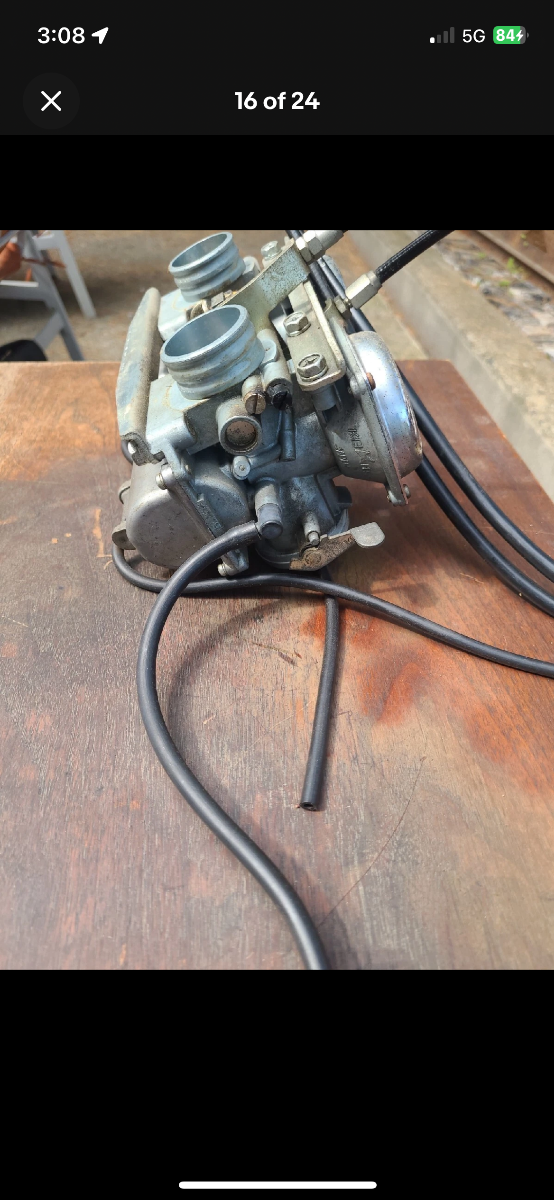

I do not know this for fact but the pic of his carbs look more like the carbs on the 77 version of the 400 than the earlier versions.

I would also state that 2 ports on the petcock does not mean it is a vacuum operated one. What if anything is stamped around the petcock lever?
1977 KZ650 B1
Pods and Denco header


OLD KAW OWNERS SMILE ALOT

Last edit: 01 May 2025 16:34 by gd4now.

Please Log in or Create an account to join the conversation.

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 7827
  • Thanks: 2421

Re: Replacing the fuel line and vacuum lines

01 May 2025 18:42
#911984
Here is a parts diagram for the 1978 Kz400. They look like what you have.

www.partzilla.com/catalog/kawasaki/motor...uretor-assy-kz400-a2
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24

Please Log in or Create an account to join the conversation.

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 7827
  • Thanks: 2421

Re: Replacing the fuel line and vacuum lines

01 May 2025 18:45 - 01 May 2025 18:49
#911985
I just took a closer look at the fsm pic above, and dang if it doesn't look like there is a spot for a fuel line between the carbs, in front of the balance screw, #12.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24
Last edit: 01 May 2025 18:49 by TexasKZ.
The following user(s) said Thank You: Gdizard

Please Log in or Create an account to join the conversation.

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 4408
  • Thanks: 2259

Re: Replacing the fuel line and vacuum lines

02 May 2025 13:26
#912025

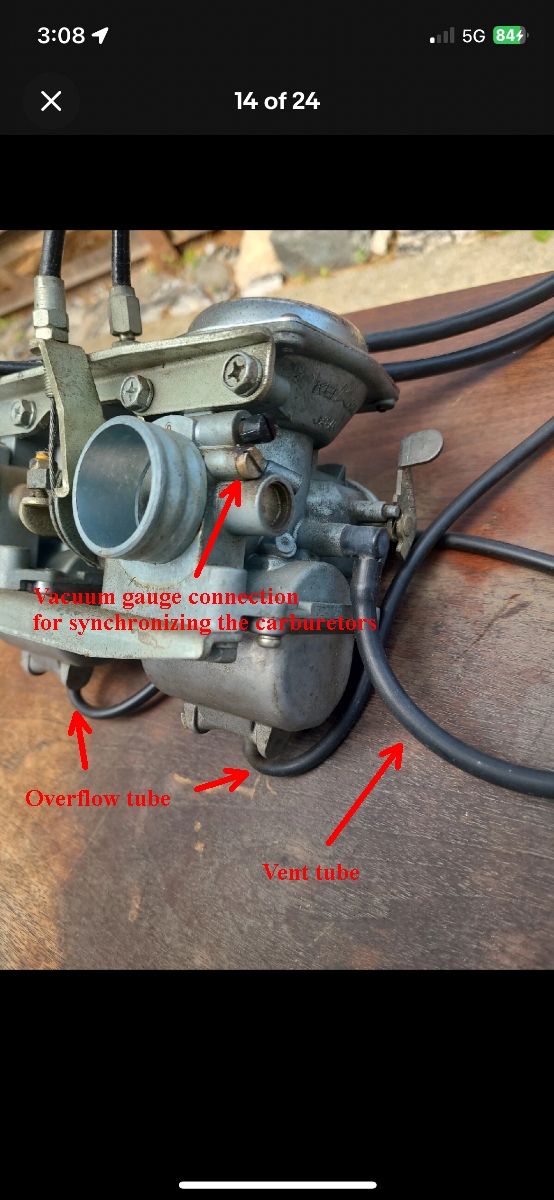

Lets a pic talk......


The following user(s) said Thank You: gd4now, MFP-Joe

Please Log in or Create an account to join the conversation.

  • RetroRipper
  • RetroRipper's Avatar Topic Author
  • Offline
  • User
  • Posts: 3
  • Thanks: 1

Re: Replacing the fuel line and vacuum lines

Today 18:02
#912117
Oh great. So I bought the wrong carbs is what you’re telling me……   I do need help with the throttle cables. One of them has so much slack but I’ve backed them all the way out already… help!!!

Attachments:

Please Log in or Create an account to join the conversation.
