Identification number on motor

KZNewbie76
Topic Author
Offline
User
Posts: 18
Thanks: 2

Identification number on motor

07 Dec 2023 09:01

#892419

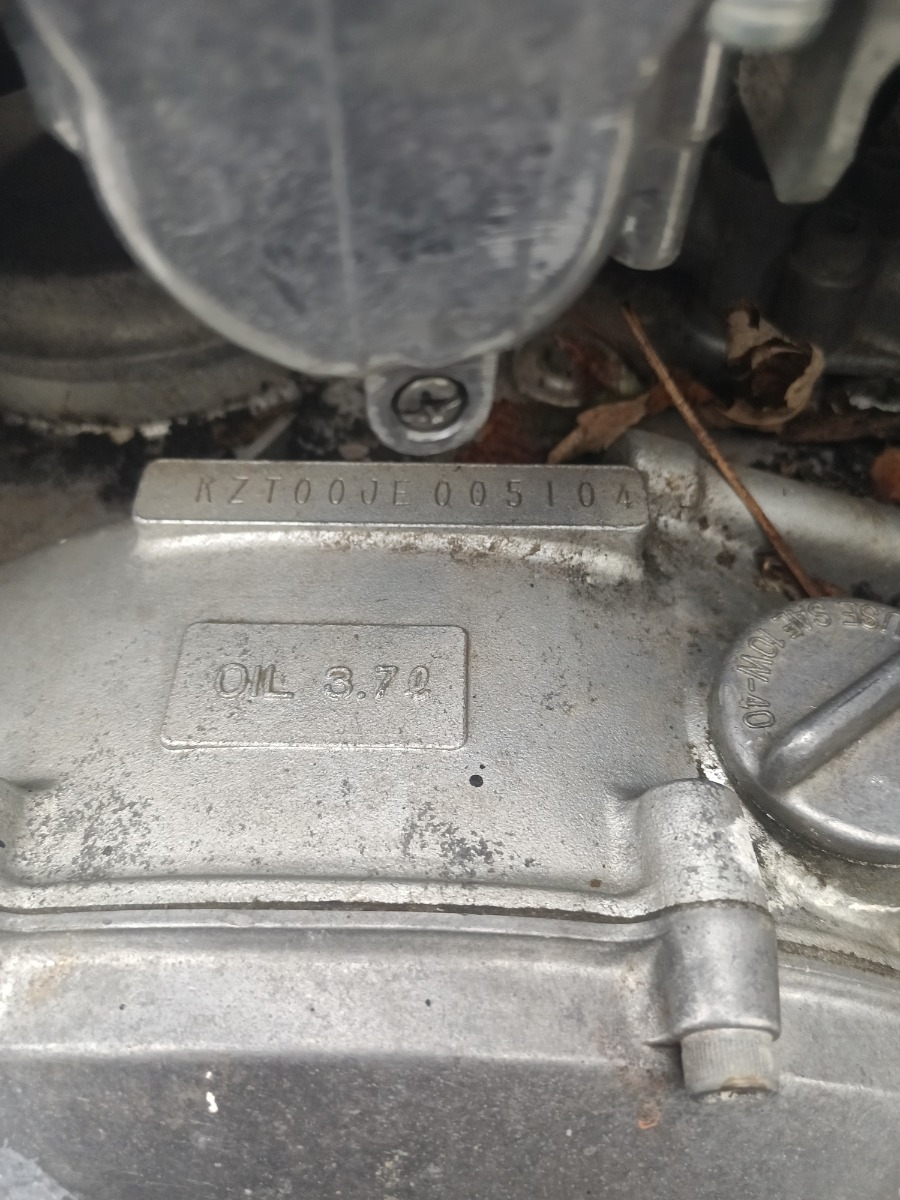

This is my second post so people know that I am not a spammer. I need help with an identification number

Please Log in or Create an account to join the conversation.

Mcdroid
Offline
User
Gone Kwackers
Posts: 6669
Thanks: 337

Re: Identification number on motor

07 Dec 2023 09:07

#892420

OK...what do you need?

Michael
Victoria, Texas

1982 GPz750
1977 KZ1000A
1978 KZ1000A
1982 GPz1100
1975 Z2A

Please Log in or Create an account to join the conversation.

KZNewbie76
Topic Author
Offline
User
Posts: 18
Thanks: 2

Re: Identification number on motor

07 Dec 2023 13:45 - 07 Dec 2023 17:11

#892428

Could you tell me what year and what motor this is? I have kind of whittled it down to a 1981 k1000 LTD. Thank you very much I also have some pictures of the bike if you need

Last edit: 07 Dec 2023 17:11 by Street Fighter LTD.

Please Log in or Create an account to join the conversation.

Warren3200gt
Offline
User
Posts: 1523
Thanks: 731

Re: Identification number on motor

07 Dec 2023 14:00 - 07 Dec 2023 14:04

#892429

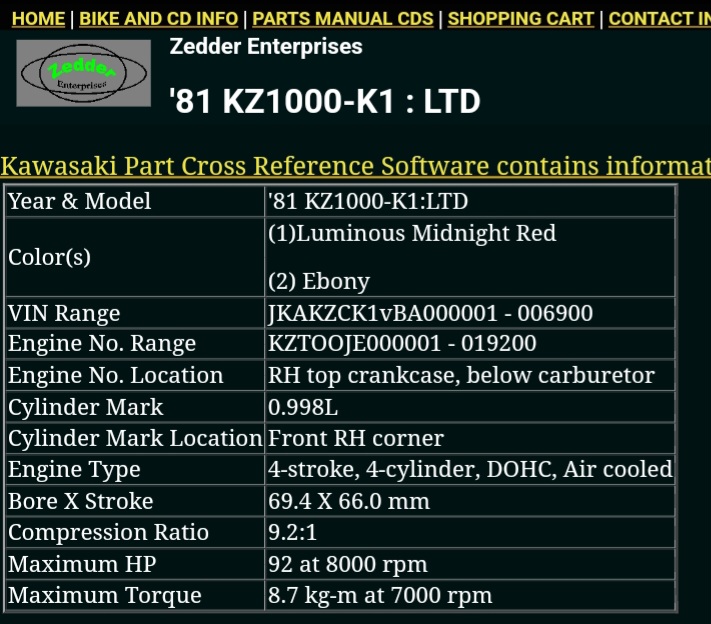

www.zedder.com/msg1.htm#Kawasaki

Z1000J2 somewhat modified!

Last edit: 07 Dec 2023 14:04 by Warren3200gt.

The following user(s) said Thank You: martin_csr

Please Log in or Create an account to join the conversation.

Mikaw
Offline
Sustaining Member
Posts: 4837
Thanks: 1851

Re: Identification number on motor

07 Dec 2023 14:09 - 07 Dec 2023 14:10

#892431

Looks like it is an 1981 year either a “J”, “M1”, or “K1” 1000. From what I know the M1 (CSR) had a cable drive tachometer, and the J1, and LTD (K1) had electronic tach. So does the head have a hole for the tach cable or is is a solid undrilled casting boss.

1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Last edit: 07 Dec 2023 14:10 by Mikaw.

Please Log in or Create an account to join the conversation.

Mcdroid
Offline
User
Gone Kwackers
Posts: 6669
Thanks: 337

Re: Identification number on motor

07 Dec 2023 14:18

#892433

Mikaw wrote:

Looks like it is an 1981 year either a “J”, “M1”, or “K1” 1000. From what I know the M1 (CSR) had a cable drive tachometer, and the J1, and LTD (K1) had electronic tach. So does the head have a hole for the tach cable or is is a solid undrilled casting boss.

Look at the frame VIN located on the main steering stem and at the 7th letter...if it is a J, then J model, if M, then an M model, and if a K, then you have a K model. The motors for all the 998cc bikes all used J series engines.

Michael
Victoria, Texas

1982 GPz750
1977 KZ1000A
1978 KZ1000A
1982 GPz1100
1975 Z2A

Please Log in or Create an account to join the conversation.

KZNewbie76
Topic Author
Offline
User
Posts: 18
Thanks: 2

Re: Identification number on motor

07 Dec 2023 14:48

#892435

I do not have the motorcycle in front of me but I looked at the title in the 7th letter was K. Is there anything specific about the K motor? Is there anything I should know about this specific year? Thank you very much

Please Log in or Create an account to join the conversation.

Mikaw
Offline
Sustaining Member
Posts: 4837
Thanks: 1851

Re: Identification number on motor

07 Dec 2023 15:00

#892436

K would be the LTD version. Mag wheels vs spoked on the J and M1. It should have an electronic tach, no cable.

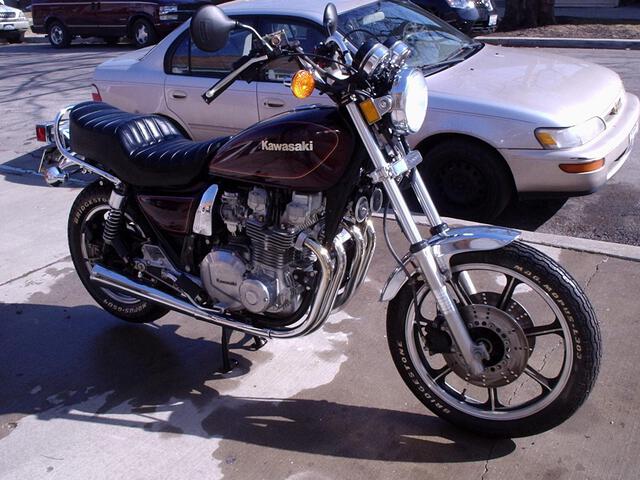

Image pulled from the net

1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

KZNewbie76
Topic Author
Offline
User
Posts: 18
Thanks: 2

Re: Identification number on motor

07 Dec 2023 15:18 - 07 Dec 2023 17:13

#892438

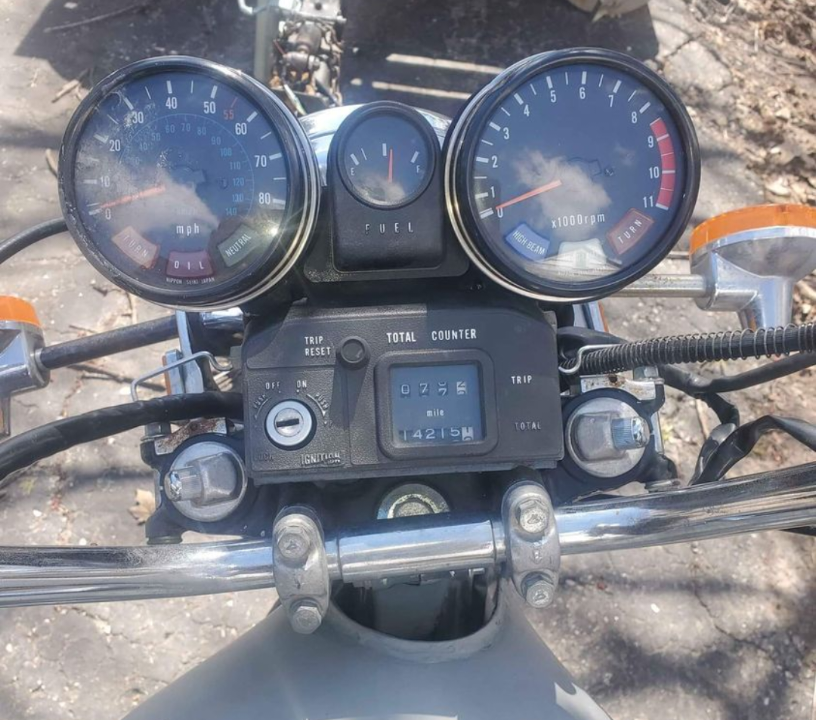

I'm not with the bike right now I'm not sure if it has a cable. This is a picture of the controls

Last edit: 07 Dec 2023 17:13 by Street Fighter LTD.

Please Log in or Create an account to join the conversation.

TexasKZ
Offline
Platinum Member
Posts: 7699
Thanks: 2326

Re: Identification number on motor

07 Dec 2023 15:44 - 07 Dec 2023 15:49

#892440

Also, the K has an electronic speedometer rather than cable drive.

K and M had the least interesting camshafts, and less power than the other models.

Frame and engine numbers are also available here at KZR. www.kzrider.com/filebase?task=download.s...id=1178&catid=64&m=0

You can also download a factory service manual for free here. www.kzrider.com/modules/ServiceManuals/K...Service%20Manual.pdf

1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24

Last edit: 07 Dec 2023 15:49 by TexasKZ.

The following user(s) said Thank You: Wookie58

Please Log in or Create an account to join the conversation.

Mcdroid
Offline
User
Gone Kwackers
Posts: 6669
Thanks: 337

Re: Identification number on motor

07 Dec 2023 15:49

#892441

The J series motors dropped into the M and K models are identical (except for the electronic tachometer). Whereas the J series motors for the J model had differences in timing and in jets & needles for the carbs. It will benefit you to get either a hardcopy of the shop manual (Kawasaki part number 99924-1026-01, or -02, or -03) OR I think there is a free download of that manual under the Articles tab above.

Michael
Victoria, Texas

1982 GPz750
1977 KZ1000A
1978 KZ1000A
1982 GPz1100
1975 Z2A

Please Log in or Create an account to join the conversation.

martin_csr
Offline
User
Posts: 8019
Thanks: 1645

Re: Identification number on motor

08 Dec 2023 06:05 - 09 Dec 2023 05:09

#892458

zedder.com has some info available on their site. for models not listed and additional info, you have to get the cd.

www.zedder.com/msg1.htm

1981 KZ650 Competition Sports and Road

Last edit: 09 Dec 2023 05:09 by martin_csr.

The following user(s) said Thank You: KZNewbie76

Please Log in or Create an account to join the conversation.
