Hi
I joined a few weeks ago and forgot to introduce myself to you all, thanks for allowing me to join the forum, I've just bought a 1978 Z650 B1 in Green off a friend who had owned for 40 odd yrs it's a time warp bike, original everything Inc the seat, the bike needs some tlc and so am going through it, it really needs new rims and spokes ect which I have will replace come winter, he also had a new tank in the same green, never been used, and a new seat which I have bought so all in all very pleased.

Please Log in or Create an account to join the conversation.

New member 14 Aug 2020 06:52 #832863

  • 650ed
  • 650ed's Avatar
  • Offline
  • Member
  • Member
  • Posts: 15207
  • Thank you received: 2741

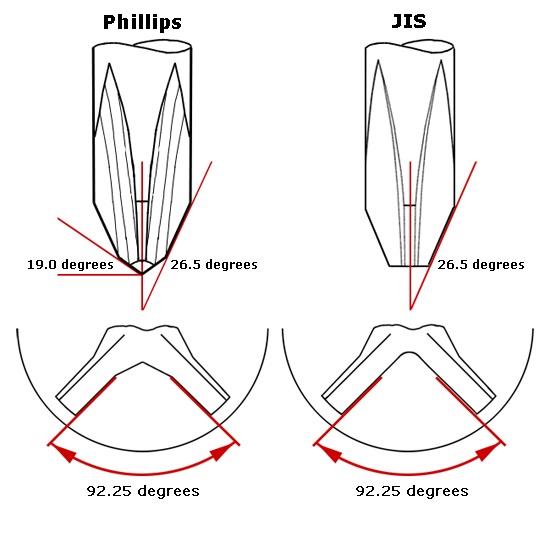

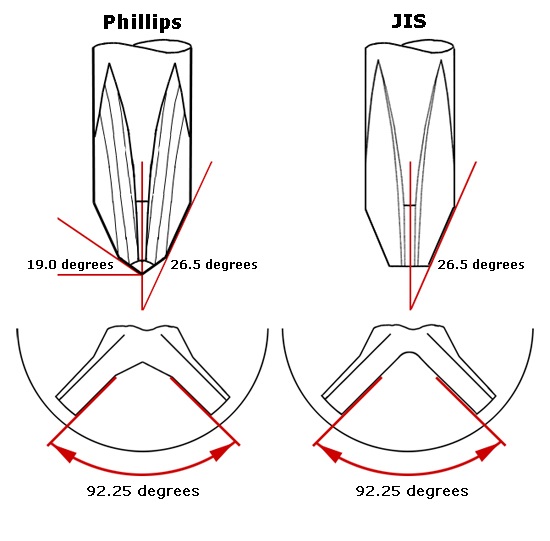

Welcome aboard! We need pictures! Also, before you use a screwdriver on anything on the bike you need to be aware that the screws that look like Phillips are NOT Phillips; they are Japanese Industrial Standard (JIS) and using a Phillips screwdriver on them will damage them bigtime. JIS drivers are very easy to make, so if you need more info on JIS drivers just ask and I can provide. Ed

1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Attachments:

Please Log in or Create an account to join the conversation.

New member 15 Aug 2020 00:55 #832940

  • Ninja
  • Ninja's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 8
  • Thank you received: 0
Hi thanks for that, what's the the process for loading pics ect. Cheers

Please Log in or Create an account to join the conversation.

New member 15 Aug 2020 05:49 #832947

  • martin_csr
  • martin_csr's Avatar
  • Away
  • Member
  • Member
  • Posts: 7203
  • Thank you received: 1341
In the USA a 650-B1 would be a 77 model.
To add pics I upload them to an image hosting site & use Imgur.com. There are other sites, but probably the worst is photobucket.
If uploading from your computer. Click attachments. click add files. after choosing a photo, click the "Insert" button below the pic or "Insert All". Then click submit post. I think failing to click insert is where most problems arise.
Attachments:
The following user(s) said Thank You: Ninja

Please Log in or Create an account to join the conversation.

Last edit: by martin_csr.

New member 15 Aug 2020 07:15 #832950

  • 650ed
  • 650ed's Avatar
  • Offline
  • Member
  • Member
  • Posts: 15207
  • Thank you received: 2741

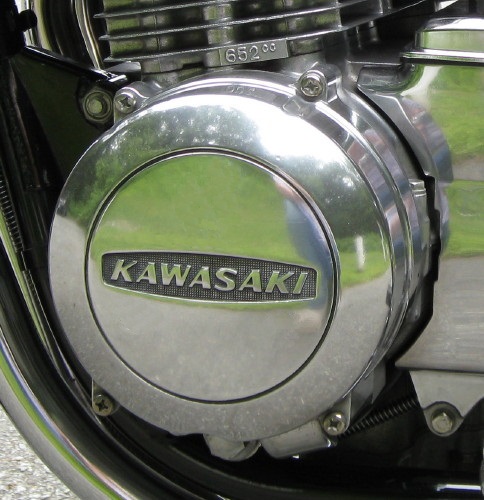

As martin_csr said, there is no such thing as a 1978 KZ650-B1. The B1 is a 1977 KZ650 model, the B2 is the 1978 KZ650 model. Look at the images below. If your bike's generator cover has 3 allen bolts as circled in red in the photo it is a 1977 KZ650. If it does not have those 3 allen bolts but if it still retains all upper case KAWASAKI letters it is a 1978 KZ650. If it has upper and lower case letters it (or the generator cover) is a later model. Ed

1977



1978

1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Attachments:
The following user(s) said Thank You: loudhvx

Please Log in or Create an account to join the conversation.

Last edit: by 650ed.

New member 15 Aug 2020 08:48 #832957

  • loudhvx
  • loudhvx's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 10668
  • Thank you received: 1515
Btw, nice PhotoShop job on the engine cover. I just noticed it after all these years. :)
The following user(s) said Thank You: 650ed

Please Log in or Create an account to join the conversation.

New member 15 Aug 2020 09:51 #832960

  • Ninja
  • Ninja's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 8
  • Thank you received: 0
Oops got it wrong, its a B2 in Green, it has the cover with uppercase script, manual fuel tap, front of forks caliper and manual tensioner.

Please Log in or Create an account to join the conversation.

New member 15 Aug 2020 12:04 #832963

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 1634
  • Thank you received: 362
Welcome. please share some pictures.
1976 KZ 900 A4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

New member 15 Aug 2020 13:08 #832965

  • 650ed
  • 650ed's Avatar
  • Offline
  • Member
  • Member
  • Posts: 15207
  • Thank you received: 2741

Mikaw wrote: Welcome. please share some pictures.

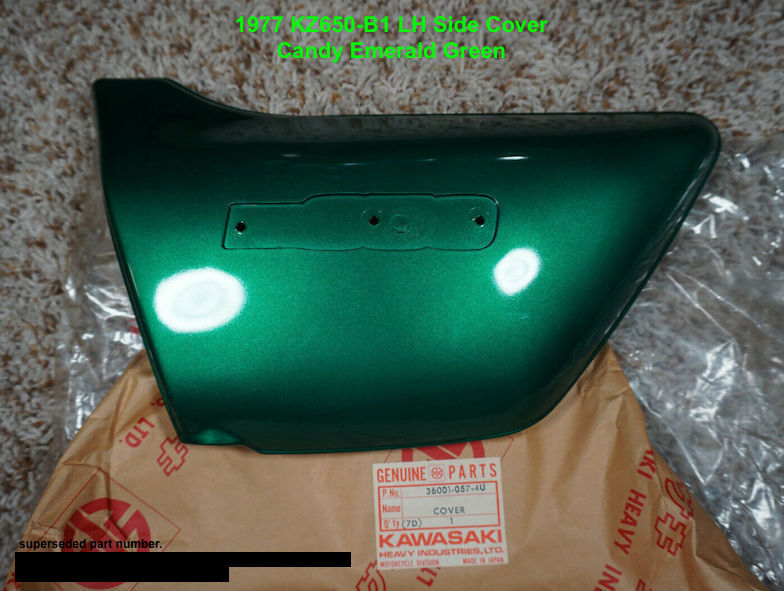

For sure pictures would help. If the front brake caliper is in front of the forks the forks are from a 1977 KZ650B1 (see image below). That was the only year and KZ650 model that had the caliper in front of the fork. Also, green was not one of the colors offered on the 1978 KZ650-B2. It was offered on the 1977 KZ650-B1. Pictures would help us identify the year of the bike and/or engine. Ed

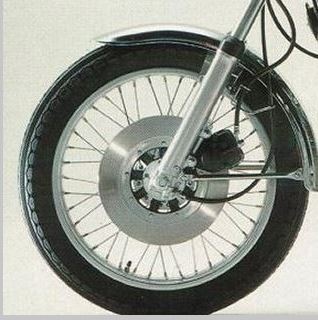

1977 KZ650-B1

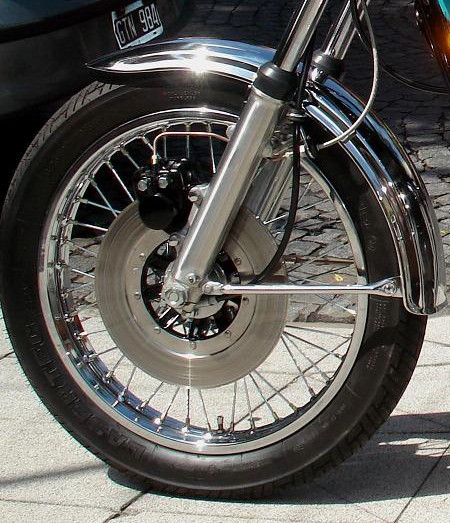

1978 KZ650-B2
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by 650ed.

New member 16 Aug 2020 11:05 #833015

  • Ninja
  • Ninja's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 8
  • Thank you received: 0
Hi my generator has the 3 screws on the cover, so I was think the DVLA has issued the wrong year, the bike has never been resprayed and the previous owner bought this bike in 1980,the only upgrade on it is a pair of girling rear gas shocks fitted 1980.

Please Log in or Create an account to join the conversation.

New member 16 Aug 2020 12:46 #833021

  • 650ed
  • 650ed's Avatar
  • Offline
  • Member
  • Member
  • Posts: 15207
  • Thank you received: 2741
So if the generator has the 3 screws the engine is a 1977. One way to check the bike's actual model year is to compare the VIN that is stamped on the steering stem neck to the info in the link below. That VIN is the frame number. The engine number, which will be different than the VIN, is stamped on the engine near the oil filler cap. Ed

models.kz650.info/index.htm
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
The following user(s) said Thank You: Ninja
