New to kzr and old bikes

Hi all
Im from charlotte nc. Im 30 years old and have come up on dirtbikes since i was 5 and rode nothing but fuel injected supersport bikes on the street. Recently aquired the taste for older bikes and after looking around for awhile a few days ago finally purchased the model ive been looking for 77 kz650c . Whenever me and my old man talk about our days of riding on the street he cant go without talking about his favorite bike he ever owned 78 kz650, should have seen his face when I pulled up on it Ive read a good bit on here and seems there are a lot of good folks that know their stuff. Ive always worked on my own sportbikes but carbed bikes are a whole nother animal lol and dont worry I know how to use the search function

www.kz650.info is a good website for this specific bike. They have wiring diagrams, and other sections.

Do this too:

Cleaning Motorcycle Electrics

1. Get some of the De-Oxit electrical contact cleaner and figure on spending a good day going from the front of the bike to the back. It’s a plastic safe cleaner/preservative. www.deoxit.com is their website. It can be purchased at most Radio Shack Stores or any electronic supply places. Or use any plastic safe electrical contact cleaner(NOT WD-40 !).

2. On the older Kawasaki's, a majority of electrical connectors are inside the headlight housing requiring removal of the headlight, then the fun begins.

3. Do one set of electrical connectors at a time to avoid mixing up what connects to where. Usually disconnecting, spraying with De-Oxit and reconnecting is about all you'll need.

4. However, when encountering the green crud of corrosion, a brass wire brush may be needed on the pins you can reach. Some 400-600 grit wet and dry sandpaper strips rolled into a tube should reach the male and female pins in the more difficult to clean connectors.

5. Smoker’s pipe cleaners, cotton swabs and wooden toothpicks work as cleaning aids.

6. Really small electrical connectors may require the use of a welders tip cleaning tool assortment.

7. Most pins in the connectors are coated with a thin plating of tin, and others may be nothing more than copper or brass.

8. If moisture is added, the resulting corrosion lowers the voltage/current being carried causing dim lights, slow engine cranking, slow turn signal responce and lower input voltage to the ignition coils resulting in weak spark.

9. The left and right handlebar switch pods will need attention too as they have circuit functions like turn, horn, run/stop, and start. The older Kawasaki’s have reports of the soldered connections crumbling, if your bike has this problem, just ask, as I’ve got a repair procedure for this.

10. Usually a spritz or two with actuation of the switch is about all needed for these switches unless corrosion is detected and then careful disassembly is required.

11. The ignition switch may or may be not sealed to allow spraying the internal contacts. I urge caution if attempting to open this up as springs, and ball bearings may fly out never to be seen again!

12. If your bike has the older style glass tubed fuses, I suggest replacing them as vibration can cause internal failure. AGX is the type used, and most auto parts stores can get them for you, along with boating supply stores.

13. Clean the fuse holder clips, looking for signs of overheating(discolored insulation, signs of melting). I use metal polish on a cotton swab, followed by spraying another clean swab with the De-Oxit and then rubbing the inside of the fuse clip.

14. All battery cables must be clean and tight for maximum current transfer. Check the cables going from the Negative(-) battery terminal/post to the engine mounting bolt

15. Also the one going from the Positive(+) terminal to the starter solenoid and from there to the starter motor.

16. If any battery cable feels ”Crunchy” when flexed, replace it as possible corrosion is inside the insulation. Inspect all heavy duty battery cables and the smaller wire terminations(Bullet Connectors), for failed crimps, and those used in the electrical connectors, as they can fail over time.

17. Each "Bullet Connector" will have to be sprayed to ensure good connectivity, especially the ones going to the energizing coil of the starter solenoid.

18. The alternator output “Bullet Connectors” are usually behind the engine sprocket cover and will need inspecting and cleaning too.

20. The turn signal light sockets will benefit from a spritz from the contact cleaner along with the tail light/brake light socket.

21. Some brake light switches can be sprayed on the actuating rod, with the spray running down inside to the electrical contacts, others may be sealed requiring replacement if the switch is intermittent in operation.

22. Some people put the Di-Electric Grease on cleaned terminations/connectors, I don’t, as I’ve read/heard it can cause problems when it gets hot, actually insulating the connections, so the choice is yours to use or not.

I think I've covered about all of the electrical systems on the bike.........

“I spent a weekend going through every electrical connection and switch on the bike with a little scotchbrite pad and DeOxit - what a difference! Everything was brighter, gauge backlights, indicator lights, turn signals, I was getting a nicer spark, it fired up quicker, etc. Well worth my time. WELL worth it! “

From a forum member at www.kzrider.com

And if when cleaning the handlebar switches, the soldered connections look like they have failed or failing, do this:

Read this for a primer on hand soldering: technologyinterface.nmsu.edu/fall97/electronics/solder.html

Repairing Motorcycle Soldered Connections on the older bikes.

When repairing soldered wires on motorcycle switches or light bulbs sockets, have the following on hand:

1. A 25 Watt soldering iron or one that the wattage can be adjusted.

2. Rosin core solder of 60/40 type. SN60 or SN63 is preferred.

3. Rosin flux or soldering paste (Never use solder or soldering paste designed for plumbing work, as it contains an acid that will corrode the electrical joint, ruining it).

4. 91% rubbing Alcohol, or 70%. The lower percentage will clean up flux residue, but not as good as the higher percentage stuff. Acetone does a good job of removing excess solder flux too.

5. A cut down ½” paint brush, or acid brush for scrubbing the repaired solder joint.

6. Clean rags or paper towels

7. A damp sponge to keep the soldering iron tip clean.

8. Some “Solder Wick” a braided bare copper wire designed to collect heated excess solder, aiding in joint preperation, available at electronic supply stores.

9. Some wooden toothpicks.

10. Small Hemostats or clip on heatsinks.

A. Before soldering, “Tin” the soldering iron tip by plugging it in or turning the iron on, allowing it to get to operating temperature(2-3 minutes).

B. Unroll about 3” of solder from the roll of rosin core solder & then using a clean rag or paper towel moistened with Alcohol, wipe the unrolled solder, removing the finger print oils that will create a poor solder joint.

C. Apply a small amount of solder to the now heated soldering iron tip, wiping the excess off with the wet sponge, keeping a thin layer on the soldering iron.

D. The soldering iron is now ready for use, but before applying the heated tip to a wire, wipe the tip on the damp sponge, this removes any oxidized solder and makes for a much better connection.

E. If the joint to be repaired is grey in color or appears “Crumbled”, apply some rosin soldering paste or flux to the joint with a small toothpick or screwdriver, and then apply the soldering iron tip for a few seconds.

G. The fluxed joint should clean up, allowing for a better connection. If no luck, use the solder wick to remove all traces of the old solder by apply in it between the soldering iron tip and the bad joint.

H. Hemostats and clip on heatsinks will be used to prevent the wire insulation from burning, overheating & pulling away from the connection.

I. Apply a small amount of flux to the joint to be repaired & then a very short duration of heated soldering iron tip & solder(like a few seconds or so).

J. Clean off the repaired joint with the brush & rubbing Alcohol or Acetone, the newly repaired joint should appear clean and bright, almost as if it were polished, with no voids or holes.

K. When repairing the bad or "Cold Solder Joints" (as the Electronics industry calls them), it takes really no special skills, just patience, and a place to work(along with the mentioned tools. You've got to be sober, and not stoned, as the soldering tool can be at 700 F, possibly giving the impaired bike owner severe burns.

L. If you have fine muscle control problems, have a friend do the soldering for you. Moving a wire before the electrical joint has properly set up, can create "Cold Joints" too. If possible, practice on the bench top with some scrap wires before attempting repairs on the bike.

M. This information comes from years of missile test cable and equipment assembly, when I worked at General Dynamics/Convair Division in San Diego California, on the BGM-109 Tomahawk and later on the AGM-129 Advanced Cruise Missile. This was from 1983-1993. The company had a week long soldering school, where you learned to solder meeting “Mil-Spec” standards.

Welcome aboard. The 1977 KZ650 is a great bike, I've owned mine since new (April, 1977). Here are 2 recommendations:

1. Buy a Kawasaki Service Manual for your specific model/year. They contain tons of valuable info ranging from regular maintenance, to troubleshooting, to total rebuilding of the various systems. Plus, they explain how each of the systems works so you will gain a sound understanding of your machine. No one has ever regretted buying one, but lots of folks have crated serious problems with their bikes by not using one. They are usually available on eBay. If you’re not positive about which one you need – ask.

2. All those crosshead screws that look like Phillips are not Phillips. Check this link for a detailed explanation on how best to work with them:

kzrider.com/forum/21-tools/532335-budget...ewdriver-tips#532335

ive never heard of a crosshead screw and would have just assumed they were phillips, ill grind down one the hundreds i have thx

The guy I bought the bike from is a kz fanatic and a really nice guy. He bought this one a little over a year ago, but needed more space\money to build a dragbike. He has gone through the bike a good bit. we made some new wiring connections and changed the timing a littlebit. I have a accel pump rebuild kit on the way from Z1 to try to fix an issue with the #2 carb, its dumping fuel and will foul a plug in less then 50 miles. the second time I pulled the carbs I checked the accel pump diaprhams and both the triangular and square ones are shot. It runs awesome with a fresh plug out on the road but when you first start it up the number 2 header doesnt warm up and unburt fuel pours out of the pipe. will probably make a post over in the carb section if anything just to have others see it. I have my fingers crossed that the rebuild kit gets here today and it fixes the issue.

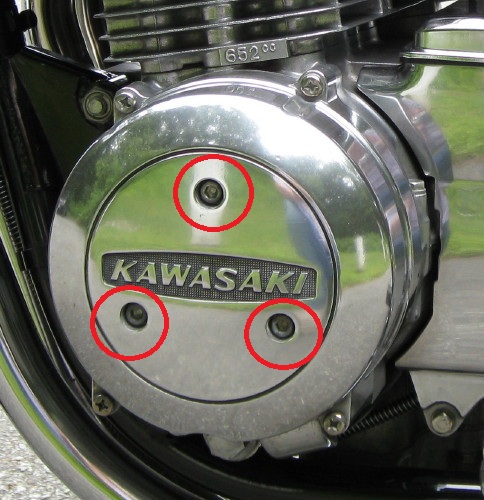

It sounds like a PO changed the carbs. The original carbs on the '77 KZ650 did not have accel pumps, diaphragms, or anything like that. They just had simple round slides. Are you sure it's the original engine? The '77 dynamo is unique and is a pretty easy way to identify the '77 engines. It has 3 allen head screws inside the circle (see pic below). Later engine used different dynamos and did not have the 3 screws. Ed

just went to the garage and checked...it has the 3 allen screws.
