1977 kz1000 simple wiring diagram

  • GoBears0305
  • GoBears0305's Avatar Topic Author
  • Offline
  • User
  • Posts: 1
  • Thanks: 0

1977 kz1000 simple wiring diagram

16 Apr 2011 15:59
#444978
I just picked up a new project and noticed the PO's did a hack job on a lot of the electrical. Not really a problem. But I'm also going to simplify the whole system which MAY include removing the electric start motor and have kickstart only.

I'm wondering if there is an ultra simple wiring diagram out there that has only the absolute essentials for getting the bike running.

Thanks!

Please Log in or Create an account to join the conversation.

  • gengomerpyle
  • gengomerpyle's Avatar
  • Offline
  • User
  • Posts: 616
  • Thanks: 17

Re: 1977 kz1000 simple wiring diagram

16 Apr 2011 16:12
#444980
GoBears0305 wrote: I just picked up a new project and noticed the PO's did a hack job on a lot of the electrical. Not really a problem. But I'm also going to simplify the whole system which MAY include removing the electric start motor and have kickstart only.

I'm wondering if there is an ultra simple wiring diagram out there that has only the absolute essentials for getting the bike running.

Thanks!
try looking here kzrider.com/filebase/cat_view/95-1977/109-kawasaki-kz-1000-a1
1982 GPZ750R1 ELR
1978 Honda CB750F SuperSport
1971 Honda CB750K
1970 Honda CL100 Scrambler

Please Log in or Create an account to join the conversation.

  • Motor Head
  • Motor Head's Avatar
  • Offline
  • User
  • FIX UP YOUR BIKE RIGHT AND CHEAP
  • Posts: 5138
  • Thanks: 392

Re: 1977 kz1000 simple wiring diagram

16 Apr 2011 19:15 - 16 Apr 2011 19:16
#445010
Get looking at this thread, member Loudhvx has done several and posts them in this thread.
kzrider.com/forum/4-electrical/172746-19...bones-for-mattylight
1982 KZ1000LTD K2 Vance & Hines 4-1 ACCEL COILS Added Vetter fairing & Bags. FOX Racing rear Shocks, Braced Swing-arm, Fork Brace, Progressive Fork Springs RT Gold Emulators, APE Valve Springs, 1166 Big Bore kit, RS34's, GPZ cams.
1980 KZ550LTD C1 Stock SOLD Miss it
1979 MAZDA RX7 in the works, 13B...
Last edit: 16 Apr 2011 19:16 by Motor Head.

Please Log in or Create an account to join the conversation.

  • MFolks
  • MFolks's Avatar
  • Offline
  • User
  • Posts: 6650
  • Thanks: 540

Re: 1977 kz1000 simple wiring diagram

16 Apr 2011 20:17
#445019
If you need sources for electrical connectors, heatshrink splices(called butt connectors by suppliers),and harness/loom tape, just ask.....
1982 GPZ1100 B2
General Dynamics/Convair 1983-1993
GLCM BGM-109 Tomahawk, AGM-129A Advanced Cruise Missile (ACM)

Please Log in or Create an account to join the conversation.

  • Old Man Rock
  • Old Man Rock's Avatar
  • Offline
  • User
  • Posts: 6224
  • Thanks: 225

Re: 1977 kz1000 simple wiring diagram

17 Apr 2011 10:25
#445091

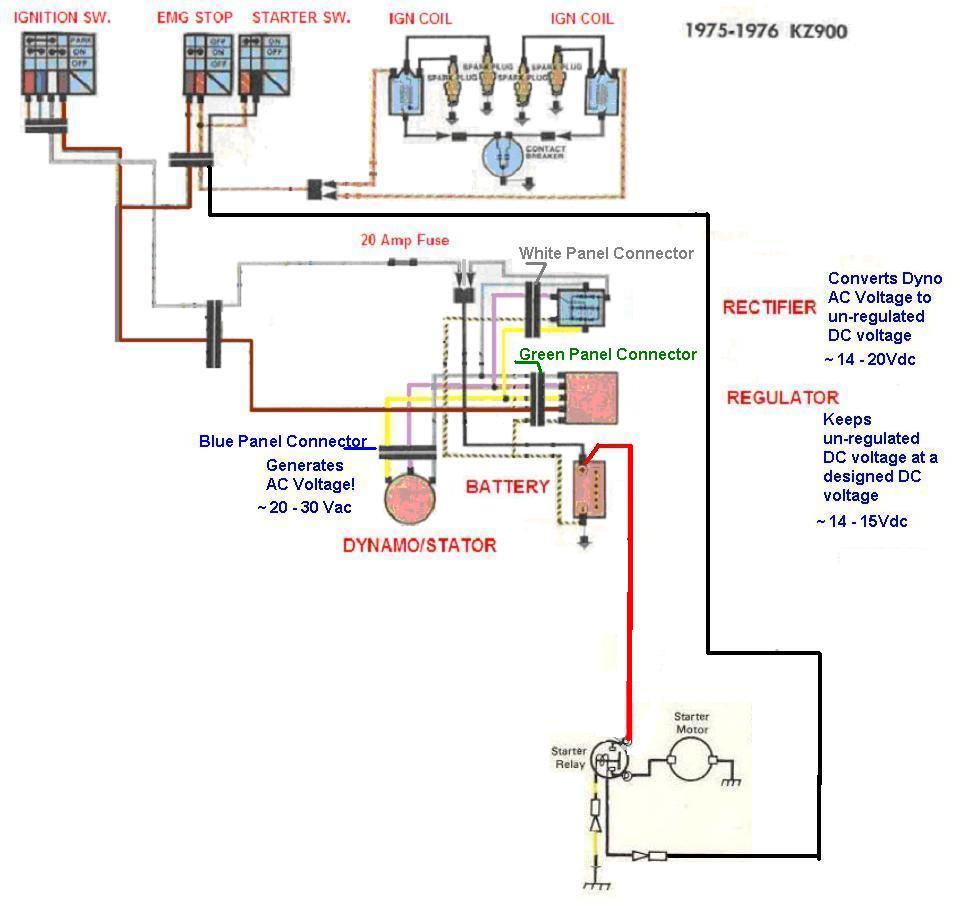

I think this is what you are looking for....
