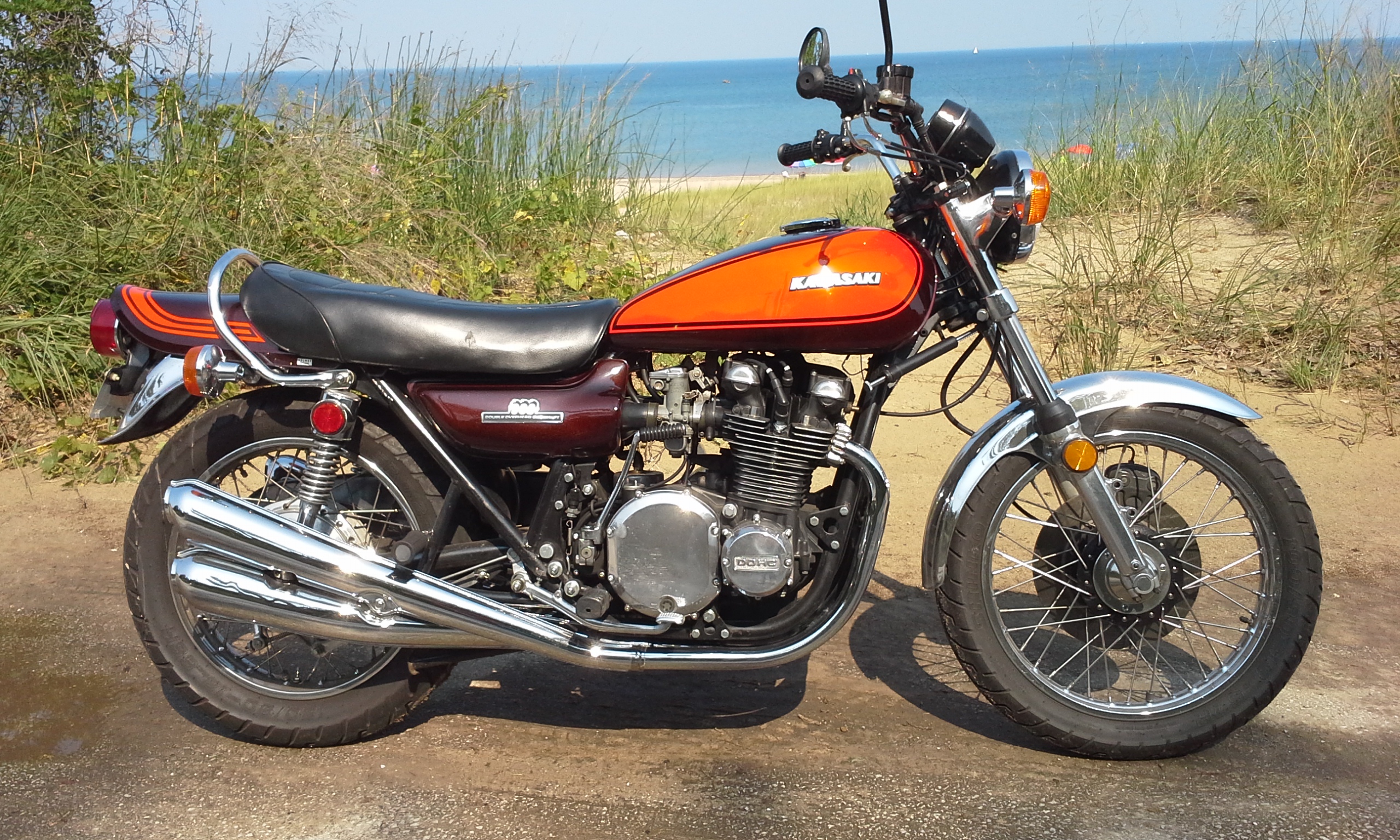

Identification
 Letter designation    A5
 Color     Diamond dark green or Diamond brown
 Frame #    Z1F-085701
 Engine #    Z1E-086001

Dimensions

 Overall length

   2,200 mm, EU: 2,245 mm

 Overall width

   865 mm

 Overall height

   1,170 mm
 Wheelbase    1,490 mm
 Road clearance    165 mm
 Dry weight    233 kg, EU: 241
 Fuel tank capacity    17 l

Performance
 Climbing ability    30°
 Braking distance    11 m from 50 kph
 Minimum turning radius    2.5 m

Engine
 Type    4 stroke, DOHC, 4 cylinder, air cooled
 Bore and stroke    66.0 mm x 66.0 mm
 Displacement    903 cc
 Compression ratio    8.5
 Maximum horsepower    81 hp @ 8,500 rpm
 Maximum torque    7.3 kg-m @ 7,500 rpm
 Valve timing

 Inlet



Open

Closed

Duration

 30° BTDC

 70° ABDC



 Exhaust



Open

Closed

Duration

 70° BBDC

 30° ATDC



 Carburetors    (4) Mikuni VM26SS
 Lubrication system    Wet sump
 Engine oil Type   SAE 10W40, 10W50, 20W40, 20W50
  Capacity  3.7 l
 Starting system    Electric starter and kick
 Ignition system    Battery and coil (transistorized)
 Cylinder numbering method    Left to right, 1-2-3-4
 Firing order    1-2-4-3
 Ignition timing    From 20° BTDC @ 1,500 rpm to 40° BTDC @ 2,350 rpm
 Spark plugs    NGK B8ES

Transmission
 Type    5 speed, constant mesh, return shift
 Clutch    Multi-disc, wet
 Gear ratio 1st   3.17
  2nd  2.19
  3rd  1.67
  4th   1.38
  5th   1.22
  6th   -
 Primary reduction ratio    1.73
 Final reduction ratio    4.92, EU: 4.64
 Overall drive ratio

Electrical equipment
 Alternator    Kokusan AR3703
 Regulator/rectifier    Kokusan RS2127
 Ignition coils    Toyodenso ZC001-14, ZC001-23
 Battery
 Starter motor    Mitsuba SM-226-K
 Headlight Type   Sealed, EU: Semi-sealed
  Bulb   12V 50/60W
 Tail/brake light    12V 8/23W, EU: 12V 5/21W
 City light

 12V 4W

 Turn signal lights    12V 23W, EU: 12V 21W
 Meter lights    12V 3.4w
 Indicator lights    12v 3.4w
 Horn    12V 2.5A

Frame
 Type    Tubular, double cradle
 Steering angle    41° to either side
 Castor    64°
 Trail    90 mm
 Tire size Front   3.25 - 19
  Rear   4.00 - 18
 Suspension Front   Telescopic fork
  Rear   Swing arm
 Suspension stroke Front   140 mm
  Rear   80 mm
 Front fork oil Type   SAE 10W
  Capacity   175 cc
  Oil level

Brakes
 Type Front   Single disc, EU: Dual disc
  Rear   Internal expansion, leading-trailing
 Effective disc diameter Front   245 mm
 Brake drum inside diameter Rear   200 X 35 mm
