79 kz1000b electrical 26 May 2021 13:47 #849029

  • Jerryvan
  • Jerryvan's Avatar Topic Author
  • Offline
  • User
  • Send it
  • Posts: 14
  • Thank you received: 0
I got a problem, looks big.  First bought a basket case kz1000b with a cafe style start. Got it running and finalizing and I have a new wiring problem. I had to repair the wires from engine ignition to coils and relocated battery, starter relay etc. I thought I wired my starter regulator wrong. It was off for awhile and has been relocated. Here's what's up: Tail light low and flashing, right coil hot, smoked wire cant find-maybe right coil?, main fuse melting contacts in box, brake light on steady.... is that a grounding of a power wire I cant find? I have a wiring diagram but the posts to battery or starter are not indicated for the starter relay and the two wires leaving it I thought I got right. Is it that coil fire wire repair? I cant find it I also added an extension to both starter and frame ground as the battery was relocated. The ground does contact the pan that all electricals are in. Does that affect anything, I assumed not but is anything supposed to be isolated from a metal surface?
Kz750
Kz1000
Kz650
And parts

Please Log in or Create an account to join the conversation.

Last edit: by Jerryvan. Reason: Missed a couple of points

79 kz1000b electrical 27 May 2021 10:29 #849061

  • F64
  • F64's Avatar
  • Offline
  • User
  • 81-KZ440D2
  • Posts: 643
  • Thank you received: 174
I may attempt to help.
I just need to sit down and have a couple coffees.
Fixing a previous owner's custom wiring is a
new level of frustration.

I have to dig up a schematic as well.
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY

Please Log in or Create an account to join the conversation.

79 kz1000b electrical 27 May 2021 13:54 #849067

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 3320
  • Thank you received: 845
Are you sure it’s a “B”. schematics are different for A’s and B’s. I should have the B3 supplement and a schematic.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

79 kz1000b electrical 27 May 2021 19:36 #849089

  • F64
  • F64's Avatar
  • Offline
  • User
  • 81-KZ440D2
  • Posts: 643
  • Thank you received: 174

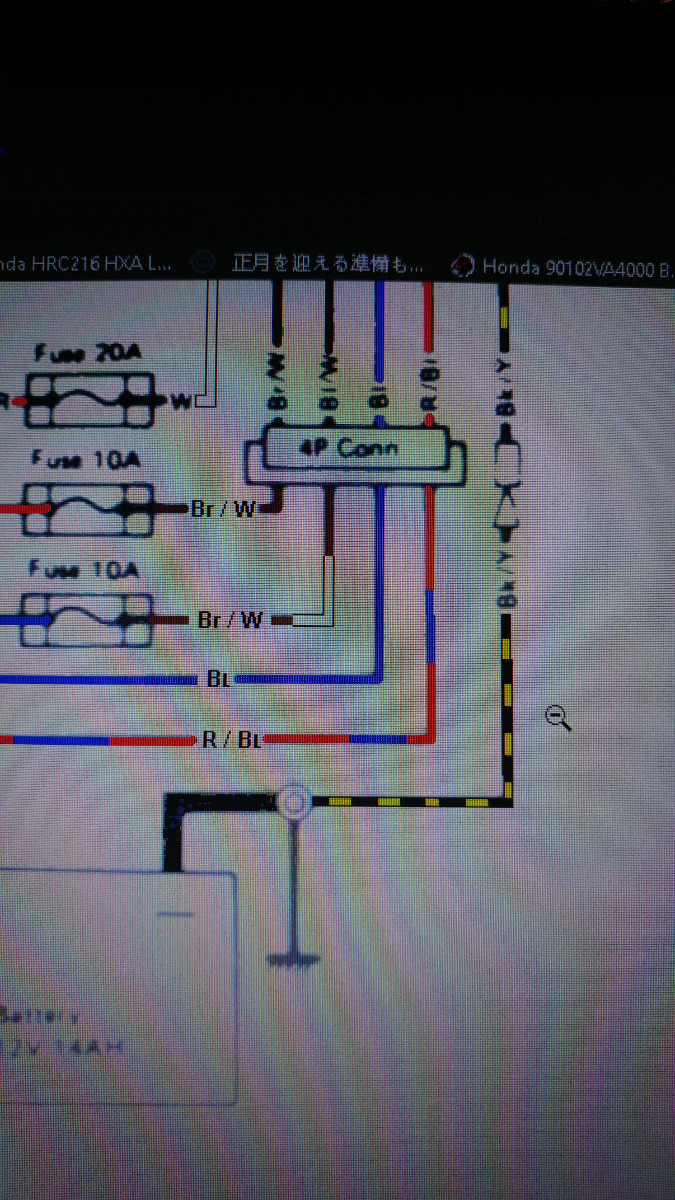

This is gonna be a ton of fun.There is a yellow/black wire that goes to the ground terminal of the battery.Double check you have that connected.

Schematic courtesy of loudhvx
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY
Attachments:
