1976 Kz 900 A4 14 Jul 2021 18:19 #851769

  • Mikaw
  • Mikaw's Avatar Topic Author
  • Away
  • Sustaining Member
  • Posts: 3604
  • Thank you received: 954
Thank Doc. I’m just getting used to precision measuring. I understand the “feel” portion. I’m able to get repeatable measurements finally using my calipers. Just bummed to find out the are pretty crude when it comes to precision tools, meaning I’ll have to learn that feel all over with the more accurate tools. Great advice learning to measure gauge blocks. I can see how that will help the learning curve. With this situation I was thinking approximately $100 in shipping to get the crank to and back from an expert was cheaper than buying quality tools. Maybe the wrong thought process. That could be money towards tools I can use to test, check the next part. Can I lean on you guys to help with finding the proper pricing for tools of a sufficient quality to check out this crankshaft?
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

1976 Kz 900 A4 14 Jul 2021 18:49 #851771

  • Skidmark
  • Skidmark's Avatar
  • Offline
  • User
  • Posts: 941
  • Thank you received: 162
When it comes to measuring tools, you get what you pay for.  Running a QC department for a metal manufacturer for 24 years has given me some experience there.  I always prefer Mitutoyo or Starret brands for micrometers, calipers, etc.  If you can afford to, buy the better tools.  They will reward you with longer accuracy when cared for.
Retired gearhead
'81 KZ-750 E2
'87 Suzuki Savage 650 Street Tracker

Please Log in or Create an account to join the conversation.

1976 Kz 900 A4 15 Jul 2021 03:52 #851778

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2151
  • Thank you received: 619

When it comes to measuring tools, you get what you pay for.  Running a QC department for a metal manufacturer for 24 years has given me some experience there.  I always prefer Mitutoyo or Starret brands for micrometers, calipers, etc.  If you can afford to, buy the better tools.  They will reward you with longer accuracy when cared for.

Good advice!  I bought a Mitutoyo borehole gauge for cylinders.


I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.

Please Log in or Create an account to join the conversation.

1976 Kz 900 A4 15 Jul 2021 06:32 #851781

  • Rick H.
  • Rick H.'s Avatar
  • Offline
  • User
  • Posts: 875
  • Thank you received: 213
Almost all of my older measuring tools, mics, gauge blocks, calipers etc. are Starrett or Mitutoyo.  Some I got from my Dad when he passed and some I bought used from the usual websites.  If you buy used you can get some really good deals on quality items, just make sure you have right of return if they don't meet your expectations.  The telescoping gauges come in sets or you can buy individually, but only get the "good stuff".  They are difficult to use at first and you don't want any binding or anything that will give you a false sense of feel using them.  I can't tell you how many hours I spent with aa circle/donut gage block practicing getting perfect readings.  My reward came when I measured my cylinders with telescoping gages and my readings were the same as what the machine shop guys came up with using their specialized tools.  Just remember it isn't uncommon to have slightly different readings by two different people.  Not everyone has the same "feel".  Good used tools may have some markings as to who owned the tool, but this shouldn't be much of a concern.  If you take care of them they will outlast you and practice with known gage blocks, pins etc.  Life holds small rewards when your measurement results match the gage block and you know your are on the right track.  Finesse is a requirement using these items.

Rick H.
Rick H.

1977 Kawasaki KZ-1000A1
The following user(s) said Thank You: Mikaw

Please Log in or Create an account to join the conversation.

1976 Kz 900 A4 15 Jul 2021 15:24 #851803

  • Mikaw
  • Mikaw's Avatar Topic Author
  • Away
  • Sustaining Member
  • Posts: 3604
  • Thank you received: 954
The telescope gauges I’m seeing have flat end or only one radius end. Is that correct for measuring a circle. It would seam both ends would radii.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

1976 Kz 900 A4 16 Jul 2021 04:29 #851840

  • Rick H.
  • Rick H.'s Avatar
  • Offline
  • User
  • Posts: 875
  • Thank you received: 213
My older Starrett gages have a "rounded" end on both probes.  I can't speak to the newer ones.  Starrett has also been making some of their lesser quality tools in China so buyer beware.

Rick H.
Rick H.

1977 Kawasaki KZ-1000A1
The following user(s) said Thank You: Mikaw

Please Log in or Create an account to join the conversation.

1976 Kz 900 A4 17 Jul 2021 11:32 #851914

  • Mikaw
  • Mikaw's Avatar Topic Author
  • Away
  • Sustaining Member
  • Posts: 3604
  • Thank you received: 954

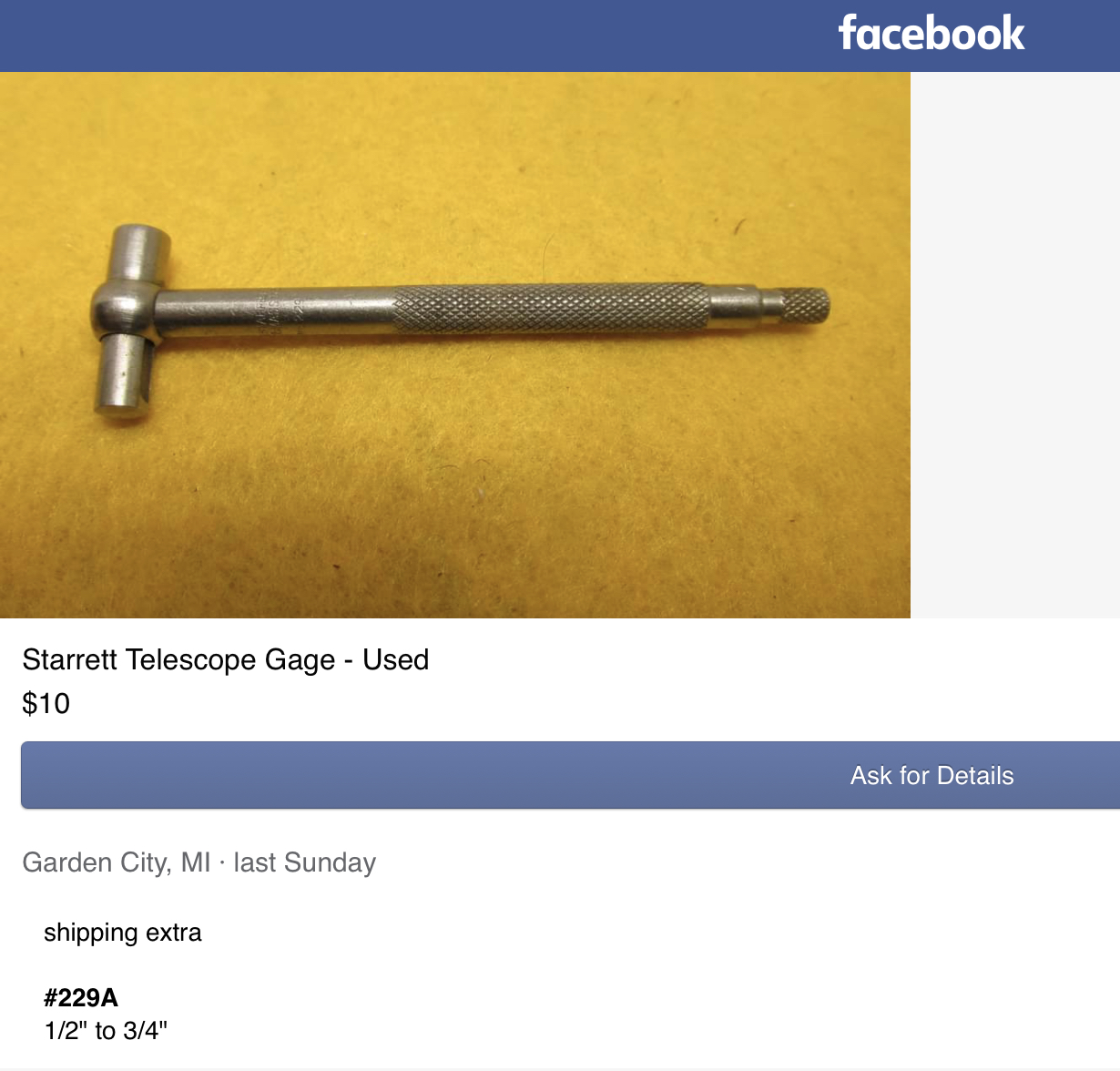

Found this. Cant go wrong. Going to buy a gauge block and start getting my feet wet. I’m finding digital mitutoyo 0-1” calipers .00005”/.001mm for $60-$120


1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Mikaw.

1976 Kz 900 A4 17 Jul 2021 14:43 #851926

  • bluezbike
  • bluezbike's Avatar
  • Offline
  • Sustaining Member
  • Posts: 672
  • Thank you received: 121
PM sent
79 KZ 1000 LTD
77 KZ 1000 B1 LTD (awaiting electrical resurrection)

Please Log in or Create an account to join the conversation.

1976 Kz 900 A4 18 Jul 2021 07:10 #851962

  • Rick H.
  • Rick H.'s Avatar
  • Offline
  • User
  • Posts: 875
  • Thank you received: 213

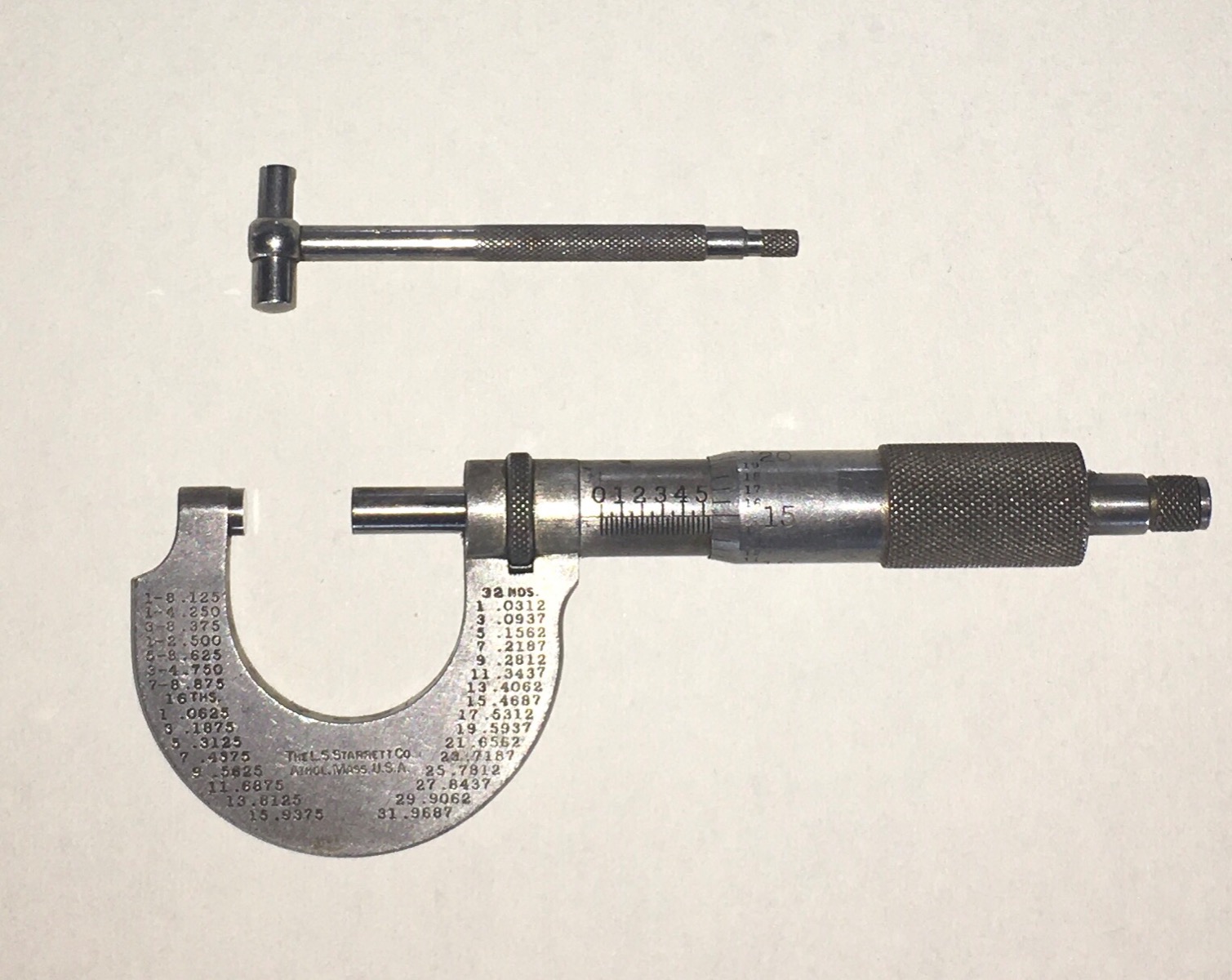

There's always been an argument Matt if you should use a caliper for measuring these things or a mic.  I use both to verify my result.  I have a bench holder for my mic's that hold the micrometer and allow me to concentrate on getting a good measurement from the telescoping gage.  One hand holds the telescoping gage and the other operates the spindle on the mic.  The real trick is consistency and using the exact same amount of force to close the mic or caliper on the telescoping gage.  My Dad disliked mic holders and said it was a solution for a non-existent problem.  He was probably right, but he had thousands of hours of experience using and holding mics with his bare hands.  He also preferred using mics to sliding scales because he felt he could get a better feel with a mic.  Calipers were okay for down and dirty quick readings, but a micrometer gave the most accurate reading.  Get a couple of different sized gage blocks or pins not only to check the accuracy of your measuring tools but to practice your measuring technique.  And keep the anvils of your measuring tools clean as well as the piece you are measuring.  A little piece of anything can screw up your result.  I always keep a film of light oil on the measuring tools I have because I never know when I might use them again.  Rust can ruin your day and your tools and they always go back in the container they came in not just thrown in a drawer.  After some practice you will be amazed at how accurately you can measure things.  I have included some pics of what I rely on for measuring devices.  As with anything buy the best your can afford it will pay off in the end.



I have come to really like using the 4" digital caliper instead of my 6" one.  It is much easier to work with especially around my milling machine and I rarely need to measure anything over a couple of inches.  If I do need more than 4" I grab my 6" scale, but that's seldom.  The 4" caliper also has a round stem protrusion instead of rectangular stem and it can be used to measure small round hole depths.  That feature is really handy when mounting scope blocks or sights on a gun barrel and you don't want to get too close to the bore!!!! LOL..

Rick H.
Rick H.

1977 Kawasaki KZ-1000A1
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Rick H..

1976 Kz 900 A4 18 Jul 2021 09:38 #851969

  • Mikaw
  • Mikaw's Avatar Topic Author
  • Away
  • Sustaining Member
  • Posts: 3604
  • Thank you received: 954
Rick H. Thank you. I’m so used to using the word caliper that I miss typed that when I meant micrometer. The one you posted is the one in looking at to buy.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

1976 Kz 900 A4 19 Jul 2021 11:40 #852034

  • Mikaw
  • Mikaw's Avatar Topic Author
  • Away
  • Sustaining Member
  • Posts: 3604
  • Thank you received: 954

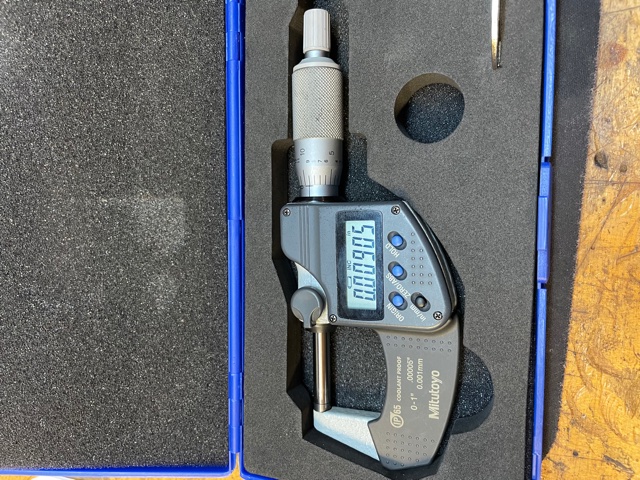

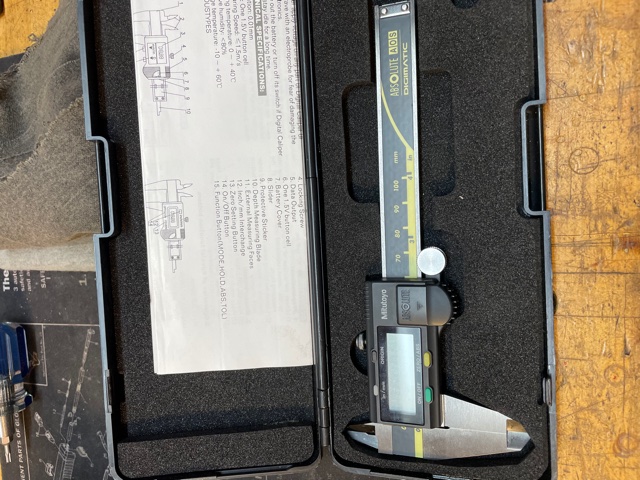

And so it begins


1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Attachments:

Please Log in or Create an account to join the conversation.

1976 Kz 900 A4 19 Jul 2021 11:50 #852035

  • Rick H.
  • Rick H.'s Avatar
  • Offline
  • User
  • Posts: 875
  • Thank you received: 213
Now you are going down that ol' rabbit hole.  I'll be waiting for you at the bottom.  Oh wait!!  There is NO bottom!  Don't forget you have to decide how much accuracy you want out of your measuring tools?  Is a thousandth good or do you need more?  WARNING, WARNING WILL ROGERS!  This stuff can get dicey and pricey, but good measuring tools are in and of themselves priceless.  Good luck Matt!

Rick H.
Rick H.

1977 Kawasaki KZ-1000A1
The following user(s) said Thank You: Mikaw
