Adding Airtech Belly Pan to the LTD

  • Street Fighter LTD
  • Topic Author
  • Offline
  • Moderator
  • TURBO, Its Better to be Blown than Injected
More
05 Mar 2016 14:07 - 17 Mar 2016 11:37 #713984 by Street Fighter LTD
Adding Airtech Belly Pan to the LTD was created by Street Fighter LTD

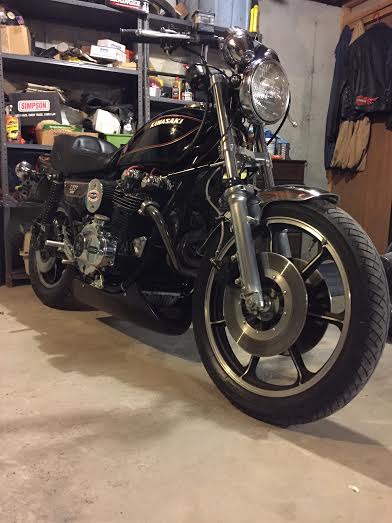

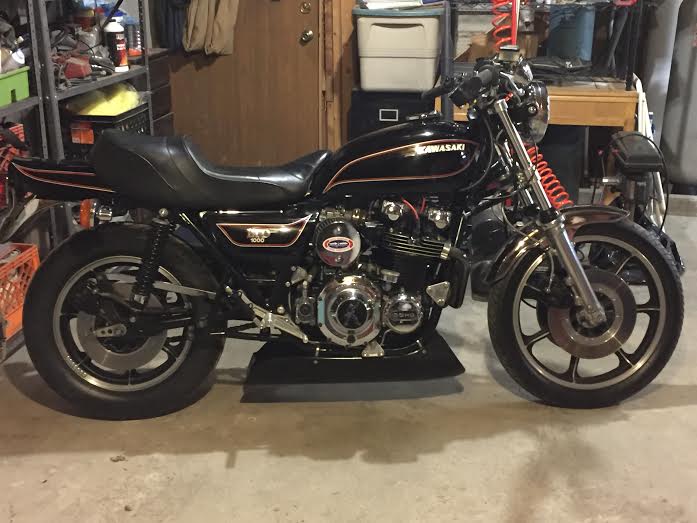

Sneak peak at a small project . Adding a Airtech Belly Pan to my LTD. This is during trial fitting prior to paint. Ordered part in Black Gelcoat in hopes of being able to limit visible stone chips.









Original owner 78 1000 LTD
Mr Turbo Race Kit, MTC 1075 Turbo pistons by PitStop Performance , Falicon Ultra Lite Super Crank, APE everything. Les Holt @ PDM's Billet Goodies . Frame by Chuck Kurzawa @ Logghe Chassis . Deep sump 5qt oil pan. RIP Bill Hahn
Attachments:
Last edit: 17 Mar 2016 11:37 by Street Fighter LTD.
