Tried and True Swingarm Swaps 17 Jan 2020 12:52 #817292

Scirocco Offline Premium Member Never change a running system Posts: 3926 Thank you received: 1899	Will do..... My 1975 Z 1 B 900 Project www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
	Please Log in or Create an account to join the conversation.

Tried and True Swingarm Swaps 18 Jan 2020 08:43 #817355

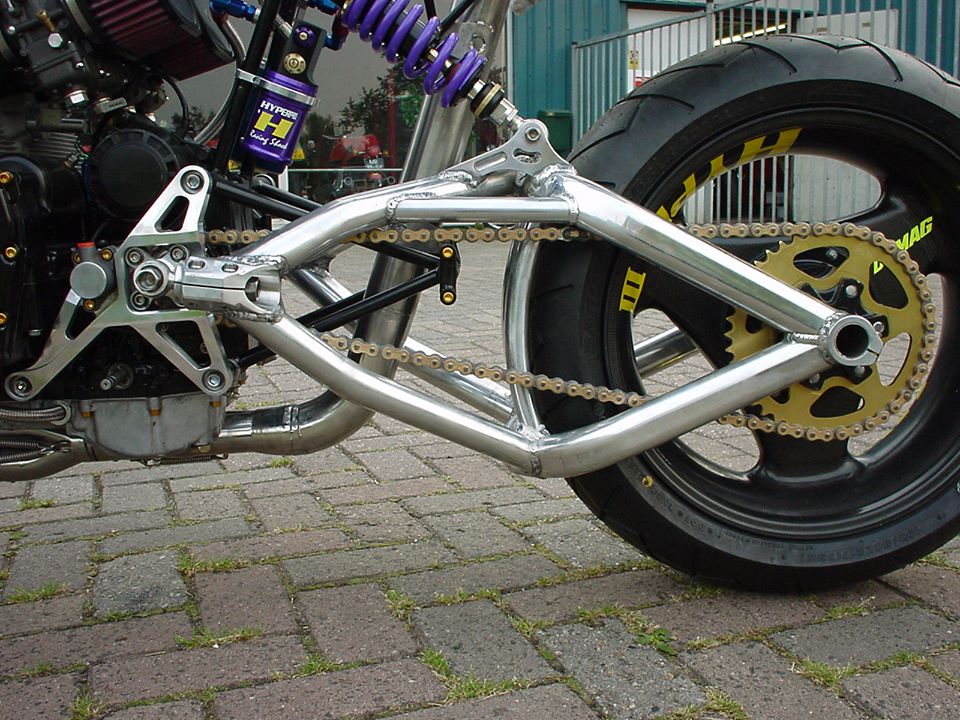

davido Offline User Posts: 1574 Thank you received: 286	Not a Z but a saucy looking swingarm for sure. Turned up on the 'Butchered Classics' page. www.kzrider.com/forum/11-projects/594313-csr1000-project-build CB550 (1978) CB500/4 (1972)* KZ1000CSR (1981) XT 600E (1999) TDM900 (2003) Attachments: The following user(s) said Thank You: irishwill
	Please Log in or Create an account to join the conversation.

Tried and True Swingarm Swaps 18 Jan 2020 09:48 #817360

irishwill Offline User Posts: 598 Thank you received: 6	chain adjuster is pretty trick!
	Please Log in or Create an account to join the conversation.

Tried and True Swingarm Swaps 04 Feb 2020 14:59 #818584

577nitro
Offline
User
Posts: 288
Thank you received: 55

I used the tried and true ZRX1100 swingarm. However, I upgraded to the 20mm swingarm through bolt. I used a reamer and and fit it precisely like they did back in the days of AMA racing, so there is no end play at all. I had to tap it into place like it should be....thanks DR. GAMMA! I read a recent article where one of the racer's, I think it Roberta Pieatra (?) said the bikes handle so poorly because the rear swingarm end play caused weaving and the slappers. He said they used to jam feeler gauges into the swingarm holes to take up the slack.

Turns out the ZRX1100 rear axel is the exact length and nut size as the GPZ1100 swingarm bolt. So I just turned one side down to be slightly tight for bolt side and bored and reamed the other frame side to slightly tight. Now I have to tap it in, no slop, and its a larger 20mm bolt.

577Nitro
