JayHedrick wrote: You don't happen to have that barebones wiring somewhere deep down in your computer do ya? If not no worries man. I'm wiring mine up right now and thought it might be a bit easier with your diagram. I know its been like 6 years so I understand if you do not have it anymore.
Thanks
Jay
In my signature there is a link for "Mattylight". THat has a bunch of diagrams in it. If you search "mattylight" and kz550, there will probably be a few diagrams that show up. If you can't use any of those. I can probably draw one up if it's bare bones, but I need to know the year and exact model, as in KZ550xx where xx is a letter and a number.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- JayHedrick
- Offline
- User
- Posts: 4
- Thank you received: 0
No need to draw one up man. I'll just search around in your mattylight link.. mines a 82 kz550c3.. I do appreciate the quick response though. If I get stumped I might be giving you a shout back. Hope to be around the forums for awhile.loudhvx wrote:
JayHedrick wrote: You don't happen to have that barebones wiring somewhere deep down in your computer do ya? If not no worries man. I'm wiring mine up right now and thought it might be a bit easier with your diagram. I know its been like 6 years so I understand if you do not have it anymore.
Thanks
Jay
In my signature there is a link for "Mattylight". THat has a bunch of diagrams in it. If you search "mattylight" and kz550, there will probably be a few diagrams that show up. If you can't use any of those. I can probably draw one up if it's bare bones, but I need to know the year and exact model, as in KZ550xx where xx is a letter and a number.
Thanks
Jay
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
www.kzrider.com/forum/4-electrical/17274...t?limit=20&start=140
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- JayHedrick
- Offline
- User
- Posts: 4
- Thank you received: 0
loudhvx wrote: On page 8 of mattylight, there is an 82 kz550C3 diagram for "Toolboy". That might help.
www.kzrider.com/forum/4-electrical/17274...t?limit=20&start=140
Exactly what I was looking for!!! Have you wired everything Motorcycle related known to man? haha
Thank you for your help man! With all this wiring info you have you must have built some sweet bikes..
Thanks again
Please Log in or Create an account to join the conversation.
- JayHedrick
- Offline
- User
- Posts: 4
- Thank you received: 0
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- Calebjkd
- Offline
- User
- Posts: 23
- Thank you received: 0
Do you still have this wiring diagram for the kz550 ltd?
The link in this thread is dead.
This is exactly what i am needing.
'81 Kawasaki kz550 ltd
'71 Yamaha xs650
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- kaw-a-holic
- Offline
- User
- Posts: 1808
- Thank you received: 249

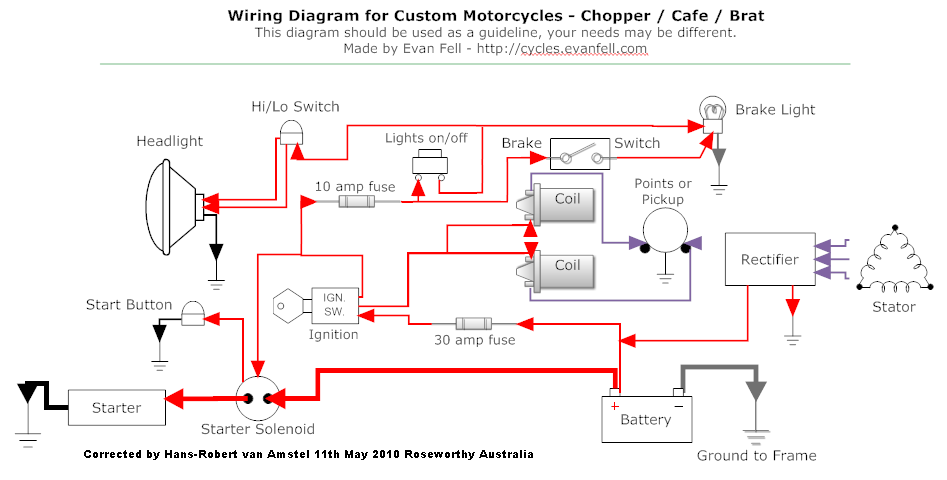

This was posted in a different thread.
Jon
1977 KZ1000a1
Mesa, AZ
Phoenix Fighter Project
