I hope someone will be able to offer some advice. I have just bought 1980 kz650 ltd as a project. It has not run for a long time. I put a new battery on and the engine turns over but only getting a spark on 2&3. I found the secondary on the ignition coil was bad so put 2 new coils on. Still only getting spark on 2&3.
i need to check the regulator rectifier as i dont think its for this bike. It is attached with one bolt and the second hole does not line up to take the second bolt.
Also, the 3 yellow wires from the stator have been chopped off an inch from the stator, then someone has attach 3 much bigger guage red wires to the yellow wires which then go up to the regulator. The bigger 3 red wires then have been joined to the 3 yellow wires on the ignition coil wires.
Not sure what the reason is for doing this.
Would using bigger guage wire from the stator to ignition regulator cause a problem.
I have put new plugs, 2 new coils and ignition leads.
I will try get some pics tomorrow.
any advice appreciated.
i need to check the regulator rectifier as i dont think its for this bike. It is attached with one bolt and the second hole does not line up to take the second bolt.
Also, the 3 yellow wires from the stator have been chopped off an inch from the stator, then someone has attach 3 much bigger guage red wires to the yellow wires which then go up to the regulator. The bigger 3 red wires then have been joined to the 3 yellow wires on the ignition coil wires.
Not sure what the reason is for doing this.
Would using bigger guage wire from the stator to ignition regulator cause a problem.
I have put new plugs, 2 new coils and ignition leads.
I will try get some pics tomorrow.
any advice appreciated.
Hello from the UK
NC750X
KZ650E1
Please Log in or Create an account to join the conversation.
- Deon
- Topic Author
- Offline
- User
- 1964/07/20
Less
More
- Posts: 50
- Thank you received: 4
29 Nov 2022 14:25 #877319
by Deon
Hello from the UK
NC750X
KZ650E1
Replied by Deon on topic Lack of spark
Sorry, the 3 bigger guage red wire go up and are joined to the 3 yellow wires on the ignition regulator rectifier, Not ignition coils as above.
Hello from the UK
NC750X
KZ650E1
Please Log in or Create an account to join the conversation.
- Nessism
- Offline
- Sustaining Member
Less
More
- Posts: 7512
- Thank you received: 2827
29 Nov 2022 14:55 #877321
by Nessism
Replied by Nessism on topic Lack of spark
The charging system, stator & R/R, have nothing to do with the ignition system. Unless the entire wiring harness is hacked, that is.
According to the parts diagram for the USA market, the 1980 650 was still using points. I'm not sure about the UK, however. Have you removed the ignition cover and looked underneath? If the bike has points, it could be as simple as cleaning and regapping them. If the bike switched to an electronic ignition, most likely the ignitor box has fried. The signal generators are quite reliable, so it's unlikely those are the problem.
According to the parts diagram for the USA market, the 1980 650 was still using points. I'm not sure about the UK, however. Have you removed the ignition cover and looked underneath? If the bike has points, it could be as simple as cleaning and regapping them. If the bike switched to an electronic ignition, most likely the ignitor box has fried. The signal generators are quite reliable, so it's unlikely those are the problem.
Please Log in or Create an account to join the conversation.
- Deon
- Topic Author
- Offline
- User
- 1964/07/20
Less
More
- Posts: 50
- Thank you received: 4
30 Nov 2022 00:13 #877332
by Deon
Hello from the UK
NC750X
KZ650E1
Replied by Deon on topic Lack of spark
Thanks for the reply. The bike is a 1980 USA import registered in the uk in 1996. The wiring harness does not look too bad and seems still original. The bike does still have the original points ignition system. When i turn the engine i get spark on 2&3 on the points but nothing on 1&4.
When you turn it slowly by hand you get a click on the F by 1&4 but no spark.
When you turn it slowly by hand you get a click on the F by 1&4 but no spark.
Hello from the UK
NC750X
KZ650E1
Please Log in or Create an account to join the conversation.
- Warren3200gt
- Offline
- User
Less
More
- Posts: 1508
- Thank you received: 715
30 Nov 2022 02:07 - 30 Nov 2022 02:09 #877333
by Warren3200gt
Replied by Warren3200gt on topic Lack of spark
Hi Deon, where in the UK are you? I am by Brands Hatch. There are plenty of UK members on both Z650 proboards and Z1OC all over the country you can link up with for some local help if you end up needing it.
As far as your spark issue it could be the points themselves, the condenser for those points or even a bad contact or broken wire from the points/condenser. Also could just be a bad connection/disconnected wire from the points to the loom or from the loom to the coil.
The original kawasaki electrical parts are good and long lasting however the chinise replacement points/condensor parts are absolute shite.
The marority of guys decide to swop out the old points system for fit and forget Dyna s electronic ignition. Once installed your ignition issues will be a thing of the past as they are fit and forget.
Dyna have moved production to China and the Chinese company has released unbranded identicle
System at a third the price. From feedback on various forums it seems to be equally reliable and quality.
As far as your spark issue it could be the points themselves, the condenser for those points or even a bad contact or broken wire from the points/condenser. Also could just be a bad connection/disconnected wire from the points to the loom or from the loom to the coil.
The original kawasaki electrical parts are good and long lasting however the chinise replacement points/condensor parts are absolute shite.
The marority of guys decide to swop out the old points system for fit and forget Dyna s electronic ignition. Once installed your ignition issues will be a thing of the past as they are fit and forget.
Dyna have moved production to China and the Chinese company has released unbranded identicle
System at a third the price. From feedback on various forums it seems to be equally reliable and quality.
Last edit: 30 Nov 2022 02:09 by Warren3200gt.
Please Log in or Create an account to join the conversation.
- Deon
- Topic Author
- Offline
- User
- 1964/07/20
Less
More
- Posts: 50
- Thank you received: 4
30 Nov 2022 08:23 #877344
by Deon
Hello from the UK
NC750X
KZ650E1
Replied by Deon on topic Lack of spark
I am in Norfolk near Snetterton. It does sound like the best option will be to go for the electronic ignition system. I was trying to avoid doing that to keep the bike as original as possible but that does not help if it is going to keep causing issues. Is it best to buy from Dyna or can you get the system like on ebay? Are they easy enough to swop out and change?
Hello from the UK
NC750X
KZ650E1
Please Log in or Create an account to join the conversation.
- Warren3200gt
- Offline
- User
Less
More
- Posts: 1508
- Thank you received: 715
30 Nov 2022 08:27 - 30 Nov 2022 08:32 #877345
by Warren3200gt
Replied by Warren3200gt on topic Lack of spark
Hi Deon, Dyna is a simple job to fit, you can get the Dyna badged one through Z Power. The suedo one's are on ebay for a third the price.
You can tell if the points plate fitted is the original or Chinese crap. The original has an adjustment plate seperate for each set of points the Chinese ones just have a single ignition plate.
If it's the repop Chinese ones I wouldn't even bother to diagnose it and time it up just go the Dyna route.
If it's still got the original khi stuff I might be worth trying to sort it.
Post a pic of the ignition plate if you can.
You can tell if the points plate fitted is the original or Chinese crap. The original has an adjustment plate seperate for each set of points the Chinese ones just have a single ignition plate.
If it's the repop Chinese ones I wouldn't even bother to diagnose it and time it up just go the Dyna route.
If it's still got the original khi stuff I might be worth trying to sort it.
Post a pic of the ignition plate if you can.
Last edit: 30 Nov 2022 08:32 by Warren3200gt.
Please Log in or Create an account to join the conversation.
- Deon
- Topic Author
- Offline
- User
- 1964/07/20
Less
More
- Posts: 50
- Thank you received: 4
30 Nov 2022 09:57 #877347
by Deon
Hello from the UK
NC750X
KZ650E1
Replied by Deon on topic Lack of spark

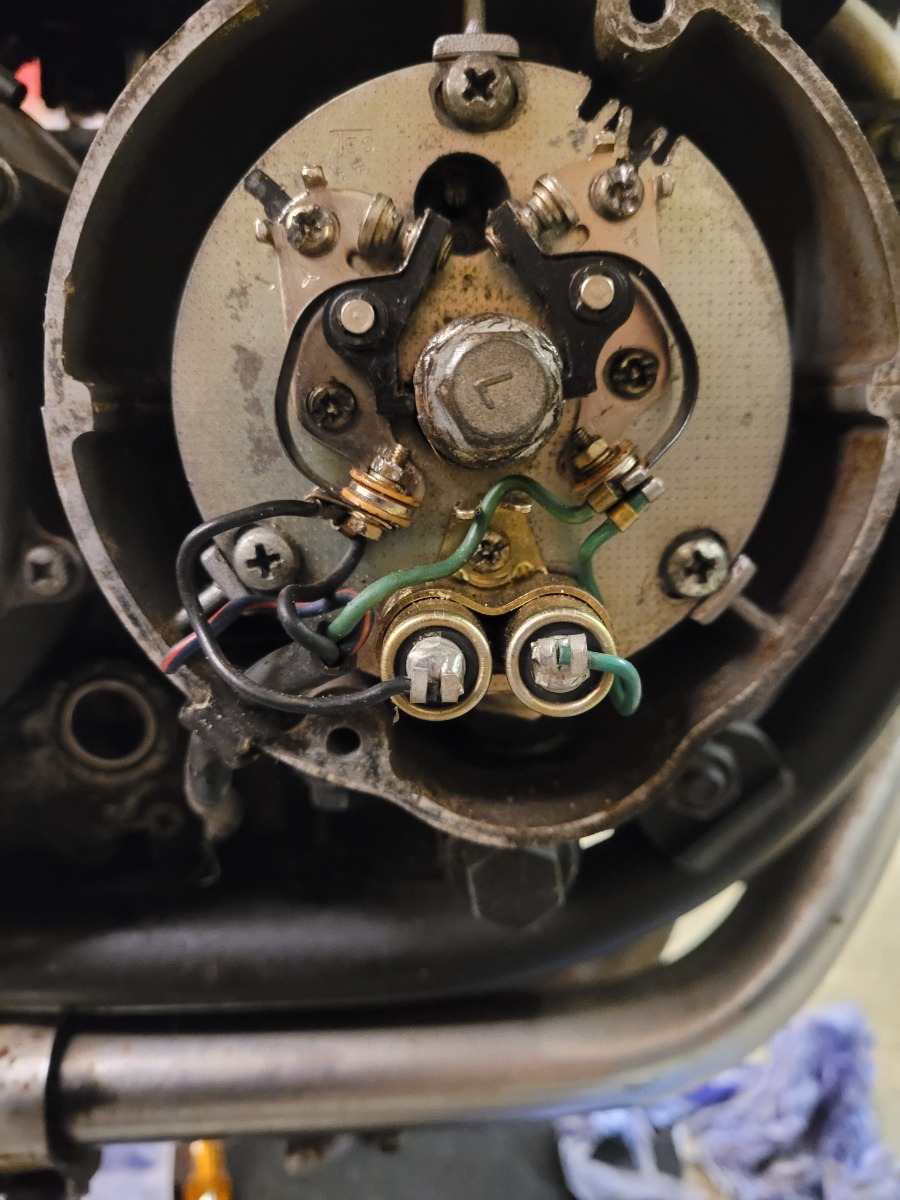

Hello Warren, this is an image of whats on the bike at the moment.
