TOPIC:

change out ignition on a 1975 KZ400 kick only and simple diagram 13 Oct 2021 21:04 #856620

  • TexasKZ
  • TexasKZ's Avatar
  • Away
  • Platinum Member
  • Posts: 6126
  • Thank you received: 1508
Why do you want to replace the switch? It would probably be much easier to get a new key, assuming it is a factory switch.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

Please Log in or Create an account to join the conversation.

Last edit: by TexasKZ.

change out ignition on a 1975 KZ400 kick only and simple diagram 13 Oct 2021 23:44 #856622

  • bcfox0630
  • bcfox0630's Avatar Topic Author
  • Offline
  • User
  • Posts: 7
  • Thank you received: 0

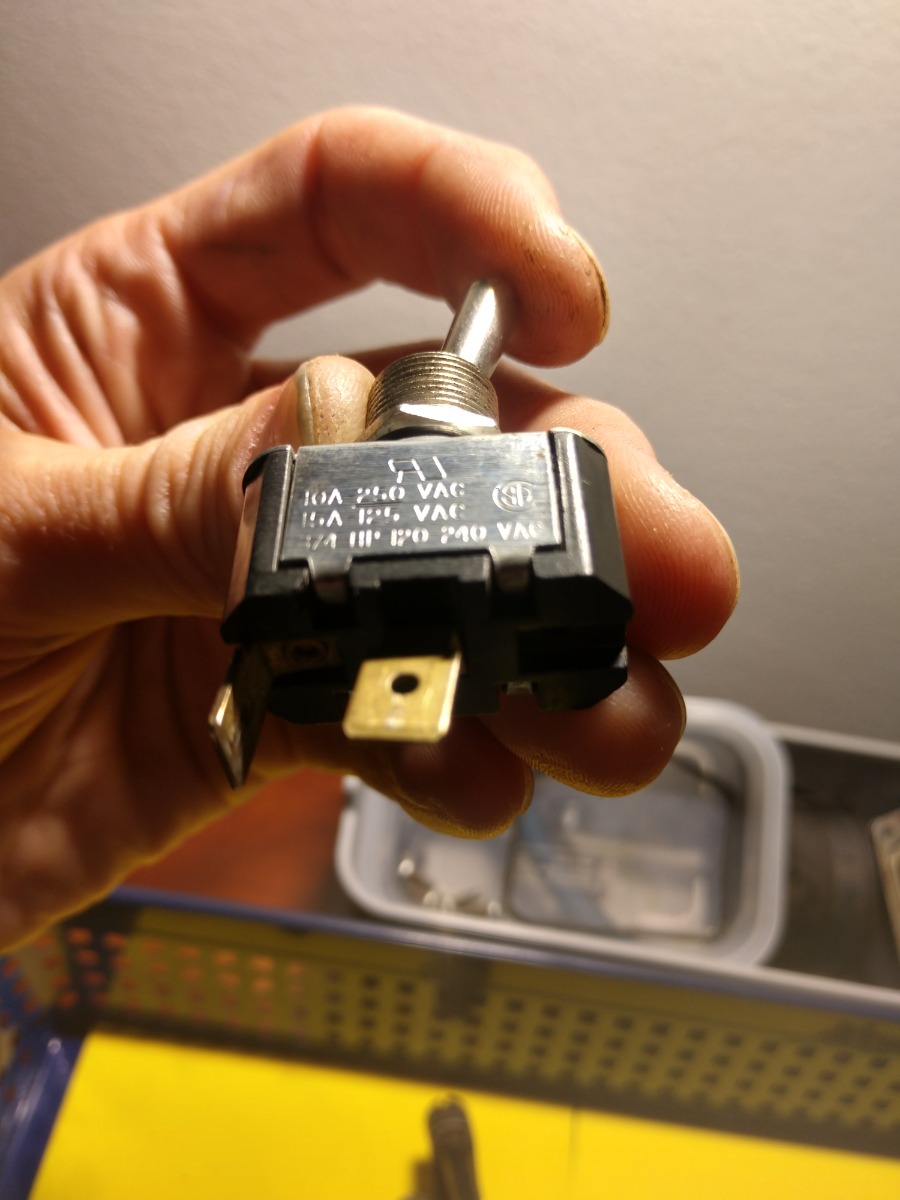

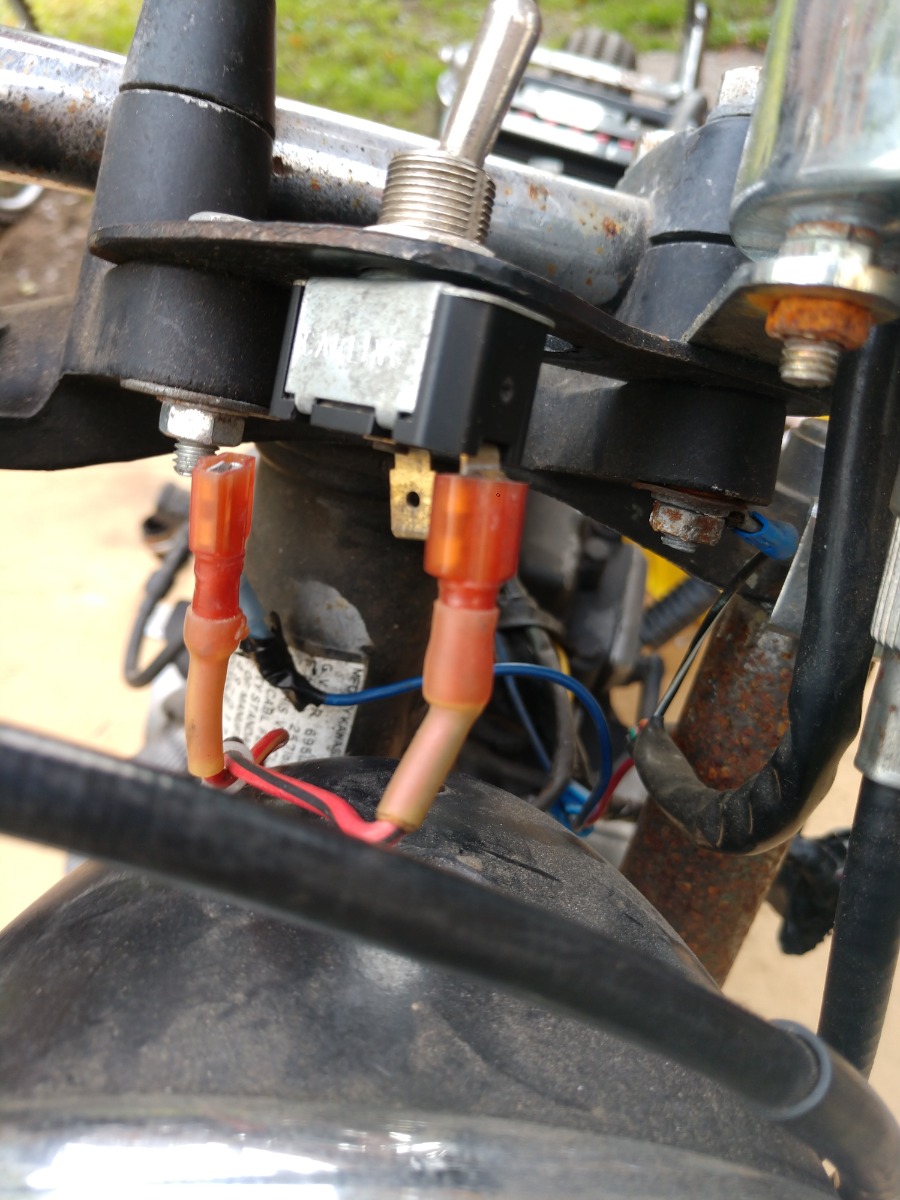

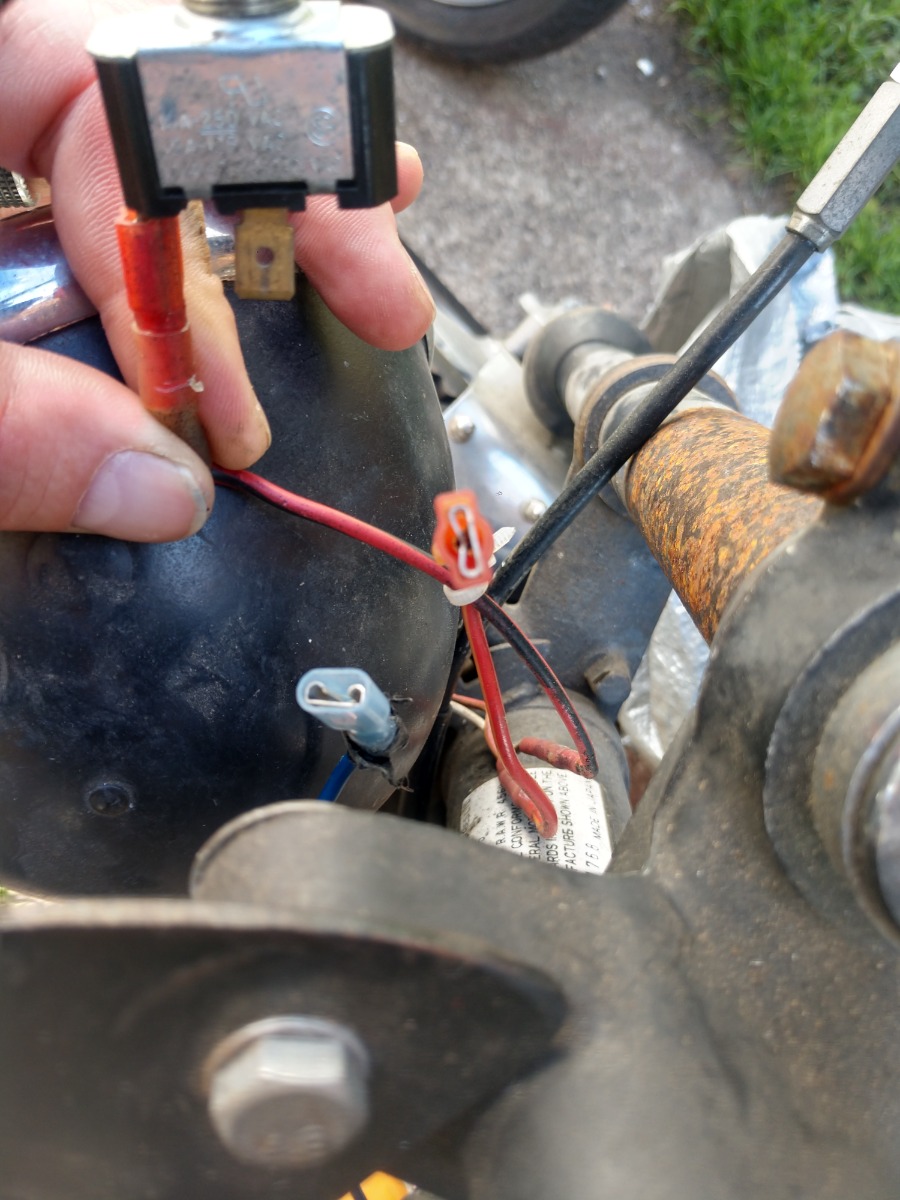

THE BROWN IS WITH THE YELLOW,BLUE,AND RED.(ALL 4 GO TO SAME POST. THE WHITE IS BY ITSELF. SO I THINK I GET THAT AND THEN ONE MORE THING. THERE ARE 3 WIRES THAT I DONT KNOW WHERE THEY WOULD GO. SO UP FRONT THERE IS THE START SWITCH THAT I SHOWED AND THEN THERE IS A TOGGLE THAT HAS 2 POSTS AND THE ONE HAD A  (RED w BLACK STRIPE) WIRE CONNECTED COMING FROM HEADLIGHT.

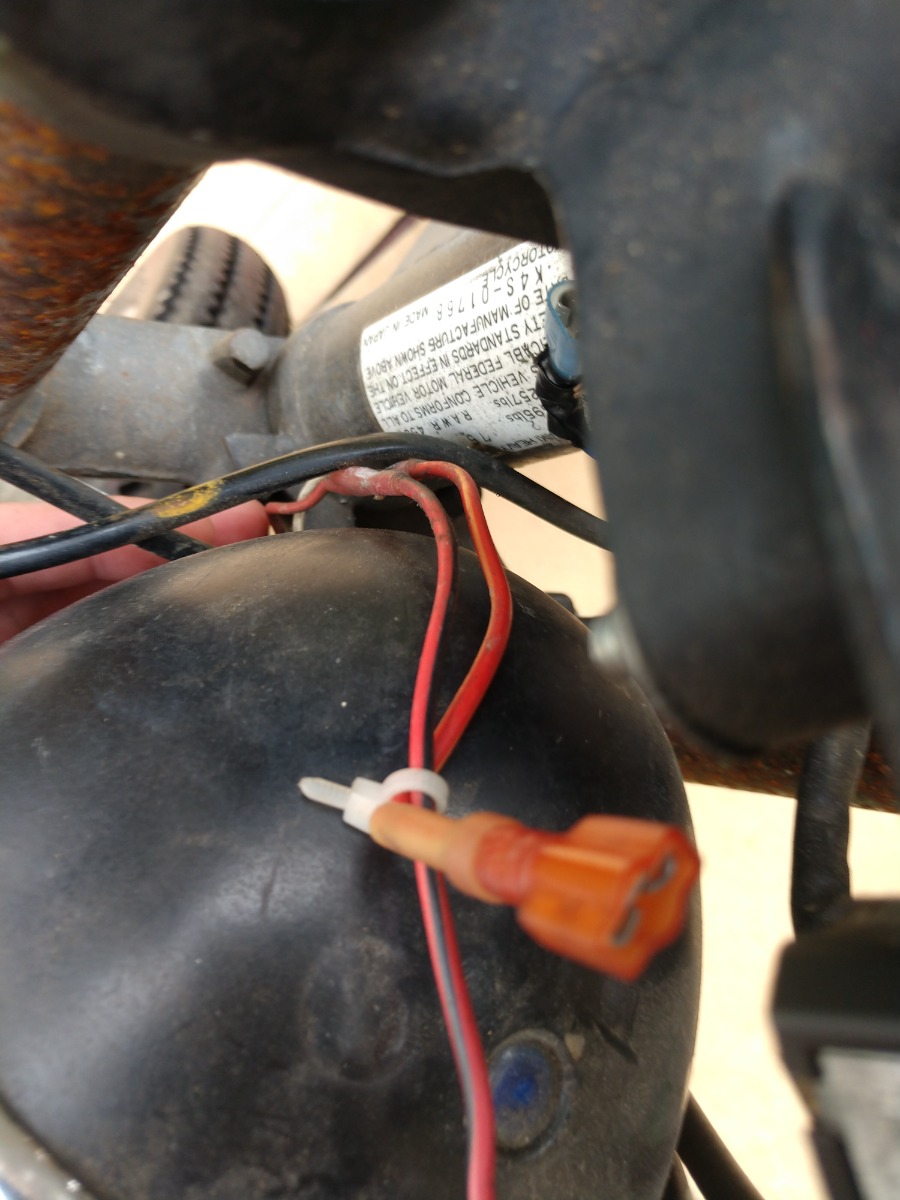

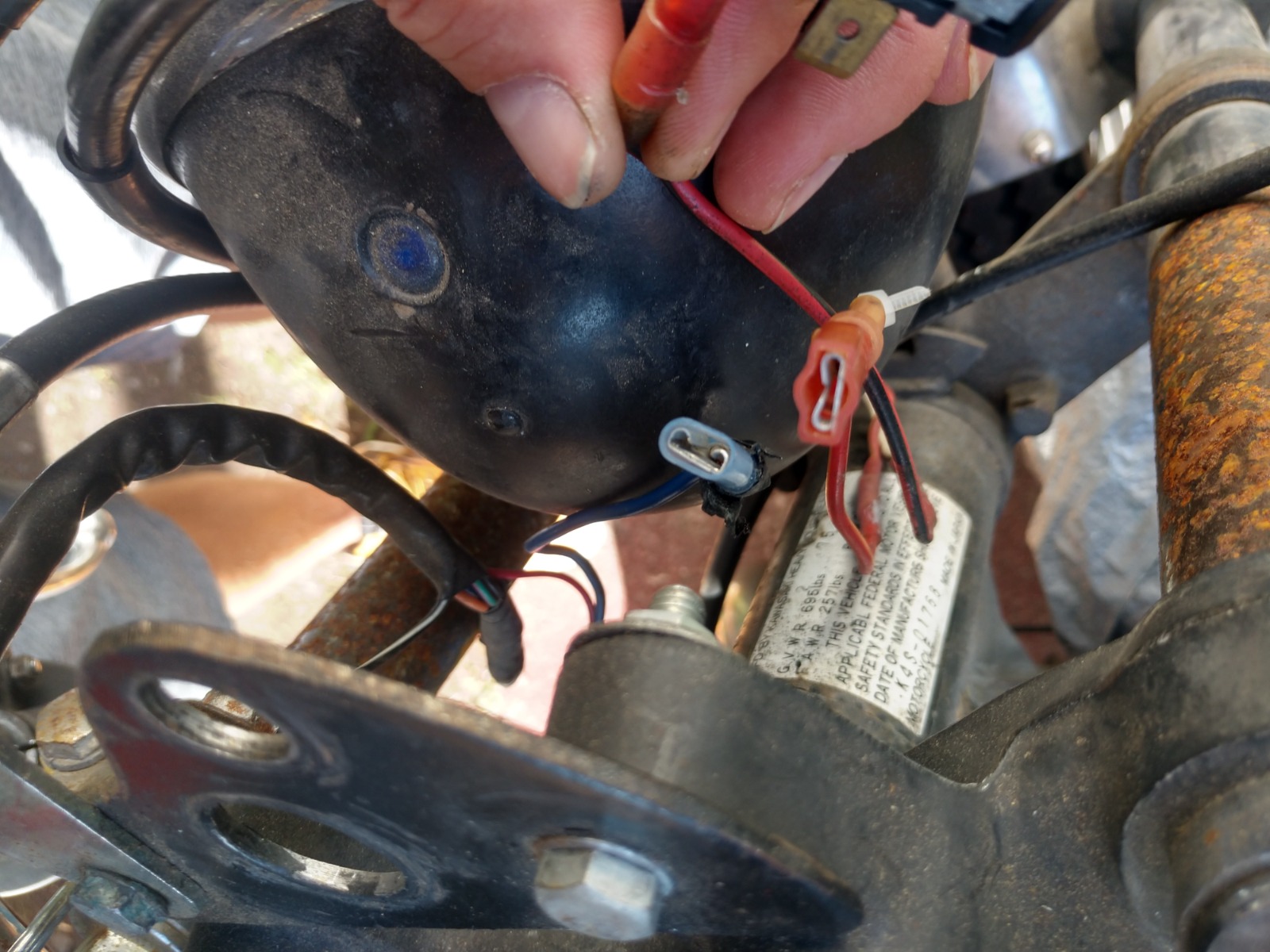

BUT IM NOT SURE WHERE THE OTHER (RED w YELLOW STRIPE) WIRE COMING FROM THE HEADLIGHT WILL PLUG INTO? ASSUMIMG IT NGOES TO THE OTHER POST ON TOGGLE.?

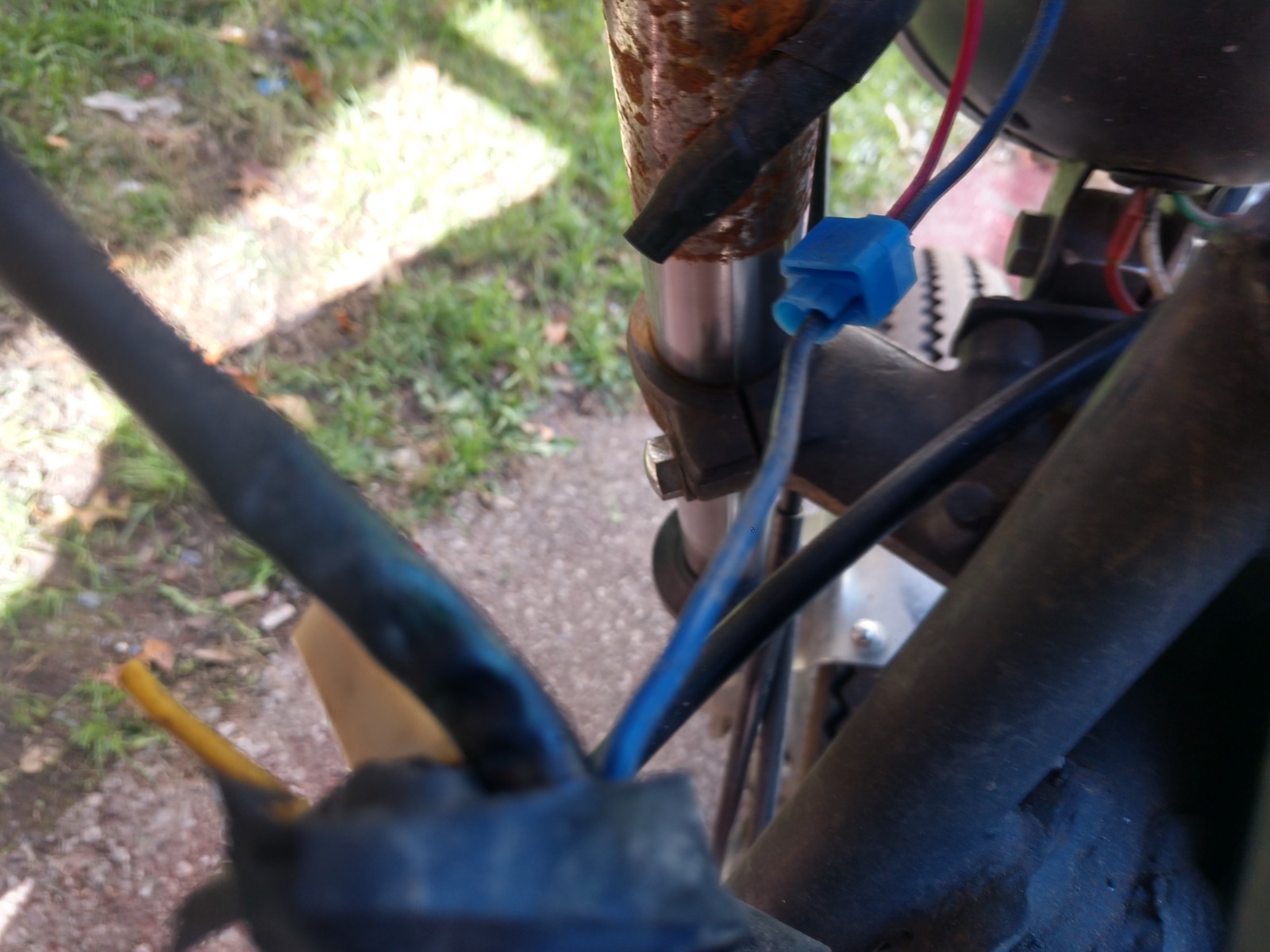

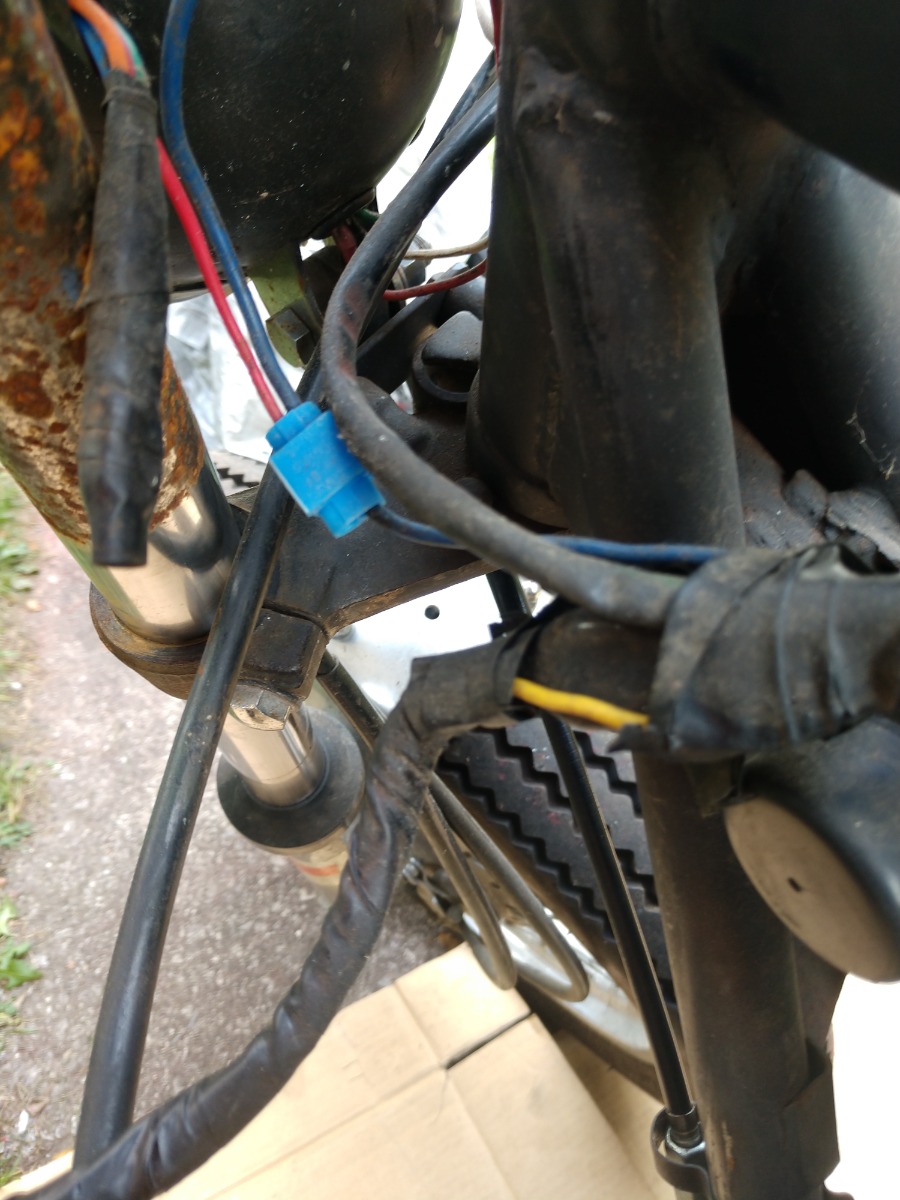

AND NOT SURE WHERE THE (BLUE) WIRE SHOULD PLUG INTO. iTS COMING FROM THE HARNESS SOMEWHERE WHICH. IT GOES:

BLUE WIRE COMING FROM HARNESS < THEN SPLITS INTO 2 WIRES !)RED WIRE GOING TO ODOMETER 2) BLUE WIRE WITH END ON IT AND THIS IS THE ONE I DONT KNOW WHERE IT GOES TO( IT LOOKS CLOSE SITTING NEAR TOGGLE AND THE IGNITION) HOPEFULLY THIS MAKES SENSE.

THIS IS HOW I GOT THE BIKE AND I JUST WANT TO GET IT STARTED BUT DONT WANT TO FRY ANYTHING AND I DONT HAVE THE MONEY TO GO BUY ANY PARTS. THE ONLY REASON IM CHANGING THE IGNITION BECAUSE THE GUY THAT SOLD IT TO ME LOST THE KEYS. AND THAT NEW IGNITION I ALREADY HAD. ITS JUST TEMP!!!

THANK YOU SO MUCH FOR YOUR HELP
Attachments:

Please Log in or Create an account to join the conversation.

change out ignition on a 1975 KZ400 kick only and simple diagram 13 Oct 2021 23:46 #856623

  • bcfox0630
  • bcfox0630's Avatar Topic Author
  • Offline
  • User
  • Posts: 7
  • Thank you received: 0
Attachments:

Please Log in or Create an account to join the conversation.

change out ignition on a 1975 KZ400 kick only and simple diagram 14 Oct 2021 06:18 #856628

  • TexasKZ
  • TexasKZ's Avatar
  • Away
  • Platinum Member
  • Posts: 6126
  • Thank you received: 1508
When you are ready and if you want to use the switch that came with the bike, a locksmith can make a key for it.

Also, based on the frame number on the sticker, that is a 1975 KZ400S. Be sure that you refer to the correct wiring diagram as there are small differences between the various 400 models.

If your short term goal is just to find out if it will run, it might be easier to skip all that jacked up wiring, and just run the bare minimum wires to run the ignition. Then if you want to fix what the po did to the wiring, you can chase down all the “custom” bits and remove them. It will require some patience, but it is not as complicated as it looks. If your long term goal is to build some sort of stripped down bike, then one of Lou’s bare bones systems will work a treat.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
The following user(s) said Thank You: bcfox0630

Please Log in or Create an account to join the conversation.

Last edit: by TexasKZ.

change out ignition on a 1975 KZ400 kick only and simple diagram 14 Oct 2021 13:42 #856646

  • loudhvx
  • loudhvx's Avatar
  • Offline
  • Sustaining Member
  • Posts: 10931
  • Thank you received: 1625
Ok, that makes more sense...the brown being connected to red, yellow, and blue.

When describing a wire with two colors, you mention the main color first then / with the stripe color second.

The blue wire could be to power the gauge lights or the headlight or both.  The brown wire, on the stock bike, would eventually power the yellow/red wire which powers the ignition system. The yellow/red wire gets power from the brown wire then feeds that power to the positive side of the ignition coil.  There should be an un-related blue wire going from the negative side of the coil to the points.  As long as you have all of that, the bike should run on battery power.

The red/black and red/yellow are for the high beam and low beam of the headlight.  Those wires get power, one at a time, depending on the switch position of the high-beam toggle.  It gets power from a blue wire, usually.  The blue wire gets power from the brown wire.  But since your toggle only has two connections, it can't be used as a normal Hi-Lo switch.  I'm not sure how they were using it.  It would need three connections to work as a normal Hi-Lo switch.

The brake light switches get power from the brown wire.  They switch that power to another un-related blue wire that feeds power to the brake light filament.

So as you can see, there are a few unrelated and related blue wires to keep track of.



Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

change out ignition on a 1975 KZ400 kick only and simple diagram 14 Oct 2021 14:09 #856647

  • gd4now
  • gd4now's Avatar
  • Offline
  • User
  • Denco where did you go?
  • Posts: 855
  • Thank you received: 183

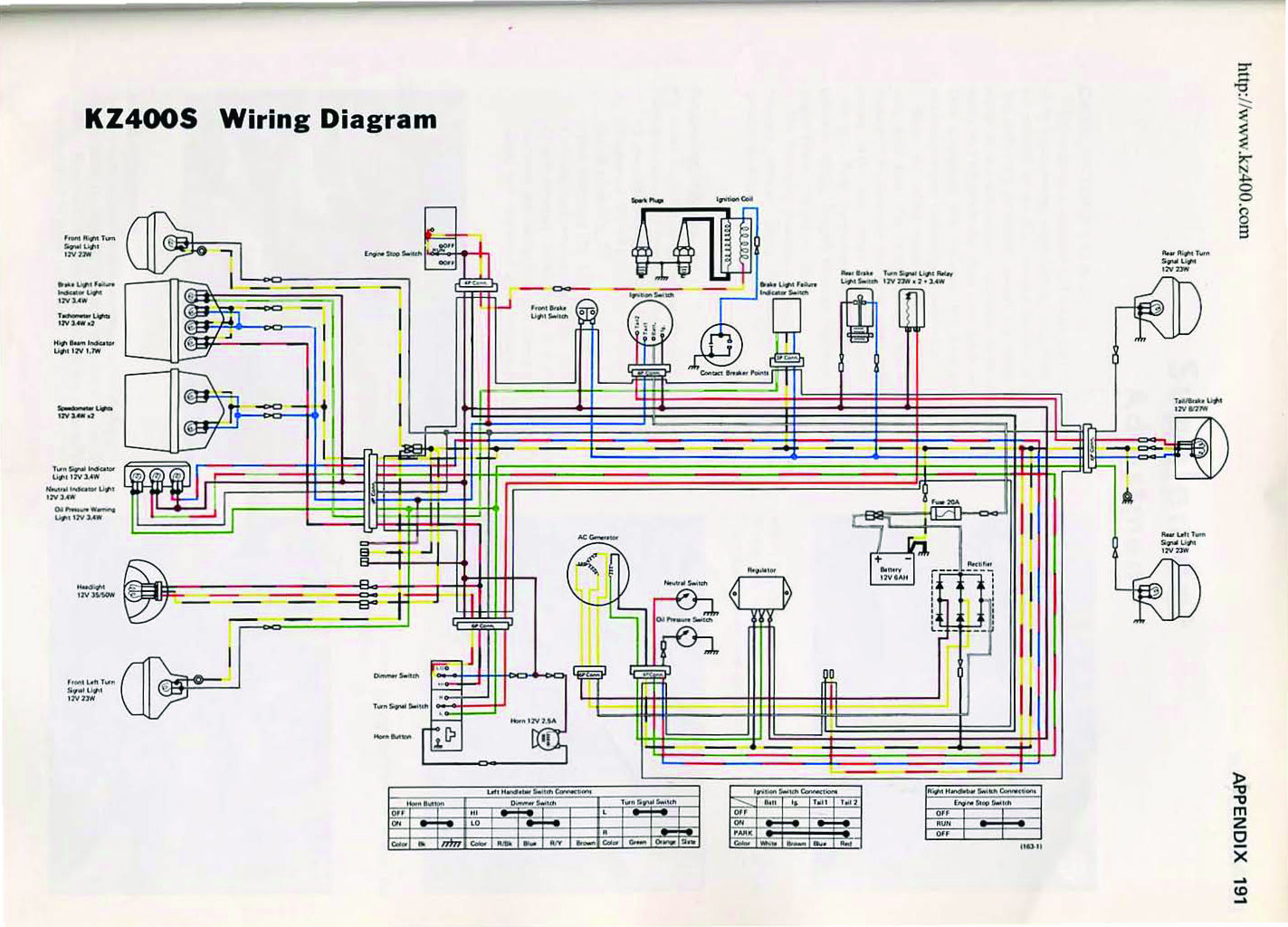

It appears you have a S model.  I attempted to provide you with a wiring diagram for it earlier in this thread, but you did not want to down load it, so I created a version that can be displayed here you go.
1977 KZ650 B1
Pods and Denco header


This is my Z

OLD KAW OWNERS SMILE ALOT
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by gd4now.
