Pick-up coil failure 19 Jul 2021 22:23 #852085

  • F64
  • F64's Avatar
  • Offline
  • User
  • 81-KZ440D2
  • Posts: 584
  • Thank you received: 149
Your black/yellow is a ground wire for the ignitor.
So we know you have a good ground provided your other meter probe was on the negative terminal.

Check the red wire going into the ignitor connector(it becomes yellow/red at the ignitor)
actually, check the yellow/red wire on the ignitor side. This way we can check that terminal on the connector.
DC V
black probe on negative battery post
red probe on red/yellow wire
key on/igniton on
do not disconnect any connectors.

81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY

Please Log in or Create an account to join the conversation.

Last edit: by F64.

Pick-up coil failure 20 Jul 2021 18:28 #852169

  • badr0bot
  • badr0bot's Avatar Topic Author
  • Offline
  • User
  • Posts: 61
  • Thank you received: 0
F64,
I pulled the 5 connector panel to get to the back of the connector/ igniter side. With starter engaged, I'm getting 0.29V at the red/yellow connection on both sides of the connector. Negative probe on the negative battery post as always.
I also pulled the starter switch housing apart and measured 11.9 volts at rest on the red lead right at the solder point on the switch and 8.9 volts while starter was engaged. Shouldn't 8.9 be the voltage also measured at the Igniter connector?
87 KZ1000 P1

Please Log in or Create an account to join the conversation.

Last edit: by badr0bot.

Pick-up coil failure 20 Jul 2021 19:23 #852170

  • F64
  • F64's Avatar
  • Offline
  • User
  • 81-KZ440D2
  • Posts: 584
  • Thank you received: 149
yep, your yellow/red is not receiving +12 V.
You need that.

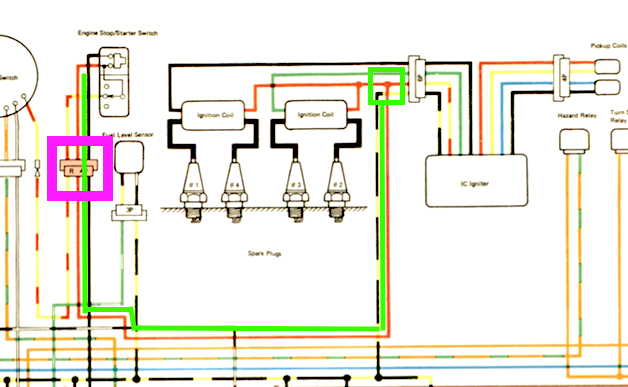

What may also be happening is your coils aren't receiving +12v as the red coil wire is spliced into red/yellow to the ignitor (the green box).
