Coils don't match???
- MFolks
- Offline
- User
www.cyclepsycho.com/kz1000p/kz1000p.html
www.kawiworld.com/index.php?option=com_c...icle&id=77&Itemid=99 A shop manual on the Kz1000/Kz1100 bikes
1982 GPZ1100 B2
General Dynamics/Convair 1983-1993
GLCM BGM-109 Tomahawk, AGM-129A Advanced Cruise Missile (ACM)
Please Log in or Create an account to join the conversation.
- Cuff
- Topic Author
- Offline
- User
- Posts: 132
- Thank you received: 6
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098
Cuff wrote: Ok, I went out a bought a tester and found 3.6ohms(cold) and 3.4ohms(hot) on both coils. The pick up coils are both at 450ohms. Plug wires are at 14.7 and 15.2 Kohms and there is 11.88 volts getting to the coils. There seems to be some decent spark at the plugs.
I'm at a loss because everthing electrical checks out. I'm starting to think it might be the old carb boots (manifolds) but would they run fine cold and just start acting up once the bike is warm?
I should add this problem has gradually gotten worse over the past month.
The loss of power, sputtering, bogging down and just crappy running at temp is getting to me.
11.88 volts getting to the coils--- For this bike, 11.88 volts is insufficient with any coil on any ignition, even with perfect coils and perfect ignition.
Dyna-S ignition doesn't use the oem igniter.
Dyna green 3 ohm coils are recommended when using Dyna-S ignition.
The ballast resistor isn't used with Dyna green 3 ohm coils and Dyna-S ignition.

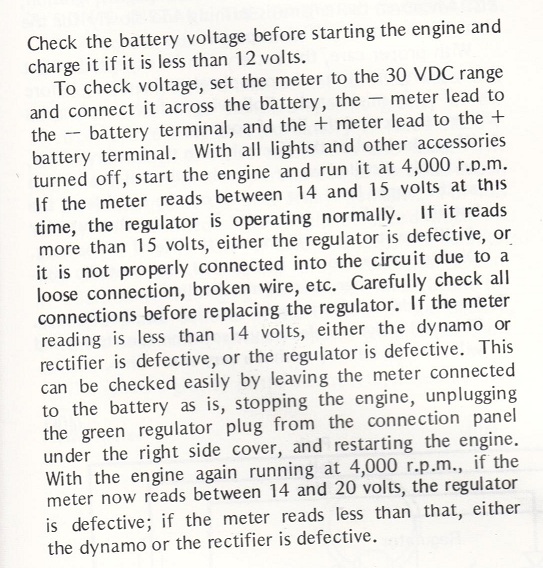

Existing coils may be okay with the oem i.c. igniter ignition and simply not receiving enough voltage. See below excerpt from FSM.
It's possible for a defective coil to begin failing at higher temps.
Ideally, voltage being received at coil should match battery voltage.
Am wondering if battery isn't up to snuff, for whatever reason.
Would service battery by assuring fluid levels at correct, charge it overnight, and then have it load tested.
Battery may be failing to hold a charge.
Or perhaps the bike's charging system is weak, for whatever reason, and failing to keep the battery fully charged.
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- Cuff
- Topic Author
- Offline
- User
- Posts: 132
- Thank you received: 6
Please Log in or Create an account to join the conversation.
- Cuff
- Topic Author
- Offline
- User
- Posts: 132
- Thank you received: 6
The bike now does not have enough spark to run cyliners 1 and 4, not even cold. I switched around the two coils hoping it was just a bad coil. No such luck. I'm now looking in the direction of the igniter. Not a fun part to replace. Might just make my own GM Hei system as mentioned above if my local use parts shop is of no help. Going to be checking the wires under the factory wrap coming out of the igniter, mostly as a time killer until the shop opens up in the morning, not expecting to find anything wrong but who knows.
I live this bike to death and will get to the end sooner than later, but damn, it's like a crazy girlfriend. Lots of fun but very expensive and tempormental. You never know when a half cooked bunny will end up in a pot on the stove.:lol:
Please Log in or Create an account to join the conversation.
- Cuff
- Topic Author
- Offline
- User
- Posts: 132
- Thank you received: 6
All other grounds and power wires check out so if coils don't fix my running issues...:huh:
Please Log in or Create an account to join the conversation.
- wireman
- Offline
- User
- The most interesting prick in the world
- Posts: 4761
- Thank you received: 299
posting from deep under a non-descript barn in an undisclosed location southwest of Omaha.
Please Log in or Create an account to join the conversation.
- roy-b-boy-b
- Offline
- User
- Posts: 3255
- Thank you received: 103
After the bike started it was down on two cylinders.I could ride it a mile and the bike ran fine.
I had a bad ignition module.

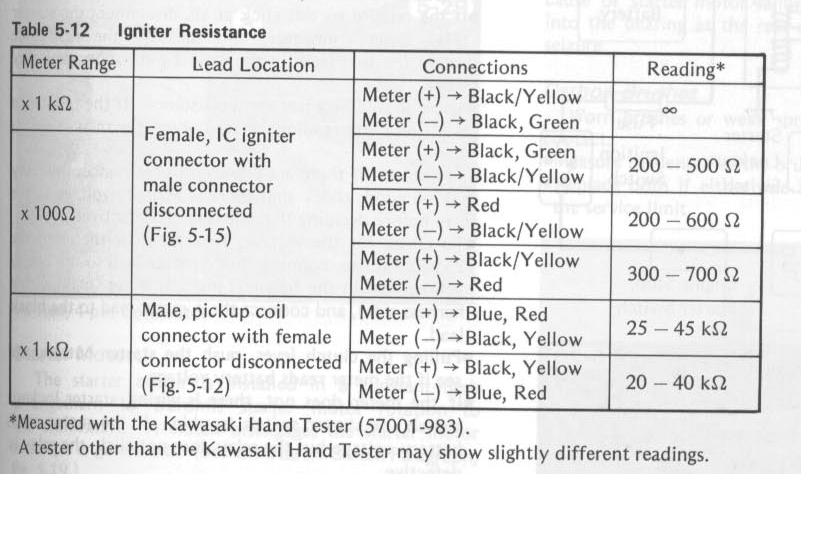

I have had IC ignitors go bad. Someone might know how to check that. Roy
1979 LTD Street Fighter.1977 KZ1000
Please Log in or Create an account to join the conversation.
- Motor Head
- Offline
- User
- FIX UP YOUR BIKE RIGHT AND CHEAP
- Posts: 5138
- Thank you received: 391
1982 KZ1000LTD K2 Vance & Hines 4-1 ACCEL COILS Added Vetter fairing & Bags. FOX Racing rear Shocks, Braced Swing-arm, Fork Brace, Progressive Fork Springs RT Gold Emulators, APE Valve Springs, 1166 Big Bore kit, RS34's, GPZ cams.
1980 KZ550LTD C1 Stock SOLD Miss it
1979 MAZDA RX7 in the works, 13B...
Please Log in or Create an account to join the conversation.
- Cuff
- Topic Author
- Offline
- User
- Posts: 132
- Thank you received: 6
Please Log in or Create an account to join the conversation.
- MFolks
- Offline
- User
- Posts: 6650
- Thank you received: 540
Ignition coils on the 80’s Kz1000,Kz1100’s and Gpz1100’s are wired the same, that is as you sit on the bike, the LEFT ignition coil primary(small wires) are two wires, RED and BLACK. The secondary (or sparkplug wires) go to #1 and #4 sparkplugs(your primary wiring may be different).
The cylinders are numbered left to right as you sit on the seat; #1,#2,#3, and #4.
For the RIGHT ignition coil, the primary wires, again are two wires, RED and GREEN, with the secondary going to #2 and #3.
The RED wire gets it’s voltage from the run/stop switch on the right handlebar switch pod.
The BLACK and GREEN wires connect to the IC Igniter(if the bike has the Kawasaki supplied electronic ignition) it actually gives the coils their grounds to fire the sparkplugs.
Primary(small wires) side of the coils will read between 1.8 to 3.0 ohms.
Secondary(sparkplug wire ports)side of the coil will read between 10.4K to 15.6K ohms. These ports are wired together, so it makes no difference which is used, as long as the correct coil to sparkplug configuration is followed.
The sparkplug caps should read 5K OHMS, any higher, or a reading of infinity means new caps should be ordered.
To stress the ignition coils, take a hair dryer, heat the coils and see if the ohm readings change from cold to hot . If they do, it’s time to buy new coils.
Keep in mind, the wiring is reversed for the 550’s 650‘s and 750‘s, that is the RIGHT coil primary will be two wires, RED and BLACK with the secondary(sparkplugs) going to #1 and #4.
The LEFT coils primary wiring would be again two wires, RED and GREEN, with the secondary(sparkplugs) going to #2 and #3.
These engines have what is known as a “Wasted Spark” that is, a sparkplug will fire during an exhaust stroke. It does no damage and many other motorcycle engines have this design.
