Cam bearing cap bolt hole 03 May 2022 02:20 #866578

  • Warren3200gt
  • Warren3200gt's Avatar
  • Offline
  • User
  • Posts: 1436
  • Thank you received: 648

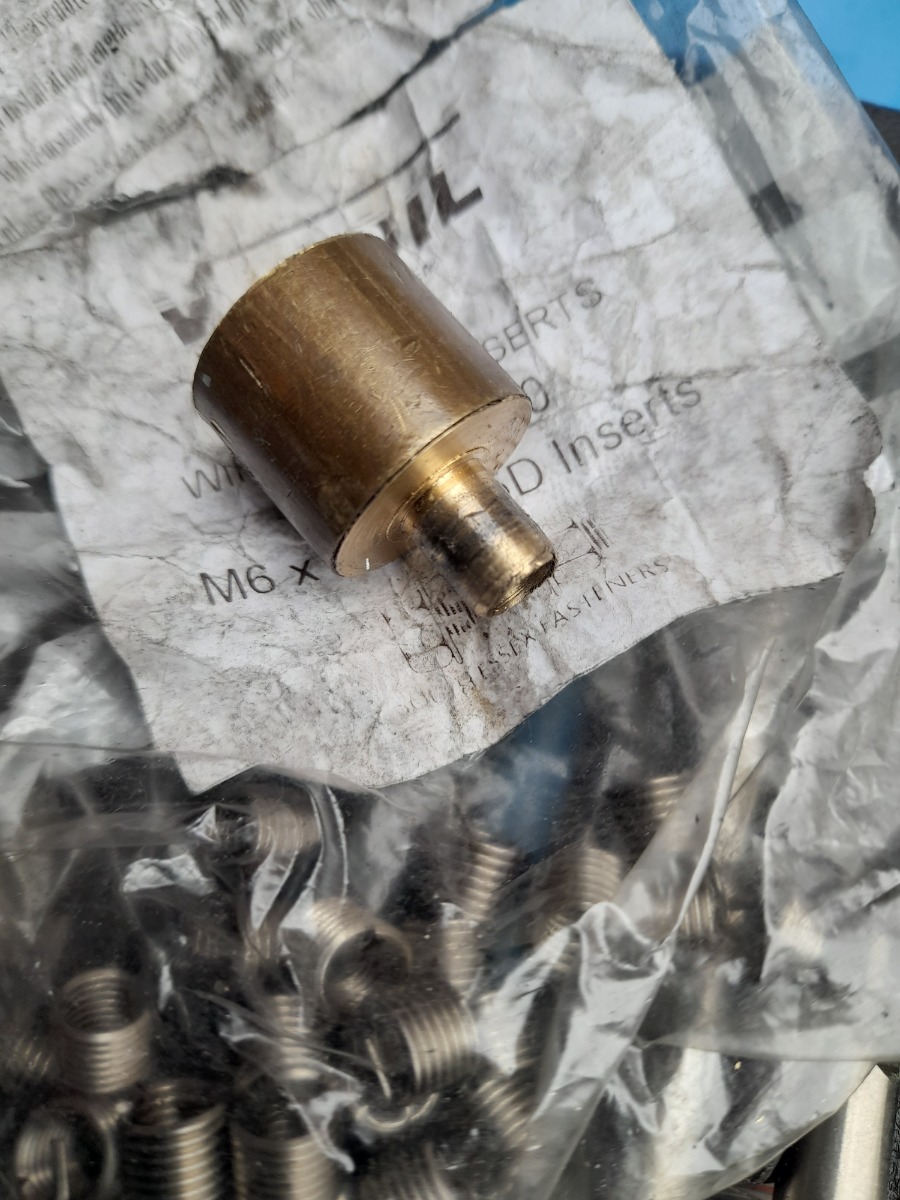

I just  made a guide from some round bar stock.
Drilled through the center with the helicoil drill. Step the outer so it'll fit full depth in the recess for the guide dowel.
Slide it on the drill bit, then once the bit is perfectly in place in line with the thread hole the guide will slide into the dowel pin hole. So long as the guide underside is flat against the head face the drill bit must be correctly aligned.


Z1000J2 somewhat modified!

Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Warren3200gt.

Cam bearing cap bolt hole 03 May 2022 06:18 #866583

  • blipco
  • blipco's Avatar
  • Offline
  • User
  • 2002 KZ1000P
  • Posts: 583
  • Thank you received: 222
Woodyvale, yup, these things take time and usually some new tools.
Adjusting the valves on my zr7S 750 requires removing the cams so, beforehand, I actually had my twenty+ year old torque wrench calibrated. Did I avoid a stripped bolt hole? I don't know.
"Swim against the current, even a dead fish can go with the flow"-somebody (I forget Who)

Please Log in or Create an account to join the conversation.

Cam bearing cap bolt hole 03 May 2022 08:19 #866587

  • Rick H.
  • Rick H.'s Avatar
  • Offline
  • User
  • Posts: 852
  • Thank you received: 254

I picked up one of these last year and it worked great to get the hole lined up correctly.  www.eastcoastadditive.com/samples-of-pro...-cam-cap-drill-guide


Interesting little drill guide referman.  How much did that guide cost you if I may ask and how did you get it?  Thanks...

Rick H.

Rick H.

1977 Kawasaki KZ-1000A1

Please Log in or Create an account to join the conversation.

Cam bearing cap bolt hole 03 May 2022 13:16 #866597

  • referman
  • referman's Avatar
  • Offline
  • Sustaining Member
  • Posts: 23
  • Thank you received: 31
Rick H.
I believe it was $35.00 and worked great.  www.eastcoastadditive.com/samples-of-pro...-cam-cap-drill-guide  I'm pretty sure he made an ebay listing for me.
1980 KZ1000 MKII
1075cc
Ported head
Mikuni Rs36
Cam Motion Z4
Falicon Crank

2022 Z900 RS 50TH Anniversary
The following user(s) said Thank You: Rick H.
