Cam Chain Tensioner
- grumpy56
- Topic Author
- Offline
- User
Lewis
1982 KZ1000-J2
2006 HD FXD35
1970 Suzuki T350
1972 Suzuki GT380 (In-Process)
In The Past...71 TM400, 72 H-D SS350, 72 GT380, 75 Z1B, 77 XLH, 79 CB750K
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
martin_csr wrote: Is the warning in the 550 manual clearly indicated as a CAUTION?
The "warning" in the 81 650 manual is rather mundane & it is included in a NOTE about removing the tensioner - it would be easy to miss & there is no mention of it in the valve clearance check section... unless I've overlooked it. This is one thing that seems somewhat lacking in the factory service manual.
The Clymer manual has it labeled as a "Caution" in italics, indented and bordered by extra space.
But as you said, the factory manual just mentions, as one of the steps, that the cap and cross wedge must be removed before installing the cover.
The Clymer is better in this regard, for beginners, since it really tries to help you avoid the common pitfalls.
However, both manuals clearly state to NOT grind the shims, lest anyone get any funny ideas.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
Sorry, I read the caustion in a Clymer manual, but assumed it would be in the factory as well (the clymer has many of the same warnings as the factory manual).grumpy56 wrote: As mentioned by martin_csr, I also have not found an "express warning" to do during valve cover removal. However, the section on Chain Tensioner Removal does state to remove the tensioner assembly before starting any disassembly operation that slackens the camshaft chain. So, as indicated by loudhvx, can I remove the 17mm nut and the contents, install the valve cover, and then re-install the wedge and spring without completely removing the auto tensioner unit (two mounting bolts)? Do appreciate the information.
If the 1000 motor is set up the same as the 550, then all you need to do is remove the 17mm hex-cap, spring and wedge. On the 550, you can leave the tensioner body and internal plunger etc. in the block.
But there are some minor differences in the various KZ tensioners, so you may want to wait for KZ1000-specific confirmation.
Also, after the cover is on, when installing the wedge, spring, and cap, there are some notes about how far to expect the wedge to go, which will indicate whether the tensioner plunger has take the extra slack up or not, and what to do if it has not, ie rotate the crank slightly etc.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- z1wiz
- Offline
- User
- Posts: 43
- Thank you received: 5
Over 30 years with z1's, Currently down to only one 75, a j model dragbike, and 2 KZ1000 dragbikes.
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- z1wiz
- Offline
- User
- Posts: 43
- Thank you received: 5
loudhvx wrote: I think I've seen the warning to remove the entire tensioner, but I can't see why. Once the wedge and spring is out, the tensioner can extend and retract as necessary.
Yes, that is correct.
Over 30 years with z1's, Currently down to only one 75, a j model dragbike, and 2 KZ1000 dragbikes.
Please Log in or Create an account to join the conversation.
- martin_csr
- Offline
- User
- Posts: 8068
- Thank you received: 1656

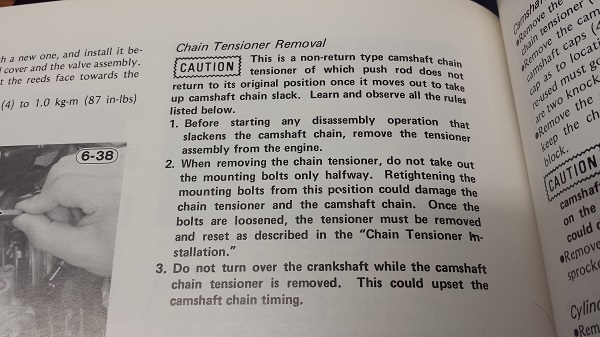

#1 says to remove the tensioner before doing any disassembly that slackens the chain.
