TOPIC: Dueling Kz400's

Dueling Kz400's 23 Sep 2019 19:32 #811238

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 9958
  • Thank you received: 1239
I've been working on a couple Kz400's over the summer. My buddy has two sons and they each have a Kz400. One is a 1977 Kz400D4 and the other is a 1976 Kz400D3.

I figured I'd better start posting since I have a lot of photos and details, at least on the D3 which has become quite a handful... thanks to the previous owners, it really should have been a parts bike, but I like resurrecting bikes that were basically on their last gasp of air.

I'm not sure I'll do everything chronologically... I might post recent things before some of the older stuff.

These are both very low-budget bikes. The D4 was purchased for $300 no title. The D3 was purchased for $500 with title. No way that D3 was worth $500... more like $200.

These are photos with parts removed already. Both bikes have tanks and side covers (although the D3 covers are the wrong ones or the frame was altered so they don't attach correctly). There were also a few odds and ends that came from another parts bike that was around very briefly ... that's another story... the owner ended up buying it back to work on... very strange.

First, here is the D4, at least back in July or so. This photo makes it look rougher than it was.


Next is the D3. This photo makes it look way better than it was. :unsure:
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

Dueling Kz400's 24 Sep 2019 07:21 #811272

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 9958
  • Thank you received: 1239
The D4 had a locked up front brake and desperately needed a rear tire and chains and sprockets. We also finished up an oil change that was started earlier. They drained the oil and noticed the drain plug seal was messed up and the oil filter was missing the washer for the spring, so we ordered those parts and buttoned it back up.

After getting the oil change done I decided to hop on and ride it. It actually started up with some coaxing and I managed to go up and down the alley. I could tell it wasn't revving fully so the carbs would be next. We didn't have the tire and sprockets yet.

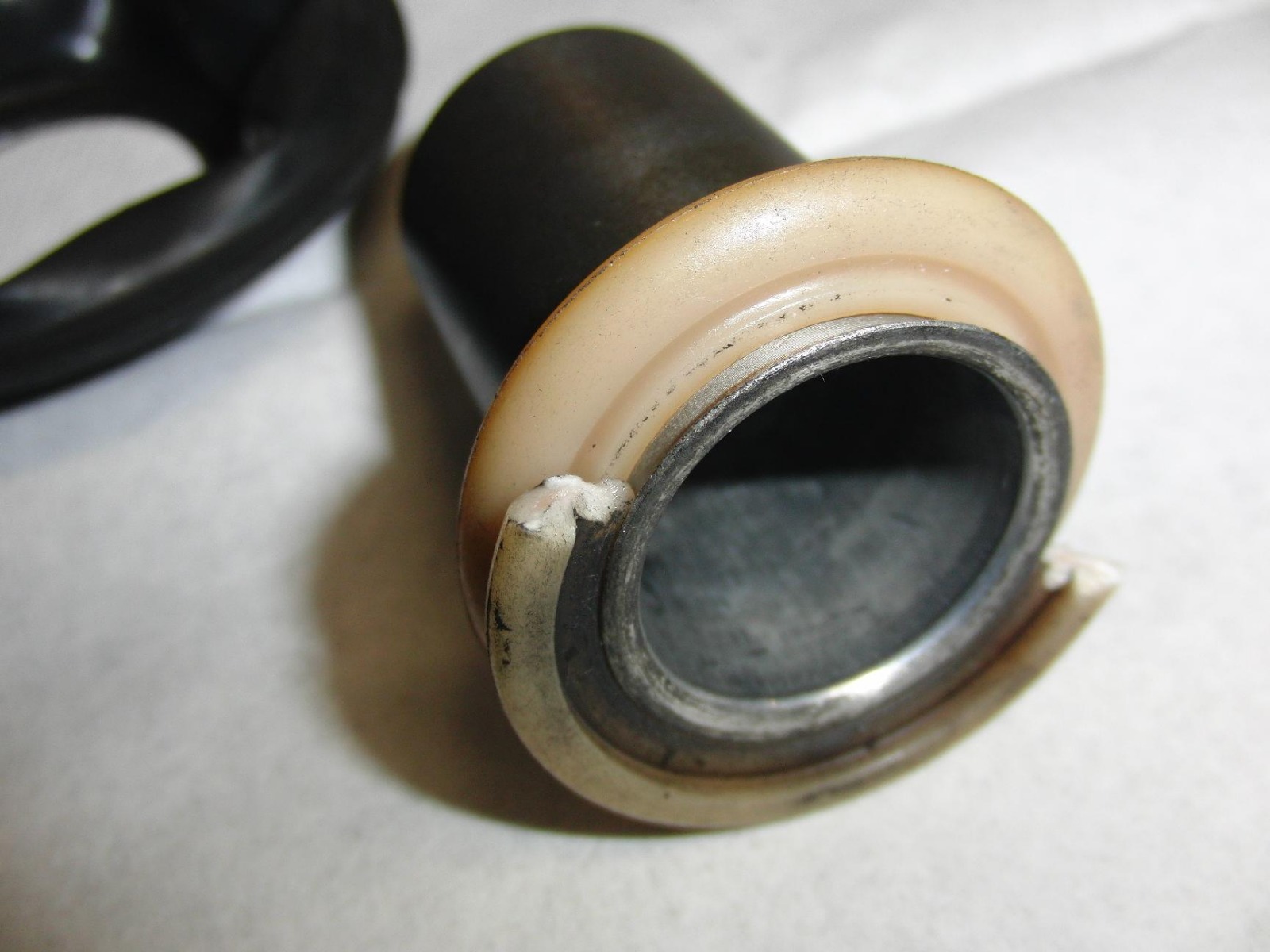

The D4 uses carbs Keihin Cv32 (or CVB32 ?) with rubber diaphragms and as I suspected they had little tiny rips right near the slide attachment. We scoured the internet for diaphragms, but couldn't come up with any direct replacement.

So we tried some diaphragms from a Honda model. These are meant to be put over the slide after removing the plastic securing ring.
I'm posting these photos to anyone who might want to know what's under the securing rings without breaking them. The slide is machined very thin and then the lip is formed into a "rivet". The diaphragm has a molded-in oring on the lip, which gets sandwiched between the two plastic rings, which lock it in place and provide a smooth, round surface for the diaphragm to form against as it goes up and down. The factory systems is a very good system for longevity, but is not serviceable at all really.

The new diaphragm will just have a really fat, square oring at the lip which will grab the groove of the slide. I'm not a big fan of this plan as it does not make for a smooth curve for the diaphragm to move around. This will lead to a short life, I suspect. But there really is no other option unless you can get lucky and find a source for the original parts.

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

Dueling Kz400's 24 Sep 2019 07:37 #811274

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 9958
  • Thank you received: 1239
Well, it was a no-go. The new diaphragms didn't have enough "cup" to them. They are just simply too short to allow for the slide to move all the way.

There is also no way for the new diaphragm to hold the slide in the right rotational position. The old diaphragm held the slide securely so it could not rotate.

It's ok, I'm not a big fan of diaphragms anyway and we have piston-slide carbs from the D3 bike.

Attachments:

Please Log in or Create an account to join the conversation.

Dueling Kz400's 24 Sep 2019 08:24 #811276

  • ThatGPzGuy
  • ThatGPzGuy's Avatar
  • Offline
  • Member
  • Member
  • More Sparky then Speed Racer
  • Posts: 947
  • Thank you received: 147
Well that sucks. I love the KZ400s but some parts are a NLA.
Jim
Atlanta, GA
2016 Yamaha FJR1300ES
1982 GPz750 R1
1974 Kawasaki H1
1976 Kawasaki KZ400
1979 Yamaha XS650 cafe'
2001 KZ1000P
2001 Yamaha YZ426
1981 Honda XR200 stroked in an '89 CR125 chassis
1965 Mustang
1967 Triumph GT6
1976 Bronco
"If you didn't build it, it's not really yours"

Please Log in or Create an account to join the conversation.

Dueling Kz400's 24 Sep 2019 13:11 #811289

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 9958
  • Thank you received: 1239
I was glad those carbs were not useable because it gave me an excuse to do two things I've wanted to do on Kz400's... one was to confirm the older piston carbs can be installed on the first-gen bikes that came with diaphragm carbs. And it also gave me an excuse to put on some new carbs. In our case we ended up with Chinese knockoff VM30 carbs that everyone on the internet says to absolutely do not use. I guess I like a challenge, or I'm just a sucker for punishment. We'll see.

For others who may see this, here are some dimensions for the 1977 Kz400D4 Keihin CV32 diaphragm carb slide.

The diaphragm's OD is 72mm.
The diaphragm's ID is about 24 mm to 25mm.
The diaphragm needs about a 19 or 20 mm dish I think.
The new diaphragm that did not work, I think had a nominal 13mm dish.

Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

Dueling Kz400's 27 Sep 2019 06:02 #811423

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 9958
  • Thank you received: 1239
In the mean time, switching over to the 1976 Kz400 D3,... I HATE! the previous owner. I would say his tools should be taken away.

We found the linkage on the D3 piston carbs were installed wrong. And for some reason he drilled out one starter jet on one carb to double what it should be but left all of the other jets stock and even the starter jet on the other carb was stock. Why drill one jet, and then leave it?

When we got the bike, I noticed the starter solenoid was missing and that huge battery had been slapped in place of the airbox. That made me curious. You don't need a huge battery if you are only kick-starting.

When I went to kickstart it, I noticed this bike did not feel like other Kz400's. I've spent a lot of time kickstarting 400's and they have always been a pleasure to kick. That is they feel smooth and have very little "kick-back". Meaning when you push your foot down, a firing will not push your foot back up.

This particular bike was painful. Almost every kick would try to throw you up over the seat. And if you weren't ready for it, your ankle was toast. So I looked at the timing. And yes it was far off, too -advanced, of course, so I put it back to where it should be. But I've had Kz400 that were too advanced before, and they didn't kick back like this one.

This bike is the first-bike for my buddy's son and this kickstarting is going to be very discouraging.

I also noticed a bit of noise from the starter area that sounded as if the engine was somehow still spinning after I know it stopped. So off comes the alternator cover. Here's the problem:



I know they did this because they turned it the wrong way, probably with an impact gun. RTFM! It shows it's a left-hand thread. Since they broke it off and decided not to fix it, guess how they attached the flywheel? Epoxy. Yes they used epoxy to hold a flywheel onto the crank. I was hearing the entire flywheel and starter clutch assembly freely spinning and moving about on the end of the crank. It's a miracle it didn't do much damage... a few scratches on the end of the crank.

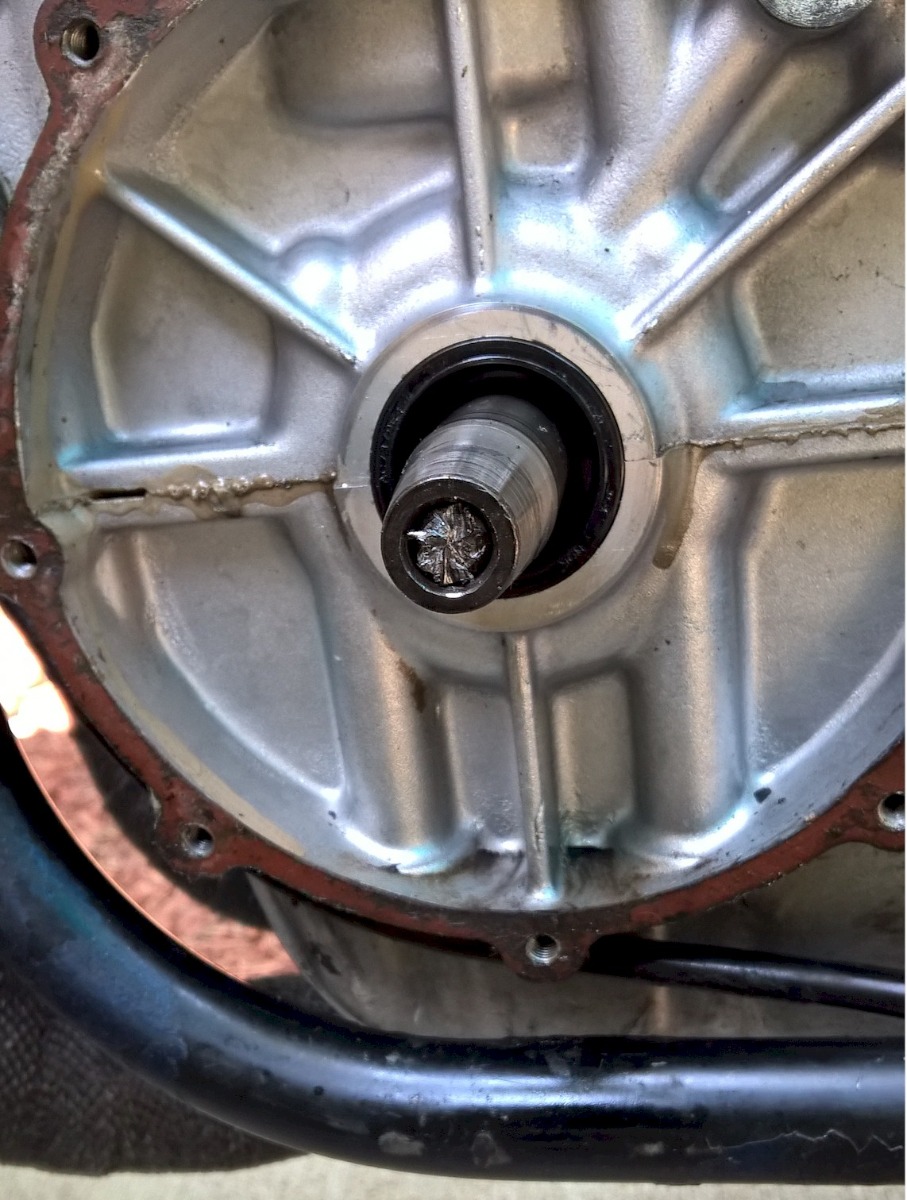

Along they way to looking at the alternator, I had to remove the starter. Yes it was only held on by one bolt because the other one is sheared off in the motor. I also fond they broke the case end of the starter motor. Here is how they fixed it:


Actually, if you look closely, you can see they broke the case at the other end of the starter too, but there was enough metal left to insert a bolt.


So now the battery and starter solenoid make sense. They were deep-cycling the battery as a total loss electrical system while only using the kickstarter. That would also explain why the huge battery would not hold much of a charge. it would go dead in a matter of minutes with no headlight and ignition-only.

This bike is turning into one of those bikes where everything you check is either broken or done incorrectly.
For example, just in case, I checked the nut for the kickstand... finger tight ready to fall off.
Shifter linkage... bolt loose, threads stripped.
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

Dueling Kz400's 27 Sep 2019 06:29 #811424

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Boarder
  • Platinum Boarder
  • Posts: 4342
  • Thank you received: 930
Wow. Just wow.
That PO should have his tool box welded shut. Likely it only contains a hammer and vice grips.

Good on you for saving the poor little motorcycle.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
The following user(s) said Thank You: loudhvx

Please Log in or Create an account to join the conversation.

Dueling Kz400's 27 Sep 2019 06:35 #811425

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 9958
  • Thank you received: 1239
An hour later with a lot of new swear words... got that little bastard out with a some carefully crafted small chisels I ground from an old punch.



Attachments:
The following user(s) said Thank You: Scirocco

Please Log in or Create an account to join the conversation.

Dueling Kz400's 27 Sep 2019 06:39 #811427

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 9958
  • Thank you received: 1239
Thanks Tex, yeah it's been a long summer of remembering why you don't really want to buy a "cafe bike, ran when parked".

Please Log in or Create an account to join the conversation.

Dueling Kz400's 27 Sep 2019 06:42 #811428

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Boarder
  • Platinum Boarder
  • Posts: 4342
  • Thank you received: 930
Impressive. I am afraid I would have welded one of the pos nuts to it, and the grabbed his vice grips to turn it out.......

By the way. I think you are absolutely correct about how important it is for a new rider to have a motorcycle that operates easily and reliably. There is enough frustration available in learning to ride, without having to fight a jacked up piece of equipment.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
The following user(s) said Thank You: loudhvx

Please Log in or Create an account to join the conversation.

Dueling Kz400's 27 Sep 2019 06:44 #811429

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Boarder
  • Platinum Boarder
  • Posts: 4342
  • Thank you received: 930

loudhvx wrote: Thanks Tex, yeah it's been a long summer of remembering why you don't really want to buy a "cafe bike, ran when parked".


Just needs a tuneup, right?
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

Please Log in or Create an account to join the conversation.

Dueling Kz400's 27 Sep 2019 06:46 #811430

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 9958
  • Thank you received: 1239
Also, there have been questions in the past about whether or not the alternator housing on a Kz400 should have oil in it. Well this one did because the flywheel was as free as a bird. But I believe it should not have oil. Any oil is the result of leakage past either of two seals. There is a seal between the crank and the starter clutch and other between the starter clutch and the crankcase. The crank has an oil hole used to lubricate the starter clutch bearing on the crank.

Notice there is not return hole from the alternator housing back to the crankcase.

Please Log in or Create an account to join the conversation.

Dueling Kz400's 27 Sep 2019 06:54 #811432

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 9958
  • Thank you received: 1239
Yes, I agree about the welder. Mine was 30 miles away at the time. I'm doing all the work at my buddy's house. He lives near our work so I stop by there an hour or two before work. It's hard to get a lot done quickly an hour at a time, but it's nice to have the mess at someone else's house. :)

Plus getting there early (we work second shift) , means I head out to work before traffic gets bad, so even if the bikes are frustrating, the commute is not. :)

Please Log in or Create an account to join the conversation.

Dueling Kz400's 27 Sep 2019 06:57 #811433

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 9958
  • Thank you received: 1239
Someone asked earlier this summer about the number of splines on a Kz400 starter. I took some photots and will repost them for anyone searching.

Attachments:

Please Log in or Create an account to join the conversation.

Dueling Kz400's 30 Sep 2019 15:20 #811541

  • Nebr_Rex
  • Nebr_Rex's Avatar
  • Offline
  • Member
  • Member
  • Posts: 1658
  • Thank you received: 223

loudhvx wrote: Also, there have been questions in the past about whether or not the alternator housing on a Kz400 should have oil in it. Well this one did because the flywheel was as free as a bird. But I believe it should not have oil. Any oil is the result of leakage past either of two seals. There is a seal between the crank and the starter clutch and other between the starter clutch and the crankcase. The crank has an oil hole used to lubricate the starter clutch bearing on the crank.

Notice there is not return hole from the alternator housing back to the crankcase.


What is the engine number?
I'm thinking that it is an S model.


.
2002 ZRX1200R
81 GPz1100
79 KZ1000st daily ride
79 KZ1000mk2 prodject
78 KZ650sr
78 KZ650b
81 KZ750e
80 KZ750ltd
77 KZ400/440 cafe project
76 KZ400/440 Fuel Injected

www.dotheton.com/forum/index.php?topic=39120.0


.

Please Log in or Create an account to join the conversation.

Dueling Kz400's 01 Oct 2019 06:51 #811569

  • ThatGPzGuy
  • ThatGPzGuy's Avatar
  • Offline
  • Member
  • Member
  • More Sparky then Speed Racer
  • Posts: 947
  • Thank you received: 147
There must be something about KZ400s that invite PO abuse. You should have seen what the DPO on mine thought would be a good airbox.
Hint, it involved PCV and a lawnmower filter.
Jim
Atlanta, GA
2016 Yamaha FJR1300ES
1982 GPz750 R1
1974 Kawasaki H1
1976 Kawasaki KZ400
1979 Yamaha XS650 cafe'
2001 KZ1000P
2001 Yamaha YZ426
1981 Honda XR200 stroked in an '89 CR125 chassis
1965 Mustang
1967 Triumph GT6
1976 Bronco
"If you didn't build it, it's not really yours"

Please Log in or Create an account to join the conversation.

Dueling Kz400's 01 Oct 2019 07:27 #811570

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 9958
  • Thank you received: 1239
The bill of sale says 1976 D3.
Engine is K4E 055500
The bike had a starter clutch and front disk brake.


That freeze plug in the starter hole was put there by me temporarily.

Yes, I agree the 400's seem to take a lot of abuse. Maybe because they don't go for a lot of money. But they are a great first bike, what with being full size but very tame and predictable.

Please Log in or Create an account to join the conversation.

Dueling Kz400's 02 Oct 2019 18:39 #811657

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 9958
  • Thank you received: 1239
So we changed the oil on the D4, replaced the carb holders with new ones, and installed the D3 carbs on the D4. Along the way we played musical carbs so I made some drawing of the two motors/carb holders. I've posted these before but I wanted to put them here to have all in one place.



Attachments:
The following user(s) said Thank You: 650ed, ThatGPzGuy

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

Dueling Kz400's 02 Oct 2019 19:58 #811658

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 9958
  • Thank you received: 1239
After doing a quick clean of the D3 carbs, D4 fired up nicely.

However, of course, because the D3 owner did stupid stuff, I discovered one of the enricher jets was drilled out to about 1/16". I guess that was the smallest bit they had? They couldn't just buy one? So the left carb has a drilled enricher jet. All the rest of the jets measured out to be stock. We will have to source one. Probably Jets R Us.

The bike still starts easily, but you have to take the choke off right away.

The D4 had cutoff header pipes for an exhaust system.
Here is what they used for an exhaust hanger:


My buddy scored a very nice stock system at a salvage place in Milwaukee, and he and his son installed it with no issues. New exhaust gaskets. Very nice. A bit quiet, but I bet the neighbors appreciate it.

My buddy's son also did a very nice job on recovering the seat. It was his first attempt... looks very nice. (I thought he just bought a new seat somewhere).
We also did new oring chain, sprockets, and rear tire.

It's coming along very nicely. I personally don't like that yellow Tygon fuel line. We will source some nice gray or black 1/4" lines that are not reinforced to keep with the stock look.







Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

Dueling Kz400's 03 Oct 2019 08:58 #811689

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 9958
  • Thank you received: 1239
I had this in another thread but wanted to keep it all in context here.

The D4 would start easily and run great for awhile, but the pitted points would eventually cause it to start running rough and hesitating. At first I thought we had some carburetion issues, but filing the points would restore smooth operation. The pit was deep, so filing the points would only smooth out the tips of the bumps. We would only get about 10 or 20 miles before it would start to hesitate. Clearly it was time for new points. I checked the condenser and it would hold a bit of charge so it was not dead, but condensers can fail gradually, so maybe the condenser needed replacement too.

One reason I took on these Kz400 projects was to use them as a test bed for an ignition upgrade I've been working on. So instead of replacing the points, I installed the GM HEI ignition module using points as the trigger. This eliminates arcing at the points and only uses a small current so just cleaning old points should let them work indefinitely. The rubbing block or pivot points will wear out before the contact points do, so a set of points might be good for tens of thousands of miles, maybe a hundred thousand. Dirt and oil might accumulate on the points, so a little contact cleaner might have to be sprayed on them once in awhile. The cam lobe still needs to be lubed as normal and the advancer will need lube as normal. This just eliminates the adjustment and replacement from wear. It also eliminates the condenser.

s3.amazonaws.com/gpzweb/Ignition/GPZhei7pinModForPoints.html

After installing the mod, the bike starts easier and even runs smoother. So far none of the hesitation has returned.
Here's the first start. With the HEI ignition the idle ended up higher. We had turned it up to compensate for the pitted points, but will have to turn it back down. With the ignition sorted we can move on to doing some actual fine tuning of the carbs.

The following user(s) said Thank You: ThatGPzGuy, DoctoRot

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.
Powered by Kunena Forum
