Doctorot's '78 KZ1000 build 17 Nov 2017 19:47 #774724

  • DoctoRot
  • DoctoRot's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Oh, the usual... I bowl, I drive around...
  • Posts: 1871
  • Thank you received: 313

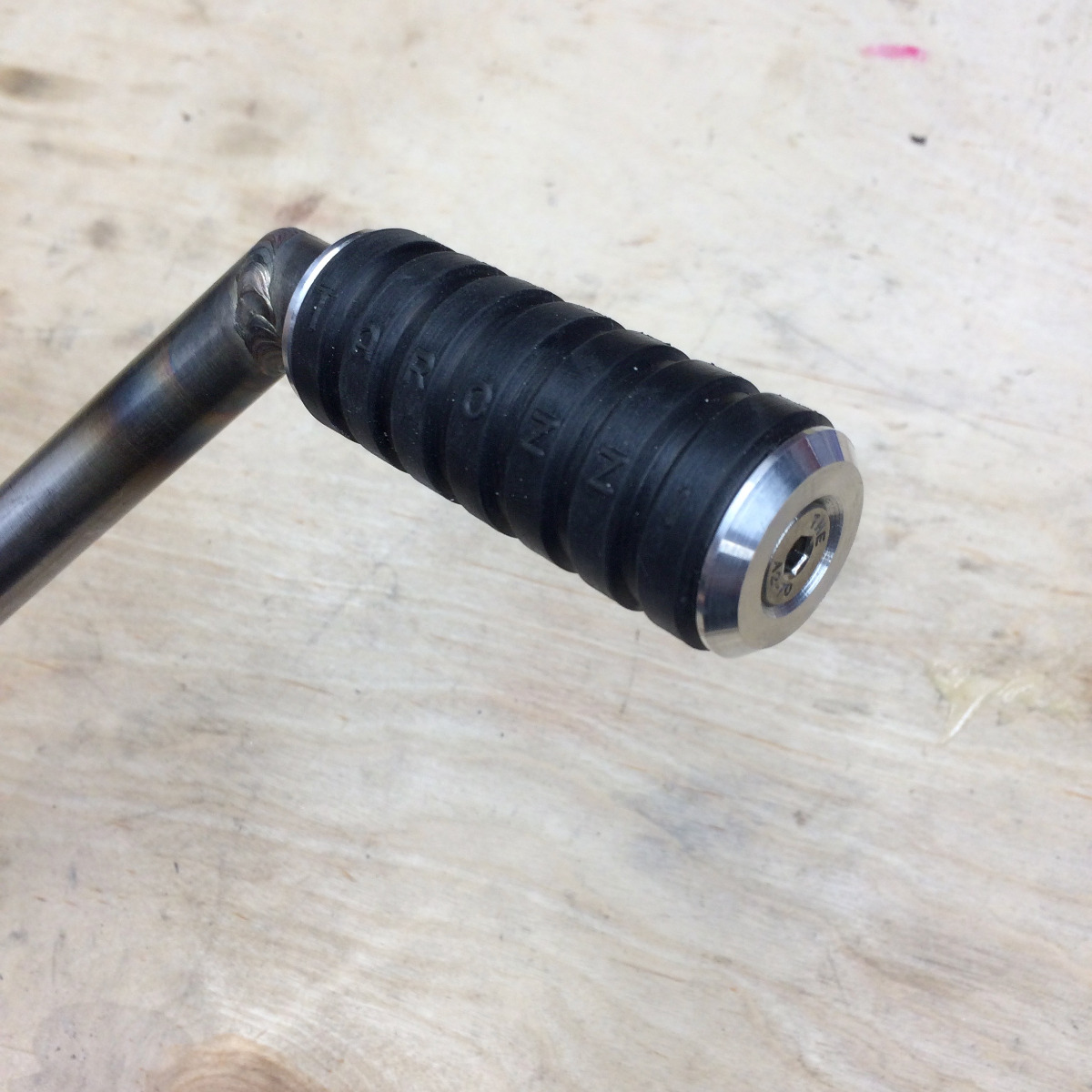

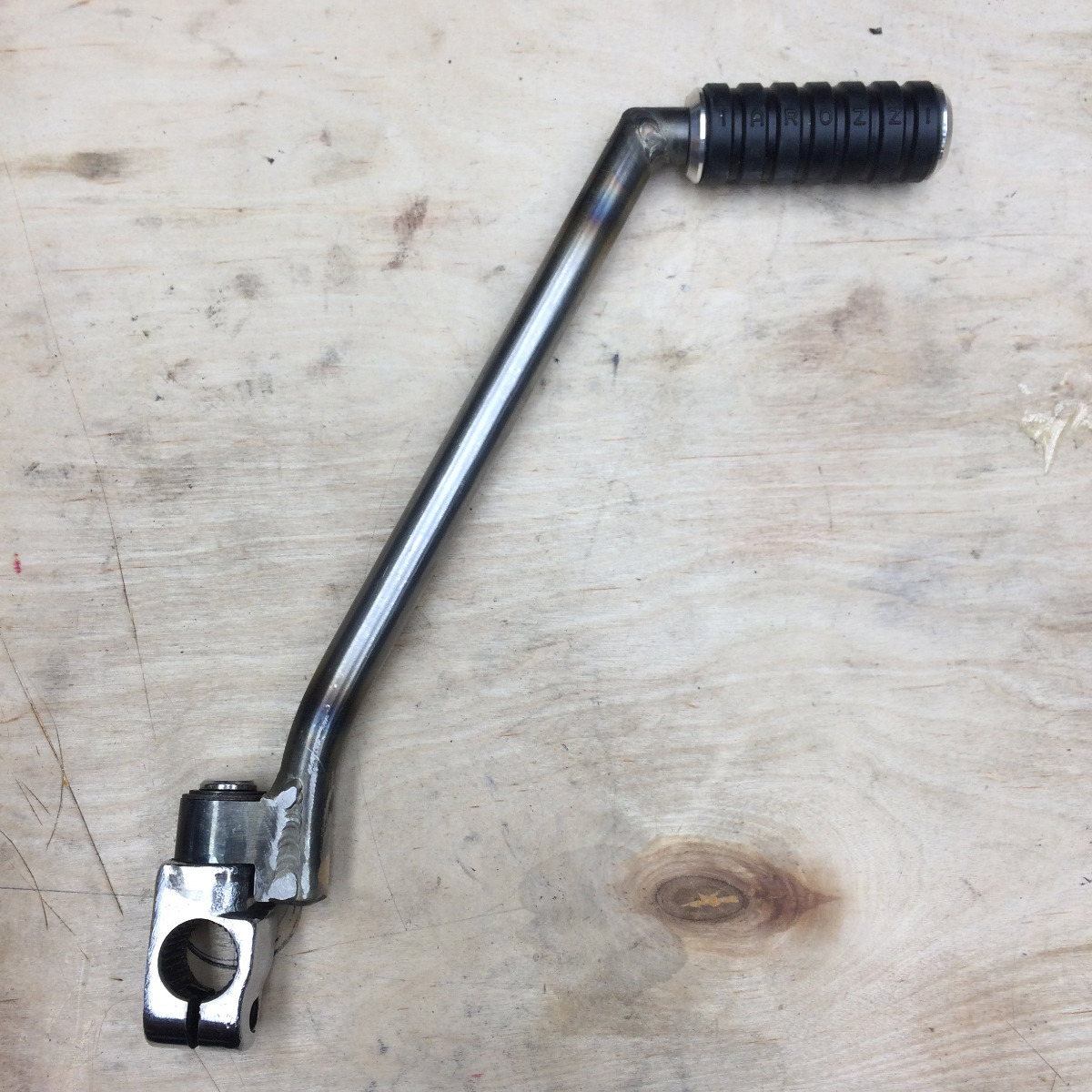

Custom chromoly kick lever for extra clearance. I also machined some bits to accept a Tarozzi rubber to match the foot-pegs. Needs final polish before going to plating

-Vic
_________________________________
'78 kz1000 LTD long term project

'80 kz750G project
Attachments:

Please Log in or Create an account to join the conversation.

Doctorot's '78 KZ1000 build 17 Nov 2017 19:50 #774725

  • SWest
  • SWest's Avatar
  • Offline
  • Moderator
  • Moderator
  • Posts: 18793
  • Thank you received: 1776
Excellent.B)
Steve
Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

Doctorot's '78 KZ1000 build 18 Nov 2017 06:04 #774733

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Boarder
  • Platinum Boarder
  • Posts: 4163
  • Thank you received: 865
Another cool detail. This build has a lot of custom details that the average enthusiast may never notice, yet all together they create a look that is unique even though most folks will not be able to put their finger on exactly why it is different. Mad attention to detail is one of the things I like most about the bikes from MV Augusta and Sanctuary, and about this build.
Well done, Doc.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

Please Log in or Create an account to join the conversation.

Doctorot's '78 KZ1000 build 18 Nov 2017 12:42 #774753

  • DoctoRot
  • DoctoRot's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Oh, the usual... I bowl, I drive around...
  • Posts: 1871
  • Thank you received: 313
Sanctuary has been a huge inspiration for this project; that you would compare this to the Sanctuary builds is extremely flattering. thanks.
-Vic
_________________________________
'78 kz1000 LTD long term project

'80 kz750G project

Please Log in or Create an account to join the conversation.

Doctorot's '78 KZ1000 build 18 Nov 2017 19:19 #774784

  • 1slammedkz650
  • 1slammedkz650's Avatar
  • Offline
  • Member
  • Member
  • Posts: 18
  • Thank you received: 2
Being that Im in Canada ,eh! ; ) we dont see many custom bikes up here(compared to the states anyways) and just going through a couple build threads on this board have really been something else.The attention to detail and commitment to a lengthy project is very inspiring ,thanks for sharing this build,This bike is second to none imo ,Great stuff

Please Log in or Create an account to join the conversation.

Last edit: by 1slammedkz650.

Doctorot's '78 KZ1000 build 18 Nov 2017 23:28 #774790

  • DoctoRot
  • DoctoRot's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Oh, the usual... I bowl, I drive around...
  • Posts: 1871
  • Thank you received: 313
Thanks for the kind words!

Finally got out on this thing for a spirited ride. did about 100 miles of twisty roads. I am blown away by how good the brake setup is on this, very progressive with great "feel"

-Vic
_________________________________
'78 kz1000 LTD long term project

'80 kz750G project
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by DoctoRot.

Doctorot's '78 KZ1000 build 19 Nov 2017 09:03 #774795

  • Daftrusty
  • Daftrusty's Avatar
  • Offline
  • Member
  • Member
  • Posts: 299
  • Thank you received: 124
You have built a beautiful bike that not only looks good from 10 feet but from inches away. All the perfectly fabricated tiny details combined with the overall design of your bike is amazing.
Great job!

Please Log in or Create an account to join the conversation.

Doctorot's '78 KZ1000 build 30 Dec 2017 19:17 #776766

  • DoctoRot
  • DoctoRot's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Oh, the usual... I bowl, I drive around...
  • Posts: 1871
  • Thank you received: 313
I have been invited to show this bike at The 1 Moto Show in Portland Oregon. So I decided to finish some upgrades I wanted to do from the beginning but shelved the ideas to get this bike on the road. School is finished for the semester so I have no access to the shop, but the show is in 5 weeks so I needed to make progress. Luckily I have cool friends with badass shops that are willing to let me use their tools to get this done. I have been working on a custom 1.5" over chromoly swingarm that is nearly finished. I machined the adjusters and pivot from scratch. Its a little a-symmetrical to deal with chain run, its not perfect but its a good first effort. My buddy recently bought a giant mill table (10'x4') and had it precision ground flat, which is what I used to setup the swing-arm layout on. I also am doing a custom rear brake setup, to ditch the heavy stock parts. I found a rear rotor off a '98 ZX6R and machined a carrier to adapt it to the rear wheel. I'm going to use a tiny Grimeca rear caliper to match the front calipers.
-Vic
_________________________________
'78 kz1000 LTD long term project

'80 kz750G project

Please Log in or Create an account to join the conversation.

Last edit: by DoctoRot.

Doctorot's '78 KZ1000 build 30 Dec 2017 20:39 #776769

  • DoctoRot
  • DoctoRot's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Oh, the usual... I bowl, I drive around...
  • Posts: 1871
  • Thank you received: 313

Attachment not found

Attachment not found

Attachment not found

Attachment not found

Attachment not found

Attachment not found

-Vic
_________________________________
'78 kz1000 LTD long term project

'80 kz750G project

Please Log in or Create an account to join the conversation.

Doctorot's '78 KZ1000 build 30 Dec 2017 21:16 #776771

  • SWest
  • SWest's Avatar
  • Offline
  • Moderator
  • Moderator
  • Posts: 18793
  • Thank you received: 1776
With all this fine work I don't see how you couldn't win. GOOD LUCK
Steve
Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
The following user(s) said Thank You: DoctoRot

Please Log in or Create an account to join the conversation.

Doctorot's '78 KZ1000 build 02 Jan 2018 22:20 #776842

  • I_Tig_in_piece
  • I_Tig_in_piece's Avatar
  • Offline
  • Member
  • Member
  • Posts: 129
  • Thank you received: 11
Show off:P Hahahaha! Totally kidding. Bike looks phenom! As everyone else mentioned, any other person not familiar with KZ's wouldn't be able to tell what's upgraded and what's adapted. Like the rear rotor hat. Wish I had a CNC? I know what you mean with the wiring! Loudhvx was kind enough to draw me out a diagram, I was still lost even with a labeled map in front of my face! Lol.. You've got the same problem Ive got (except yours seems figured out) with the foot peg being in the way of the kicker. Something I still need to address. Does your rear brake lever roll backwards so the kicker doesn't slam on it's peg? Check out the dirt bike levers, they have some that the peg folds back.

Excellent work on the bike Doc!!
Cheap labor isn't skilled, skilled labor isn't cheap.
1980 KZ440a. I went green.
If you yourself are building an older bike and can see it through till you're riding it, that's proof you have patience.
The following user(s) said Thank You: DoctoRot

Please Log in or Create an account to join the conversation.

Doctorot's '78 KZ1000 build 03 Jan 2018 07:20 #776850

  • Street Fighter LTD
  • Street Fighter LTD's Avatar
  • Offline
  • Administrator
  • Administrator
  • TURBO, Its Better to be Blown than Injected
  • Posts: 3331
  • Thank you received: 795
Makes for a well deserved Bike Of The Month !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
Dave B) B) B)
SEND PM WITH BOTM NOMINATIONS
Original owner 78 1000 LTD
Mr Turbo Race Kit, MTC 1075 Turbo pistons by PitStopPerformance , Falicon Ultra Lite Super Crank, APE everything. Les Holt @ PDM's Billet Goodies . Frame by Chuck Kurzawa @ Logghe Chassis . Deep sump 5qt oil pan. RIP Bill Hahn
The following user(s) said Thank You: DoctoRot

Please Log in or Create an account to join the conversation.

Doctorot's '78 KZ1000 build 03 Jan 2018 13:54 #776878

  • 531blackbanshee
  • 531blackbanshee's Avatar
  • Offline
  • Vendor
  • Vendor
  • Posts: 7420
  • Thank you received: 785
congrats on the show invite!
all the parts look top notch,good job sir.

leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0
The following user(s) said Thank You: DoctoRot

Please Log in or Create an account to join the conversation.

Doctorot's '78 KZ1000 build 03 Jan 2018 16:58 #776883

  • rich67
  • rich67's Avatar
  • Offline
  • Member
  • Member
  • Posts: 163
  • Thank you received: 17
Looking Great , Quality work
The following user(s) said Thank You: DoctoRot

Please Log in or Create an account to join the conversation.

Doctorot's '78 KZ1000 build 04 Jan 2018 04:03 #776892

  • les holt
  • les holt's Avatar
  • Offline
  • Vendor
  • Vendor
  • Posts: 1658
  • Thank you received: 286
The following user(s) said Thank You: DoctoRot

Please Log in or Create an account to join the conversation.

Doctorot's '78 KZ1000 build 04 Jan 2018 04:13 #776893

  • DoctoRot
  • DoctoRot's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Oh, the usual... I bowl, I drive around...
  • Posts: 1871
  • Thank you received: 313
Thanks guys. The machine work is 100% manual, no Cnc. Also there is no auto feed on the mill and the auto feed on the lathe was broken so all feeds were done manually.

As far as the brake lever goes, if you go way back I the thread you can see I made the linkage pivot around the lever with a radial slot, so you can pull the brake lever back out of the way when you kickstart
-Vic
_________________________________
'78 kz1000 LTD long term project

'80 kz750G project
Attachments:

Please Log in or Create an account to join the conversation.

Doctorot's '78 KZ1000 build 04 Jan 2018 06:05 #776894

  • Jack_Mills
  • Jack_Mills's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 181
  • Thank you received: 14
I am very impressed, totally awesome!
74 kz400 D1
75 kz400 D2
75 kz400 D2
75 kz400 D2
76 kz400 D3
76 kz400 D3
77 kz400 A1
78 kz400 B1
80 xl80s
81 kz440 B2
81 xl80s
81 xr80

Thanks goes out to all folks who share their great knowledge teaching others about classic metric motorcycles.

Please Log in or Create an account to join the conversation.

Doctorot's '78 KZ1000 build 05 Jan 2018 01:45 #776945

  • I_Tig_in_piece
  • I_Tig_in_piece's Avatar
  • Offline
  • Member
  • Member
  • Posts: 129
  • Thank you received: 11
Genius idea with the brake lever! I'd be scratching my head still. That's patience at its finest as well as ninja like hand to hand to eye cordination running the X and Y axis on the Mill...manually. Excellent machine work! Love using an endmill and lathe. May or may not be a stupid question but did you knurl the pegs yourself also? If you did, how'd you get the knurl so....knurly? lol..so deep. hahaha. smh.
Cheap labor isn't skilled, skilled labor isn't cheap.
1980 KZ440a. I went green.
If you yourself are building an older bike and can see it through till you're riding it, that's proof you have patience.

Please Log in or Create an account to join the conversation.

Doctorot's '78 KZ1000 build 05 Jan 2018 20:11 #776989

  • DoctoRot
  • DoctoRot's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Oh, the usual... I bowl, I drive around...
  • Posts: 1871
  • Thank you received: 313
I found that idea on an XS650 forum, so I can't take credit. The foot-pegs are Tarozzis, so I don't know how they got the knurling so defined but the machining on them is excellent. I ended up switching to folding rubber footpegs for more kicker clearance after that photo was taken. Using the mill manually isn't too bad with a digital readout. I designed everything before hand in CAD, then exported the X/Y coordinates so I just had to move the cutter from point to point while looking at the readout. The rounded edges were done with a "corner rounding end mill" really there is nothing super technical going on here. I'm an amateur machinist at best.
-Vic
_________________________________
'78 kz1000 LTD long term project

'80 kz750G project

Please Log in or Create an account to join the conversation.

Last edit: by DoctoRot.

Doctorot's '78 KZ1000 build 26 Jan 2018 02:27 #777787

  • DoctoRot
  • DoctoRot's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Oh, the usual... I bowl, I drive around...
  • Posts: 1871
  • Thank you received: 313

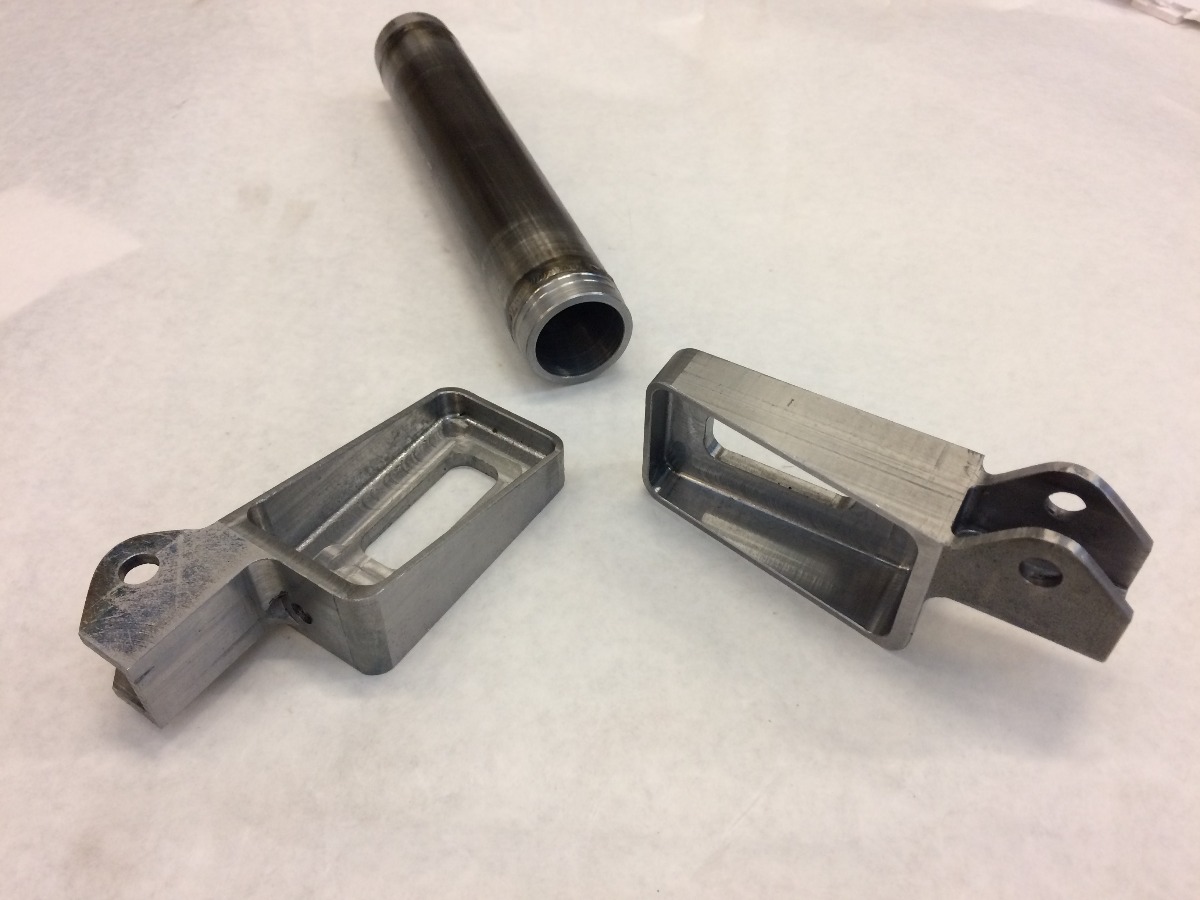

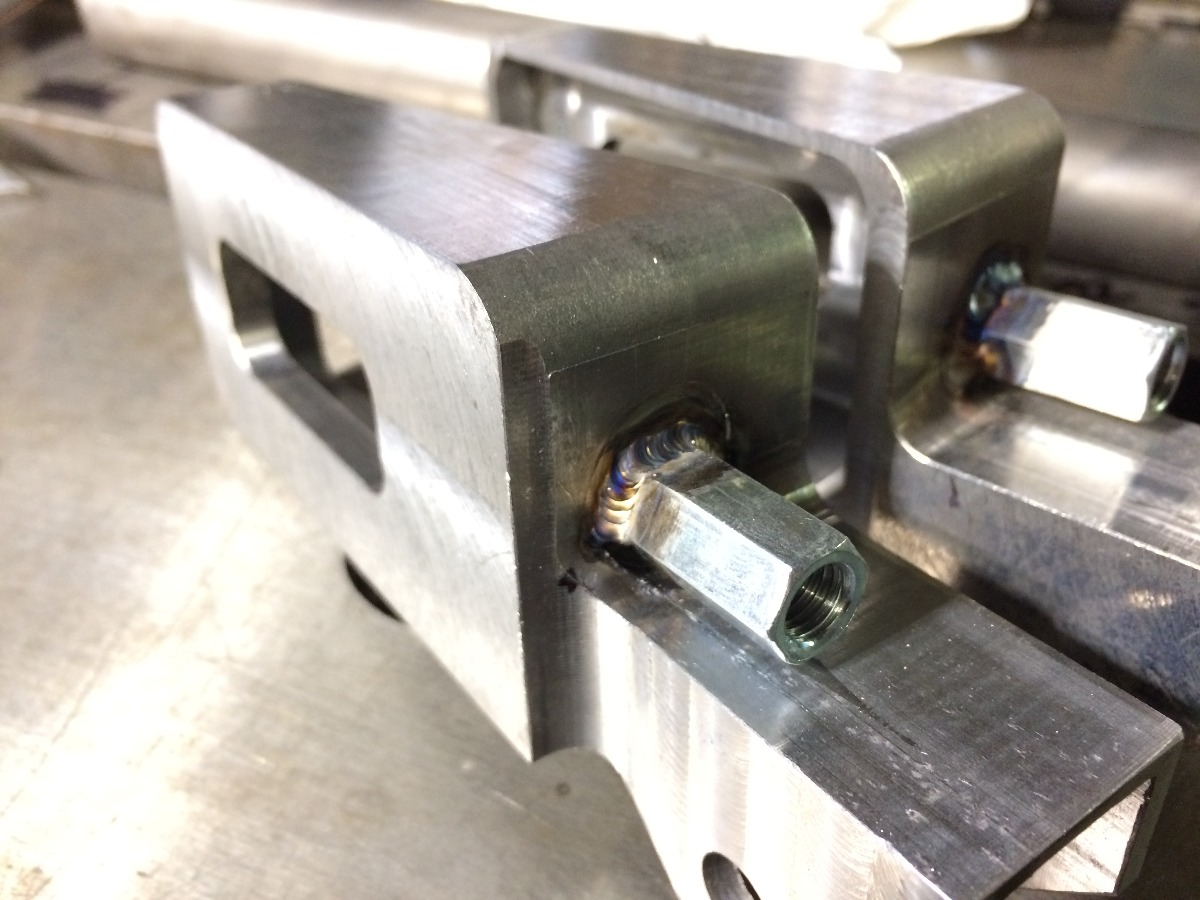

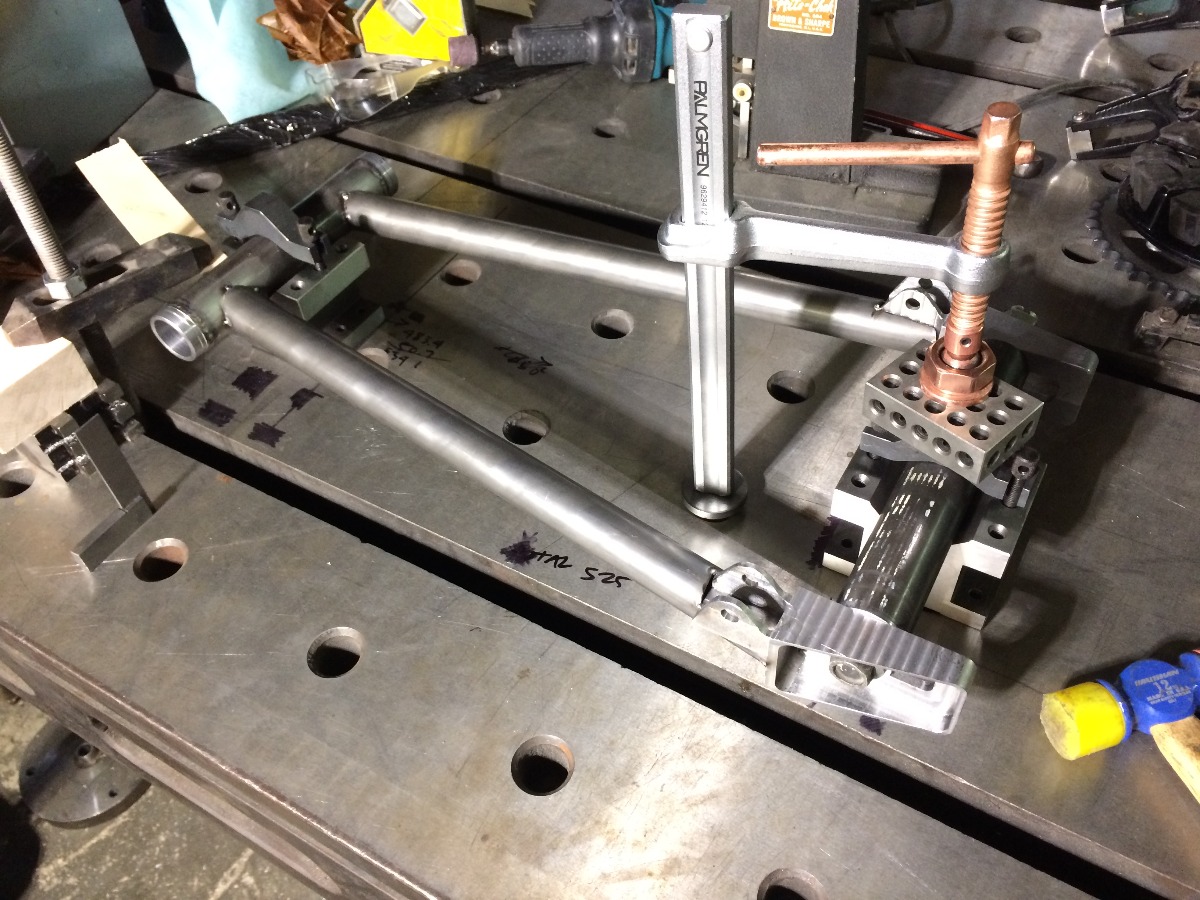

Ive been busy. rear end is finished and off to powder. I also designed and had these triples milled. I did the drilling, tapping, and slitting myself which cut the cost of the trees in half. i also changed my mind after i got the trees and decided to chamfer the edges to match the gas cap rather than have fillets. did it all with files which gives them a "soft" look that i quite like. They are brushed to 400 and nearly ready to go off to anodization. you can see my mock-up lower bearing plug on the stem.
