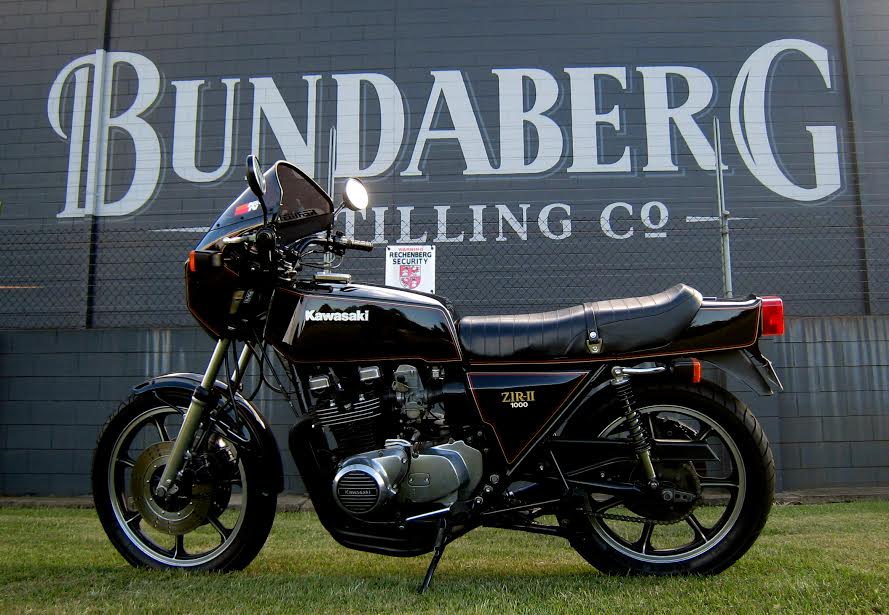

Identification
 Letter designation    B3
 Color
 Frame #
 Engine #

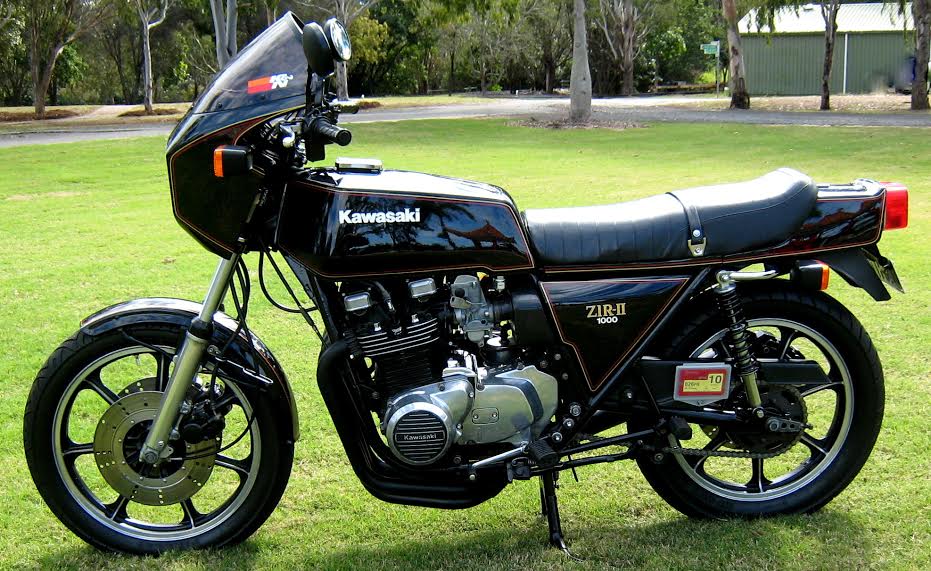

Dimensions

 Overall length

   2,220 mm

 Overall width

   830 mm

 Overall height

   1,180 mm
 Wheelbase    1,505 mm
 Road clearance    155 mm
 Dry weight    241 kg
 Fuel tank capacity    13.6 l

Performance
 Climbing ability
 Braking distance    11.5 m from 50 kph
 Minimum turning radius    2.4 m

Engine
 Type    4 stroke, DOHC, 4 cylinder, air cooled
 Bore and stroke    70.0 mm x 66.0 mm
 Displacement    1,015 cc
 Compression ratio    8.7
 Maximum horsepower    86 hp @ 8,000 rpm
 Maximum torque    8.5 kg-m @ 6,500 rpm
 Valve timing

 Inlet



Open

Closed

Duration

 30° BTDC

 70° ABDC

 280°

 Exhaust



Open

Closed

Duration

 70° BBDC

 30° ATDC

 280°

 Carburetors    (4) Mikuni VM26SS
 Lubrication system    Wet sump
 Engine oil Type   SAE 10W40, 10W50, 20W40, 20W50
  Capacity  3.7 l
 Starting system    Electric starter and kick
 Ignition system    Battery and coil (transistorized)
 Cylinder numbering method    Left to right, 1-2-3-4
 Firing order    1-2-4-3
 Ignition timing    From 10° BTDC @ 1,000 rpm to 40° BTDC @ 2,350 rpm
 Spark plugs    NGK B8ES, ND W24ES-U

Transmission
 Type    5 speed, constant mesh, return shift
 Clutch    Multi-disc, wet
 Gear ratio 1st   3.17
  2nd  2.19
  3rd  1.67
  4th   1.38
  5th   1.22
  6th   -
 Primary reduction ratio    1.73
 Final reduction ratio    2.20
 Overall drive ratio    4.64

Electrical equipment
 Alternator    Kokusan AR3703
 Regulator/rectifier    Kokusan RS2127
 Ignition coils    Toyodenso ZC001-14, ZC001-23
 Battery    Yuasa YB14L-A2 (12V 14AH)
 Starter motor    Mitsuba SM-226-K
 Headlight Type   Sealed
  Bulb   12V 60/50W
 Tail/brake light    12V 8/27W
 City light

 -

 Turn signal lights    12V 23W

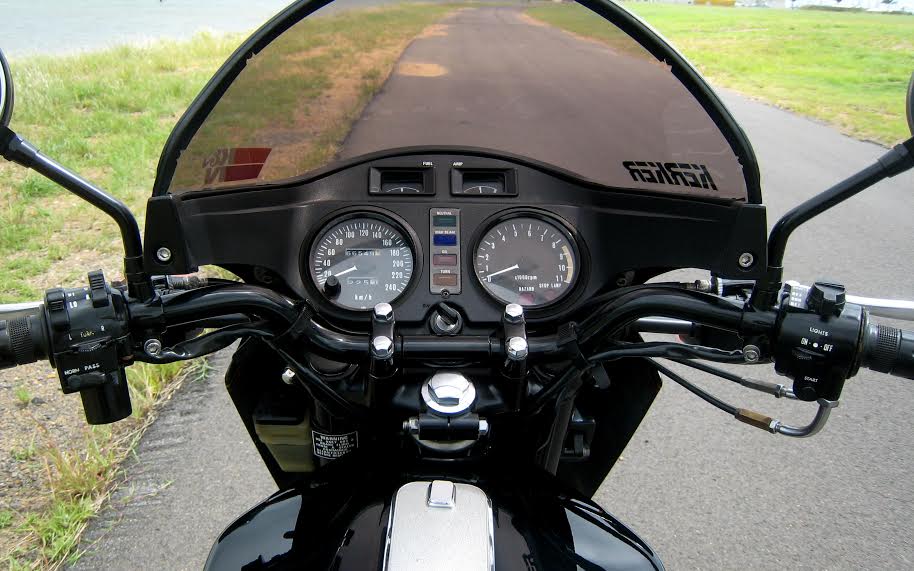

 Meter lights    12V 3.4w
 Indicator lights    12v 3.4w
 Horn    12V 2.5A

Frame
 Type    Tubular, double cradle
 Steering angle    41° to either side
 Castor    64°
 Trail    90 mm
 Tire size Front   ML90 - 19
  Rear   MT90 - 16
 Suspension Front   Telescopic fork
  Rear   Swing arm
 Suspension stroke Front
  Rear
 Front fork oil Type
  Capacity
  Oil level

Brakes
 Type Front   Dual disc
  Rear   Single disc
 Effective disc diameter Front
  Rear
