Z1-R Instrument Refurbish 16 Nov 2014 20:42 #653901

  • weales
  • weales's Avatar Topic Author
  • Offline
  • User
  • Posts: 247
  • Thank you received: 31

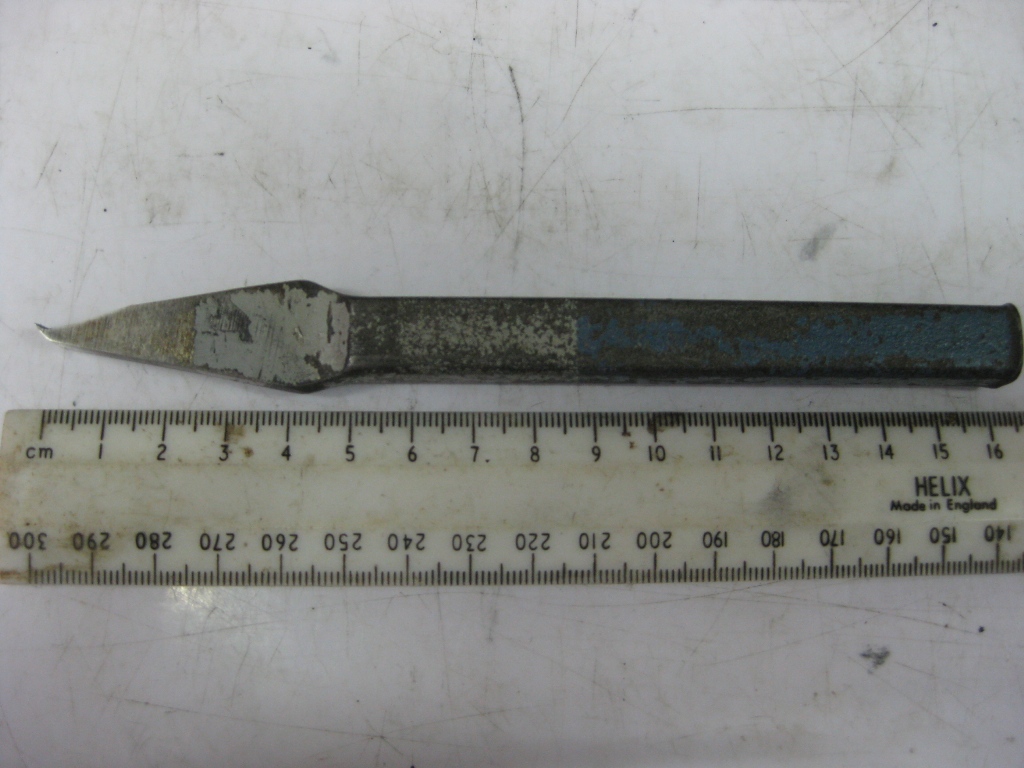

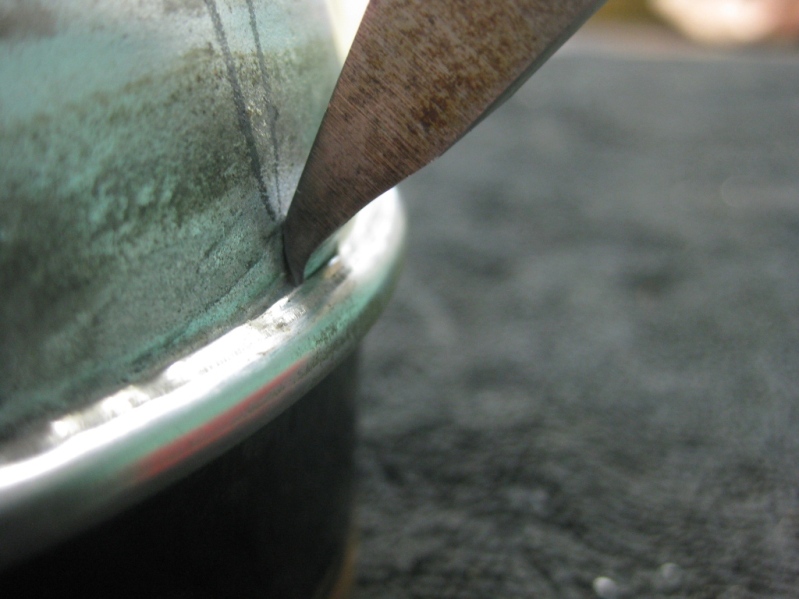

Started pulling my clocks apart over the weekend - . Made a tool to open the clamping rings - see attached pic and after about 2 hours each had both clocks apart with little or no marks/damage to any bits. You need to be firm but consistent each time you go around each ring (10mm at a time) levering the ring away from the clock body so that it doesn't distort or bend/kink. Not so critical on a Z1-R, this ring is concealed under the fairing. Point to note is that the tripmeter reset knob is on a LH threaded shaft so don't bugger it by trying to pull it off - it's not a push fit! Both clocks are mechanically ok - just need to repaint the covers, clean glass and redo the red-line area of the tacho - have decal from ReproductionDecals.com. Have posted more on this already on Australian Kawasaki Sports Riders Club website. Have tried to put multiple pics here but nogo so will put on a couple at a time.
Current Project
1968 Norton P11A Desert Sled
Other bike (and daily ride)
2004 Yamaha FZR 600
Previous Bikes
78 Z1-R (resto)
91 Zephyr 750
73 Mach IV (Resto)
78 Z1-R
78 Z1-R (stolen)
76 Z900
76 Z650
73 Mach IV
72 Mach III
Attachments:
The following user(s) said Thank You: bluej58

Please Log in or Create an account to join the conversation.

Last edit: by weales. Reason: Add pics

Z1-R Instrument Refurbish 16 Nov 2014 20:47 #653902

  • weales
  • weales's Avatar Topic Author
  • Offline
  • User
  • Posts: 247
  • Thank you received: 31

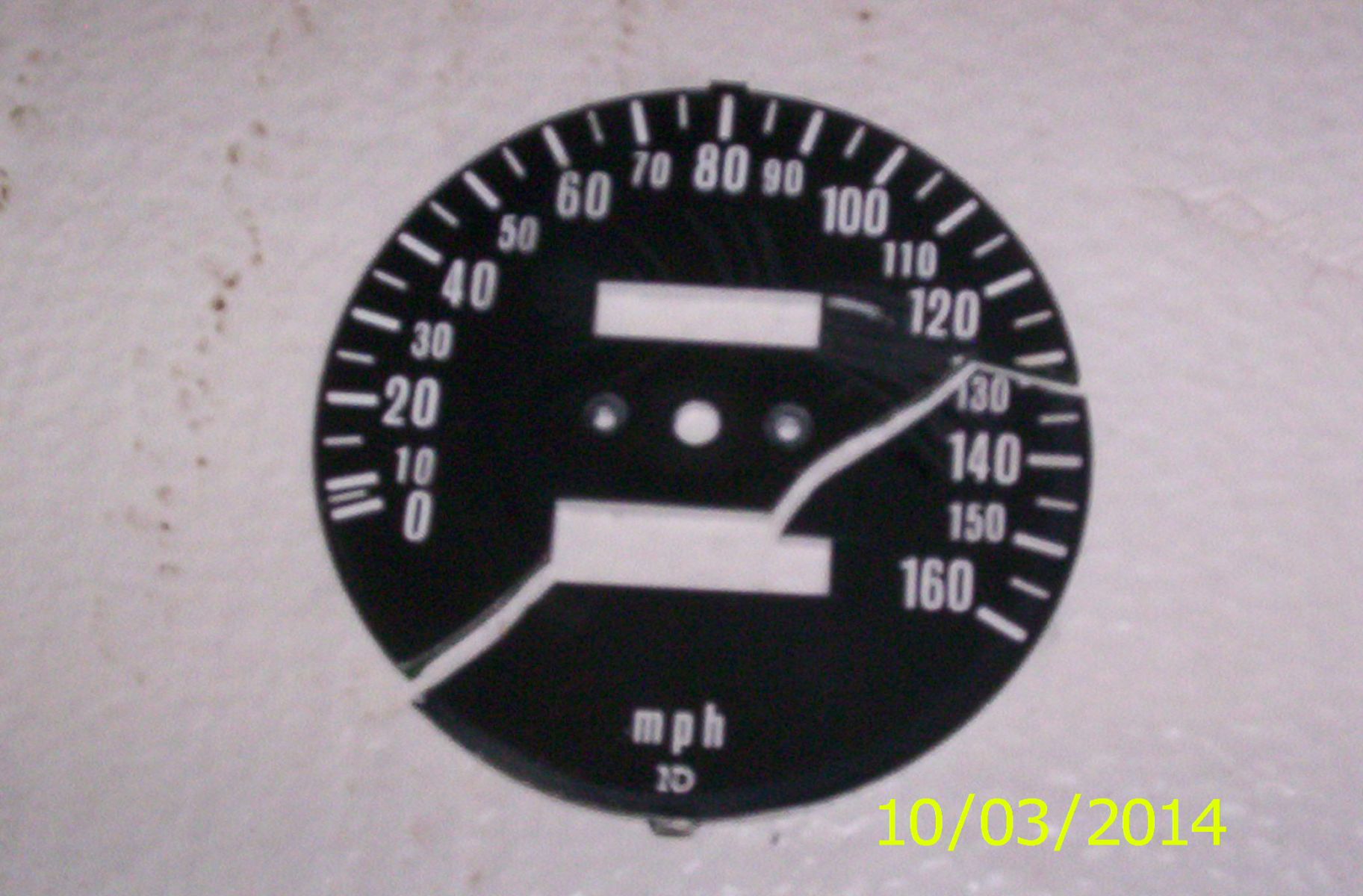

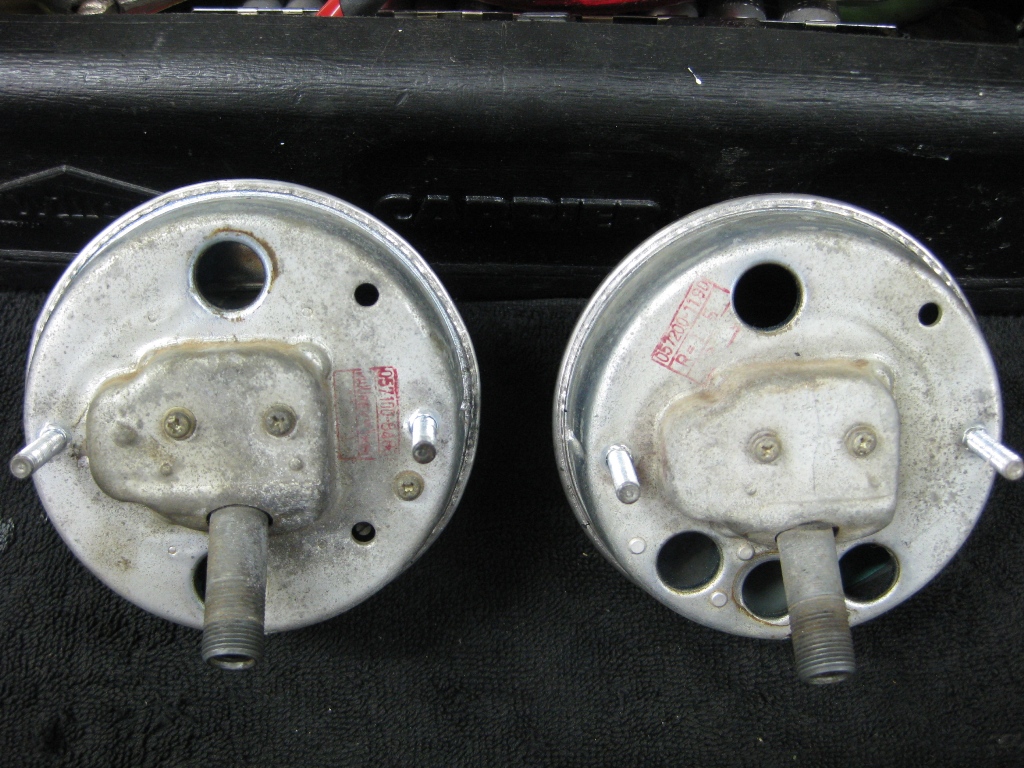

Some pics of instruments before and during stripdown
Current Project
1968 Norton P11A Desert Sled
Other bike (and daily ride)
2004 Yamaha FZR 600
Previous Bikes
78 Z1-R (resto)
91 Zephyr 750
73 Mach IV (Resto)
78 Z1-R
78 Z1-R (stolen)
76 Z900
76 Z650
73 Mach IV
72 Mach III
Attachments:

Please Log in or Create an account to join the conversation.

Z1-R Instrument Refurbish 16 Nov 2014 21:00 #653905

  • weales
  • weales's Avatar Topic Author
  • Offline
  • User
  • Posts: 247
  • Thank you received: 31

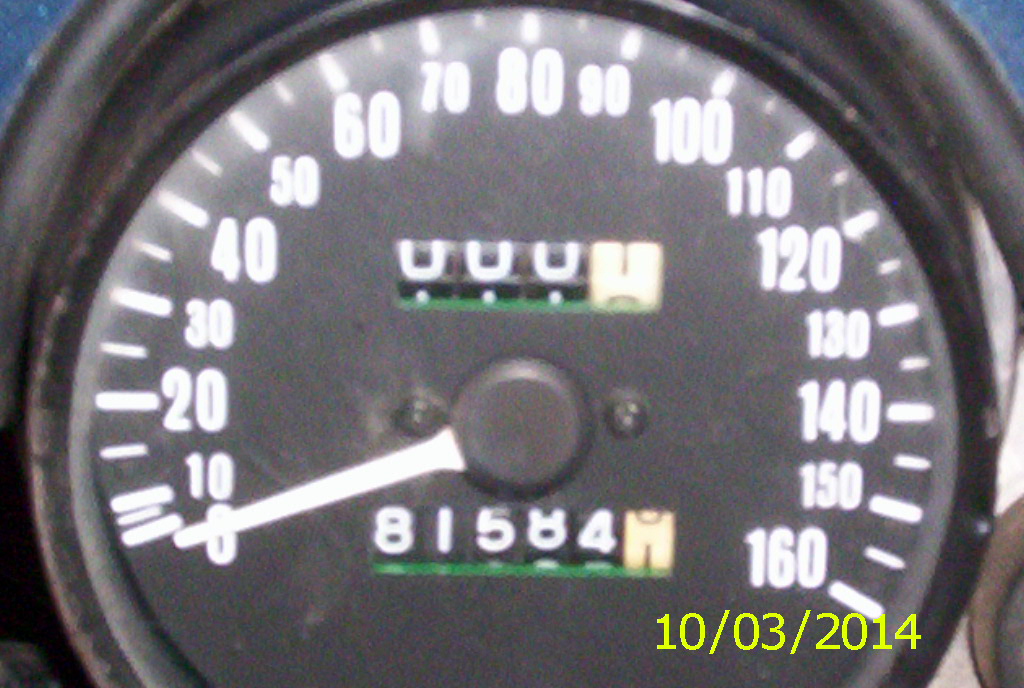

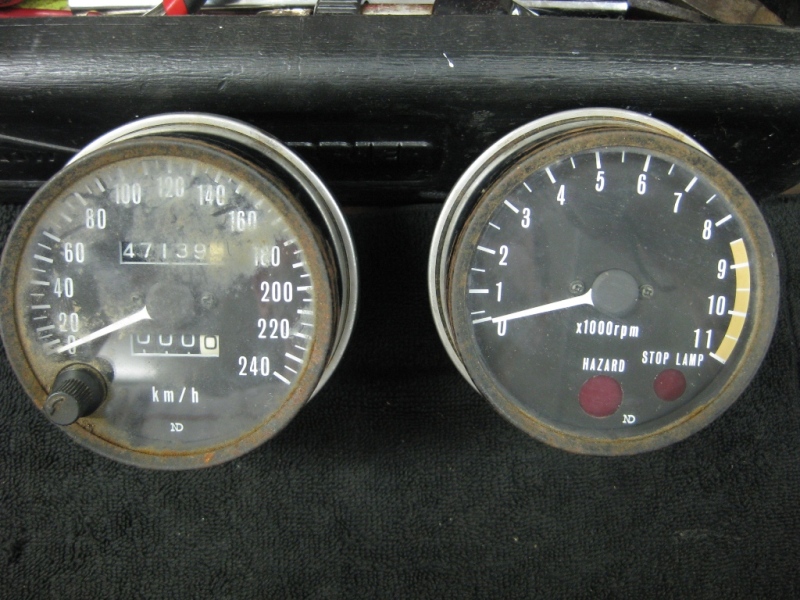

Pic of front of instruments
Current Project
1968 Norton P11A Desert Sled
Other bike (and daily ride)
2004 Yamaha FZR 600
Previous Bikes
78 Z1-R (resto)
91 Zephyr 750
73 Mach IV (Resto)
78 Z1-R
78 Z1-R (stolen)
76 Z900
76 Z650
73 Mach IV
72 Mach III
Attachments:

Please Log in or Create an account to join the conversation.

Z1-R Instrument Refurbish 16 Nov 2014 21:02 #653906

  • weales
  • weales's Avatar Topic Author
  • Offline
  • User
  • Posts: 247
  • Thank you received: 31

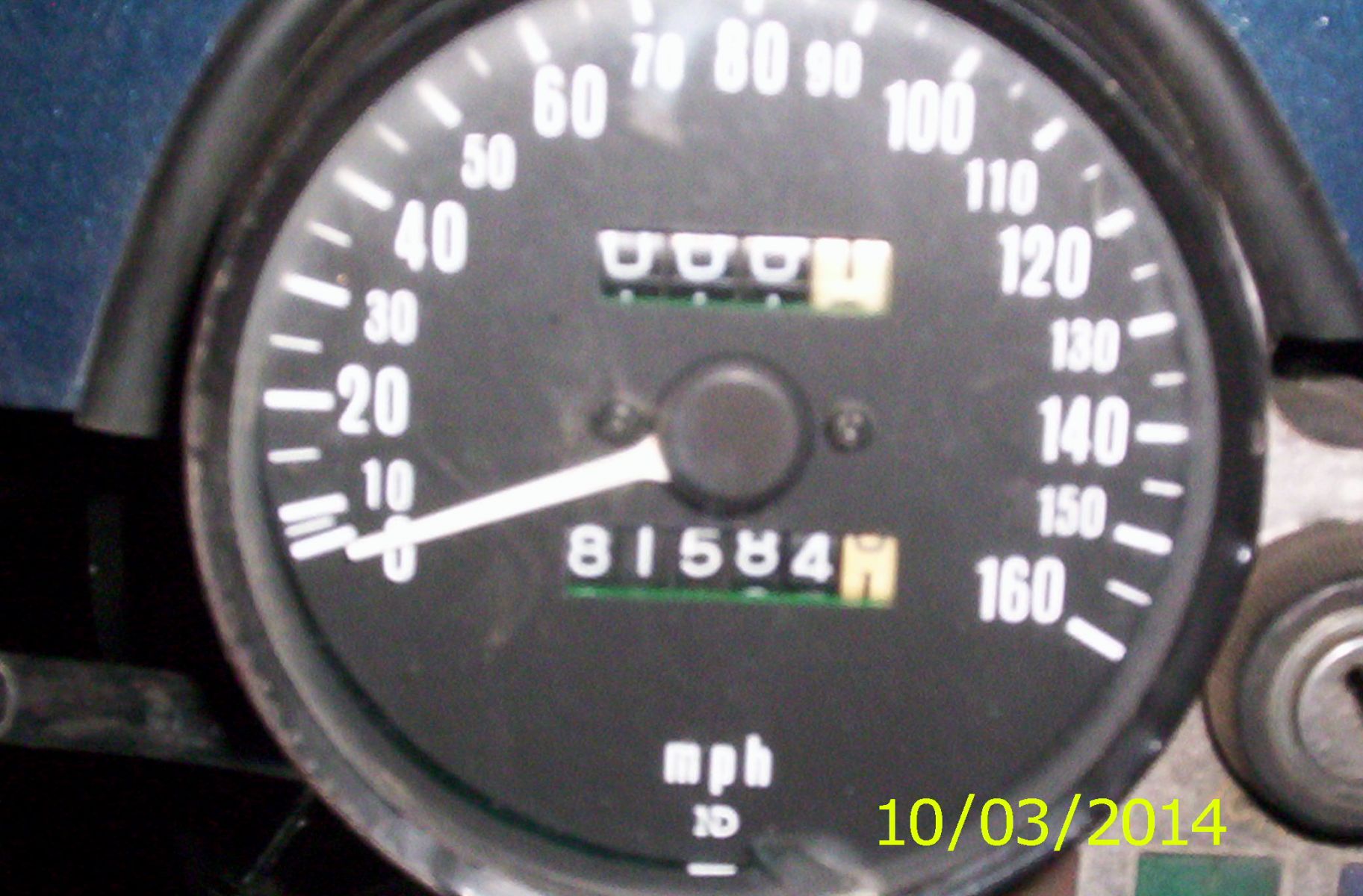

Hopefully correct pic this time - front of instruments:
Current Project
1968 Norton P11A Desert Sled
Other bike (and daily ride)
2004 Yamaha FZR 600
Previous Bikes
78 Z1-R (resto)
91 Zephyr 750
73 Mach IV (Resto)
78 Z1-R
78 Z1-R (stolen)
76 Z900
76 Z650
73 Mach IV
72 Mach III
Attachments:

Please Log in or Create an account to join the conversation.

Z1-R Instrument Refurbish 17 Nov 2014 06:11 #653923

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 7976
  • Thank you received: 1620

weales wrote: ... Have posted more on this already on Australian Kawasaki Sports Riders Club website. Have tried to put multiple pics here but nogo so will put on a couple at a time.

Not sure where you posted the photos. I did some searches without any luck.
Is the site ksrc-au.com, kawariders.com.au, auskawasakiriders.com, or what? Thanks.

Please Log in or Create an account to join the conversation.

Z1-R Instrument Refurbish 17 Nov 2014 07:06 #653928

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 22348
  • Thank you received: 2599
I bought some new face plates on Ebay. $22. It was worth it. Careful when prying off the needle. You have to get under the bhshing or you will break the needle.





Attachments:

Please Log in or Create an account to join the conversation.

Z1-R Instrument Refurbish 17 Nov 2014 11:06 #653949

  • Tyrell Corp
  • Tyrell Corp's Avatar
  • Offline
  • User
  • "You were made as well as we could make you"
  • Posts: 1650
  • Thank you received: 260
Good thread and thanks for that. It seems as seats get recovered and bodywork resprayed the instruments often get neglected during restorations, for me the focal point on a bike.

I'm currently looking into putting an electronic tacho into old mechanical 550 clocks, so your info on disassembly is interesting. I've even read of home made crimpers used to reseal the cases.
1980 Gpz550 D1, 1981 GPz550 D1. 1982 GPz750R1. 1983 z1000R R2. all four aces

Please Log in or Create an account to join the conversation.

Z1-R Instrument Refurbish 17 Nov 2014 11:16 #653951

  • 4TheKZ1000
  • 4TheKZ1000's Avatar
  • Visitor
I still don't understand how to get needle off of gauge???? without damage, need to show this.

Since my bike is not original and I'm not worried about stock gauges, I'm going to get a GPS speedo over the winter.

Every time I go over 120 mph, my speedo is messed up for the remainder of the ride, hopping and skipping around....prob fluid damper.

Please Log in or Create an account to join the conversation.

Z1-R Instrument Refurbish 17 Nov 2014 13:16 #653968

  • weales
  • weales's Avatar Topic Author
  • Offline
  • User
  • Posts: 247
  • Thank you received: 31

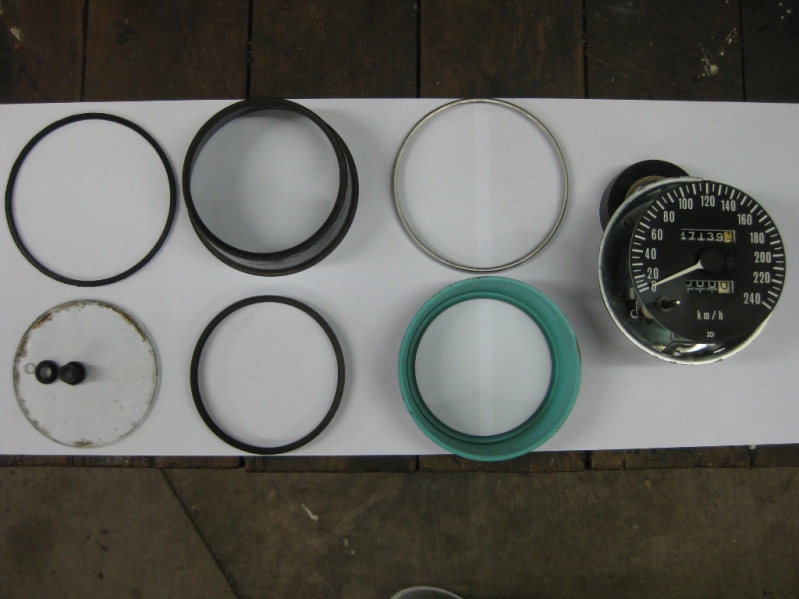

Haven't had a go at getting the needle off, but I've read that this is a firm push fit and something like a couple of teaspoons under the boss of the needle with even pressure upwards is the go. Need to protect the face of the clock so you don't mark/gouge it, also do this job inside somewhere as I've heard that the needle flies off once released! My apologies for not being more specific about where I posted more pics - Oz website is www.ksrc-au.com. Another pic of the disassembled clocks - one or two more to come before I get into the repaint and re-assembly

,
Current Project
1968 Norton P11A Desert Sled
Other bike (and daily ride)
2004 Yamaha FZR 600
Previous Bikes
78 Z1-R (resto)
91 Zephyr 750
73 Mach IV (Resto)
78 Z1-R
78 Z1-R (stolen)
76 Z900
76 Z650
73 Mach IV
72 Mach III
Attachments:

Please Log in or Create an account to join the conversation.

Z1-R Instrument Refurbish 17 Nov 2014 13:30 #653971

  • weales
  • weales's Avatar Topic Author
  • Offline
  • User
  • Posts: 247
  • Thank you received: 31

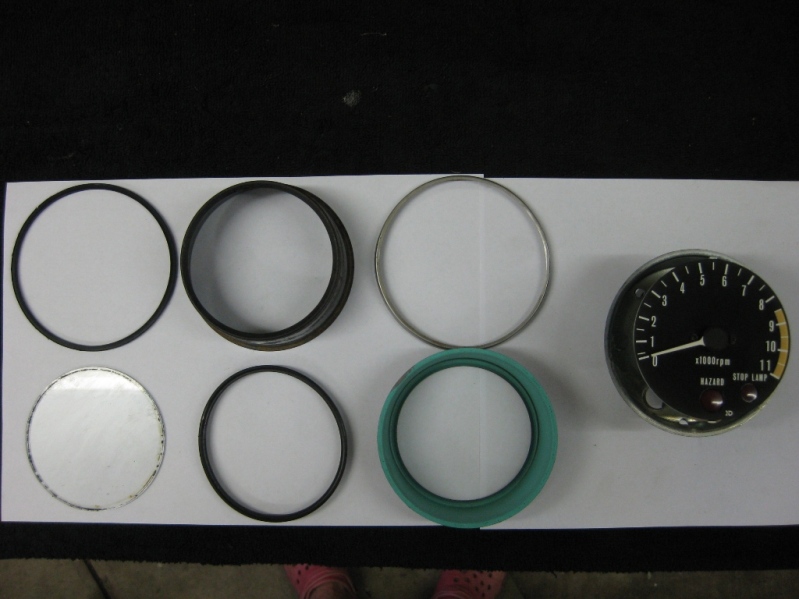

One more pic of the tacho pulled apart
