How to test IC Igniter 29 Jul 2012 12:50 #539377

  • RaD
  • RaD's Avatar Topic Author
  • Offline
  • User
  • Posts: 17
  • Thank you received: 1
Hi everyone
I got kawasaki KZ650 H3 83'
How to test IC IGNITER ? I can find nothing about it in Clymer's book.

Thanks a lot girls and boys
Best Regards
RaD

Please Log in or Create an account to join the conversation.

How to test IC Igniter 29 Jul 2012 14:28 #539390

  • MFolks
  • MFolks's Avatar
  • Offline
  • User
  • Posts: 6650
  • Thank you received: 540
See if it's the pickup coils first, they can get intermittent when hot:

Ohm Checking Pickup(Pulsing) Coils

The pickup(Pulsing) coils on the Kawasaki’s with the factory supplied electronic ignition can sometimes fail or become intermittent due to heat and vibration.

1.Trace back from where the pick up coils are mounted,(BEHIND A RIGHT SIDE, CD SIZED COVER) locate and disconnect a small 4 pin connector. Using a multi-meter set on OHMS and range of 2K, check between the BLUE and BLACK wires(#1 and #4 sparkplug wires) for between 360- 540 OHMS.

2.For #2 and #3 sparkplugs the wire colors will be YELLOW and RED, again 360-540 OHMS. The 550’s,650’s & 750’s may be backwards to the Z1’s,Kz900’s,Kz1000’s & Kz1100’s.

3.If the pickup coils are suspect of failing due to heat, they can be stressed using a hair dryer without the need of the engine running.

4.A replacement set of pickup coils might be obtained from a dealer who serviced the police Kawasaki’s.

5. If replacement pickup coils are not available, your next choice would be to order a Dyna “S” electronic ignition system from www.z1enterprises.com It replaces the IC igniter with a smaller module located where the mechanical ignition advancer was mounted.

6. Checking with Kawasaki.com website has determined that the Pick up(pulsing) coils are available . The pulsing coil # is 59026-1133 and replaces the older # 1002, 1012 which were used from the MKII motors until the 2005 P24.

7.Check the small 4 pin connector that the pickup coils connect to for corrosion/loose pins too.
1982 GPZ1100 B2
General Dynamics/Convair 1983-1993
GLCM BGM-109 Tomahawk, AGM-129A Advanced Cruise Missile (ACM)

Please Log in or Create an account to join the conversation.

How to test IC Igniter 29 Jul 2012 15:06 #539397

  • Patton
  • Patton's Avatar
  • Offline
  • KZr Legend
  • Posts: 18640
  • Thank you received: 2098
If not already done, would assure the black-yellow wire from the igniter is providing a good ground.
And that the connectors and bullets associated with the black-yellow wire are clean and snug fitting.

Would also assure integrity of ground connection where the negative battery cable attaches to rear of the engine.

Good Fortune! :)
1973 Z1
KZ900 LTD

Please Log in or Create an account to join the conversation.

How to test IC Igniter 29 Jul 2012 16:38 #539406

  • Old Man Rock
  • Old Man Rock's Avatar
  • Offline
  • User
  • Posts: 6224
  • Thank you received: 225

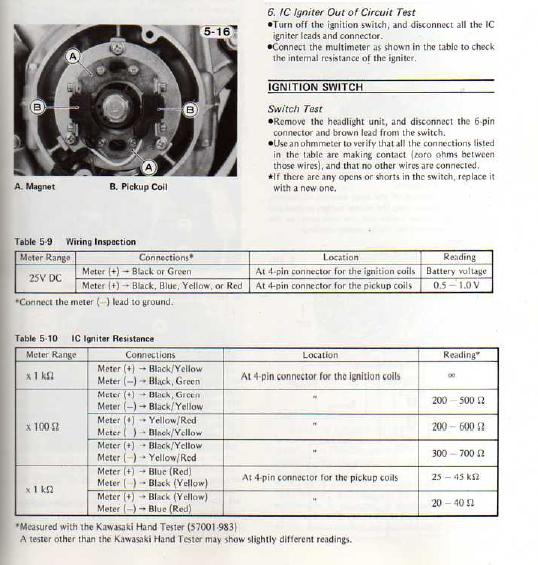

Here you go....

BTW... This OEM Manual can be found here---->>>> FREE! KZ650 OEM Manual


1976 KZ900-A4
MTC 1075cc.
Camshafts: Kawi GPZ-1100 .375 lift
Head: P&P via Larry Cavanaugh
ZX636 suspension
MIKUNI, RS-34'S...
Kerker 4-1, 1.5" comp baffle.
Dyna-S E.I.
Earls 10 row Oil Cooler
Acewell 2802 Series Speedo/Tach
Innovate LC1 Wideband 02 AFR meter

Phoenix, Az
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Old Man Rock.

How to test IC Igniter 15 Aug 2012 09:22 #542739

  • keithnra
  • keithnra's Avatar
  • Offline
  • User
  • Posts: 42
  • Thank you received: 0
is this the same for a kz1000

Please Log in or Create an account to join the conversation.

How to test IC Igniter 15 Aug 2012 09:53 #542743

  • Motor Head
  • Motor Head's Avatar
  • Offline
  • User
  • FIX UP YOUR BIKE RIGHT AND CHEAP
  • Posts: 5138
  • Thank you received: 391
What year KZ1000? 81-83 service manual in pdf in my signature will have all of the tests.
1982 KZ1000LTD K2 Vance & Hines 4-1 ACCEL COILS Added Vetter fairing & Bags. FOX Racing rear Shocks, Braced Swing-arm, Fork Brace, Progressive Fork Springs RT Gold Emulators, APE Valve Springs, 1166 Big Bore kit, RS34's, GPZ cams.
1980 KZ550LTD C1 Stock SOLD Miss it
1979 MAZDA RX7 in the works, 13B...

Please Log in or Create an account to join the conversation.

How to test IC Igniter 15 Aug 2012 10:43 #542759

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 7976
  • Thank you received: 1620
.

Please Log in or Create an account to join the conversation.

Last edit: by martin_csr.

How to test IC Igniter 09 Dec 2023 09:17 #892484

  • Street Fighter LTD
  • Street Fighter LTD's Avatar
  • Offline
  • Moderator
  • TURBO, Its Better to be Blown than Injected
  • Posts: 4797
  • Thank you received: 1953
Lumbee
Your post was all code   Deleted  as before on the other thread
Read about posting pictures  and attachments and try again
Also this thread is over 10 years old
You may not get a reply
Dave

Original owner 78 1000 LTD
Mr Turbo Race Kit, MTC 1075 Turbo pistons by PitStop Performance , Falicon Ultra Lite Super Crank, APE everything. Les Holt @ PDM's Billet Goodies . Frame by Chuck Kurzawa @ Logghe Chassis . Deep sump 5qt oil pan. RIP Bill Hahn

Please Log in or Create an account to join the conversation.
