KZ900 Carb Re-Jet and Tuning 20 Mar 2017 10:34 #757224

  • Conspiracy
  • Conspiracy's Avatar Topic Author
  • Offline
  • User
  • Posts: 130
  • Thank you received: 18
Parts for stock air box ordered:
1 x Air Box Breather Pipe/ 1973-1975 Z1 900 Z1A Z1B
◦ 1 x Z1 900 Air Box - Cleaner Body Z1A Z1B
◦ 1 x Z1 900 Air Filter
◦ 1 x KZ900 KZ1000 Air Cleaner Duct Rubber Oem 14073-1022
◦ 1 x Vintage Z1 900 Air Box Cover / Lid - Z1 Z1A Z1B
◦ 1 x Z1900 KZ900 KZ1000 / Manifold - Carburetor Holders

That should get me back to stock air yes?
Novice rider
1976 KZ900

Please Log in or Create an account to join the conversation.

KZ900 Carb Re-Jet and Tuning 20 Mar 2017 18:02 #757260

  • Nebr_Rex
  • Nebr_Rex's Avatar
  • Offline
  • User
  • Posts: 1878
  • Thank you received: 295

Conspiracy wrote:

Bama704 wrote: Have you adjusted with your idle screw at all? This will allow you to lower or raise your rpm's.


Yes - I have posted some notes above.
At fully closed the engine died.
At 1/2 turn out the engine died.
At 1 turn out the engine idled at 2200rpm.
At 3/4 turn out the engine idled at 2000rpm.
The idle adjustment screw is all the way out, not affecting idle at all.
The throttle spring is all the way closed against the throttle stop screw.

Currently I am at 4500rpm idle. I must have not seated the carbs back on after the last time I removed them. I can't think of anything I could have done when I moved the needle up yesterday that would have caused such a dramatic difference.

I am thinking that I need to start from square one again. I have not personally done the clear tube test and have not personally checked valve clearance.

I got a quote from a local shop that has cylinder heads for around $300. Is that reasonable to correct the exhaust port and spark plug issue?


I have not bought a head for a while.
Compare price against ebay. Local prices should be a little less.
You will need one with new valve stem seals and valves that seal.
You will also need to set valve lash/shim the head. The valve train
on your head can be transferred to another head.


.
2002 ZRX1200R
81 GPz1100
79 KZ1000st daily ride
79 KZ1000mk2 prodject
78 KZ650sr
78 KZ650b
81 KZ750e
80 KZ750ltd
77 KZ400/440 cafe project
76 KZ400/440 Fuel Injected

www.dotheton.com/forum/index.php?topic=39120.0


.
The following user(s) said Thank You: GPz550D1

Please Log in or Create an account to join the conversation.

KZ900 Carb Re-Jet and Tuning 20 Mar 2017 22:30 #757276

  • Z1Driver
  • Z1Driver's Avatar
  • Offline
  • User
  • love the smell of triple smoke
  • Posts: 301
  • Thank you received: 55
Looks like you have carb holders coming. Before you can get the carbs tuned however you have to do a valve check and make sure they are in spec. Next I would check the timing. If points set the points to spec. Might even through in a new set of spark plugs.

I'm going through the same thing on the Z1. I got some carb cleaner in the spray can. Ain't what it used to be but I found Valvoline carb cleaner to be a bout as nasty and environmentally unfriendly as one is going to get in a spay can today.

Clean clean clean. There is a VM chart on here someplace that tells you which ports to block when you spray carb cleaner. The clear tube test is a must do. You will be surprised.
Blue 1975 Z1B
Red 2009 Concours 14
The following user(s) said Thank You: GPz550D1

Please Log in or Create an account to join the conversation.

KZ900 Carb Re-Jet and Tuning 21 Mar 2017 08:18 #757308

  • Conspiracy
  • Conspiracy's Avatar Topic Author
  • Offline
  • User
  • Posts: 130
  • Thank you received: 18
I think the holders I have are ok. They do not seem to be hard or brittle. I will be delivering the bike to a mechanic to handle the valve clearance and determine if I need a new head.

I took my carbs off last night and will follow the chart for spray in/spray out.

Similar to you as well...I left my petcock in the On position the other night and came out to probably 1 gallon of fuel on my garage floor. The air filters were full of fuel as well.

Regarding the clear tube test...Did you buy the tool from z1e or make one? Where does one get the screw/nozzle for the clear tube?
Novice rider
1976 KZ900

Please Log in or Create an account to join the conversation.

Last edit: by Conspiracy.

KZ900 Carb Re-Jet and Tuning 21 Mar 2017 12:31 #757323

  • Z1Driver
  • Z1Driver's Avatar
  • Offline
  • User
  • love the smell of triple smoke
  • Posts: 301
  • Thank you received: 55
Personally I made one with a bowl drain plug/screw. Drilled a hole for a small piece of copper tube and soldered it. Then I went to the hardware store found a brass male connector of about the right size for the tube. cut in half and drilled it out to fit over the copper tube and soldered it in. This was my second attempt. One the first one I used a bigger copper tube and it worked just fine. But then it disappeared so I made another. The second one works better or maybe just looks better.
Blue 1975 Z1B
Red 2009 Concours 14
The following user(s) said Thank You: GPz550D1

Please Log in or Create an account to join the conversation.

KZ900 Carb Re-Jet and Tuning 21 Mar 2017 14:48 #757333

  • Conspiracy
  • Conspiracy's Avatar Topic Author
  • Offline
  • User
  • Posts: 130
  • Thank you received: 18

Z1Driver wrote: Personally I made one with a bowl drain plug/screw. Drilled a hole for a small piece of copper tube and soldered it. Then I went to the hardware store found a brass male connector of about the right size for the tube. cut in half and drilled it out to fit over the copper tube and soldered it in. This was my second attempt. One the first one I used a bigger copper tube and it worked just fine. But then it disappeared so I made another. The second one works better or maybe just looks better.


I've always been weary of soldering. Z1E has tool for $11.95 I'll probably just be a chump and buy one.
Novice rider
1976 KZ900

Please Log in or Create an account to join the conversation.

KZ900 Carb Re-Jet and Tuning 21 Mar 2017 20:17 #757362

  • Z1Driver
  • Z1Driver's Avatar
  • Offline
  • User
  • love the smell of triple smoke
  • Posts: 301
  • Thank you received: 55
The clear tube tool for checking float levels I saw on Z1E was $91.00 Not sure what you were looking at.
Blue 1975 Z1B
Red 2009 Concours 14
The following user(s) said Thank You: GPz550D1

Please Log in or Create an account to join the conversation.

KZ900 Carb Re-Jet and Tuning 21 Mar 2017 20:20 #757364

  • 650ed
  • 650ed's Avatar
  • Offline
  • User
  • Posts: 15344
  • Thank you received: 2828
The genuine OEM awasaki tool is $91; the non-OEM is $12. See link below. Ed

www.z1enterprises.com/catalogsearch/result/?cat=&q=fuel+level
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
The following user(s) said Thank You: GPz550D1

Please Log in or Create an account to join the conversation.

Last edit: by 650ed.

KZ900 Carb Re-Jet and Tuning 21 Mar 2017 20:38 #757367

  • Z1Driver
  • Z1Driver's Avatar
  • Offline
  • User
  • love the smell of triple smoke
  • Posts: 301
  • Thank you received: 55
Yeah I would have bought the non OEM tube too.

But mine works well enough.
Blue 1975 Z1B
Red 2009 Concours 14

Please Log in or Create an account to join the conversation.

KZ900 Carb Re-Jet and Tuning 22 Mar 2017 07:12 #757389

  • slmjim+Z1BEBE
  • slmjim+Z1BEBE's Avatar
  • Away
  • User
  • Enjoy Life! IT HAS AN EXPIRATION DATE!
  • Posts: 1105
  • Thank you received: 583
In our much younger, poorer days we used clear aquarium tubing of the correct OD that it would just sort of "screw in" to the hole for the drain plug. Not elegant but it worked fine.

Good Ridin'
slmjim & Z1BEBE
A biker looks at your engine and chrome.
A Rider looks at your odometer and tags.

1972 Z1 x2
1974 Z1-A x2
1975 Z1-B x2
1993 CB 750 Nighthawk x2
2009 ST1300A

www.kawasaki-z-classik.com
An enthusiast's forum focused exclusively
on all things Z1, Z2 and KZ900.

The following user(s) said Thank You: GPz550D1, Conspiracy

Please Log in or Create an account to join the conversation.

KZ900 Carb Re-Jet and Tuning 22 Mar 2017 07:20 #757391

  • Conspiracy
  • Conspiracy's Avatar Topic Author
  • Offline
  • User
  • Posts: 130
  • Thank you received: 18

Z1Driver wrote: Clean clean clean. There is a VM chart on here someplace that tells you which ports to block when you spray carb cleaner. The clear tube test is a must do. You will be surprised.


Does anyone have this chart bookmarked? I found it yesterday but cannot find it now. I think maybe Patton posted it?
Novice rider
1976 KZ900

Please Log in or Create an account to join the conversation.

KZ900 Carb Re-Jet and Tuning 22 Mar 2017 07:52 #757394

  • Conspiracy
  • Conspiracy's Avatar Topic Author
  • Offline
  • User
  • Posts: 130
  • Thank you received: 18

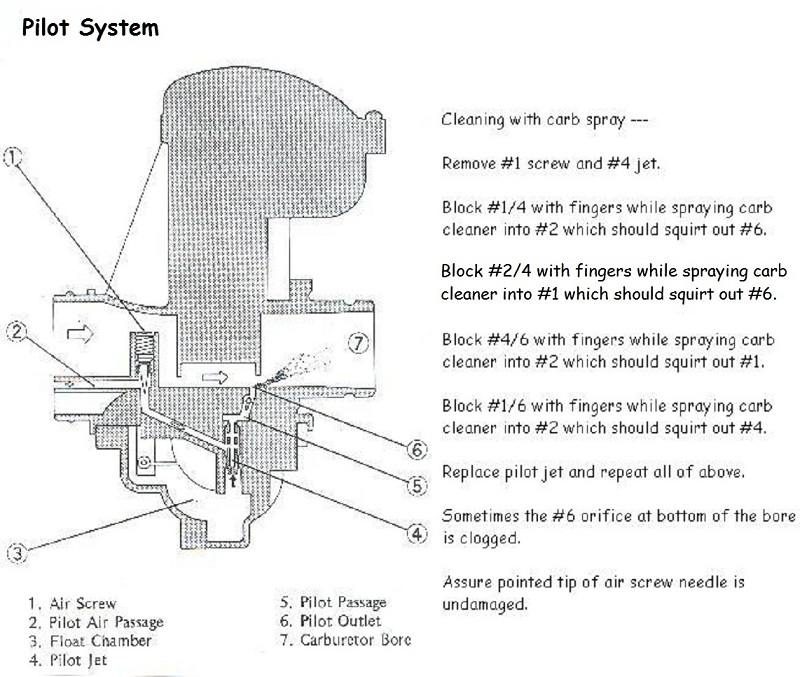

Found it, Posting here so I don't have to go searching. If anyone has the chart from the air side (front) please post.
Novice rider
1976 KZ900
Attachments:
The following user(s) said Thank You: GPz550D1
