last weekend my wife and i travelled to eureka springs ark.for our tenth wedding anniversary,on the z1r.well last year we rode to fayetville ark.for bikes blues and barbeque and plan to attend again this year.last year we just strapped a duffel bag on the tail piece and went.well i got a couple chips in my paint and some stress cracks.so i figured i would build a custom luggage rack that could be removed with a few bolts.i already have spacers behind my upper shock mounts to space my shocks out for the wide swingarm and wheel combo.so it was just to build some new steel ones(the old ones are alu.) and mill the holes out to slots so that they could be slid on and off the shock studs.then i machined out some spacers that would fit in the turn signal mount holes and countersunk the back side for c/s headed allen bolts.i also had to machine out some threaded bungs to bolt to that would get welded into the rack.i had some stainless 3/4 inch o.d. with an .065 wall and decided to use it.so i bent it all up and tacked it.then removed it and welded it all out and scuffed and shot some black on it.
i thought it turned out well,and it served it's purpose for 450 miles with a overstuffed duffel bag on it.
this pic shows the mounting points.


here is the left side

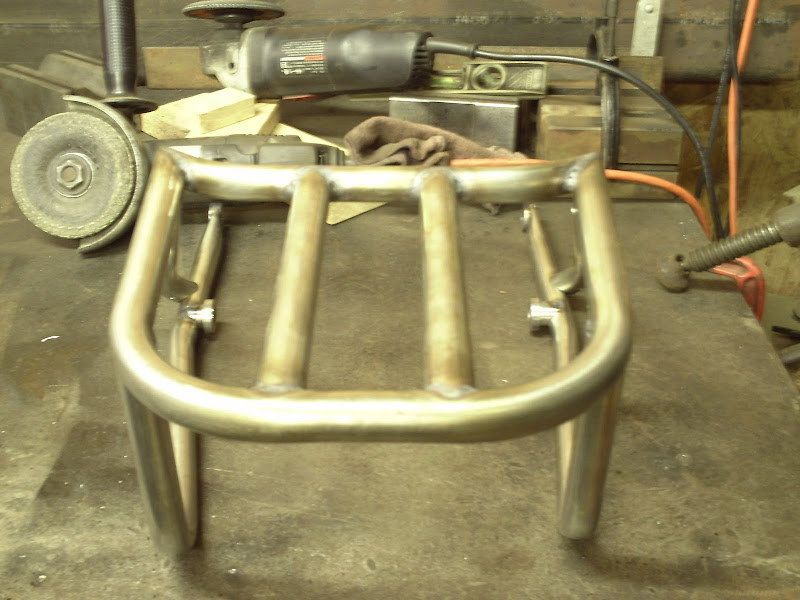

the top of the rack

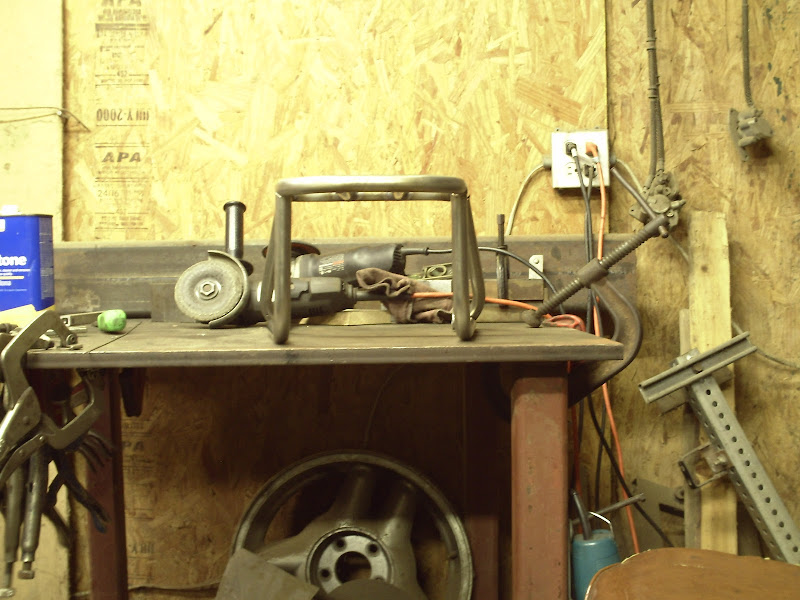

from the front


back top

back

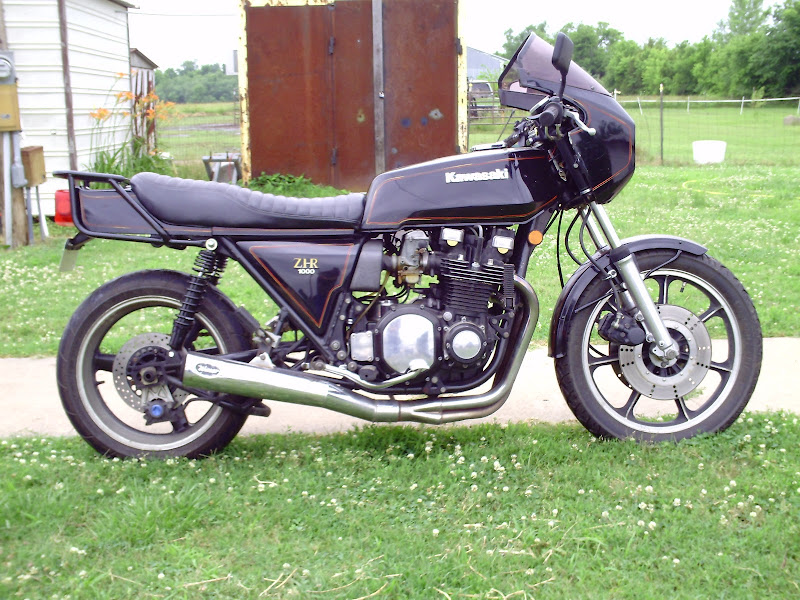

black and mounted
